Overview

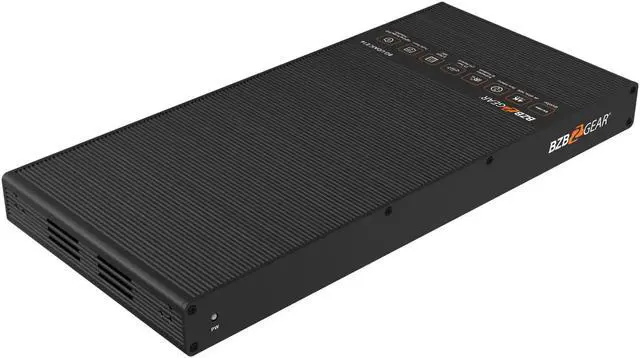

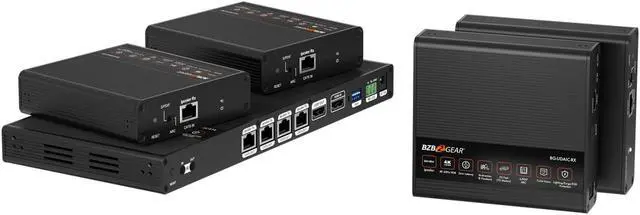

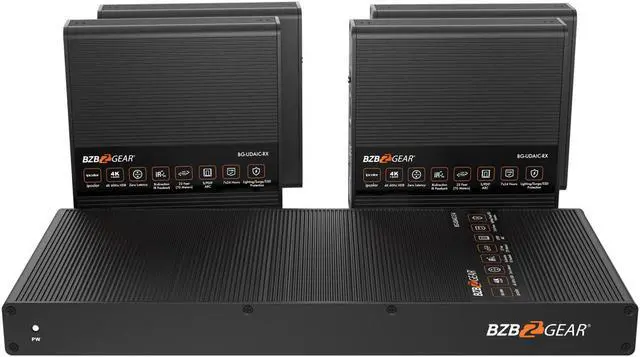

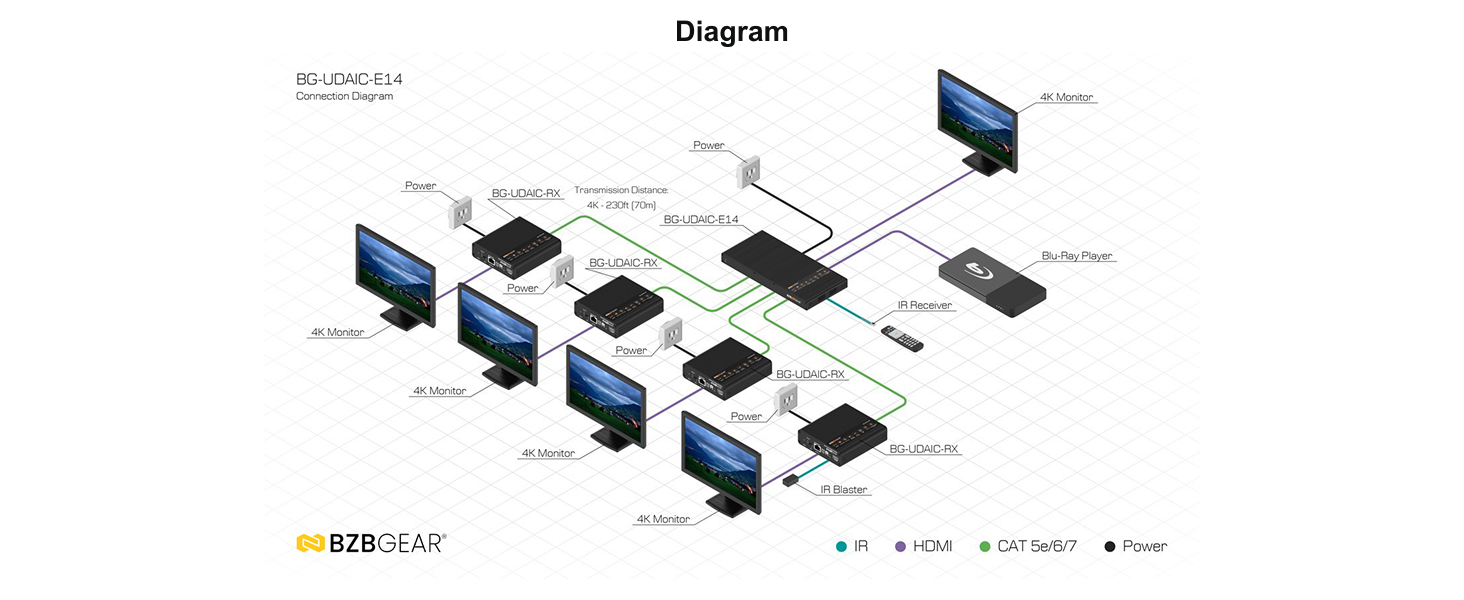

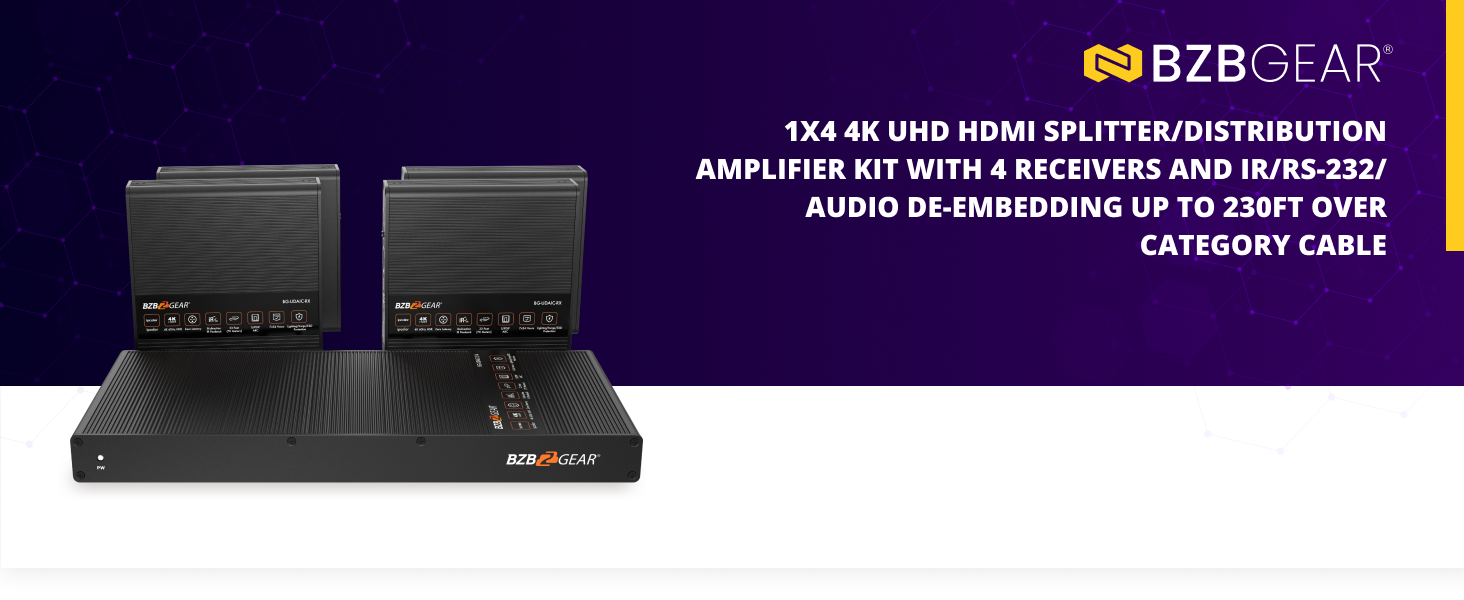

The BG-UDAIC-E14 by BZBGEAR is a high-performance extender/splitter kit that enables users to distribute one HDMI input to up to four extender outputs and extend signals up to 70 meters (230 feet) with CAT 6/6A/7 network cables. This solution is ideal for transmitting audio and video signals from a source located at a remote distance, providing reliable and zero-latency connectivity without compromising on quality.
The BG-UDAIC-E14 supports resolutions up to 4K@60Hz, delivering stunning visuals with uncompromising clarity and precision. The extender/splitter kit offers zero-latency transmission, ensuring that audio and video sync perfectly without any noticeable delay. Using a wired connection for this purpose guarantees higher and more consistent image quality, making it ideal for professional applications where quality is paramount.

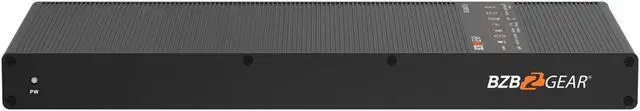

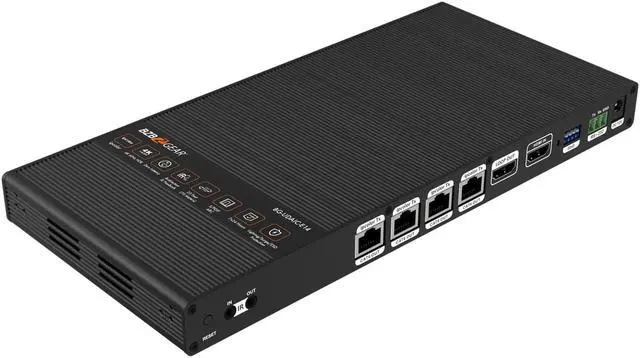

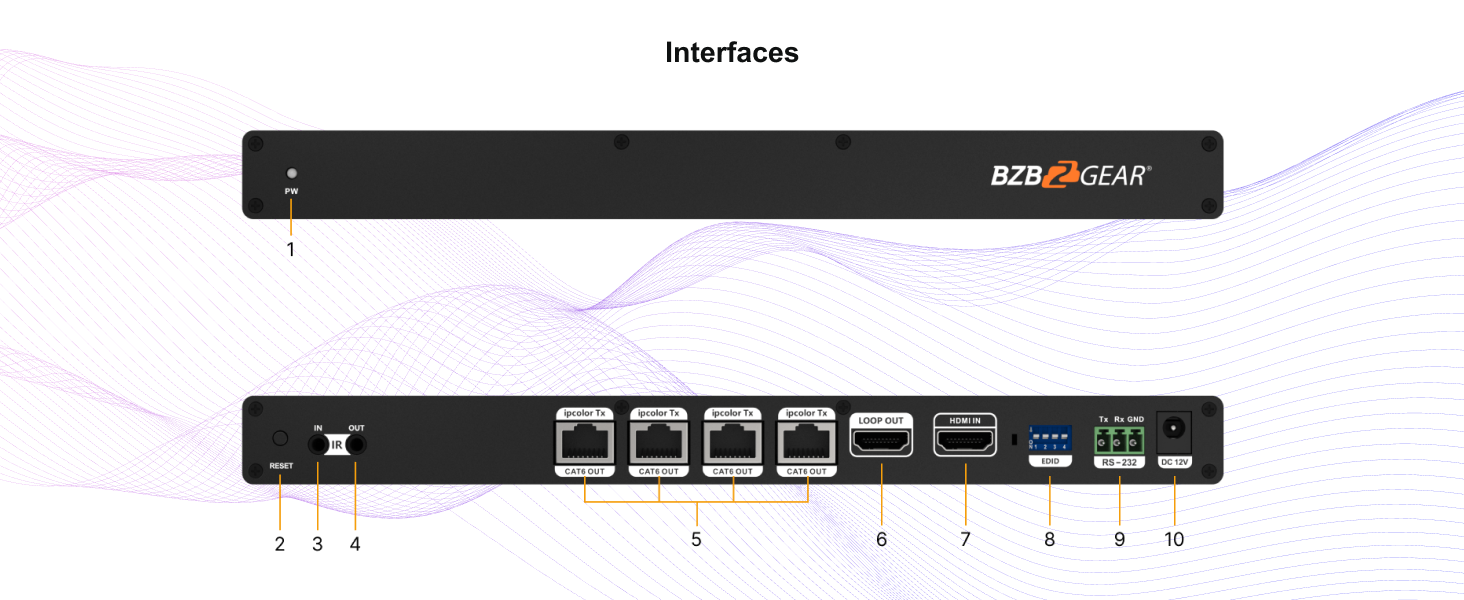

- Power indicator: The blue light will illuminate when powered on.
- Reset button: Restarts the device.
- IR in: Connects using an IR receiver extension cable.
- IR out: Connects using an IR blaster extension cable.
- RJ45 output port: Connect using Cat6/6A/7 network cables.
- HDMI Loop Out port: Connects to a local HDMI display device using an HDMI cable.
- HDMI input port: Connects to an HDMI source device using an HDMI cable.
- EDID DIP switch: Configure output resolution using the EDID DIP switch.
- RS-232 Port: Connects to an external device to control the transmitter.
- Power: Connects to the DC 12V/2A power adapter.
