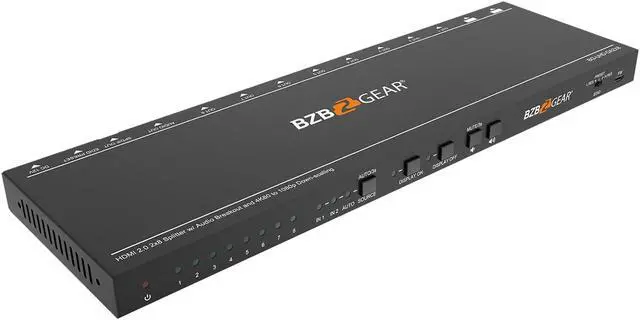

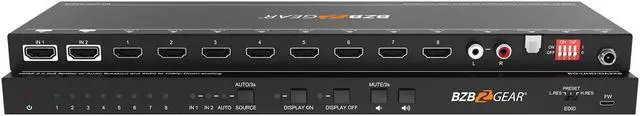

BZBGEAR 2x8 4K UHD HDMI Splitter/Distribution Amplifier with CEC Support

The BG-UHD-DA2X8 is an 8-way 4K HDMI splitter with two inputs. With a maximum resolution of 4K@60Hz, this unit makes it easy for users to share two 4K sources with up to 8 displays. This device is a simple, cost-effective solution for restaurants, bars, and retail spaces.

Connectivity & Features

The BG-UHD-DA2X8 supports resolutions up to 4K@60Hz (4:4:4). This device is also compliant with HDCP 2.2 and HDMI 2.0. With the automatic 4K to 1080P downscaling feature, legacy displays can easily be integrated with no extra setup required. The integrated equalizer ensures stable signal is sent to all outputs, while the EDID management provides stable HDMI connections to all displays.

Audio Extraction is provided via the stereo RCA and Toslink connections, allowing the BG-UHD-DA2X8 to be connected to an external audio system. CEC control allows the splitter to turn compatible displays on, off, and adjust volume levels for easy centralized control.

Features:

• 4K Support - Supports resolutions up to 4K@60Hz with 4:4:4 Chroma sampling
• Video Scaling - Supports 4K to 1080p down-scaling
• Customizable EDID - Eliminates HDMI connection issues
• Volume Control - Easily adjust audio output signal levels
• Dual Input - Easily toggle between sources
• Audio De-Embedding - Features RCA Stereo and Toslink outputs
• HDMI inputs support HDCP 2.2 and the outputs support HDCP1.4
• 18Gbps high bandwidth
• Built-in equalizer for signal enhancement to avoid signal attenuation in transmission
• Supports CEC control to turn on/off displays and adjust their volume
• Provides LEDs to indicate the current operating status and to assist troubleshooting and installation
• Firmware upgrade by Micro-USB port
