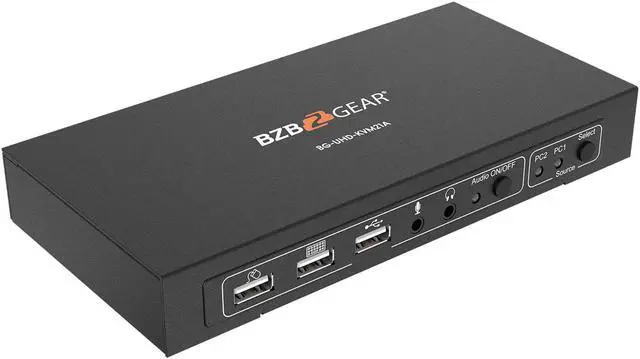

BZBGEAR 2x1 4K UHD KVM Switcher with USB2.0 Ports for Peripherals and Audio Support

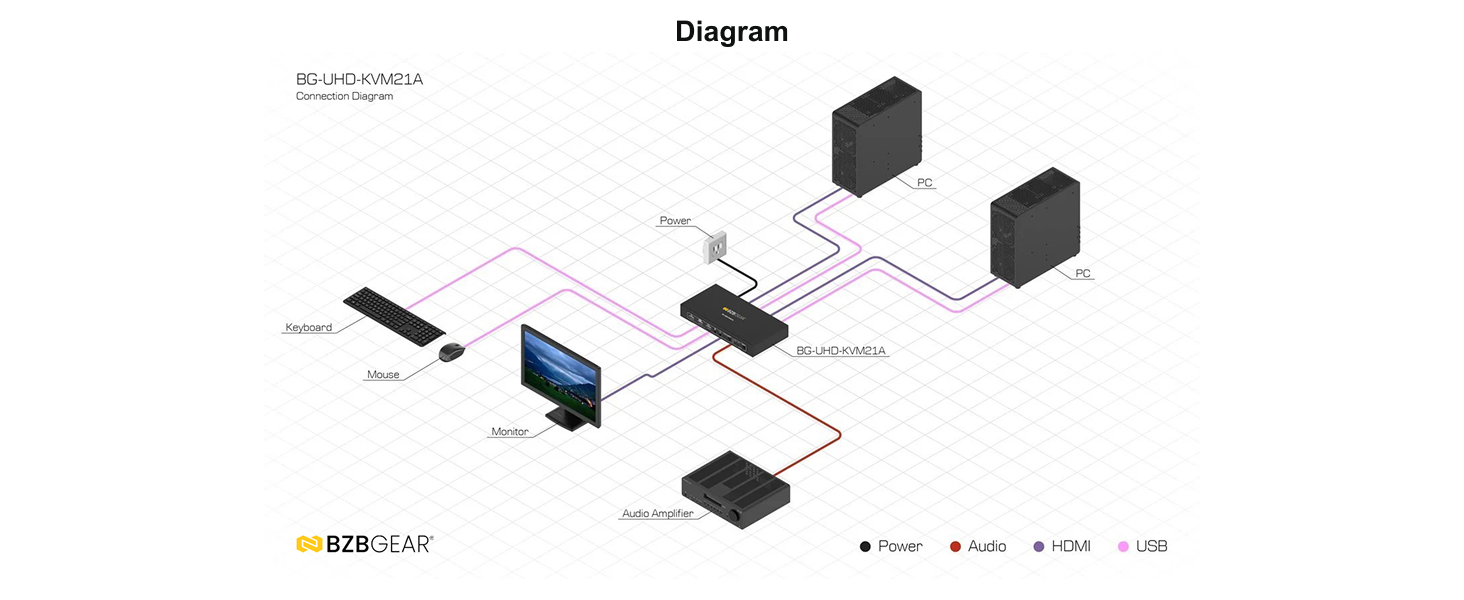

The BG-UHD-KVM21A is a 4K HDMI USB 2.0 KVM switch. With support for resolutions up to 4K@30Hz, this device allows users to control two computers and share USB peripherals from a single workstation. Perfect for offices, software programmers, and technical support desks, users can easily switch between multiple operating systems without leaving their seat.

Connectivity and Features

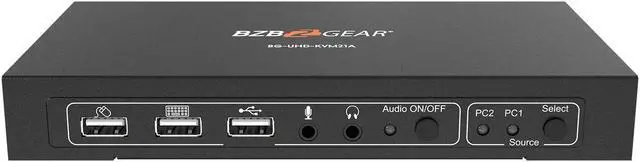

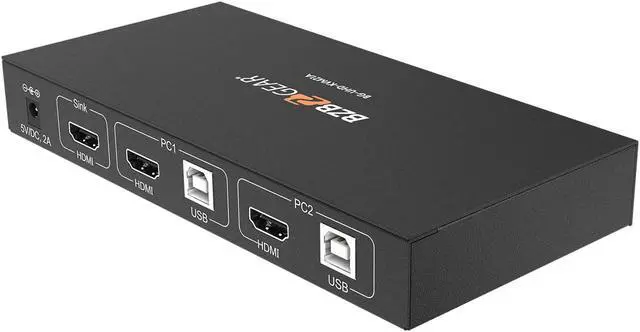

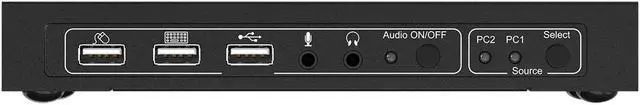

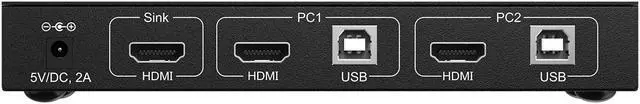

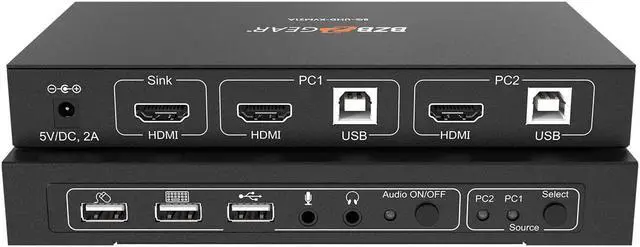

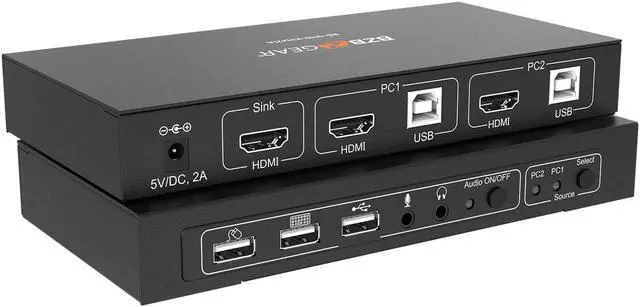

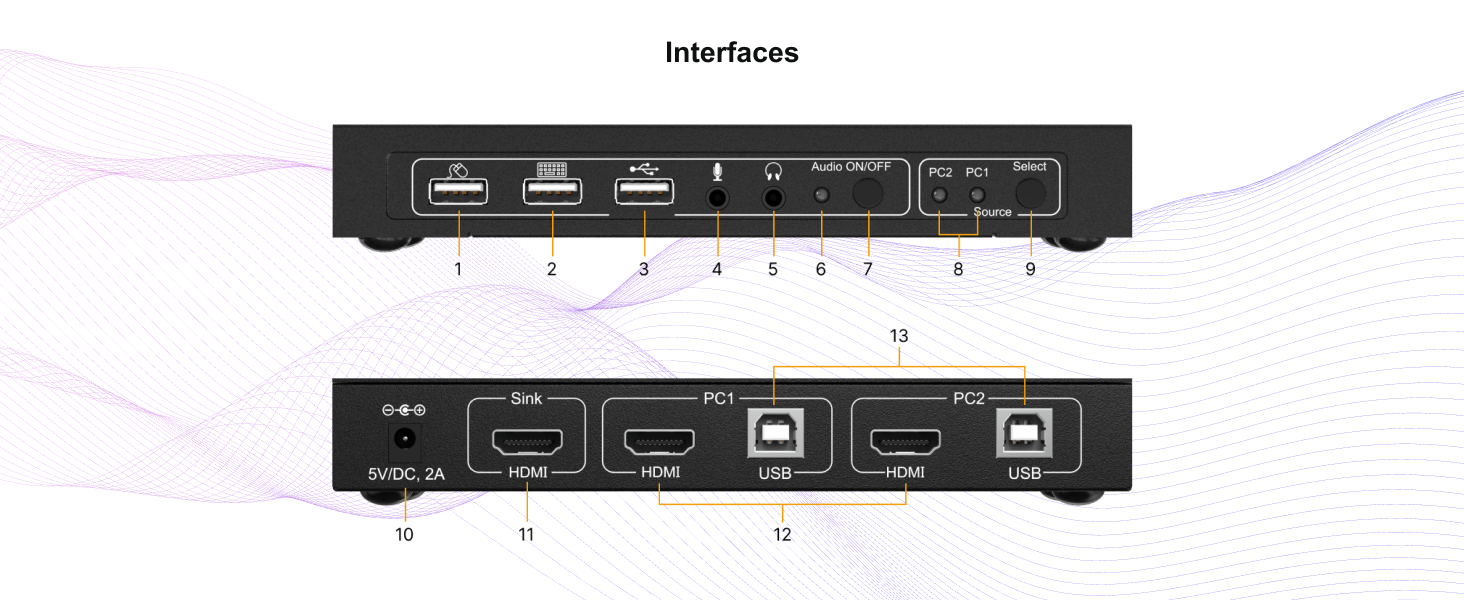

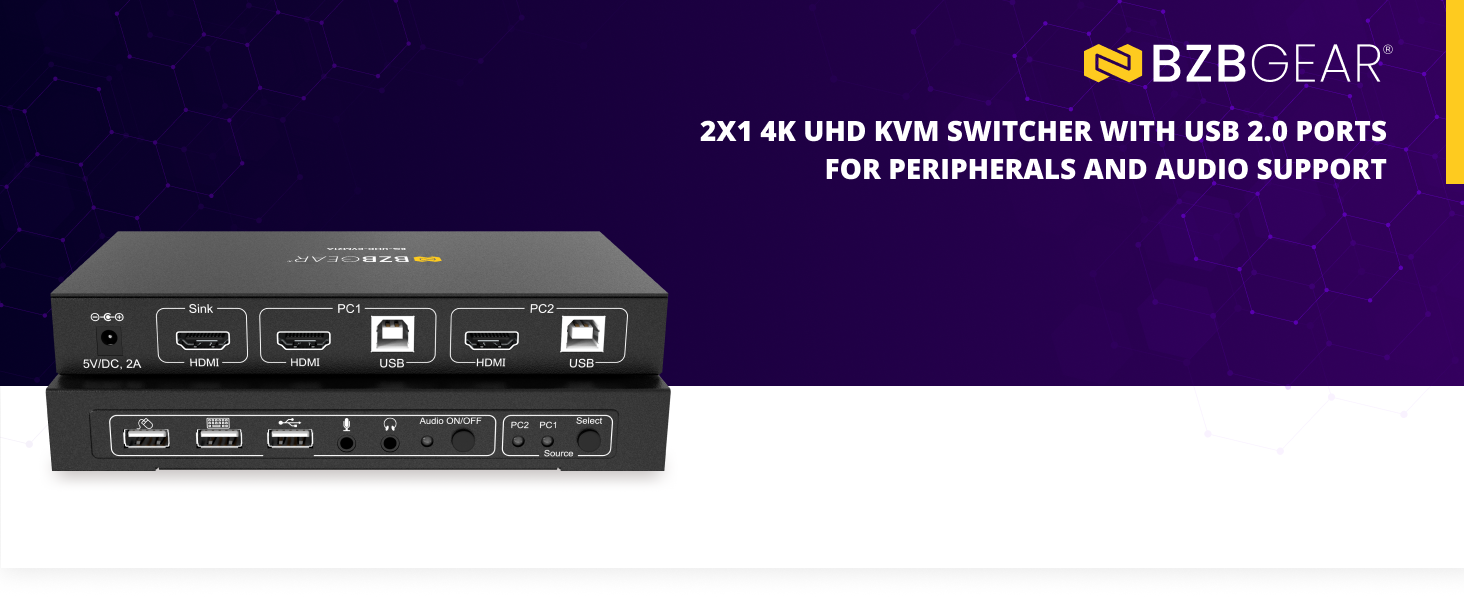

The rear panel of the BG-UHD-KVM21A is equipped with two PC connections, each including one USB 2.0 type-B host port and one HDMI 1.4 input. There is also one HDMI 1.4 output for connection to a monitor. On the front panel, there are three USB 2.0 ports for a keyboard, mouse, and a spare port for additional devices. The BG-UHD-KVM21A also provides 3.5mm audio connections for a microphone and headphones/speakers.

Control

The BG-UHD-KVM21A is simple to operate using the front panel buttons. The source select button toggles between the two connected computers, switching the HDMI and peripheral connections. It can also be operated using hotkeys. There is also an audio toggle which enables/disables the audio in/out connections.

Features:

• 4K - Supports resolutions up to 4K@30Hz
• KVM - Remotely control 2 computers from a single screen
• Compliant - HDMI 1.4 and HDCP compliant to ensure copyright protections
• USB 2.0 - Conveniently share 3 x USB 2.0 peripherals between two computers
• Stereo 3.5mm Input/Output - Share headphones and microphone between two computers
• Compatible - Works with Mac OS, Windows, and Linux
• Share an HDTV or display, USB keyboard & mouse, and microphone between 2 USB/HDMI computers and devices
• Provides an additional USB 2.0 sharing port with over-current detection and protection
• Switch between devices via front push button or hotkey
• Supports Dolby True HD and DTS HD Master Audio formats
• Video bandwidth: up to 3Gbps
• Metal housing for better RF shielding
