BZBGEAR 4-Port 4K UHD KVM and Conference Room Switcher with HDMI and USB3.0 Kit with 4 Table Grommets

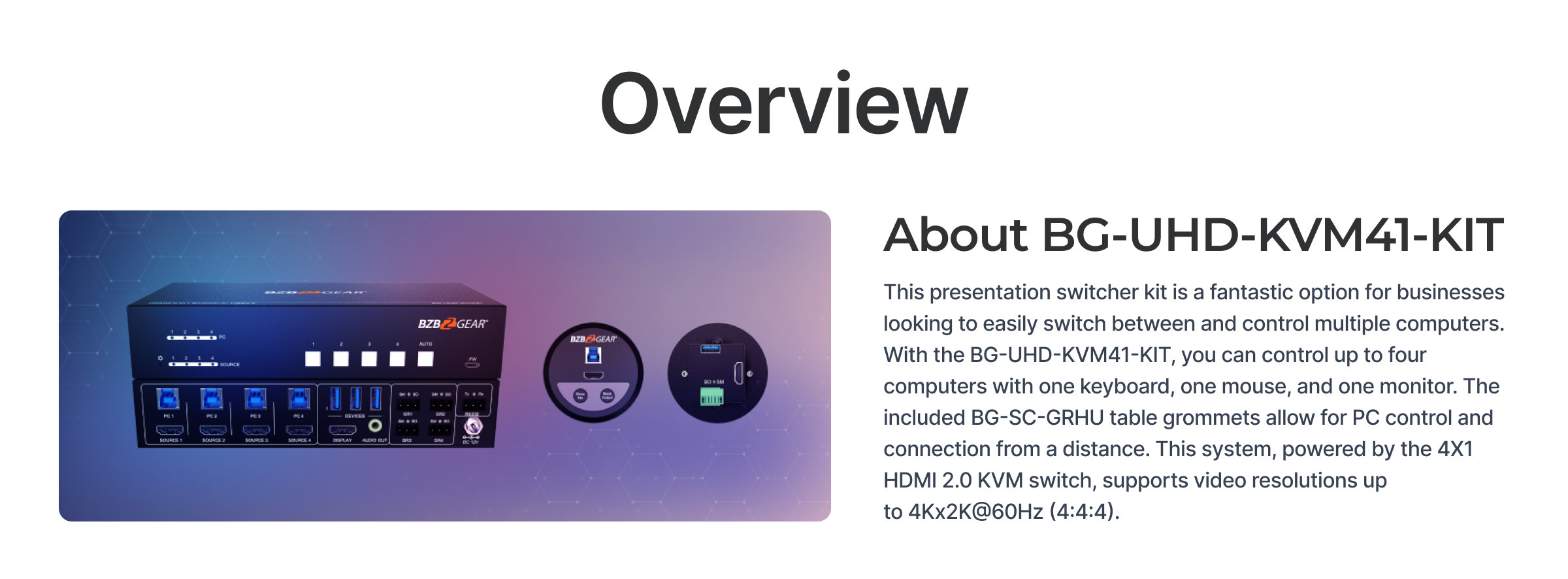

This presentation switcher kit is a fantastic option for businesses looking to easily switch between and control multiple computers. With the BG-UHD-KVM41-KIT, you can control up to four computers with one keyboard, one mouse, and one monitor. The included BG-SC-GRHU table grommets allow for PC control and connection from a distance. This system, powered by the 4X1 HDMI 2.0 KVM switch, supports video resolutions up to 4Kx2K@60Hz (4:4:4).

This device is an ideal solution for anyone looking to run advanced presentations in conference rooms with multiple presenters, as multiple users will be able to share their screens at once. The table grommets allow users to plug in their own devices easily with no fuss, allowing them to select themselves as the video source and to blank out their screen at the push of a button.

Users will love the flexibility and utility that the BG-UHD-KVM41-KIT provides thanks to its comprehensive control and connectivity. This presentation switcher kit helps organizations move forward in a world of ever-evolving digital experiences.

Connectivity & Control

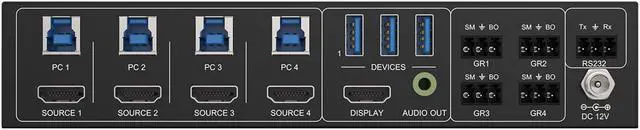

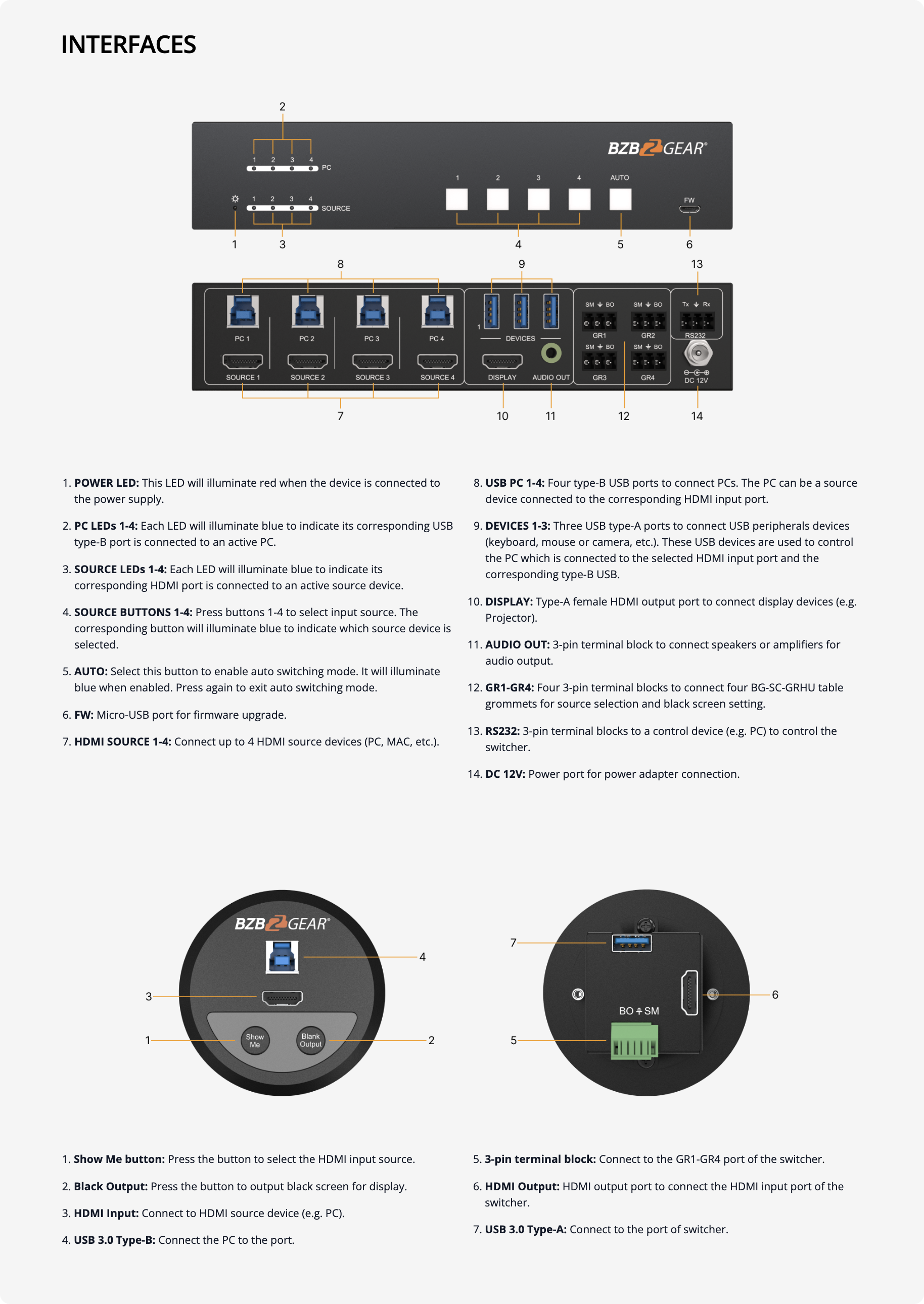

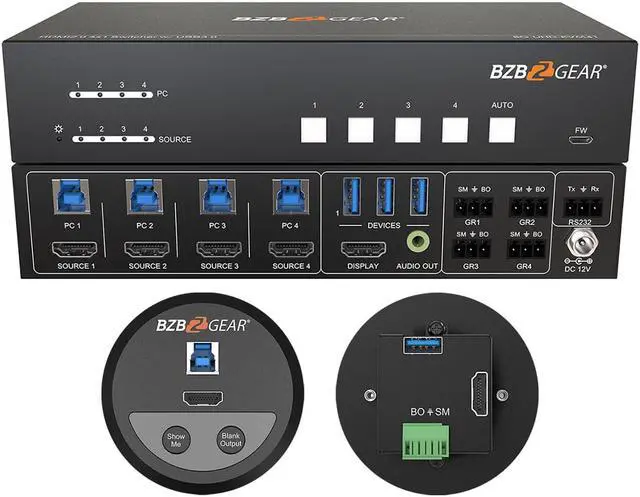

The BG-UHD-KVM41-KIT’s 4X1 HDMI 2.0 KVM switch features four HDMI video inputs and one HDMI output. The four type-B USB 3.0 host ports and three type-A ports provide KVM management and peripheral connections. The system is compatible with Windows, Linux, and MacOS computers for maximum flexibility. A 3.5 mm stereo audio output is included for audio de-embedding. The system can be controlled via front panel buttons and RS232 commands.

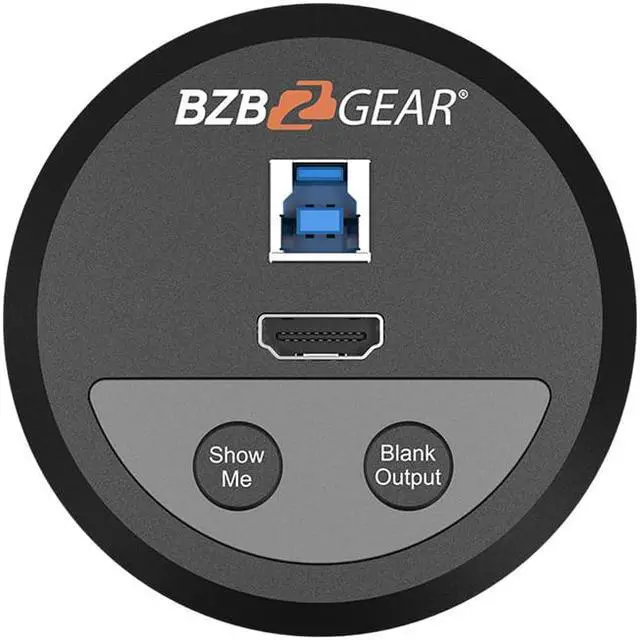

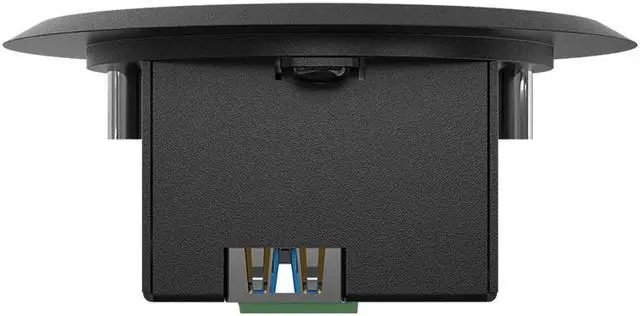

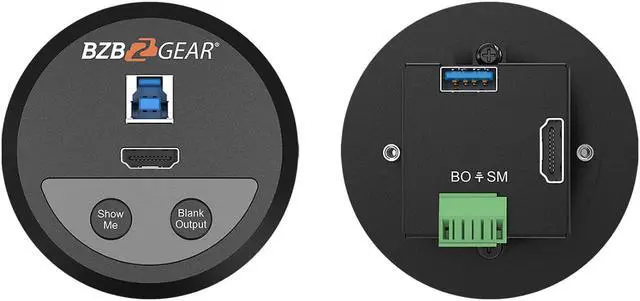

There are four ports that connect the BG-SC-GRHU table grommets for source selection. The BG-SC-GRHU table grommets each feature an HDMI input and a Type-B USB 3.0 connection. There are also controls for source selection and users are given the option to turn their video off to show a black screen instead. The grommets support resolutions up to 4Kx2K@60Hz.

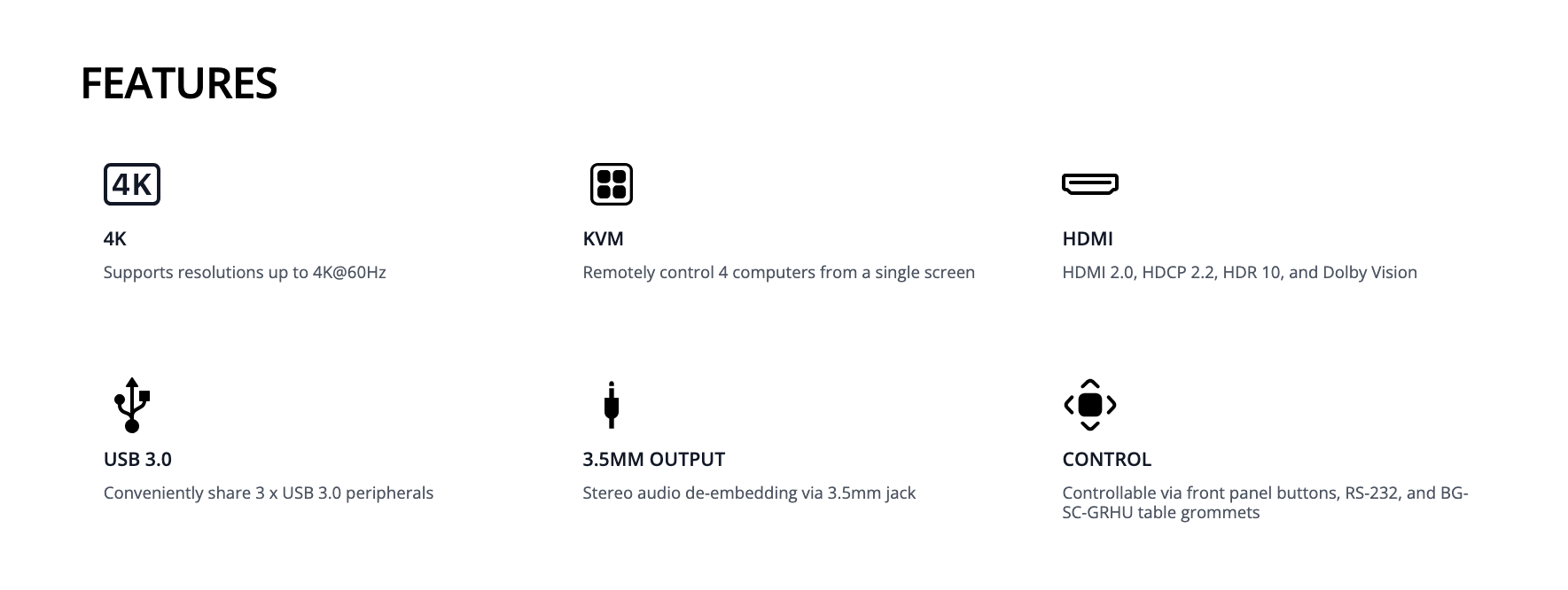

Features

• 4K - Supports resolutions up to 4K@60Hz
• KVM - Remotely control 4 computers from a single screen
• HDMI - HDMI 2.0, HDCP 2.2, HDR 10, and Dolby Vision
• USB 3.0 - Conveniently share 3 x USB 3.0 peripherals
• 3.5mm Output - Stereo audio de-embedding via 3.5mm jack

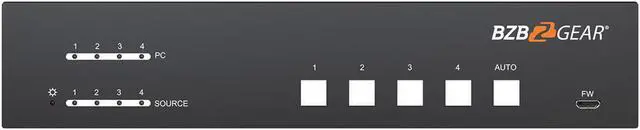

• Control - Controllable via front panel buttons, RS-232, and BG-SC-GRHU table grommets
• Simplifies wiring for easy installation
• KVM auto-switching based on TMDS/5V detection
• Compatible with Windows, Mac, and Linux
