Description
This PCI Express controller with Base-T copper networking interface,provides compact, single-port integrated multi-gigabit (up to 2.5G) -MDI (Copper) standard IEEE 802.3 Ethernet interface for 2500BASE-T,1000BASE-T, 100BASE-TX, 10BASE-TE connections (IEEE 802.3,802.3u, 802.3ab).
The Ethernet Controller I225 is designed for use on any mobile,desktop, workstation, value-server, or industrial designs that have critical space constraints. The I225 can also support Intel vPro technology onspecific Intel platforms and chipsets.
The Ethernet Controller I225 also supports the latest time sensitive networking (TSN) features, along with best in class power management and Operating System Support
Specification

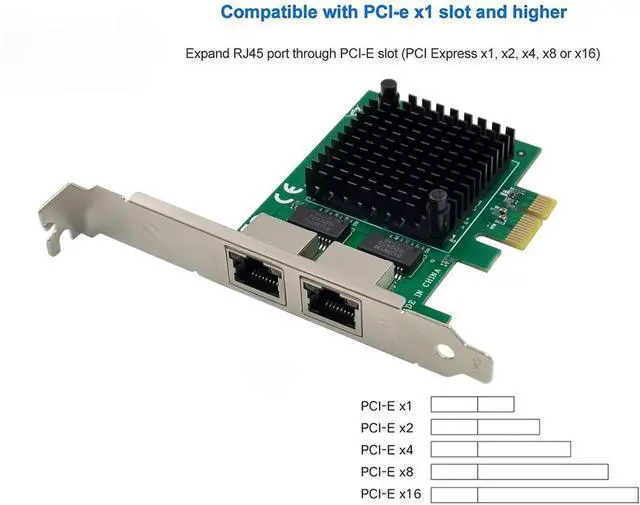

Compliant with PCI Express specification Revision 3.1(5GT/s)
MDI(Copper) standard IEEE802.3 Ethernet interface up to 2.5Gb/s
Complies with single port 1GbE RJ45 port (copper)
Complies with the MDI standard IEEE802.3 Ethernet interface for 2500BASE-T,1000BASE-T,100BASE-TX,10BASE-TE application( IEEE802.3bz, IEEE802.3ab ,IEEE802.3u and IEEE802.3 )
IEEE802.3 Auto-negotiator
IEEE802.3x and IEEE802.3z compliant flow control support with software-controllable RX thresholds and TX pause frames
Automatic cross-over detection function(MDI/MDI-X)
IEEE 1588 Protocol and 802.1AS implementation
Supporting Time Sensitive Networking(TSN) Capabilities
Support IEEE802.3az-Energy Efficient Ethernet(EEE),EEE is supported for 2500BASE-T, 1000BASE-T and 100BASE-TX.
TCP/UDP,IPv4 checksum offloads(Rx/Tx)
Transmit Segmentation offloading(TSO)(IPv4,IPv6)
Support for packets up to 9.5KB Jumbo Frames
PXE Support:Linux boot via PXE or BOOTP, Windows Deployment Services, or UEFI
Drivers for WindowsR10 32 or 64bit
Package content
1 x PCIe I225-V Single-2.5G Network card
1 x User’s Manual
1 x Low profile bracket

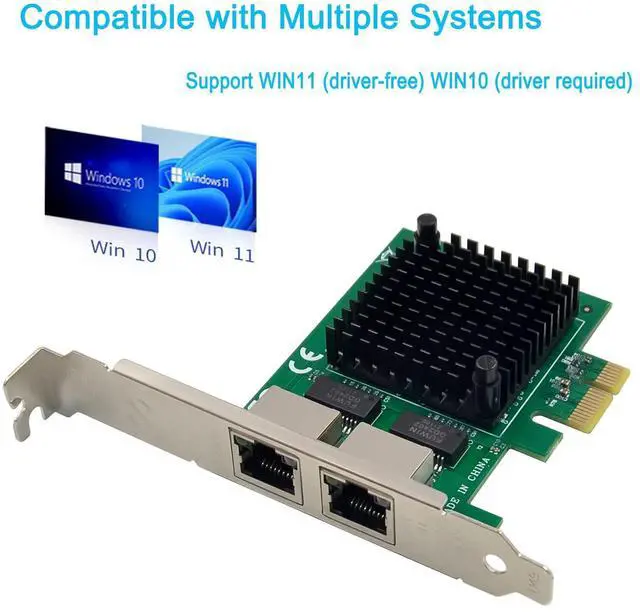

Compatible with Multipble Systems
Support Win10/11,Linux Kernel 5.8/5.16.18,RHEL 8.1/8.3/8.6,Ubuntu* 22.04 LTS,FreeBBSD 13.0,VMware ESXi7.0/8.0,DPDK 20.05/22.07,OPENWRT/UNRAID/PVE.Support PXE function
Troubleshooting Tips
Why can't my computer detect the 2.5Gbps Ethernet PCIe card?
1. See if the golden connectors on the card are clean; if not, clean the connector surface.
2. Make sure that the PCI Express card is correctly plugged into the PCI Express slot; if not, turn off the computer and plug it in again.
3. If still NOT, please change another PCI Express slot on your motherboard.
4. The motherboard itself might be defective. You can try another motherboard testing the 2.5Gbps Ethernet PCle Card working or not.
Why can't I use Gigabit Ethernet transfer speeds?
1. Please affirm your Ethernet environment supporting the Gigabit structure. 2.Please use CAT 6 UTP/STP cable
