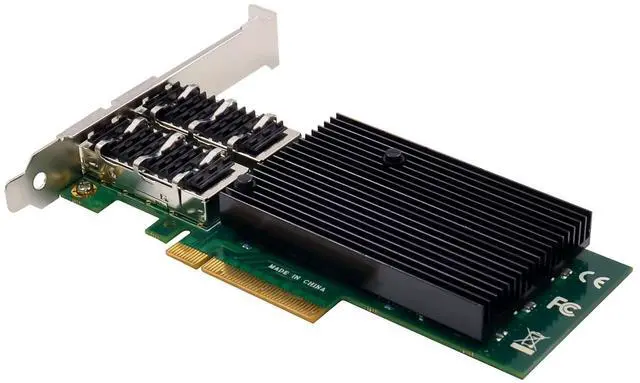

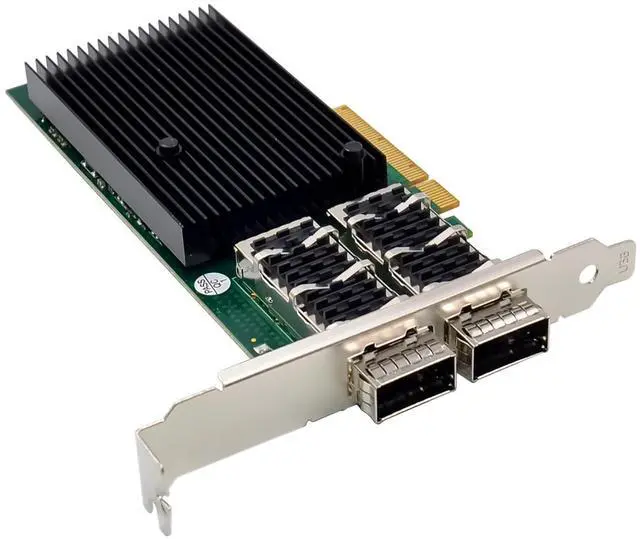

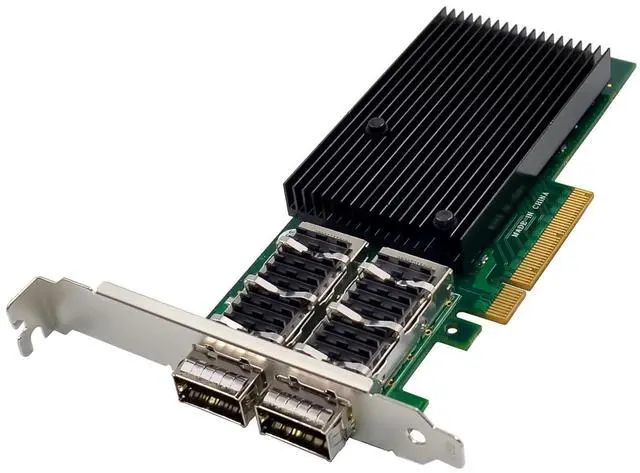

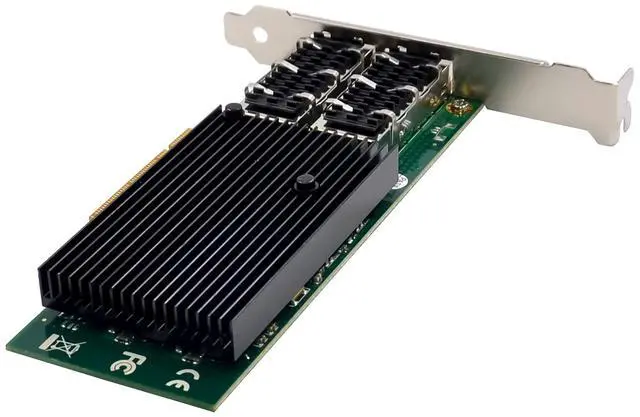

C&N Mellanox ConnectX-3 Dual-Port QSFP+ 40GbE Network Card - PCIe 3.0 x8 Enterprise/Data Center NIC with Hardware Offload & RoCE Support
- High-performance network connectivity: Supports dual-port 40Gb Ethernet and FDR-14 InfiniBand, providing up to 56Gbps of bandwidth for high-performance computing and data center environments.
- Low Latency and High Throughput: Supports RDMA (Remote Direct Memory Access) and RoCE (RDMA over Converged Ethernet) with latency as low as 1 microsecond, significantly improving network performance.
- Virtualization Support: Supports SR-IOV (Single Root I/O Virtualization) with up to 127 virtual functions for virtualized server environments and reduced CPU load.
- Multi-protocol compatibility: Compatible with PCIe 3.0, 2.0, and 1.1, supports multiple network protocols (e.g., TCP/UDP/IP, iSCSI, etc.), and supports multiple operating systems (Linux, Windows, VMware, etc.).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
PCIe x8 Mellanox Connectx-3 Dual-Port 40G QSFP adapter with PCI Express 3.0 deliver high-bandwidth and industry-leading Ethernet connectivity for performance-driven server and storage applications in Enterprise Data Centers, High-Performance Computing, and Embedded environments. Clustered databases, web infrastructure, and high frequency trading are just a few applications that will achieve significant throughput and latency improvements resulting in faster access, real-time response and more users per server. ConnectX-3 EN improves network performance by increasing available bandwidth while decreasing the associated transport load on the CPU especially in virtualized server environments.
Specification
PCI-Express host interface specification v3.0 x8 and Complete with PCIe2.0 and 1.1
Two 40 Gigabit QSFP+ Ethernet ports
Compliant with QSFP+ MSA Spec Rev 1.0
Two QSFP ports supporting FDR-14 InfiniBand or 40Gb Ethernet
Support for InfiniBand FDR speeds of up to 56Gbps (auto-negotiation FDR-10, DDR and SDR)

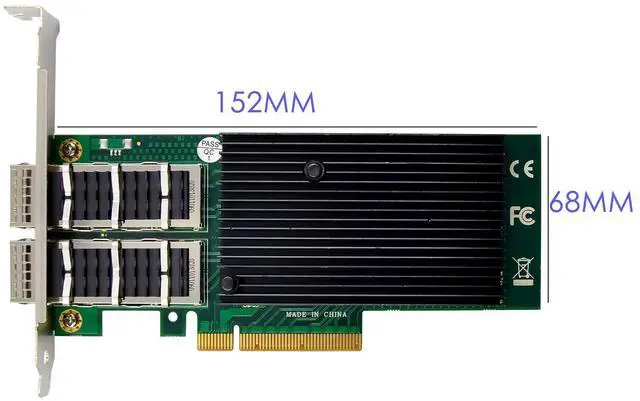

Low-profile form factor adapter with 2u bracket
Virtual protocol interconnect (VPI)
InfiniBand Architecture specification v1.2.1 compliant
IEEE Std. 802.3 compliant
Compliant with copper cables and optical cables with the use of QSFP connectors.
Support for SFP+ cables available through QSA (Quad to Serial)
CORE-Direct application off-load
GPUDirect application off-load
RDMA over converged Ethernet (RoCE)
End-to-End QoS and congestion control
TCP/UDP/IP stateless off-load
Ethernet encapsulation (EoIB)
SR-IOV support;16 virtual functions supported by KVM and Hyper-V(OS dependant ) up to a maximum 127 virtual functions supports by the adapter
Enables low latency RDMA over 40GbEthernet (supported with both non-virtualized and SR-IOV enable virtualized servers)latency as low as 1us
Traffic steering across multiple cores
Microsoft VMQ/VMware Net Queue support
Industry-leading throughput and latency performance
Legacy and UEFI PXE network boot support
Supports iSCSI as a software iSCSI initiator in NIC mode with NIC driver
Supports Operation Systems: FreeBSD, Linux5.x and above, VMware, Windows server2008/2012/2016/2019, win7/win8/win8.1/win10 32 or 64bit

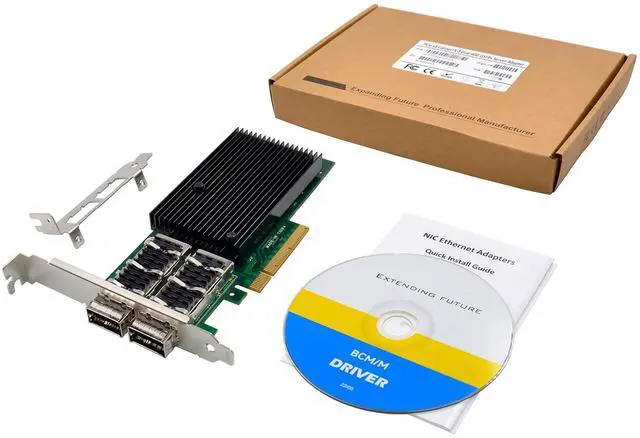

Package content
1 x PCIe x8 Mellanox Connectx-3 Dual-Port 40G QSFP adapter
1 x Users Manual
1 x CD Driver

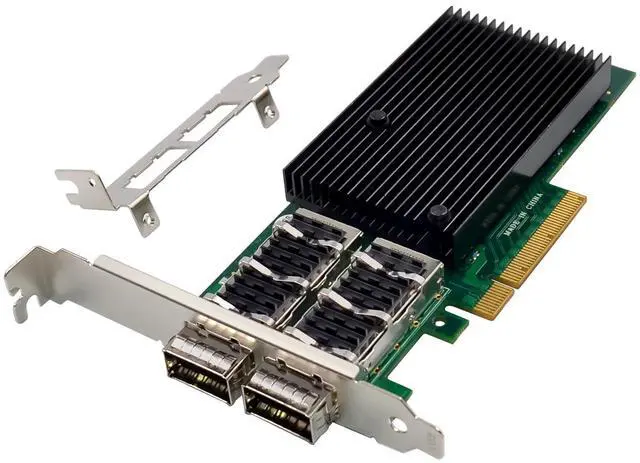

1 x Low profile bracket
Product information
| Brand | C&N |
| Hardware Interface | Ethernet |
| Compatible Devices | Desktop |
| Data Link Protocol | Ethernet |
| Data Transfer Rate | 10 Gigabytes Per Second |
| Item Weight | 0.25 Kilograms |
| Manufacturer | C&N |
| Package Dimensions | 8.82 x 6.34 x 1.26 inches |
| Item model number | ST7288 |
| Date First Available | February 19, 2025 |
Additional Features
- Hardware offload function: supports CORE-Direct and GPUDirect technologies, which can offload application loads and improve data processing efficiency, especially suitable for application scenarios such as clustered databases and high-frequency trading.
