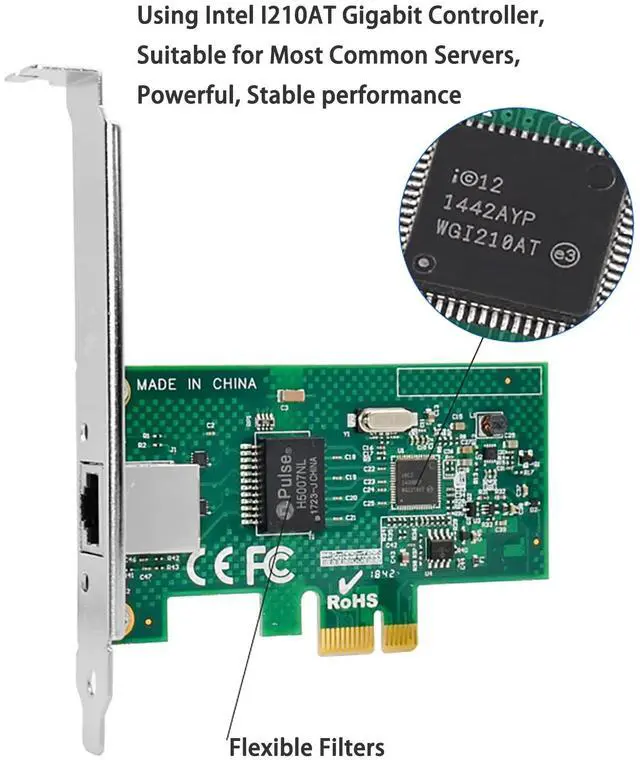

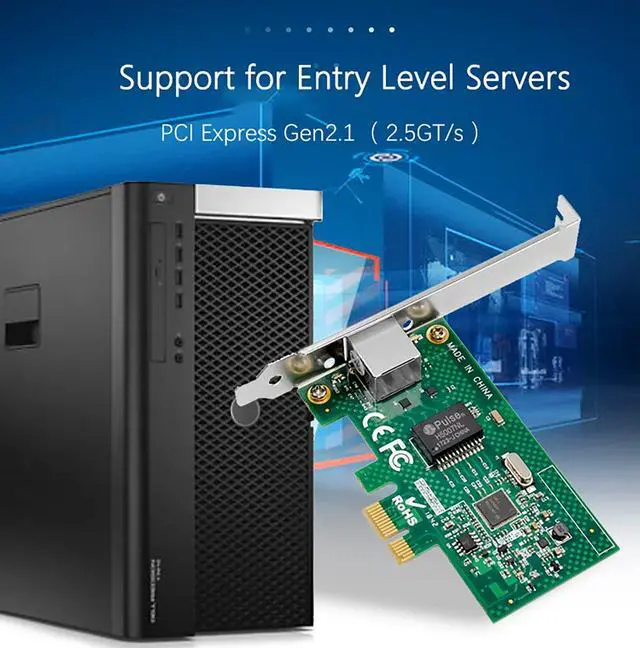

The PCIe Network card with Intel I210 provides a full-featured Gigabit Ethernet Media Access Control (MAC) and Physical-Layer (PHY) for Desktop, Server, and Embedded Applications. This controller is ideal for embedded applications such as industrial automation, in-vehicle infotainment, medical, print imaging, telecommunications infrastructure, and for military.
Features

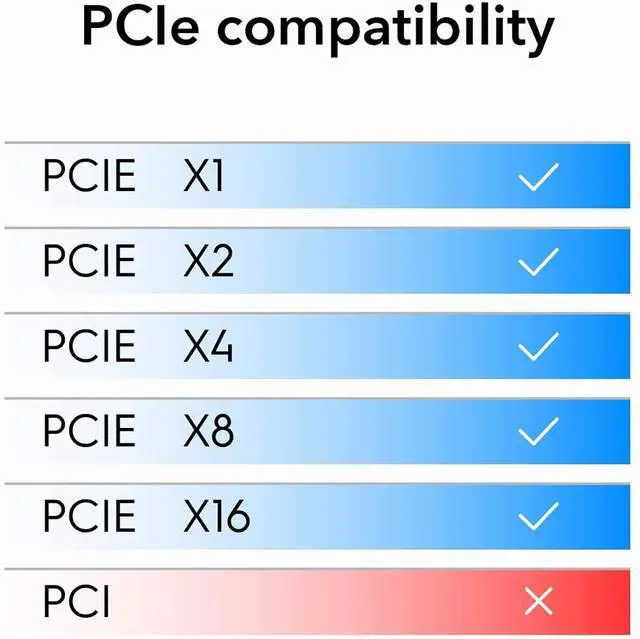

PCI Express V2.1. 2.5 GT/s x1 Lane. Compatible with x1, x2,x4, x8, x16 standard and low-profile PCI Express slots.
IEEE 802.3 autonegotiation
1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications compliant
Integrated PHY for 10/100/1000 Mb/s for multi-speed, full, and half-duplex
IEEE 802.3x and IEEE 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames
Automatic cross-over detection function (MDI/ MDI-X)
IEEE 1588 protocol and 802.1AS implementation
Audio-Video Bridging (AVB) Support (802.1Qav)
Controller is designed for low power consumption
IEEE 802.3az - Energy Efficient Ethernet (EEE)
Active State Power Management (ASPM)
LAN disable function
Full wake up support
Low Power Link Up - Link Speed Control
Power Management Protocol Offload (Proxying)
Latency Tolerance Reporting (LTR)
Supports Receive-side scaling (RSS)
Supports IPv 4, IPv 6 protocols
Supports Jumbo Frames up to 9.5K
Supports Checksum offloading
PXE network boot support
Intel Boot Agent software--Linux boot via PXE or BOOTP, Windows Deployment Services, or UEFI
Vital Product Data (VPD) Support

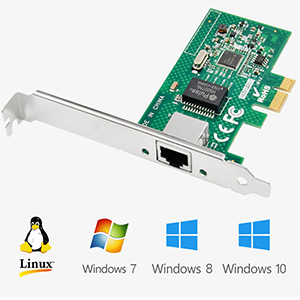

Supports OS:
Windows 8.1/10/11,Windows Server 2012/2012 R2/2016/2019/2022 ,Linux*:RHEL9.1 & 8.7, RHEL8.x (8.5 and previous), SLES15 SP4, SLES15 SP3 and previous ,SLES12 SP5 ,SLES12 SP4 and Previous ,Ubuntu 22.04 LTS, Ubuntu 20.04 LTS ,Debian 11 13 / 12.3 12.2 and Previous
Packing list
1 x PCIe Gagibit Network card Intel I210AT
1 x User’s Manual
1 x CD

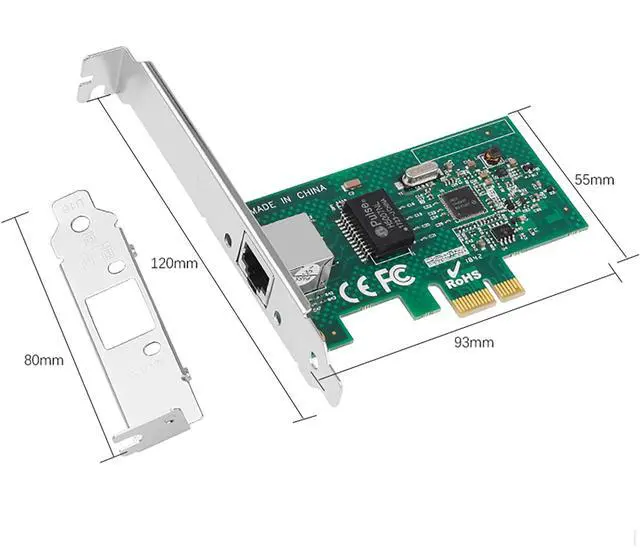

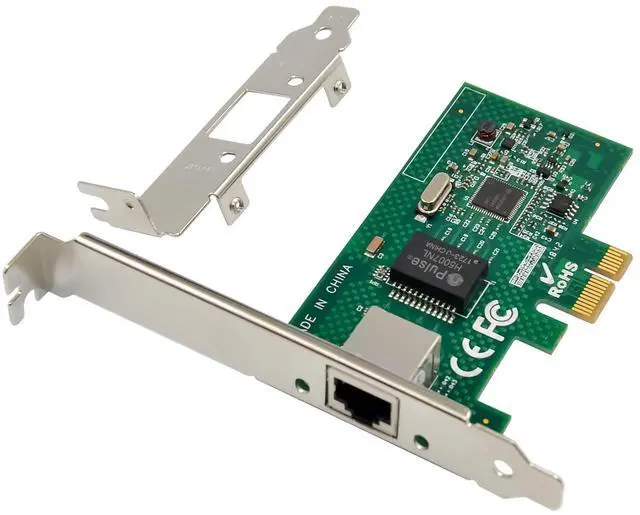

1 x Low profile bracket
Mutil- Compatibility
Support Server 2012/ WIN 7/WIN8/WIN8.1/WIN10/Linux and many other operating systems in the market.
