Unleash Blazing-Fast Network Speeds with the 5Gbps PCIe Network Adapter
Upgrade your network with the 5Gbps PCIe Network Adapter. This high-performance card delivers lightning-fast speeds and reliable connectivity for your desktop or server.

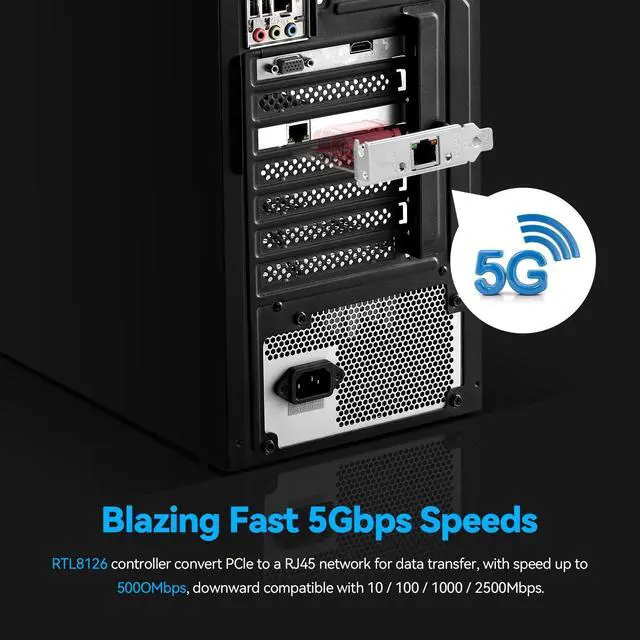

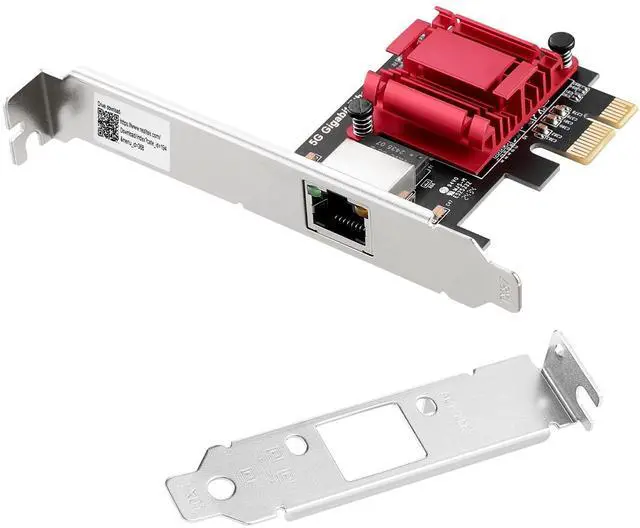

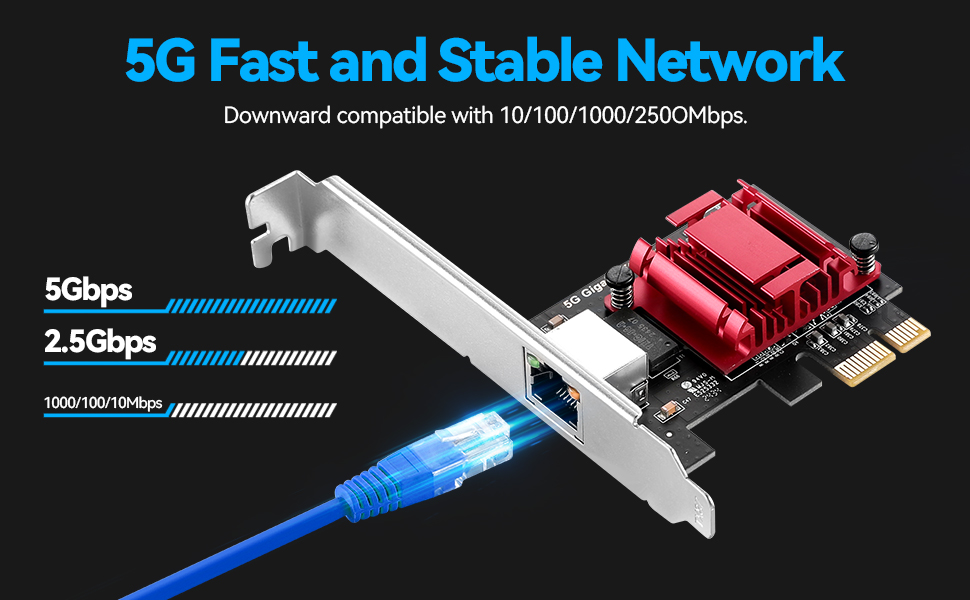

This Single port 5Gbps PCIe network card adds one copper Ethernet port to your Server or Desktop computer and provides Multi-Gigabit Ethernet access to your network at five speeds: 5Gbps, 2.5bps, 1G,100Mbps and 10Mbps.
The 5Gbase-T solution provides additional bandwidth using your existing ethernet infrastructure to help reduce the cost cabling upgrades. The card enables you to connect to 5Gbase-T and NBASE-T equipment at network speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps and 5Gbps over your CAT5e
cabling (up to 100M depending on the network configuration)
The Realtek RTL8126chipset, compliant with IEEE 802.3az and IEEE 802.3u supports the PCIe 3.1 interface. It provides up to a 500% increase in data rate and requires no changes to existing cable infrastructure.
It is suitable for multiple market segments and emerging applications, such as desktop, mobile, workstation, server, communications platforms, and embedded applications.
Features
Bus Type:PCI Express 3.1 (8 GT/s)

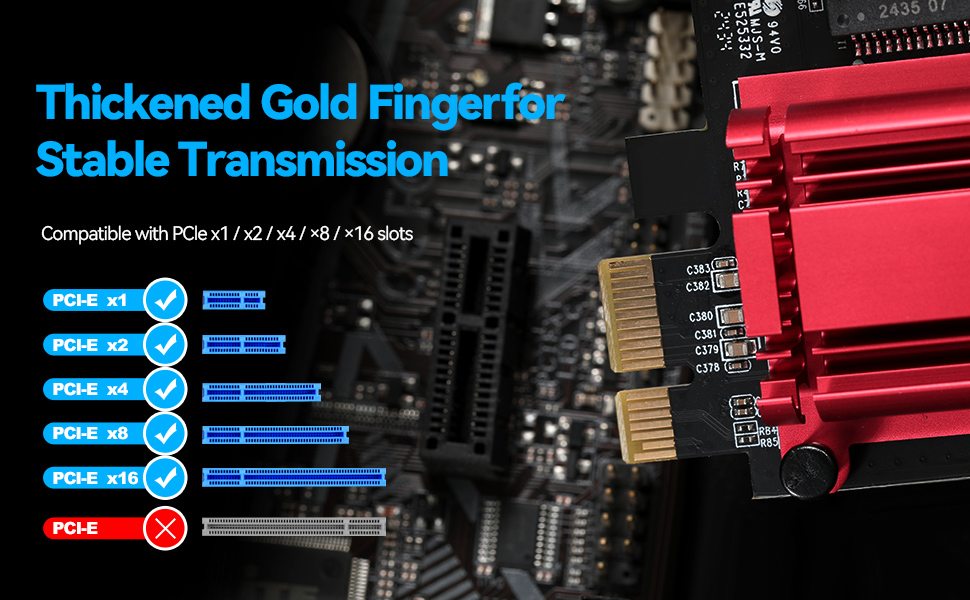

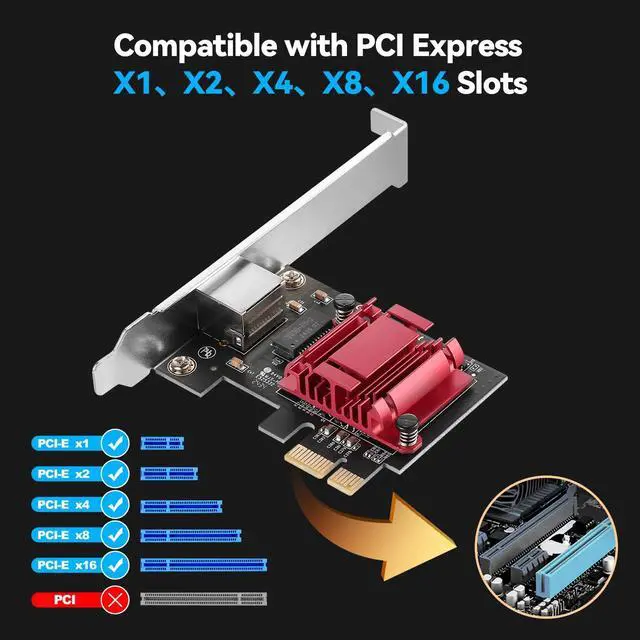

Bus Width :x1 lane PCI Express, operable in x2, x4, x8 and x16 slots

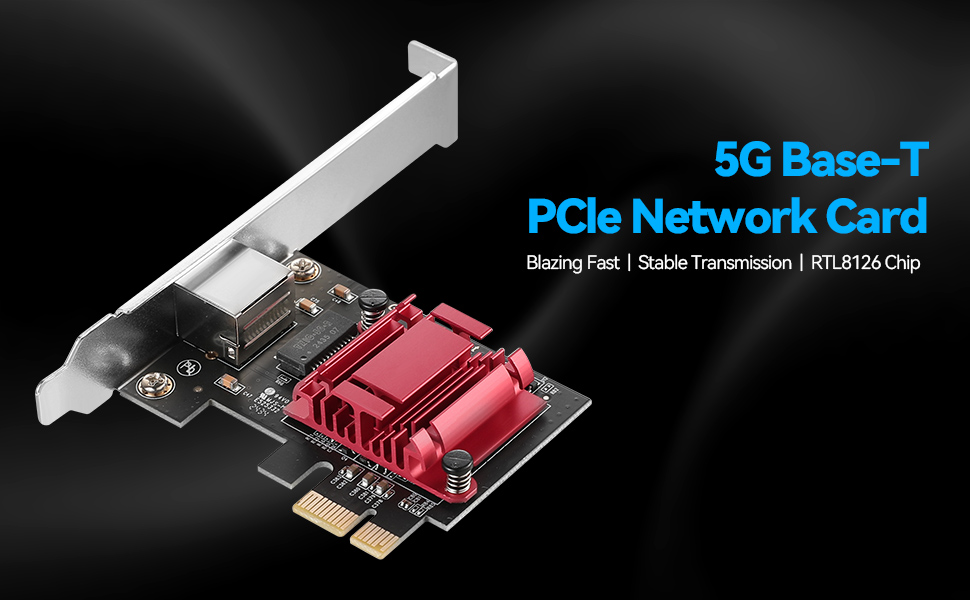

Chipset:Realtek – RTL8126
Multi-Gigabit Ethernet connectivity with four network speeds: 5G, 2.5G, 1G, 100Mbps, 10Mbps
Compatible with both 5GBASE-T and NBASE-T specifications
Support 5Gbps network speed on CAT5e and CAT6a cabling
Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab ,IEEE 802.3az, IEEE 802.3bz standards
Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3x Fully Duplex Flow Control
Supports IEEE 802.1ad Double VLAN
Full and half duplex support

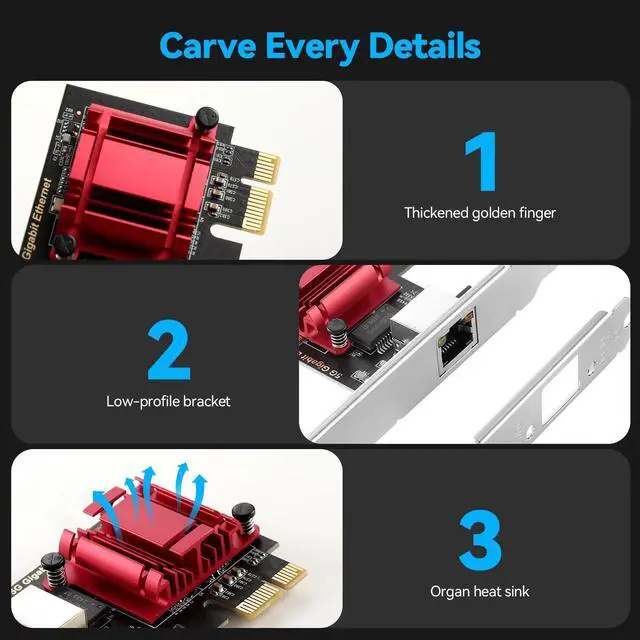

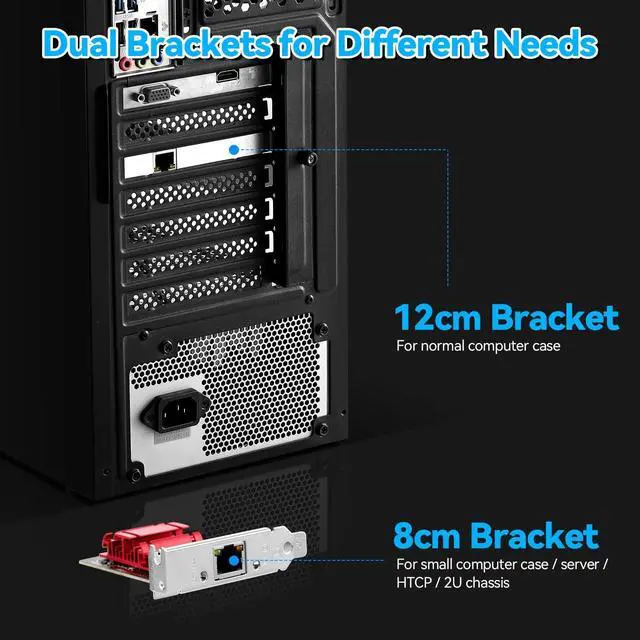

Support Low-profile and Full-Height Brackets for mini and standard tower PC
PXE network boot support
Transmit/Receive on-chip buffer support
Jumbo frame supports up to 16Kbytes
Wake-on-LAN (WOL)(S1/S3/S5) support
Complies with Microsoft and Linux platforms

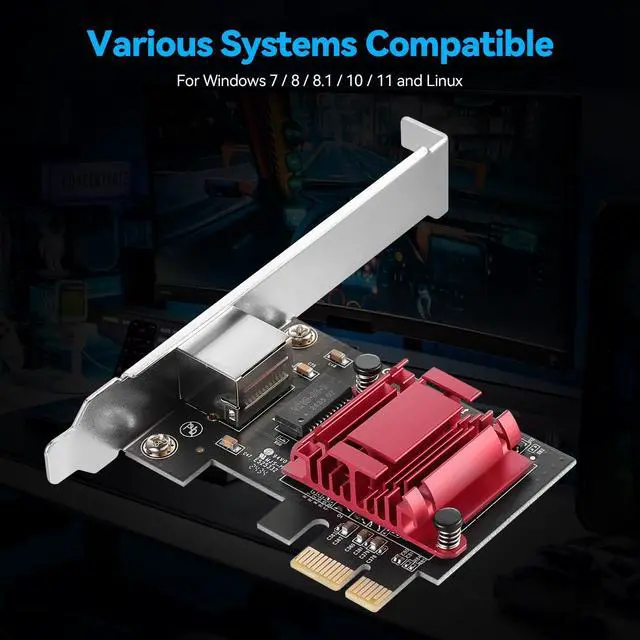

Fully Compliant with Window7/8/8.1/10/11/Linux
