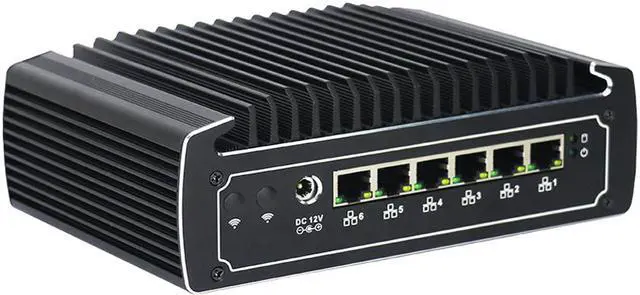

6 Lans Mini Sever 8th Gen Kaby Lake R Intel i7 8550U Quad Core Fanless Firewall PC Network Router Support I211-AT Lan 4GB Ram 128GB SSD
- 1.Intel kaby lake Core i7 8550u quad Core 1.8GHz, Max. Turbo 4.0GHz,6MB Cache.
- 2.Support 2*DDR41866/2133MHz, max32G;
- 3.1*HDMI+4*USB3.0+6*intel LAN+1*RJ45 COM(support console)+1*Power switch;
- 4.6*Intel I211-AT 1000M lan card, support wake on lan;
- 5.1*MSATA(support mini SSD or 4G modem), 1*SATA3.0,1*mini-PCIE( support wifi / bluetooth)
- 6.AMI 64MB Flash ROM.support RPL/PXE diskless boot,electricity boot, WDT
- 7.DC-IN12V power supply and AC power adapter;
- 8.High-quality Fanless pure aluminum Case;
- 9.Applied in Firewall, Network Server, NetworkSecurity, VPN Router etc.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: C1
Processor: Intel kaby lake Core i7 8550u quad core 1.8GHz,Max. to 4.0GHz Mini Firewall PC
Chipset: Integrated Intel UHD Graphics 620
Memory: Support 2*DDR4 1866/2133MHz, supportmax 32G
Storage: 1*SATA3.0, 1*MSATA(32G/64G/128G/500G/1TB optional)
LAN: 6*Intel I211-AT10M/100M/1000M Lan
Graphic Card: Integrated HD Graphic Card fanless mini sever
Color: Black
Material: High quality pure aluminum mini pc case

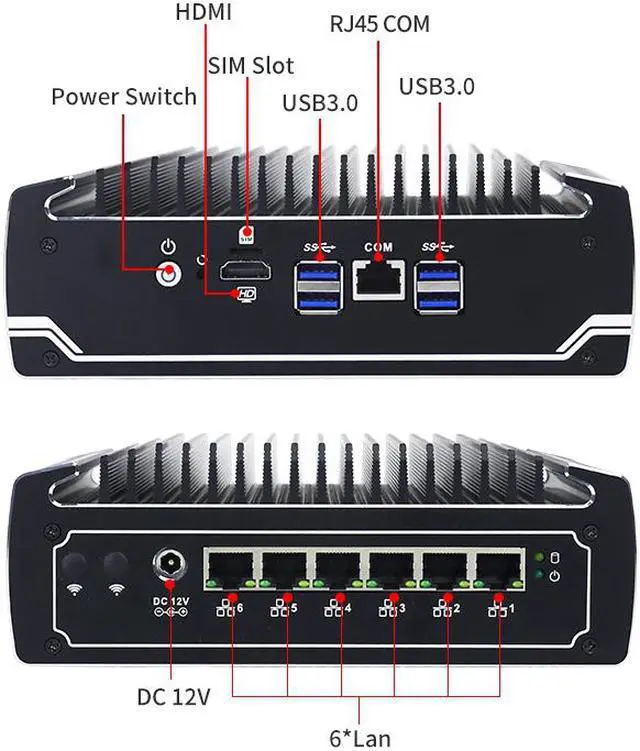

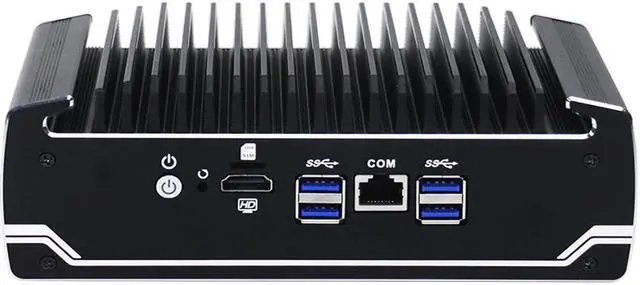

I/O: 4*USB3.0, 1*RJ45 COM(support console),6*RJ45 Lan,1*HD-MI,1*DC-IN 12V,1*HDD LED,1*Power LED,1*Power Switch, 2*Wifi hole

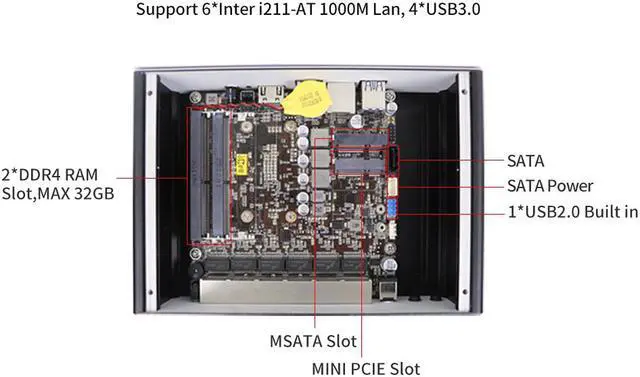

Built-in I/O: 1*Mini-PCIE Connector,1*Mini-SATA 3Gb/s connector, 1*SATA port, 1*MSATA port(support mini SSD or 4G modem)
BIOS: AMI 64Mbit Flash ROM
Expansion slot: 1*Mini-PCIE(support wifi/bluetooth,half-size,Optional)
Mainboard: 120*120mm Nano ITX mainboard
Support OS: Windows 7, Windows 8, Windows 10, linux,pfSense
Power Supply: DC-IN 12V power supply and AC power adapter
Operation Temp: -10~60°C
Work Humidity: 0%~90% non-condensing
Dimension: 186*126.5*66mm
Applications: Firewall, VPN, Network Server, Network Security, VPN Router Etc
1: Work as Mini PC
2: Work as Firewall
Shipping: Goods will ship by DHL, you will get it within 2-4 days after order placed. Thank you.
Processor: Intel kaby lake Core i7 8550u quad core 1.8GHz,Max. to 4.0GHz Mini Firewall PC
Chipset: Integrated Intel UHD Graphics 620
Memory: Support 2*DDR4 1866/2133MHz, supportmax 32G
Storage: 1*SATA3.0, 1*MSATA(32G/64G/128G/500G/1TB optional)
LAN: 6*Intel I211-AT10M/100M/1000M Lan
Graphic Card: Integrated HD Graphic Card fanless mini sever
Color: Black
Material: High quality pure aluminum mini pc case
I/O: 4*USB3.0, 1*RJ45 COM(support console),6*RJ45 Lan,1*HD-MI,1*DC-IN 12V,1*HDD LED,1*Power LED,1*Power Switch, 2*Wifi hole
Built-in I/O: 1*Mini-PCIE Connector,1*Mini-SATA 3Gb/s connector, 1*SATA port, 1*MSATA port(support mini SSD or 4G modem)
BIOS: AMI 64Mbit Flash ROM
Expansion slot: 1*Mini-PCIE(support wifi/bluetooth,half-size,Optional)
Mainboard: 120*120mm Nano ITX mainboard
Support OS: Windows 7, Windows 8, Windows 10, linux,pfSense
Power Supply: DC-IN 12V power supply and AC power adapter
Operation Temp: -10~60°C
Work Humidity: 0%~90% non-condensing
Dimension: 186*126.5*66mm
Applications: Firewall, VPN, Network Server, Network Security, VPN Router Etc
1: Work as Mini PC
2: Work as Firewall
Shipping: Goods will ship by DHL, you will get it within 2-4 days after order placed. Thank you.
