What is the USB male end for?

The USB make end is to supply power to the DisplayPort connector.

Will this convert a video signal from my video card (DVI) to a display port monitor?

This will also convert a video signal from monitor (DVI) to a video whose video ports are DP only.

$12^.49

$44.91

Limit 99999 per customer.

Price alert

Sold by Tech For Less

4.4 (899 seller ratings)

Used - Like New

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

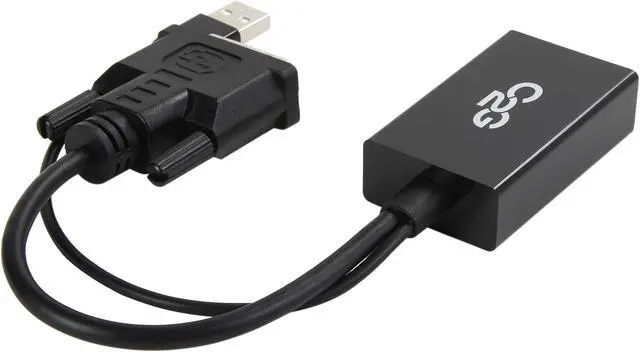

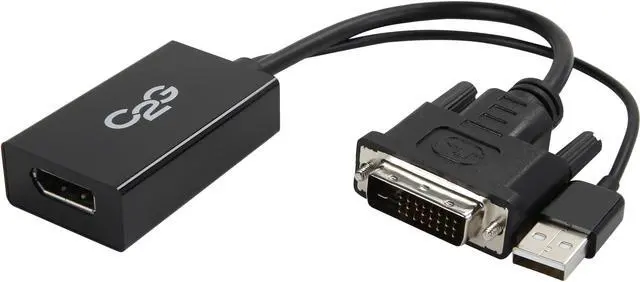

DVI MALE TO DP FEMALE ADAPTER CONVERTER

Model
Brand	C2G
Model	41379

Details
Type	DP to DVI
Color	Black
Specifications	Electrical Specifications Maximum Resolution: 1920 x 1080 Voltage Rating: 30V Impedance Ohm TDR: 10 0+/- 5 Intra-Pair Skew: 15PS/M Max Insulation Resistance: Foam-PE/HD-PE DC-500V 100MOhm.Km Min At 20 degree centigrade Physical Specifications Housing: ABS Minimum Bend Radius: 12mm Mean Time Between Failure: 4000 hr Operating Temperature: 0 to 70 degree centigrade Storage Temperature: -10 to 40 degree centigrade DVI Cable Physical Specifications Cable Outer Diameter: 4.8mm +/- 0.2 Conductor: 34 AWG (7/0.06 TCS) x15 Shield 1: Al Mylar Wrap Shield 2: Braid, 16/10/0.08 TCS (85% Coverage) Drain: 34 AWG (7/0.6 TCS) x 5 Insulation: Foam-PE+Skin 0.5 +/-0.05 USB Physical Specifications Cable Outer Diameter: 2.8mm +/- 0.2 Conductor: 28 AWG (7/0.127 TCS) x 2 Insulation: HDPE 0.85 +/- 0.05

Connectors
Connector A	1 x USB-A Male, 1 x DVI-D Dual Link Male
Connector B	1 x DisplayPort Female
Cable Jakcet Type	Jacket Material and Thickness: PVC (0.5mm)
Connector Style	Straight

Package Contents

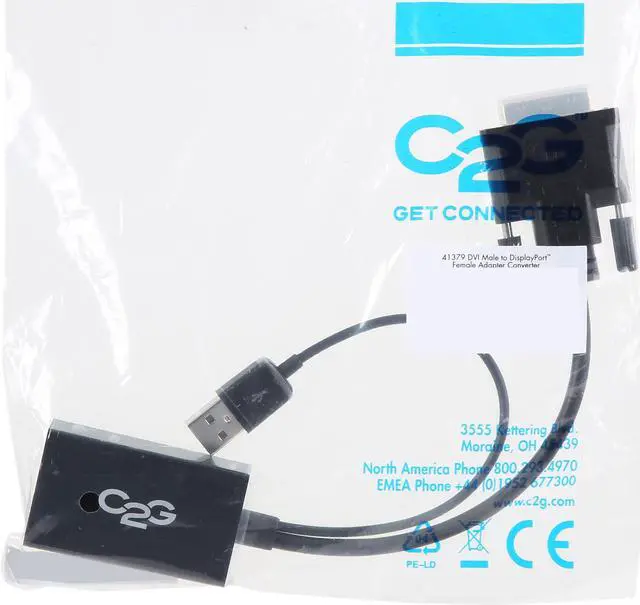

Package Contents	DVI to DisplayPort Converter Adapter
