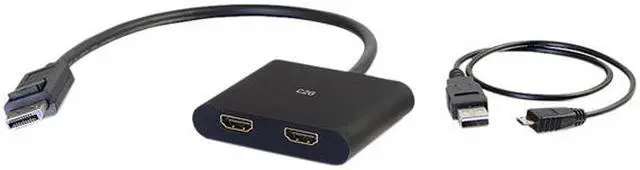

Connect a single DisplayPort output to 2 MST enabled HDMI displays for video mirroring, video extensions, or viewing a single video across two displays. This is a 1-Input 2-Output splitter supporting up to 4K resolutions.
Multi-Stream Transport(MST) which improves Multitasking, and increases productivity by configuring the Hub to work as a splitter for same video display, extended desktop viewing, or joining monitors together as one display.
Nickel plated connector provides resistance to corrosion and molding provides excellent strain relief that ensures superior connectivity and a durable, long life of the product.

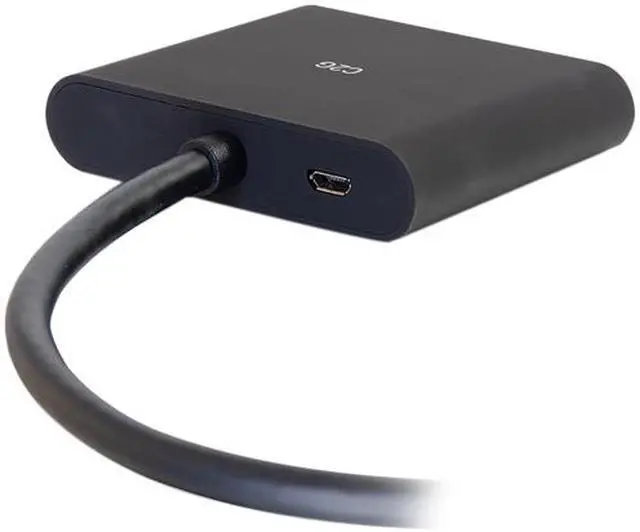

This hub requires 5V/2A of power. In some instances, additional external power may be required through the USB Micro-B port on the hub. Optional Micro-B power cable available (Part Number 27053)
This MST hub is DisplayPort 1.2 compliant. The source device video card and display must support DisplayPort 1.2 and MST
+
+
Overview
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
NULLNULL
Learn more about the Cables To Go 54293
Model
Brand
C2G
Model
54293
Details
Type
DP to HDMI
Changer Type
DisplayPort 1.2 to Dual HDMI
Color
Black
Specifications
Resolution: 3840 x 2160 at 30Hz (Dual Display)
Resolution: 3840 x 2160 at 60Hz (Single Display)
Output: Requires 5V, 2A external power over Micro-B USB port
DisplayPort 1.2a compliant
Link Rate: HBR2/HBR/RBR
Bandwidth: 5.4Gbps max.
Support SST and MST (when both host and monitor support)
Support 7.1 sound channel; max. sampling size 192KHz
Rating: Temp 80°C, Voltage 30V
Conductor Resistance: At 20°C max 30AWG: 376.95 O/KM
Insulation Resistance: 10M -KM min at 20°C DC 500V (EIA-364-21)
Dielectric Strength: AC 500V/1 minute no breakdown (EIA-364-20)
NEXT (max.): [email protected]~1.35GHz; -23.44dB@2GHz; -20.80dB@3GHz; -18.93dB@4GHz; -17.48dB@5GHz; -16.29dB@6GHz; -15.28dB@7GHz
FEXT: -26dB/cable@100~7000MHz (max.)
Connectors
Connector A
1 x DisplayPort Male
Connector B

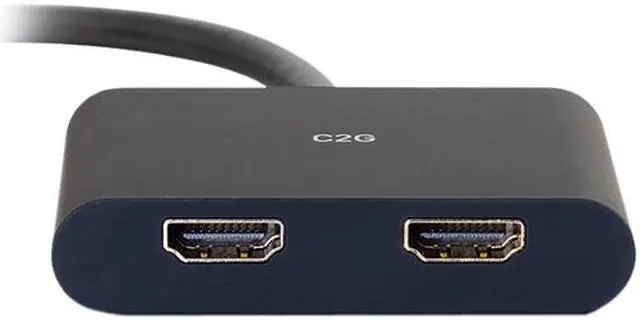

2 x HDMI Female 1 x USB Micro-B Female
Audio
Yes
Features
Features
Multi-Stream Transport (MST)
Supports dual display resolutions up to 4K (3840 x 2160) at 30Hz
Supports single display resolutions up to 4K (3840 x 2160) at 60Hz
5.4Gbps max bandwidth
Supports 7.1 channel sound
DisplayPort 1.2 standards
USB Micro-B port for additional power
Note: This hub requires 5V/2A of power. In some instances, depending on the connected source device, additional external power may be required through the USB Micro-B port on the hub. Optional Micro-B power cable available (Part No. 27053).
This MST hub is DisplayPort 1.2 compliant. The source device video card and display must support DisplayPort 1.2 and MST.
