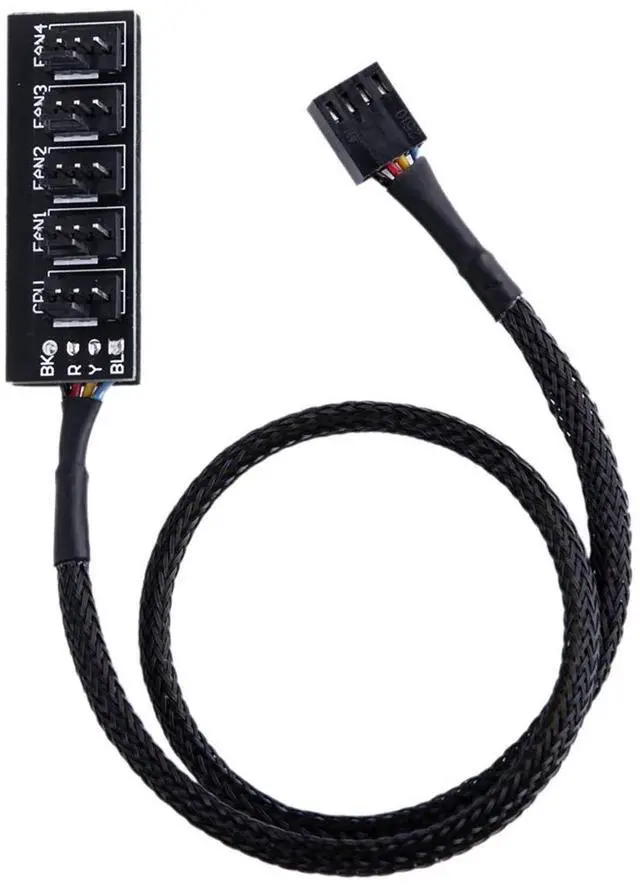

4 Pin PWM Fan Hub, 1 to 5 Splitter
Cable length: 13 inches (33.0 cm).
1007 24AWG Tin-plated copper wire.
for 4 Pin & 3 Pin CPU Cooling Fan.
About the hub
1.
4-pin PWM 1 to 5 splitter hub is designed for audiophiles who need to control multiple fans.
The solder joints are reinforced and not easy to break.
Plug and play.
2.
Only CPU socket of the PWM splitter carries RPM signal due to one motherboard connector only read one RPM signal, this is why only the CPU socket has a speed measurement function.
Note:

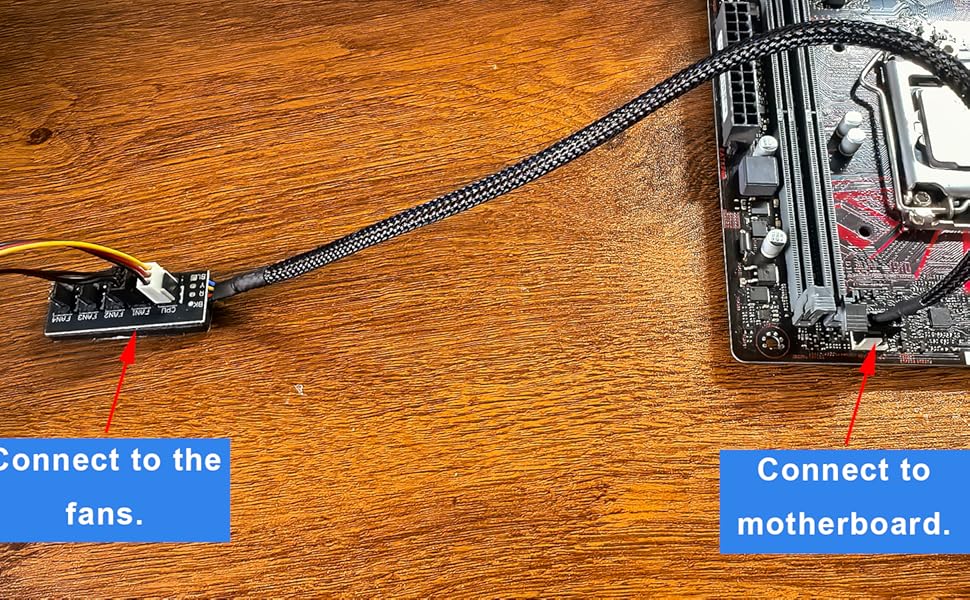

- Please insert the hub firmly on the motherboard before use
- The hub can connect up to 5 4Pin/3Pin fans
- CPU socket connects to CPU fan, other sockets connect to normal fan
- Note that connecting 3-pin fan has no speed regulation function
- Make sure the total power of all fans does not exceed the maximum power of the motherboard socket
Good Material & Good Construction.

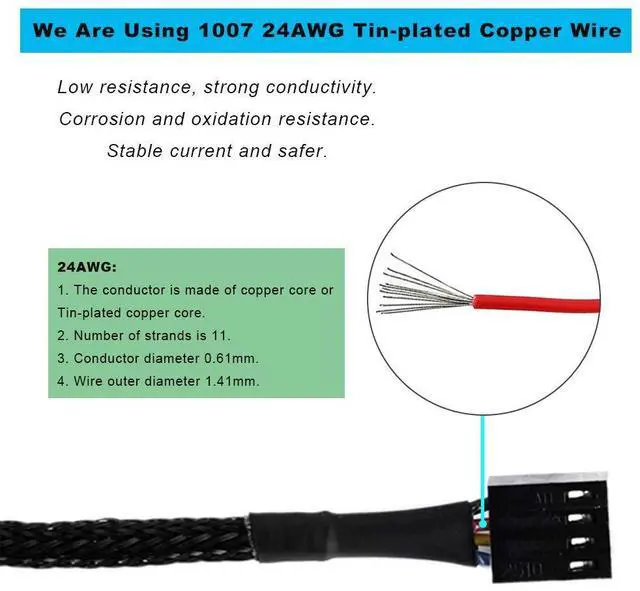

1. What is Tin-plated copper wire?
A thin layer of tin is plated on the surface of the copper wire. It looks silver.
It has good electrical conductivity, Compared with bare copper wire stronger corrosion resistance and oxidation resistance, which can greatly extend the service life of the wire.
2. What is 1007 wire?
1007 wire is a kind of electronic wire, which is the internal wiring of electrical equipment.
The insulating layer uses PVC material;
The conductor uses copper wire or tinned copper wire (ZLKSKER wires all use tinned copper wire);
Rated temperature: 80°C; Rated voltage: 300V; Pass UL VW-1 flame resistance test.
3. 24AWG (American Wire Gauge) wire standard:
Conductor diameter: 0.61mm; Wire outer diameter: 1.41mm; Number of strands: 11.

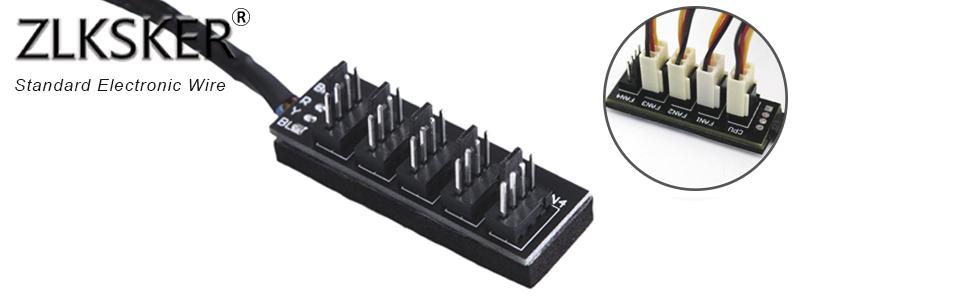

Hub socket introduction
CPU socket:
Connected to the CPU fan, with speed regulation and speed measurement function.
FAN1-FAN4 socket:
Connected to the fan of ordinary computer chassis, with speed regulation function.

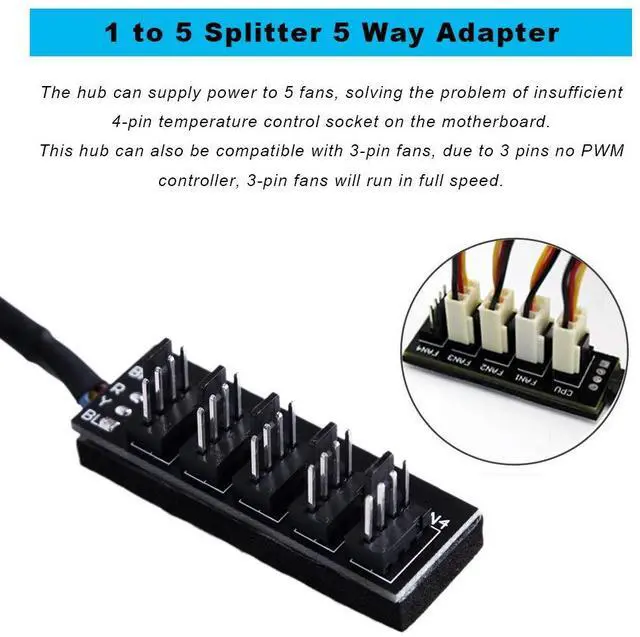

The above sockets support 3-pin 4-pin fans, but 3-pin fans have no speed adjustment function, which means 3-pin fans can only run at full speed.

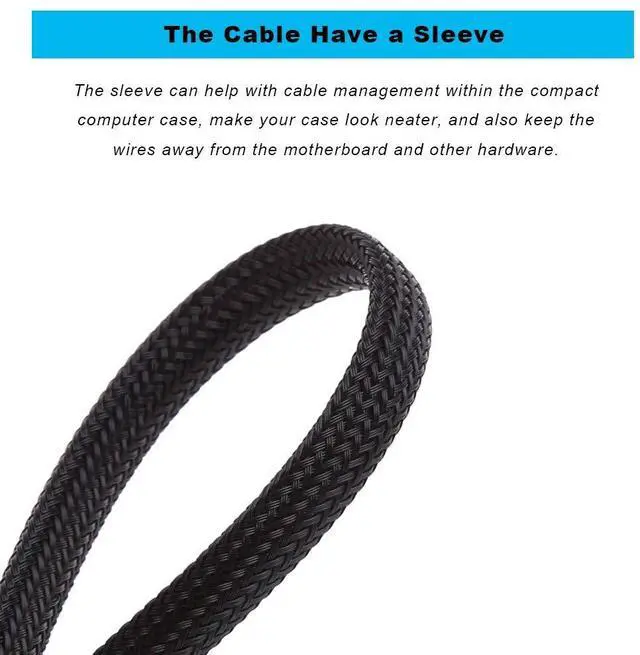

It has a cable sleeve, which can help with cable management within the compact computer case, make your case look neater, and also keep the wires away from the motherboard and other hardware.

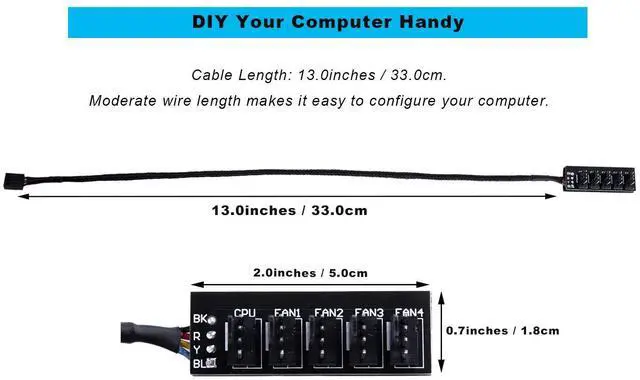

Hub: 2.0×0.7inches
Cable: 13.0inches
This hub has glue on the back so you can fix it in place
Well made.

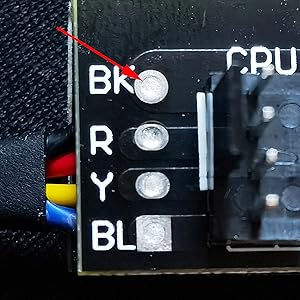

The 4 dots here are solder joints not lights, they will not light up.
