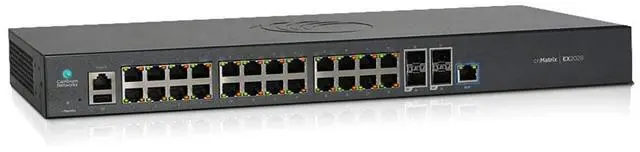

Cambium Networks - MX-EX2028XXA-U - Cambium cnMatrix EX2028, Intelligent Ethernet Switch, 24 1G and 4 SFP+ fiber ports -

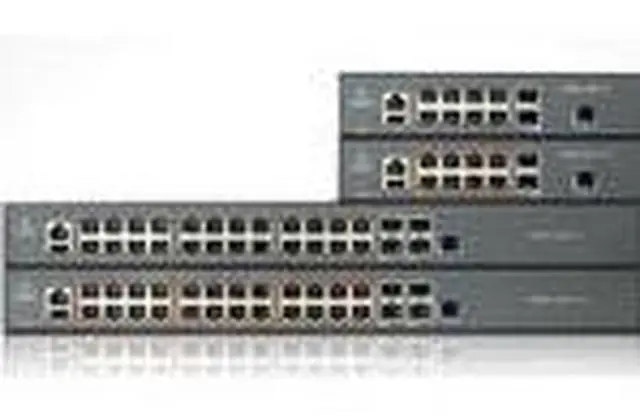

Cabium Networks' next generation switching platform offers a cloud supported, high performance, feature rich Ethernet switching solution. The cnMatrix series of fully managed switches delivers full Layer2 capabilities with enhanced access security. The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. cnMatrix switches deliver power savings with several models offering fanless operation. The switch models deliver flexibility with 4–10 Gbps (SFP+) uplinks on the 28 port models, while offering 2 – 1 Gbps (SFP) uplink ports on the 10 port models. Features • Energy Efficient Gigabit • Layer 3 (OSPF and RIP) • Flexible Power over Ethernet (PoE) options • Multiple port density options
Specifications • Throughput: 128Gbps •
Non-Blocking: Yes •
PoE Enabled Ports: No •
PoE Power Budget Units (watts): No • 10/100/1000
Ports: 24 •
Uplink Ports: 4 SFP+ •
Serial Console: Yes •
USB: Yes •
OOB Port: Yes •
Rack mount kit: Yes •
Internal Fans: Fanless • Maximum
Routes (Static): 64 •
Dynamic Routing: 512 •
LACP/Trunking: 8 LAGs / 8 Links per 9216 •
QoS Priority Queues: 8 •
Maximum IGMP Multicast groups: 256 •
Max PVRST: 32 Product Includes (1) cnMatrix Switch (EX2028) (1) Rack Mount (1) User Manual Datasheet EX2028
