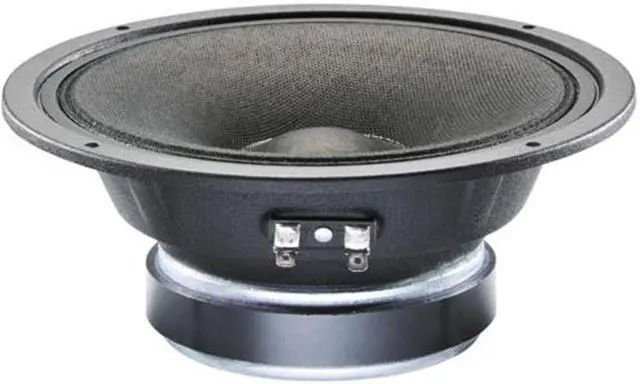

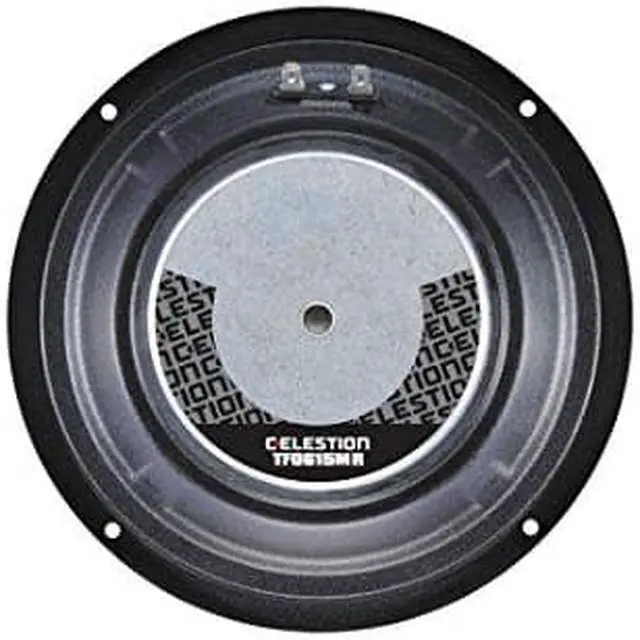

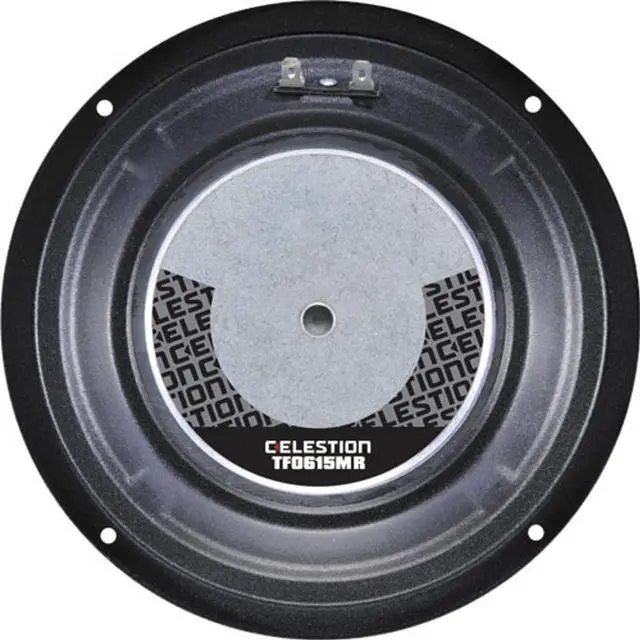

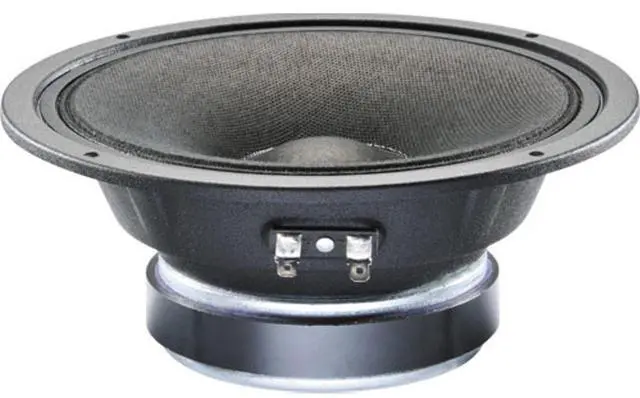

CELESTION TF0615MR 6 in. 50W Professional Midrange Speaker

Devised specifically for midrange applications in professional PA speaker enclosures- the Celestion TF0615MR 6- mid driver offers high output- smooth response- and low distortion. Its closed-back steel chassis makes building a separate sub-enclosure unnecessary. The Celestion TF0615MR 6- professional midrange speaker is a purpose-built device dedicated to high-SPL- low distortion reproduction of the critical midband frequencies. Its integrated sealed chassis isolates the driver's soft parts from the loudspeaker system woofer's -back pressure-- while at the same time eliminating the need to construct a separate sub-enclosure. The TF0615MR features a 1.5 - high-temp voice coil and 17 oz.

ceramic ferrite magnet- guaranteeing high efficiency and excellent power handling. 97 dB sensitivity and 50 watts RMS power handling. 1.5 - high temperature copper voice coil wound on polyimide former for increased reliability. Very compact model suitable for use in 3-way systems. Optimized to deliver detailed reproduction of mid-range frequencies. Closed back chassis simplifies cabinet manufacture- eliminating need for separate midrange enclosure.
Power handling: 50 watts RMS (AES standard).
VCdia: 1.5 -.
Le: 0.27 mH.
Impedance: 8 ohms.
Re: 5.7 ohms.
Frequency range: 500-5-000 Hz.
Fs: 500 Hz.
Sensitivity: 97 dB 1W/1m.
Vas: 0 cu. ft.
Qms: 0.
Qes: 0.
Qts: 0.
Xmax: 0 mm.
Dimensions: Overall
diameter: 7.01 --
Cutout diameter: 5.79 --
Depth: 2.91 -.
