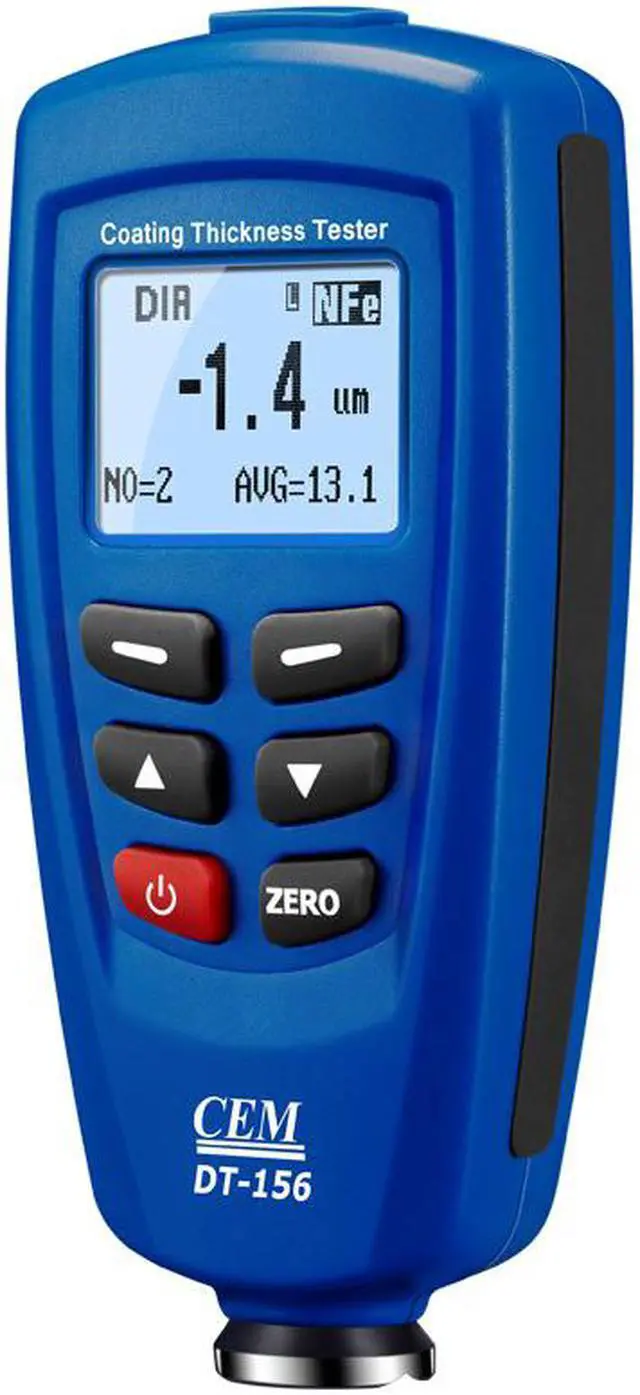

CEM DT-156 High Precision Coating Thickness Tester

CEM DT-156 High Precision Coating Thickness Tester
Notice:
  The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
Coating Thickness Tester
Dual Technology Features Automatic Selection of Magnetic Induction or Eddy Current Measurement Techniques
Non-magnetic coatings (e.g. paint, zinc) on steel
Insulating coatings (e.g. paint) on no-ferrous metals
No-ferrous metals coatings on insulating substrates
Menu operation system
Two working modes: DIRECT and GROUP mode
One point calibration, two points calibration and basic calibration easily
Delete single readings and all group readings easily
Low battery, error indication
USB interface for PC software
Features DT-156 DT-156H
Non-magnetic coatings (e.g. paint, zinc) on steel * *
Insulating coatings (e.g. paint) on no-ferrous metals * *
No-ferrous metals coatings on insulating substrates * *
Menu operation system * *
Two measuring modes: CONTINUE and SINGLE mode *
Two working modes: DIRECT and GROUP mode * *
Statistic Display: AVG, MAX, MIN, NO., S.DEV *
One point calibration, two points calibration and basic calibration easily * *
Memory for 400 readings (80 DIRECT and 320 GROUP readings) *
Memory for 1500 readings ( 30 GROUP readings) *
Delete single readings and all group readings easily * *
High alarm and Low alarm for all working modes *
Low battery, error indication * *
USB interface for PC software * *
4 levels of battery indication *
Error indication *
Easily adapt to lighting conditions with 8 levels of backlight *
Size (H x W x D): 113.5mm x 54mm x 27mm
Weight: 110g
Specifications DT-156 DT-156H
Sensor probe F N F N
Working principle magnetic induction Eddy current principle magnetic induction Eddy current principle
Measuring range 0~1250um 0~1250um 0~1350um 0~1350um
Guaranteed tolerance (of reading) (+/- 3%+1)um (+/- 3%+1.5)um (+/- 2.5%+2)um (+/- 2.5%+2)um
Repeatability (+/- 1%+1)um (+/- 1%+1)um (+/- 1%+1)um (+/- 1%+1)um
Low range Precision 0.1um 0.1um 0.1um 0.1um
Minimum curvature radius 1.5mm 3mm 1.5mm 3mm
Diameter of Minimum area 7mm 5mm 7mm 5mm
Basic critical thickness 0.5mm 0.3mm 0.5mm 0.3mm
