CEM DT-176CV2 AC Current and Voltage Datalogger Digital LCD Displayy

CEM DT-176CV2 AC Current and Voltage Datalogger Digital LCD Display
Notice:
  The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!

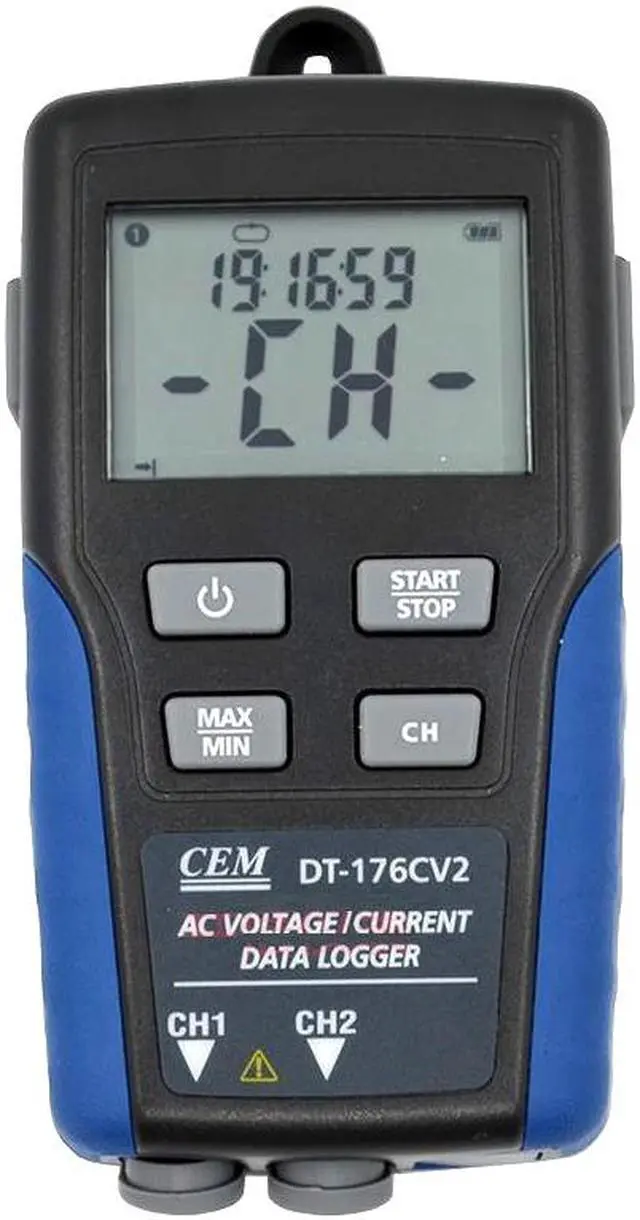

AC Current and Voltage Datalogger
The 176CV2 is a datalogger for measuring and recording True RMS current and voltage. The readings are saved in the logger and simply read out by your PC via USB interface. The LCD can show current readings, MAX, MIN and alarm indication.
Large capacity for storing measuring data points

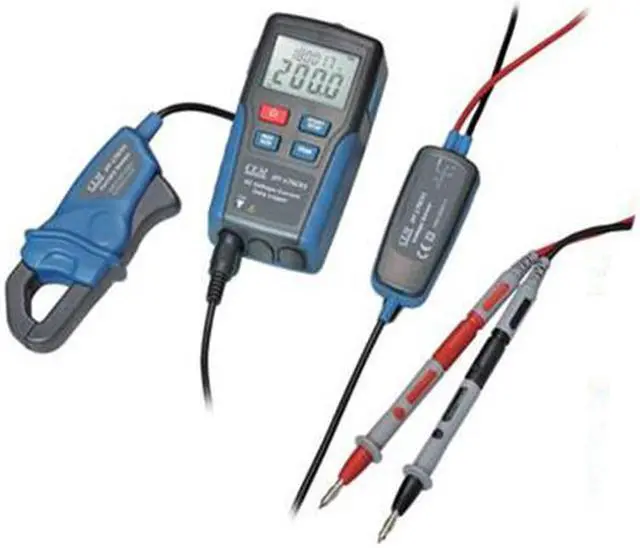

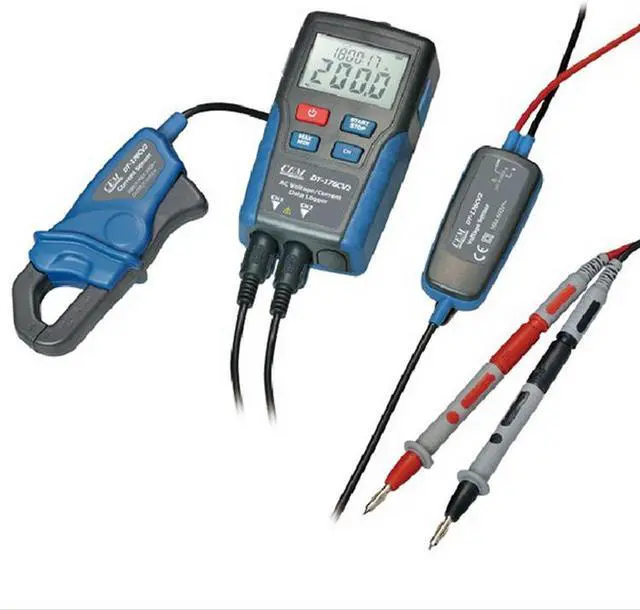

ACA current clamp sensor (CP-09)
Voltage sensor measure the floating voltage to meet CAT III 600V
LCD to show some logging information easily
Freely selectable measurement cycle from 1sec. to 24h
Download collected data through USB interface
Alarm display if user-defined maximum/minimum values exceed
Analysis software used to view graph for logging data
Features
175CVS 175CV1 176CV2 177CV3
Input channel Dual Single Dual Three
Digital LCD Display * * * *
ACV/Load current/Leakage current measurement * * * *
True RMS measurement * * *
Data memory 100,000 100,000 256,000 256,000
Wave memory * * *
MAX / MIN, Peak mode MAX / MIN * * *
Time & Date Display * * * *
Wave store * * *
Auto power off * * * *
USB interface * * * *
Manual and Automatic mode * * * *
Size(HxWxD): 114mm x 63mm x 34mm
Weight: 248g
Specifications
Function Range Basic Accuracy 175CVS 175CV1 176CV2 177CV3
AC Current (True RMS) 2-200A ±2% * * * *
AC Voltage (True RMS) 6-600V ±1.5% * * * *
Reading Memories 100,000 100,000 256,000 256,000
Measuring rate 1 sec. to 24h
Analysis software windows 98/2000/XP/Vista
