CEM DT-5300 Earth Ground Resistance Testers Backlight Low Battery Indication

CEM DT-5300 Earth Ground Resistance Testers Backlight Low Battery Indication
Notice:
  The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!

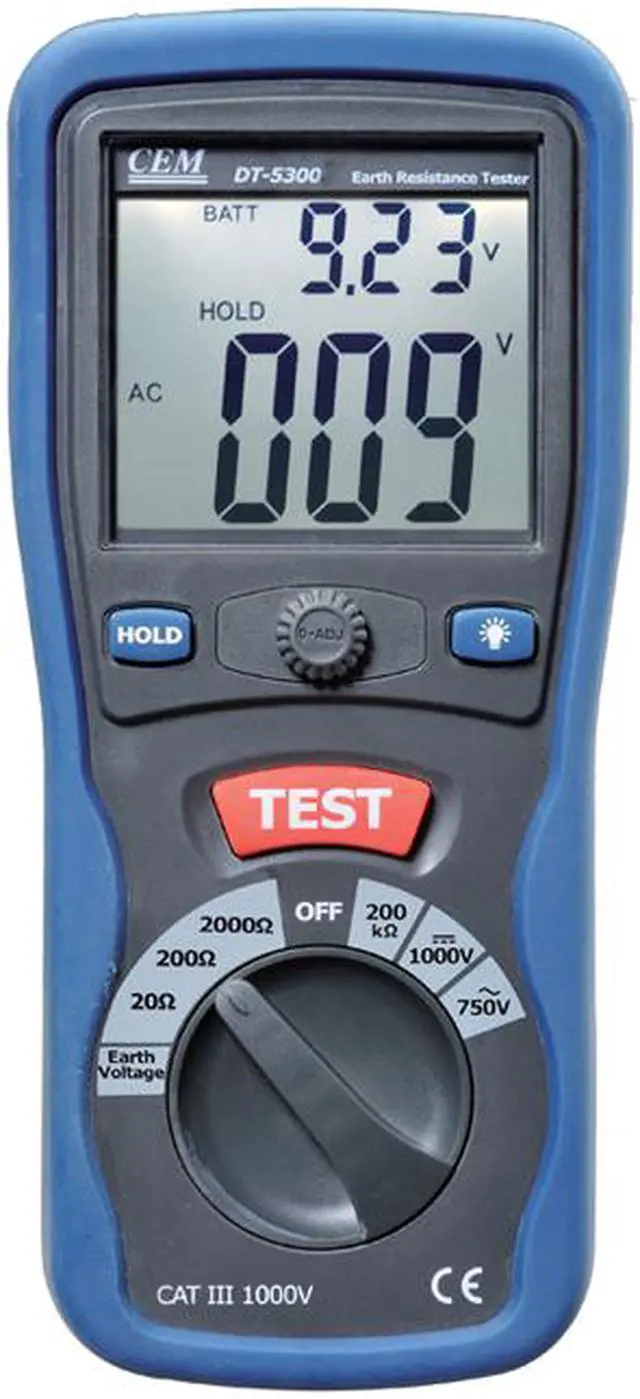

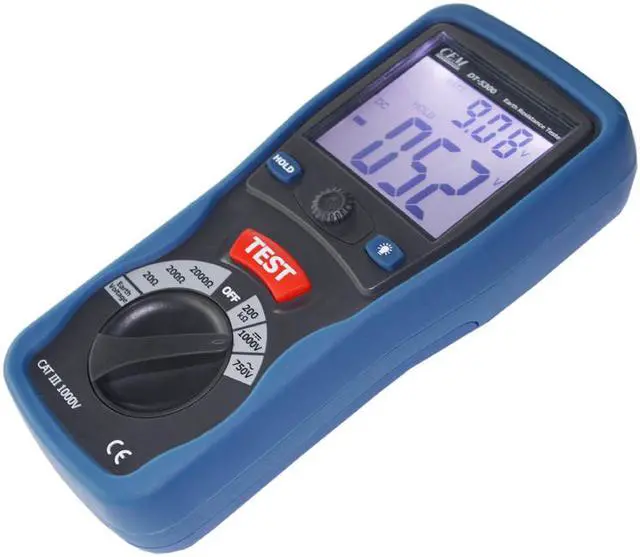

Earth Ground Resistance Testers
Electronic Digital Earth Resistance Tester is direct replacement of the conventional hand generator type tester. It is designed for measurement of the resistance of earthing used in the electrical equipment as well as for measurement of ground resistivity. It can be used for measurements of the other low regular and liquid resistances. It can also be used for measurement of voltage AC, voltage DC and resistance.
This instrument has wide application for testing earthing installation in power based industries, telecommunication networks and electrical traction systems etc
Features
Meets IEC10101, CATIII 1000V
Large dual display with backlight & Low Battery Indication
Test hold function for easy operation
Zero Automatic adjustment
Sampling Rate: 2.5 times per second
Includes 6 “AA” batteries, test leads and carrying case
Size(HxWxD): 200mm x 92mm x 50mm
Weight: 582g
Specifications
Function Range Max Resolution Accuracy
Earth resistance 10?
100?
1000? 0.01?
0.1?
1? ±2%rdg ±0.1?   ±2%rdg ±3dgts   ±2%rdg ±3dgts
Voltage AC 750V 1V ±1.2%rdg ±10dgts
Voltage DC 1000V 1V ±0.8%rdg ±3dgts
Resistance 200k? 0.1k? ±1.0%rdg ±2dgts
Continuity Test Active Sound Level: =40?, Test current =200mA
Operating Temp 0ºC~40ºC (<80%R.H.)
Storage Temp -10ºC~60ºC (<70%R.H.)
Power Source 1.5V “AA” battery x 6
