Can you fit a low profile graphics card in it? For example, a NVIDIA 720 or 1030?

It is not a low profile case so it won't work unless you can find a normal bracket for it. A lot of manufacturers supply both when you purchase the video card.

How many 3.5 inch internal/external bays?

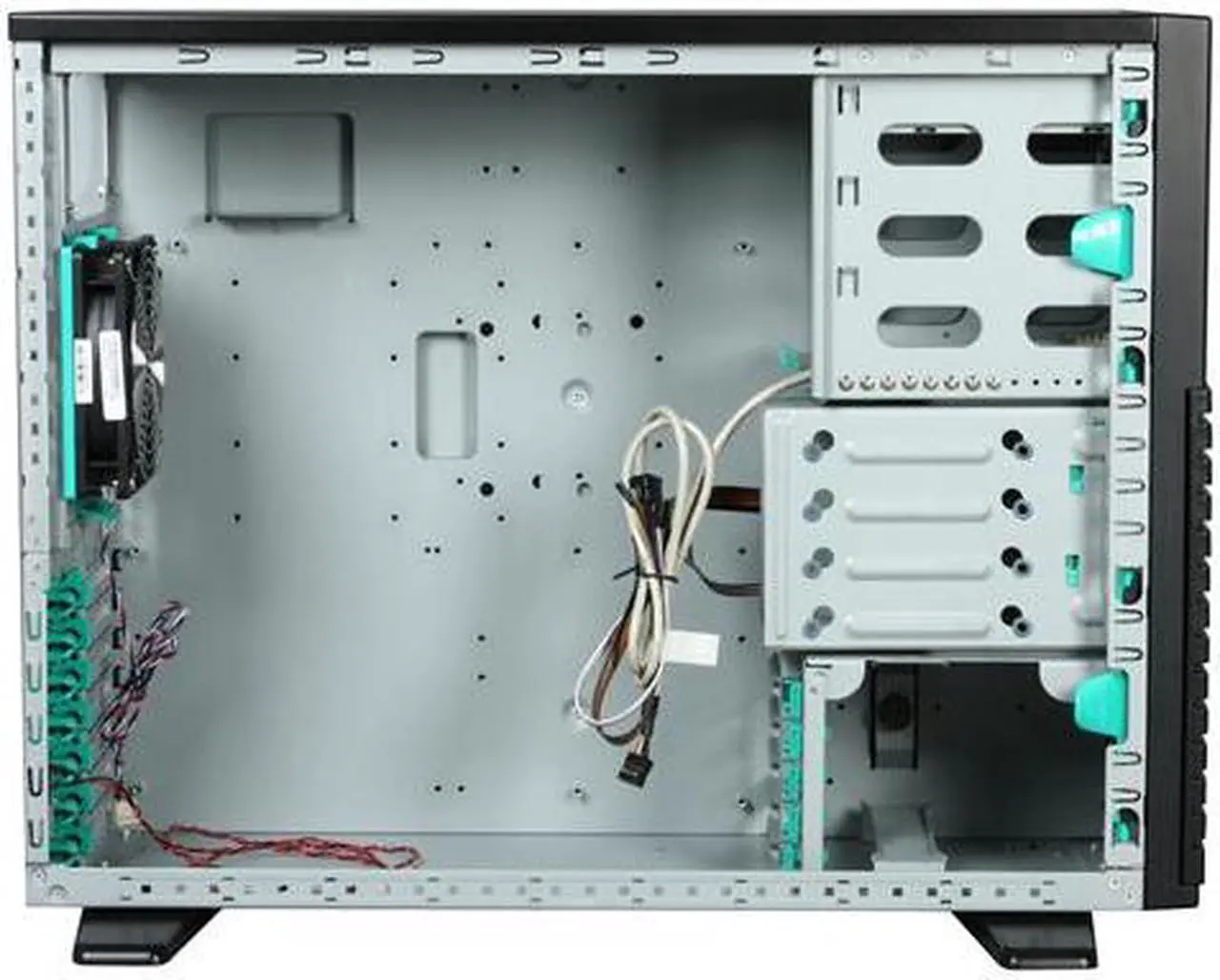

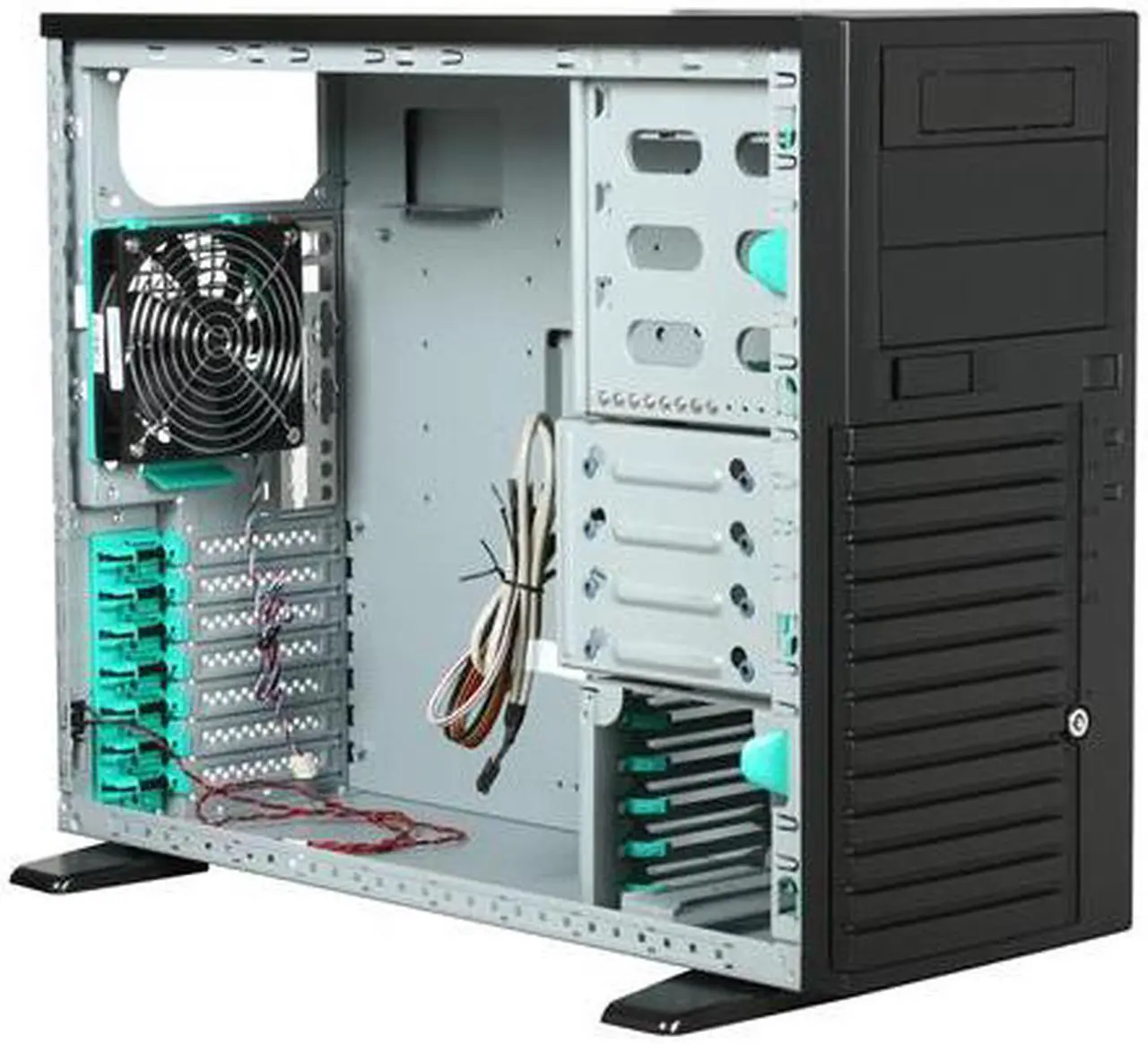

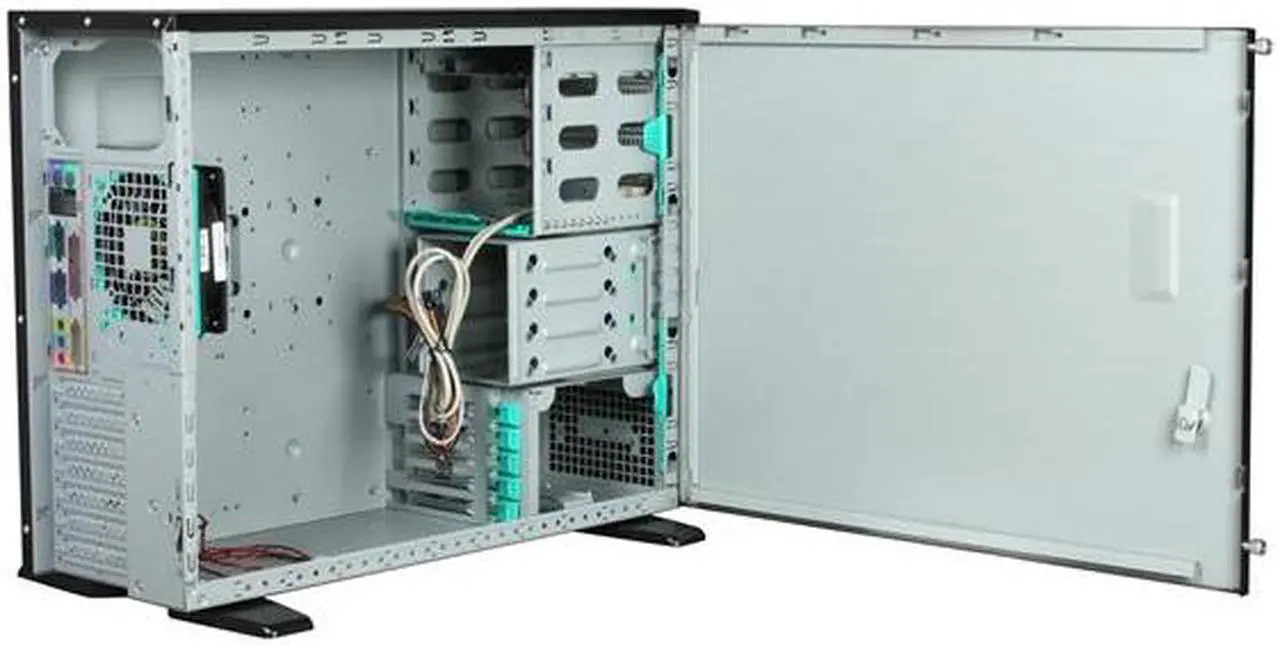

There are 6 internal 3.5" bays: 4 in the included drive cage, and one more vertically below the drive cage using the included rails. There is one more 5.25" to 3.5" converted included in the top external 5.25 bay.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 1 wish list)

Sold by Newegg

Shipped by Newegg

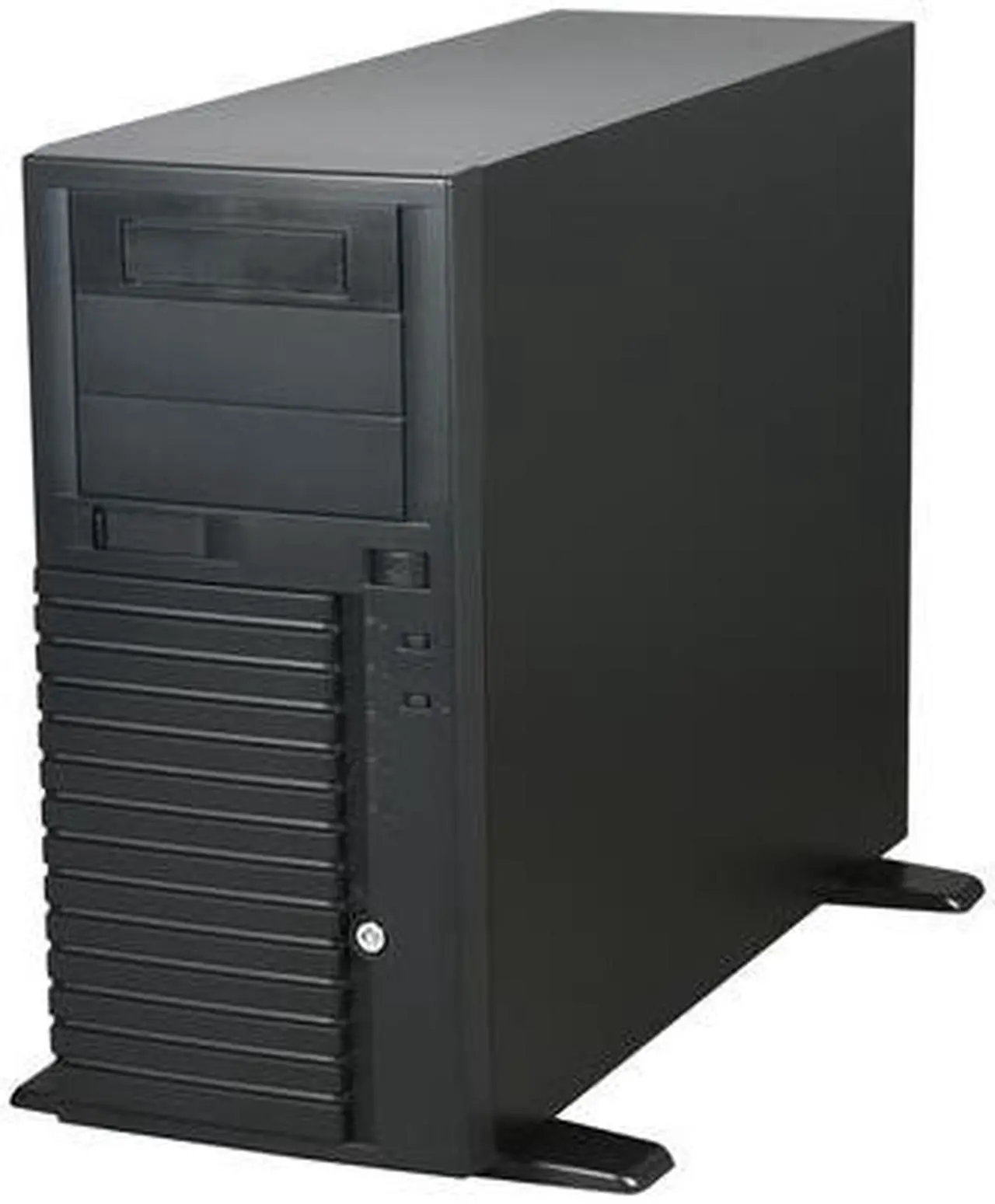

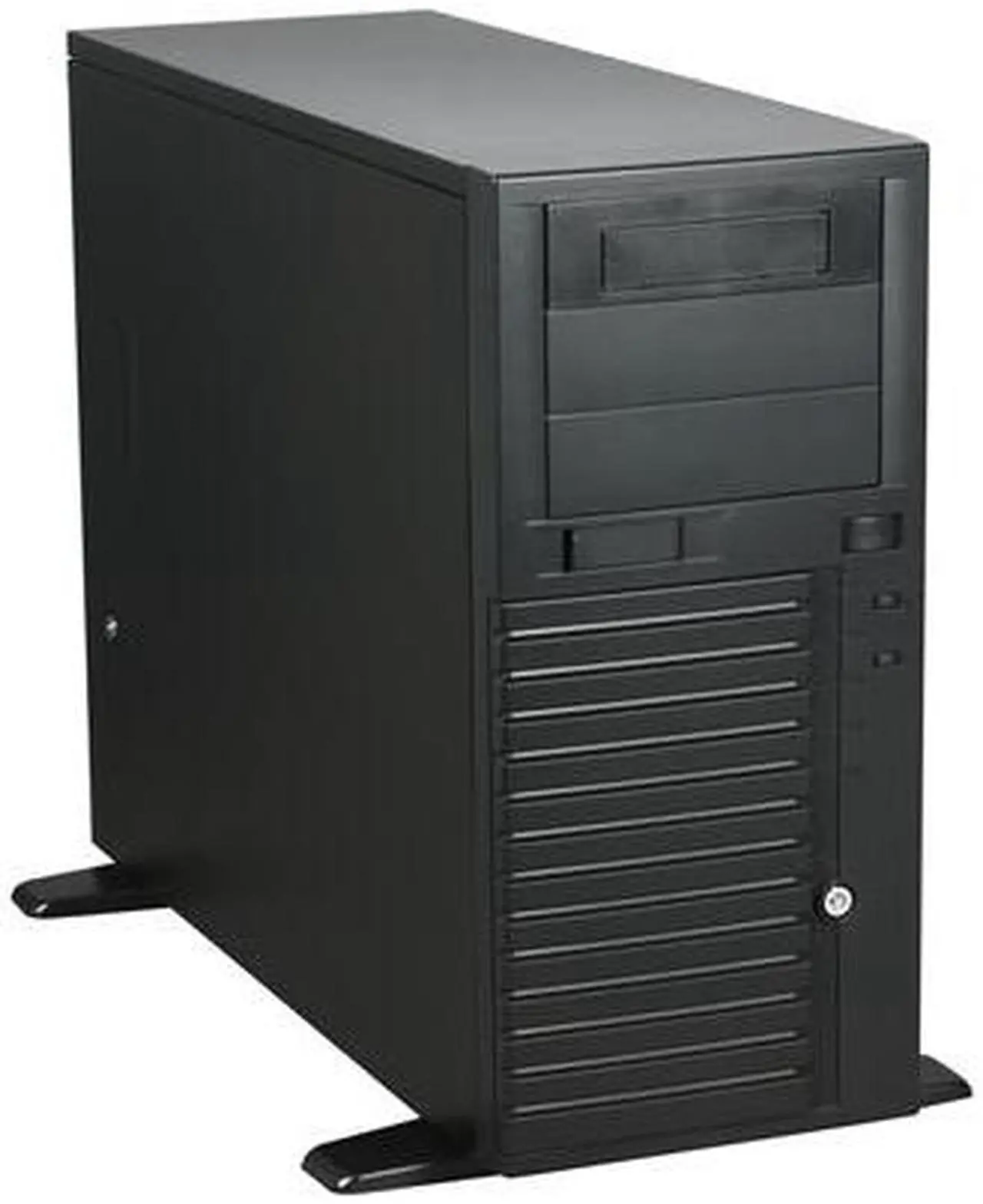

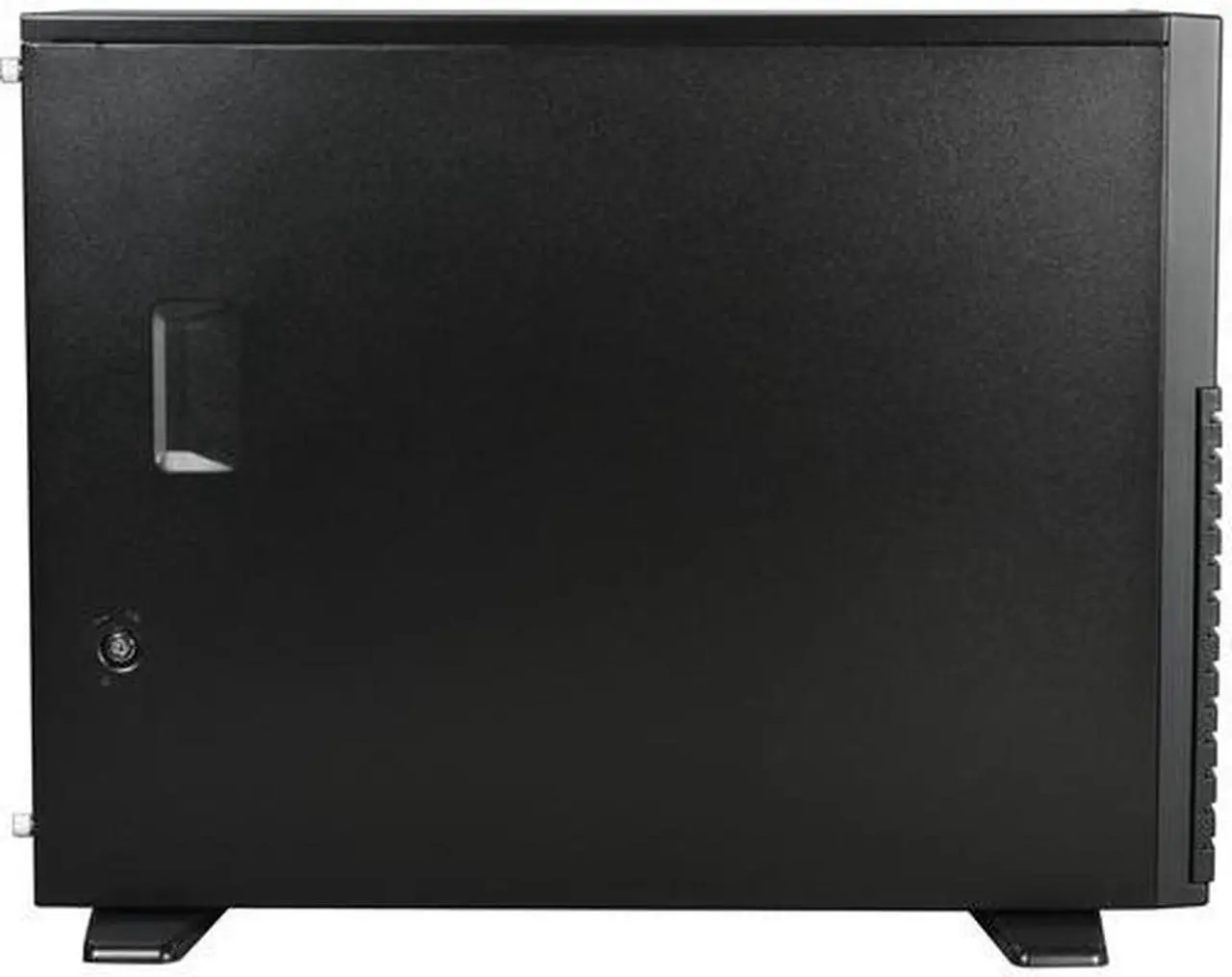

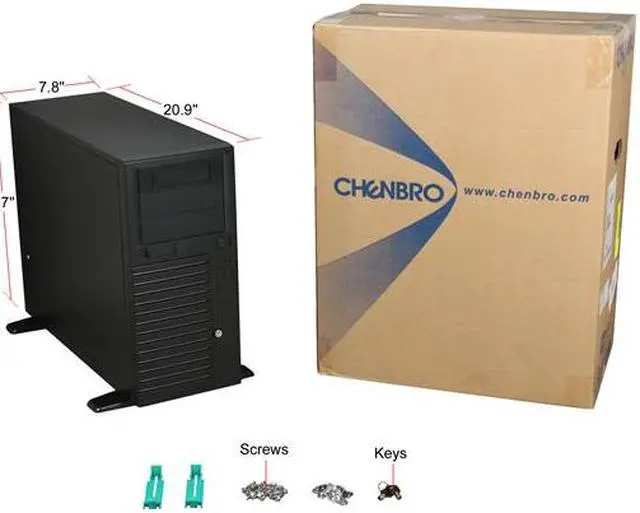

Main image of CHENBRO SR10569-CO 0.8mm SECC Pedestal Main Streaming Server/Workstation Chassis 3 External 5.25" Drive Bays

Alt view image 2 of 9 - CHENBRO SR10569-CO 0.8mm SECC Pedestal Main Streaming Server/Workstation Chassis 3 External 5.25" Drive Bays

Alt view image 3 of 9 - CHENBRO SR10569-CO 0.8mm SECC Pedestal Main Streaming Server/Workstation Chassis 3 External 5.25" Drive Bays

Alt view image 4 of 9 - CHENBRO SR10569-CO 0.8mm SECC Pedestal Main Streaming Server/Workstation Chassis 3 External 5.25" Drive Bays

Alt view image 5 of 9 - CHENBRO SR10569-CO 0.8mm SECC Pedestal Main Streaming Server/Workstation Chassis 3 External 5.25" Drive Bays

Alt view image 6 of 9 - CHENBRO SR10569-CO 0.8mm SECC Pedestal Main Streaming Server/Workstation Chassis 3 External 5.25" Drive Bays

Alt view image 7 of 9 - CHENBRO SR10569-CO 0.8mm SECC Pedestal Main Streaming Server/Workstation Chassis 3 External 5.25" Drive Bays

Alt view image 8 of 9 - CHENBRO SR10569-CO 0.8mm SECC Pedestal Main Streaming Server/Workstation Chassis 3 External 5.25" Drive Bays

Alt view image 9 of 9 - CHENBRO SR10569-CO 0.8mm SECC Pedestal Main Streaming Server/Workstation Chassis 3 External 5.25" Drive Bays

Shop All Chenbro Products

CHENBRO SR10569-CO 0.8mm SECC Pedestal Main Streaming Server/Workstation Chassis 3 External 5.25" Drive Bays

(9) Write a Review

3 External 5.25" Drive Bays
1 120mm Fans

Overview

Specs

Reviews (9)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

SR105 server/workstation chassis, support MicroATX/ATX/CEB/EEB MB, optional SAS/

Model
Brand	CHENBRO
Model	SR10569-CO

Details
Chassis Type	Pedestal
Case Material	0.8mm SECC
Motherboard Compatibility	ATX (12"x9.6") CEB (12"x10.5") EEB (12"X13")

Expansion
External 5.25" Drive Bays	3

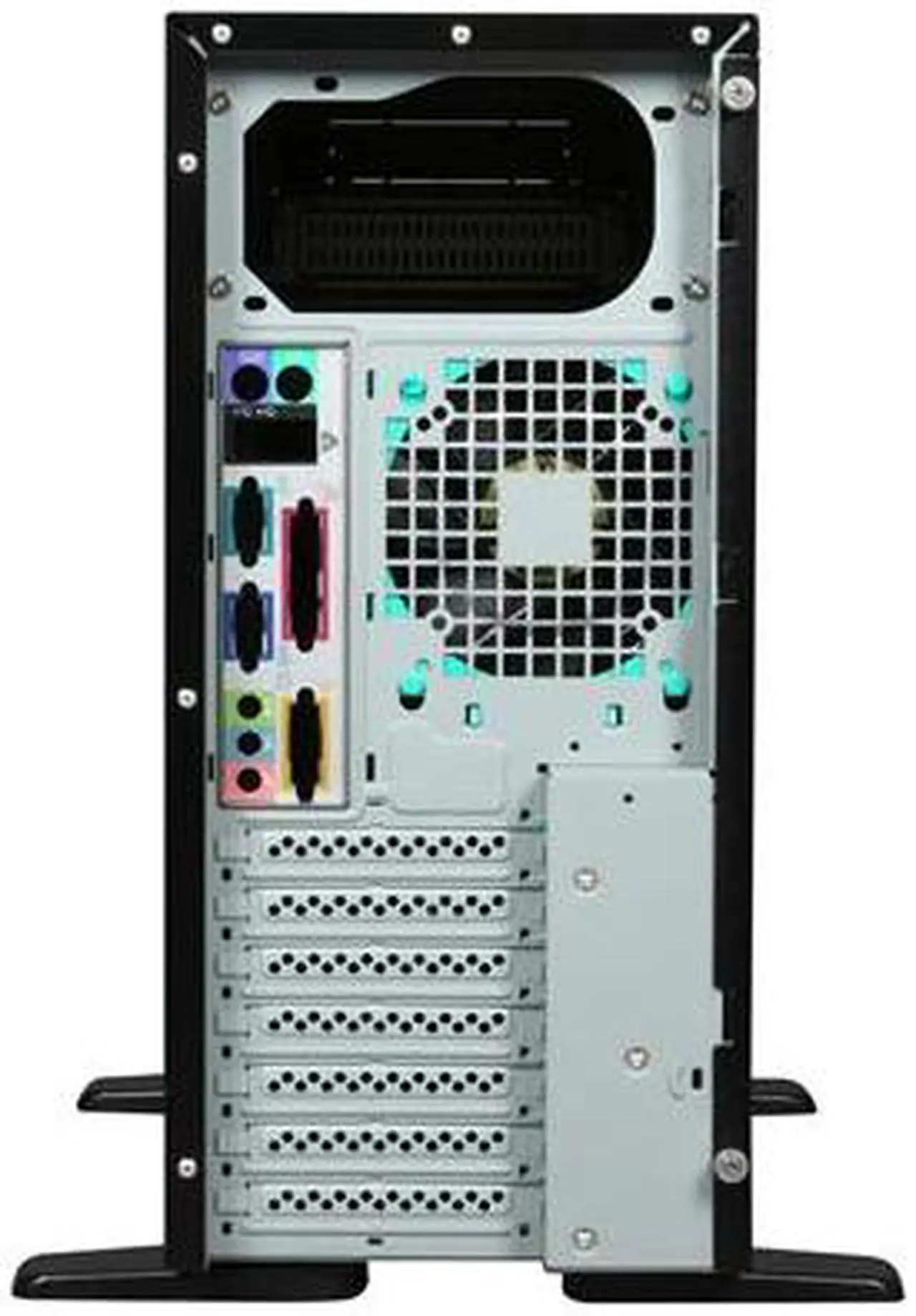

Expansion Slots	7

Ports
Front Ports	USB

Cooling System
120mm Fans	1

Features

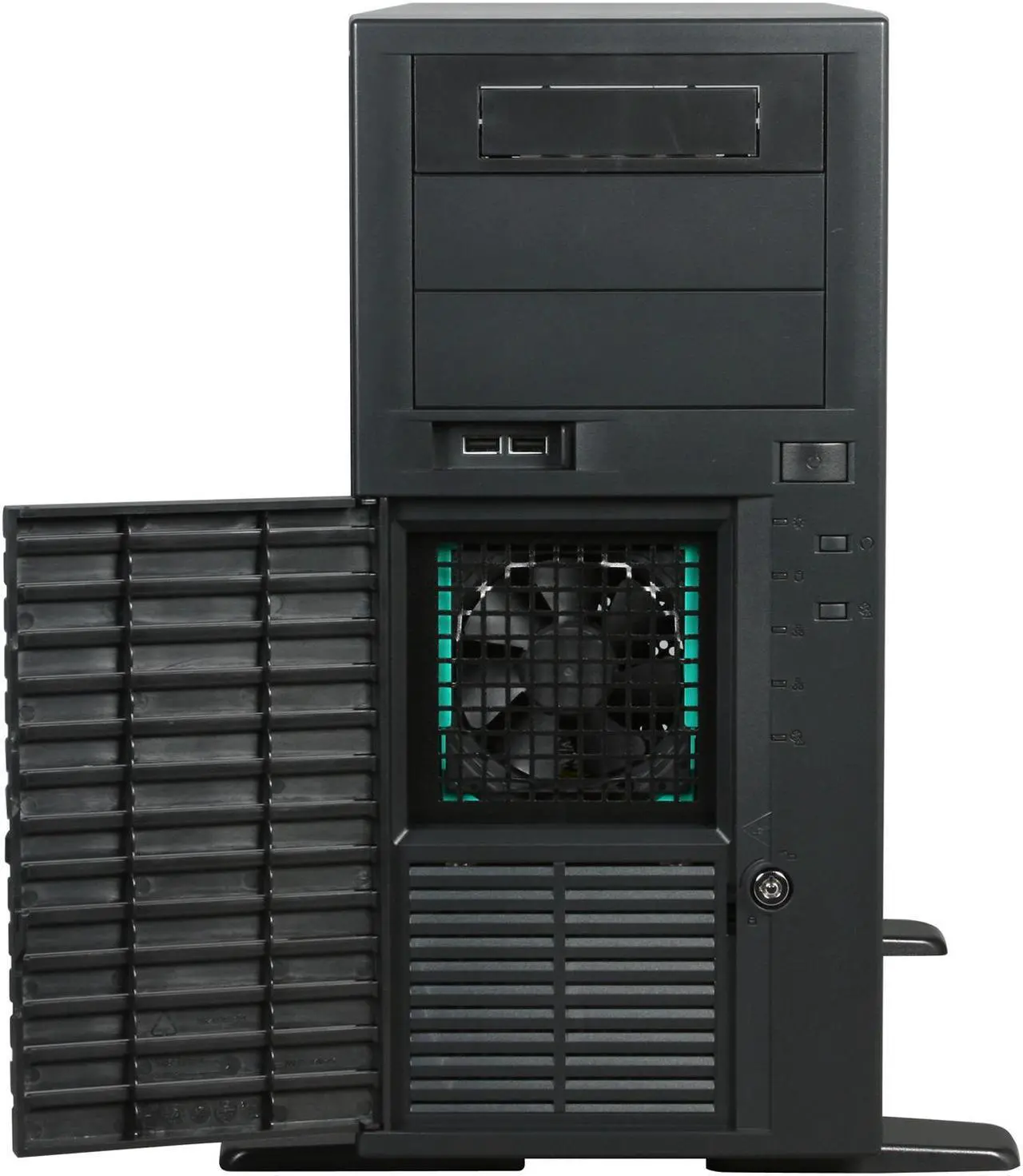

Features	1 x 80 mm or 92 mm (For HDD) For general purpose server platform Utilized 5.25" bay with Chenbro versatile storage kits Flexible configuration Tool-less design for easy installation Outstanding thermal and acoustic solution

Dimensions & Weight
Dimensions	20.9" x 7.8" x 16.7"

Additional Information
First Listed on Newegg	August 28, 2009
