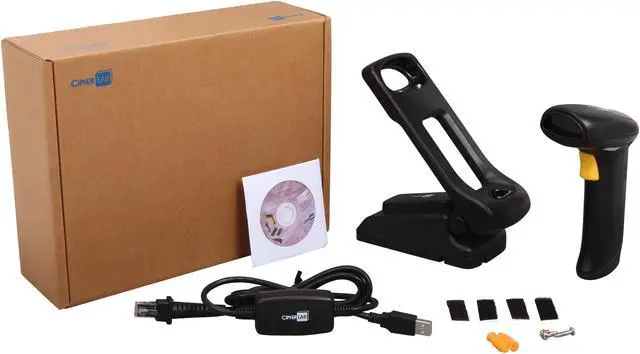

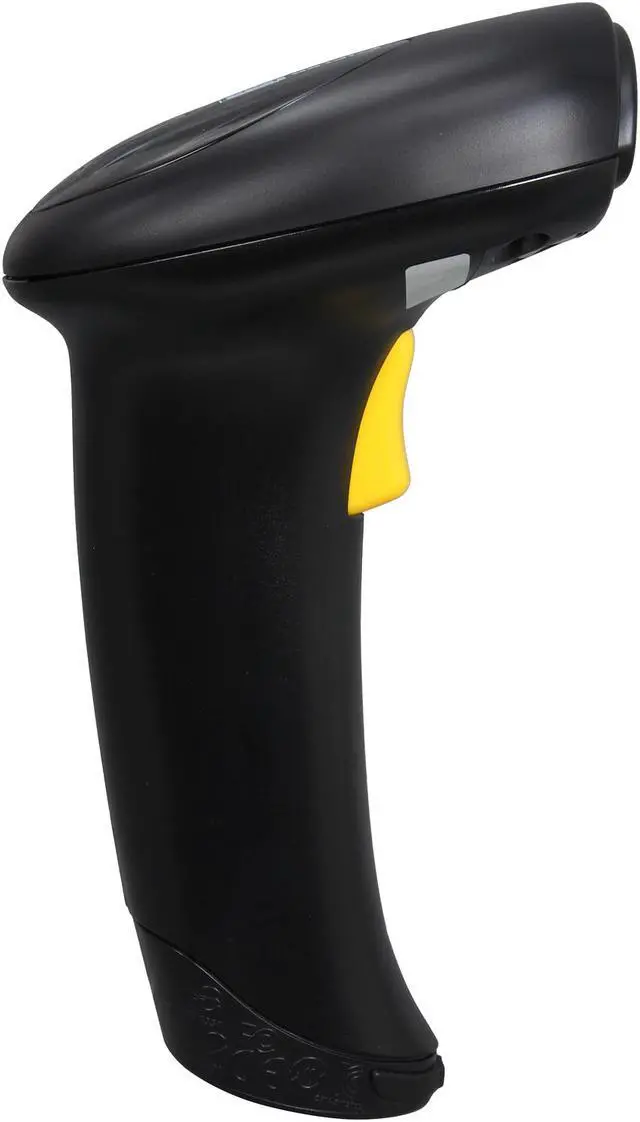

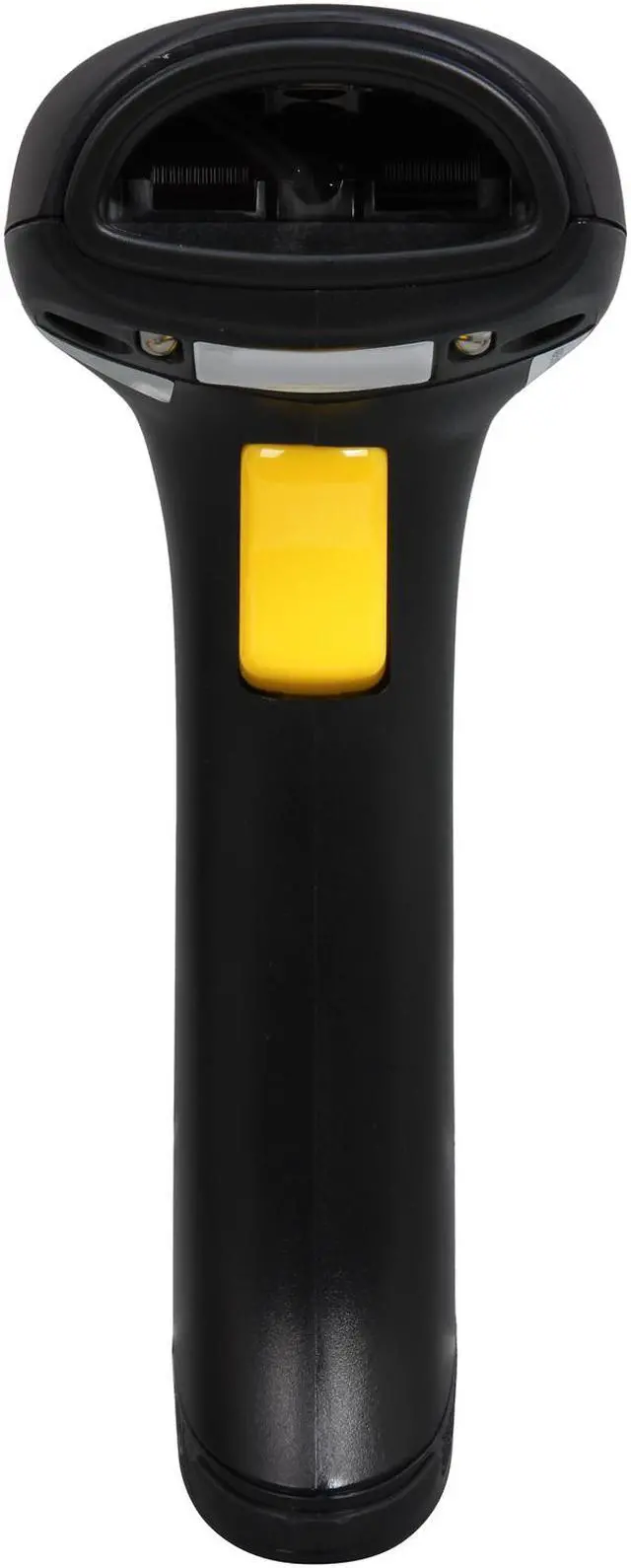

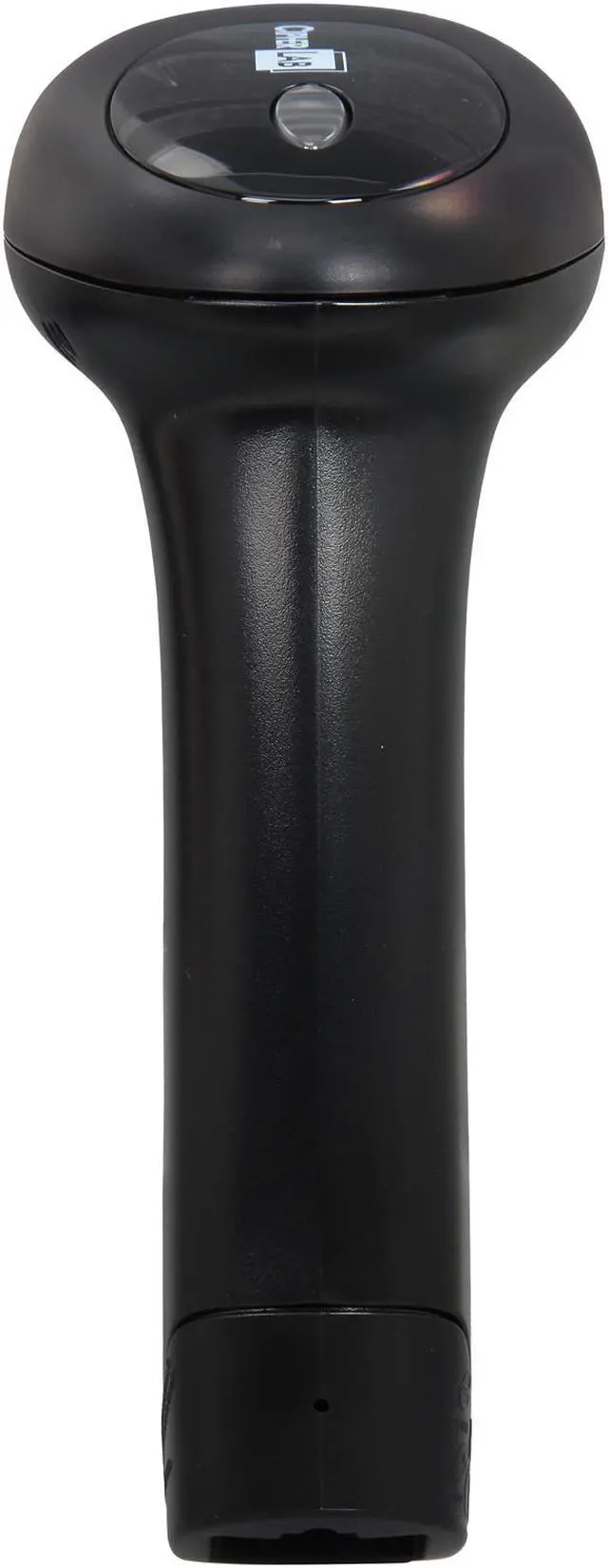

CipherLab A1500CBK0H001 1500 Barcode Scanner
- Linear Imager Scanner
- USB Cable included

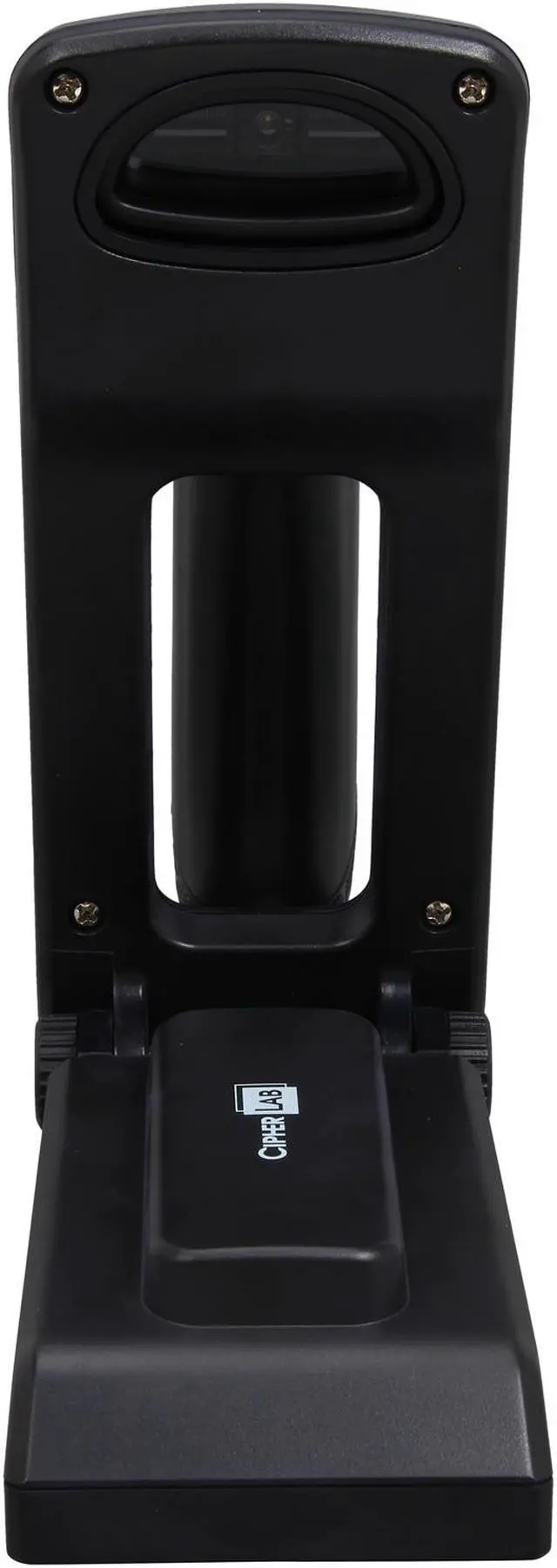

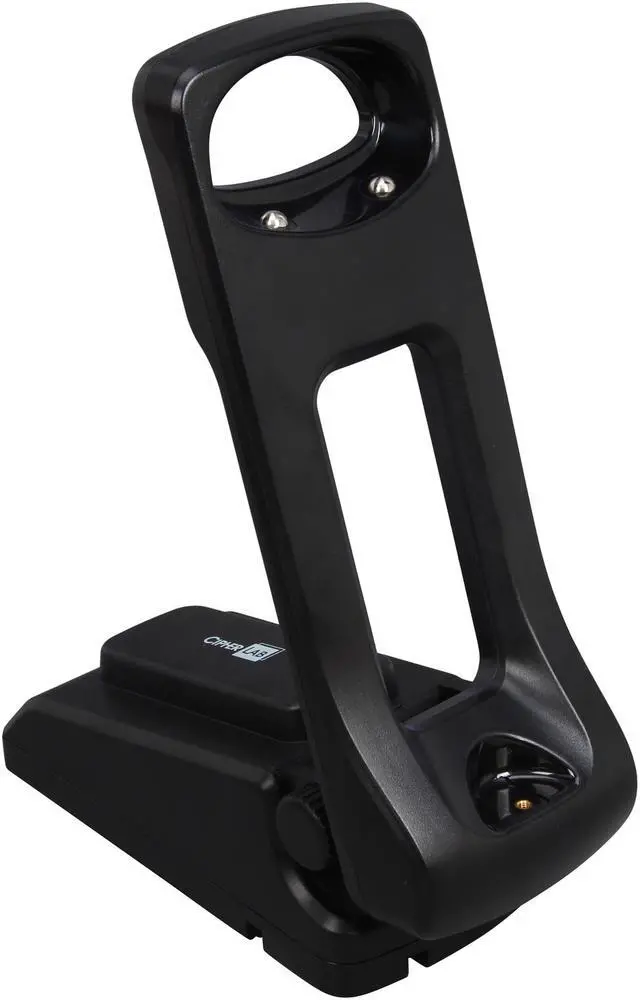

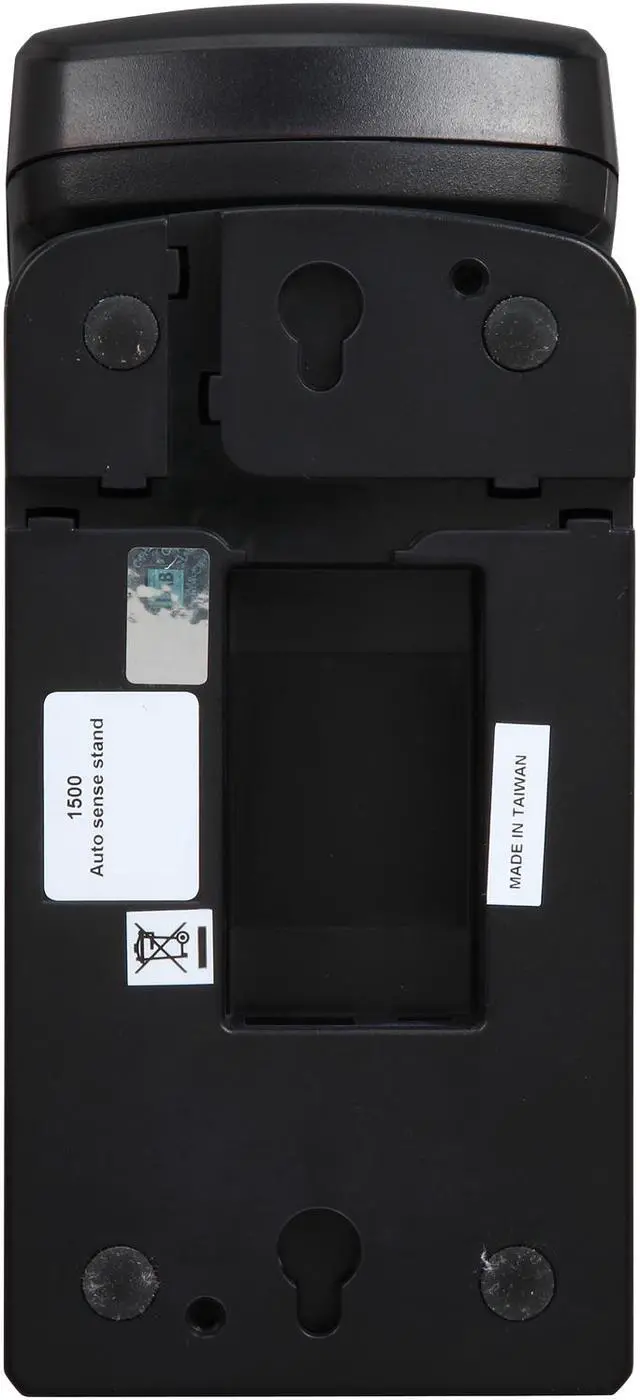

- Auto Sense Stand Included
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

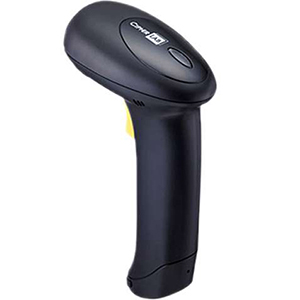

Bringing retail productivity and performance up to speed, the 1500 series of scanners offers powerful reliability with efficiency. The 1500 series scanners capture data from regular to long barcodes with a choice of linear imager, 2D imager, or laser. Together with Bluetooth® cordless and corded applications, the 1500 series scanners help you run business more efficiently with improved operations.
Overview
- Captures high density (3 mil) 1D barcodes as well as long barcodes.*
- Up to 200 decodes per second.
- 90-Meter Bluetooth® connectivity.
- IP30 rating and 1.5m drop resistance.*
- Runs 24 hours on single charge.*
- Records over 240,000 scans in batch mode, and stores up to 600 scans in buffer memory.**
*The specification may vary depending on product model and configuration.
**The calculation is based on EAN13 barcode.
**The calculation is based on EAN13 barcode.
Accessories: 3-in-1 auto-sense stand, hands-free adjustable stand, battery charger.
Features
Snappy Scanning, Speedy Decoding
The 1500 series with linear imaging reader scan and decode barcodes up to 200 times per second to speed work, eliminate rescans and keep up with your fastest operation. This high speed delivered with low power consumption makes auto-sense scanning very effective.
Wireless Freedom
Range of Operation
The 1500 series Bluetooth® wireless scanners have a 90-meter line-of-sight range from the communication stand. If it's not in range, with the optional linear imager and laser scanners, the scanner's buffer memory holds up to 256 scans in reserve, ready to transmit automatically when you're back in range again. Or, use batch mode to record over 32,000 scans – that's freedom to roam widely. The 1500 Bluetooth® scanner with 2D reader has a buffer memory of 10K or 4MB in batch mode.
House of Wireless Power
CipherLab offers you the multi-shift service with the 1500 series Bluetooth® scanner. Without interruption of workflow, users get to finish work more productively and efficiently.
A Great Variety at Your Fingertips
Every business is different and has different scanning needs, which is why CipherLab have a broad range of scanners to suit any businesses whatever their needs. The 1500 series comes in a range of varieties. The linear imager scanner offers the option of reading long barcodes, for example the ones on bills, making it suitable for utility companies, banks, and collecting agencies. The option of 2D imager is good for scanning barcodes on medicine packaging or hospital equipments making them suited for pharmaceutical or hospitals.
PC Software to Custom-Configure Scanners to Any Environment
CipherLab ScanMaster software provides comprehensive tools to configure any scanner, such as enabling and disabling hands-free scanning, choosing edit format and symbology types, plus more. With ScanMaster, scanners can be easily customized to fit every working environment. ScanMaster for PC is included with all CipherLab scanners. In addition, 1500 series is also supported by CipherConnect which is a COM-to-key utility designed for CipherLab Bluetooth® scanners to work as an input device for smart devices, such as Smartphone or PDA. The software enables intensive data collection and transmission via CipherLab Bluetooth® scanner to the smart device.
Comparison
| 1500, 1500WA | 1560 | 1502 | 1562 | 1504, 1504SE | 1564 | ||
|---|---|---|---|---|---|---|---|
| Category | Linear Imager | Laser | 2D Imager | ||||
| Corded | Bluetooth® Class 2 (2.4GHz) Version 2.0 + EDR | Corded | Bluetooth® Class 2 (2.4GHz) Version 2.0 + EDR | Corded | Bluetooth® Class 2 (2.4GHz) Version 2.0 + EDR | ||
| RF Communication of Bluetooth® Scanner | Coverage | -- | 90m¹ / 295ft line of sight | -- | 90m¹ / 295ft line of sight | -- | 90m¹ / 295ft line of sight |
| Standard Profile | SPP, HID | SPP, HID | SPP, HID | ||||
| Performance | Optical sensor | 2500 pixels | Laser | 752 x 480 pixels | |||
| Light source | Red LED 625 nm | Red LED 618 - 626nm | Visable laser diode at 650 ± 15nm | 625 ± 5nm LEDs (2x) | |||
| Resolution | 3 mil | 4 mil | 3 mil - 1D barcode / 5 mil - 2D barcode | ||||
| Depth of Field (13 mil barcode) | 1500: 0.5 to 35 cm / 0.2 to 13.8 in. (1500WA: long barcode 8.2 cm,8 mil - 7.5 to 14.5cm / 3 to 5.7 in.) |
2 to 57cm / 0.8 to 22.4in. | Code 39 3 mil: 6.9 to 10.7 cm / 2.7 to 4.2 in. Code 39 5 mil: 3.6 to 18.5 cm / 1.4 to 7.3 in. UPCA 13 mil: 4 to 30.5 cm / 1.6 to 12 in. PDF417 5 mil: 2.8 to 4.5 cm / 1.1 to 1.8 in. PDF417 6.67 mil: 4.8 to 17.5 cm / 1.9 to 6.9 in. |
||||
| Scanning angle | Pitch ± 70 degrees Skew ± 70 degrees | Pitch ± 65 degrees Skew ± 50 degrees | Pitch ± 60 degrees Skew ± 60 degrees | ||||
| PCS | Minimum 30% | Minimum 45% | Minimum 30% | ||||
| Scan rate | 200 scans / second |
100 scans / second |
100 scans / second |
60 scans / second |
|||
| Ambient Illumination |
100,000 lux | ||||||
| Hands-free scanning | Auto-sense and continuous modes | Continuous mode | Auto-sense mode, continuous mode, and presentation mode |
||||
| Barcodes support | Codabar, Code 39, Code 93, Code 128, GS1 DataBar (RSS), Industrial 2 of 5, Interleave 2 of 5, ISBT-128, Italian and French Pharmacodes, Matrix 2 of 5, MSI, Plessey, Telepen, UPC / EAN / GS1-128, and more |
1D: All of the bacodes that 1500 series 1D scanners can support except French Pharmacodes, Plessey and Telepen 2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX) |
|||||
| Programmable features | Data editing, interface selection, symbology configuration | ||||||
| Language support | US and UK English, French, Italian, Belgian, Norwegian, Swedish, Spanish, Portuguese, German, Swiss German, Japanese, Turkish, Hungarian, and Danish² | ||||||
| Physical | Dimensions (L x W x H) | 6.0 x 2.4 x 3.7in. (15.3 x 6.1 x 9.3cm) | |||||
| Weight without cable / with battery |
5.1oz (145g) | 6.1oz (173g) | 5.2oz (149g) | 6.2oz (177g) | 5.4oz (154g) | 6.5oz (185g) | |
| Color | Black | ||||||
| Switch | Tactile Switch | ||||||
| Electrical | Memory for Bluetooth® scanner reserver buffer / batch mode |
4K / 512K | 10K / 4MB | ||||
| Working hours for Bluetooth® scanner |
24 / 12 hours4 based on 1 scan / 5 seconds |
24 hours based on 1 scan / 5 seconds |
16 hours based on 1 scan / 5 seconds |
||||
| Voltage | +5V ± 10% / 3.7V 800mAh Li-ion battery | +5V ± 10% / 3.7V 800mAh Li-ion battery | |||||
| Power consumption3 Standby / Operating |
50mA / 265mA | 45mA / 270mA | 35mA / 210mA | 25mA / 210mA | 1504: 30mA / 280mA 1504SE: 38mA / 196mA |
35mA / 230mA | |
| User Environment | Temperature | Operating: 32°F to 122°F (0°C to 50°C) Storage: -4°F to 140°F (-20°C to 60°C) | |||||
| Humidity | Operating: 10% to 90% Storage: 5% to 95% | ||||||
| Impact resistance | 4.9 ft (1.5m) mutliple drops onto concrete | 3.9 ft (1.2m) mutliple drops onto concrete | |||||
| Ingress protection | IP30 | ||||||
| Electrostatic discharge | ±8 kV contact ±15 kV air | ||||||
| EMC regulation | 1500: BSMI, CE, C-tick, FCC, IC, KC 1500WA: BSMI, CE, C-tick, FCC, IC |
BSMI, CE, C-tick, FCC, IC, KC, NCC, SRMC, TELEC |
BSMI, CE, C-tick, FCC, IC, KC |
BSMI, CE, C-tick, FCC, IC, KC, NCC, SRMC, TELEC |
1504: BSMI, CE, C-tick, FCC, IC, KC 1504SE: BSMI, CE, C-tick, FCC, IC |
BSMI, CE, C-tick, FCC, IC, NCC, KC, SRMC, TELEC |
|
| Configuration | Setup options include Windows-based ScanMaster software, by direct connection or printing out barcode settings | ||||||
| Accessories | USB, RS232 and keyboard wedge cables, hands-free adjustable stand, Three-way desk / wall / auto-sense stand with optional weighted base, communucation stand for Bluetooth® scanner provides Bluetooth® communication for up to seven scanners, single battery charger for Bluetooth® scanner |
||||||
1. Based on communication stand without weighted base.
2. All of the barcodes that 1500 series 2D scanners can read except French Pharmacode, Plessey, Telepen, and ISBT-128 (1504SE only).
3. The data is tested with USB interface.
4. Depending on the CCD Sensor mode setting: Always Active function disabled / enabled, and default setting.
2. All of the barcodes that 1500 series 2D scanners can read except French Pharmacode, Plessey, Telepen, and ISBT-128 (1504SE only).
3. The data is tested with USB interface.
4. Depending on the CCD Sensor mode setting: Always Active function disabled / enabled, and default setting.
