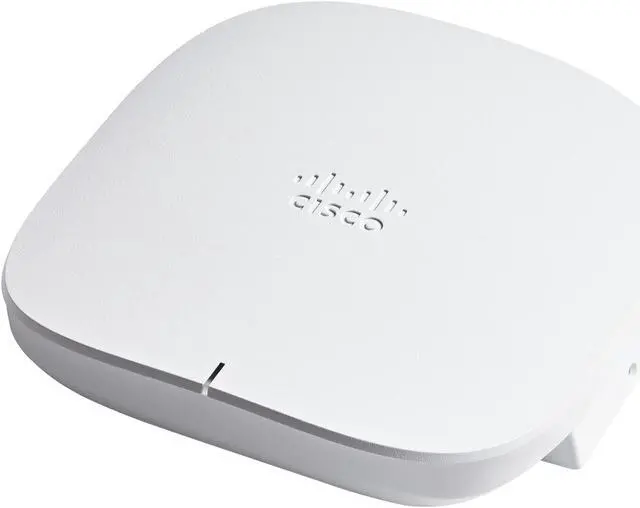

Cisco Business 150AX Wi-Fi 6 Access Point, Dual Band IEEE 802.11ax 1.49 Gbit/s Wireless Access Point | CBW150AX-B-NA

Wi-Fi 6 Access Point: Designed to use both the 2.4-GHz and 5-GHz bands, unlike the 802.11ac standard.
Downlink MU-MIMO technology: Supporting two spatial streams, MU-MIMO enables access points to split spatial streams between client devices to maximize throughput.
Simplified management: Easily deploy and manage multiple Cisco Business Wireless CBW150AX access points and CBW151AXM mesh extenders as one entity, without a physical controller or licensing, using your favorite web browser with the integrated WebUI or using your mobile device with the Cisco Business Mobile app.
Mesh technology support: Mix and match Cisco Business Wi-Fi 6 Mesh Extenders and/or Access Points to extend seamless Wi-Fi coverage throughout your business or workplace.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Cisco Systems, Inc. 150AX

Details
# of Users	Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system.
Standards	IEEE 802.3 IEEE 802.3ab IEEE 802.3af/at IEEE 802.11a/b/g/n/ac/ax IEEE 802.11h, 802.11d
WiFi Generation	Wi-Fi 6
Wireless Data Rates	802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps 802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40) 802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9) 802.11ax data rates on 2.4 & 5GHz: 6.5 to 1200 Mbps (MCS0-MCS11)
Security	Wi-Fi Protected Access - with WPA2 or WPA3, including WPA2-Entperprise authentication 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA) Segmentation via VLANs (up to 16) 802.11r and 802.11i Guest network can also authenticate against a Social Login account: Google and Facebook
Frequency Band	2.4 GHz / 5 GHz
Antenna	2.4GHz: peak gain 4dBi, internal antenna, omnidirectional in azimuth 5GHz: peak gain 5dBi, internal antenna, omnidirectional in azimuth
WAN Ports	1 x 10/100/1000M
Max Power Consumption	Power Draw: 9.2W (maximum, on PoE)

Dimensions & Weight
Dimensions	Access point (without mounting bracket): 5.92 x 5.92 x 1.57 in. (150.4 x 150.4 x 39.9 mm)
Weight	Access point without mounting bracket or any other accessories: 11.6 oz (330 g)

Features
Features	Management Compatibility: A group of access points and mesh extenders comprised of only CBW150AX and CBW151AXM devices may be managed as a single entity. CBW150AX access points must not be installed on the same management network and CBW140AC or CBW240AC access points. CBW150AX and CBW151AXM devices are supported by Cisco Business Dashboard versions 2.4.1 and higher. Maximum # of Access Points: 50 Recommended up to 25 Max # of Mesh Extenders: Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops Ethernet ports: Authentication with 802.1X or MAC filtered Dynamic VLAN or per port Traffic locally switched or tunneled back to Master AP

Additional Information
First Listed on Newegg	October 27, 2022

Return for refund within: Non-refundable

Return for replacement within: 30 days
