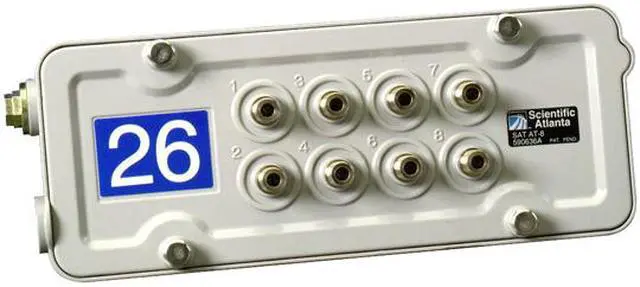

Learn more about the Cisco Systems, Inc. 4013333
| Brand | CISCO |
|---|---|
| Model | 4013333 |
| Type | Surge-Gap |
|---|---|
| Specifications | Mechanical AL360T housing with powder paint coating and aluminum end plugs for environmental protection Sealed and swaged extended F-ports for enhanced resistance to moisture ingress Nickel-plated brass F-ports to ensure a corrosion-resistant drop interface Versatile housing design permits aerial, pedestal, or MDU mounting schemes Operating temperature from -40°C to +60°C EMI shielding minimum 100 dB Pressure tested at 10 psi for 60 seconds under water Electrical Specifications Thru Continuous current 12 amps - 60/90 V AC Current limiting 250 mA @ 60°C, per drop Surge Resistance Input / Output ports - (combo wave) 6 kV Tap ports (ring wave) 6 kV Impedance 75 ohm Hum Modulation @ 10 Amps (typical) 65 dB (5 - 10 MHz) 70 dB (11 - 1000 MHz) AC/RF Bypass Switch Performance System Open Circuit Time 0 ms Contact Resistance 10 mOhms max Current and voltage Carrying 12 A, 60/90 V AC RF Frequency Range 5 to 1000 MHz Operating Temperature -40ºC to +60ºC Standards Compliance Scientific-Atlanta’s Surge-Gap Stretch Taps meet or exceed the following industry standards: Safety EN 50083-1/EN 60065 UL 60960-1 Mechanical ANSI / SCTE 01 1996 - F-port interface specification ANSI / SCTE 91 2004 - entry port interface specification Emissions FCC - Part 76, Subpart K EN 50083-2 Environmental ASTM G 53 - weathering specification ASTM B 117 - salt spray specification ASTM D 3170 - chip resistance specification ASTM G 21 - fungus growth rate of zero EN 60529 IP 68 |
| Features | Connection-Beam AC/RF bypass switch, providing interruption-free service to downstream customers during faceplate removal Faceplate-confined circuitry isolates and simplifies maintenance efforts Per-port power activation and protection, decreasing cost and increasing customer service effectiveness Nine-inch housing, simplifying system upgrades Faceplate reversibility, eliminating costly re-splicing Plug-in directional coupler, enabling field modification without costly resplicing Compatible with aerial or pedestal mounting Available space for future enhancements Durable powder paint coating for superior environmental protection |
|---|
| First Listed on Newegg | February 11, 2011 |
|---|
