CISCO AIR-ACCPMK1570-2= Pole Mount Kit Type-2 for 1570 Series

Be the first to review this product...

AIR-ACCPMK1570-2=
Mount Kit

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Wall or pole (2 to 16 inches in diameter) with tilt adjustment.Requires special band - installation tool (AIR - BAND - INST - TL=); one per install crew.Device Supported: Wireless Access PointCompatibility: Cisco Aironet 1570 Series Access Point: AP1572EAC AP1572EC

Model
Brand	CISCO
Model	AIR-ACCPMK1570-2=

Details
Type	Mount Kit

Features

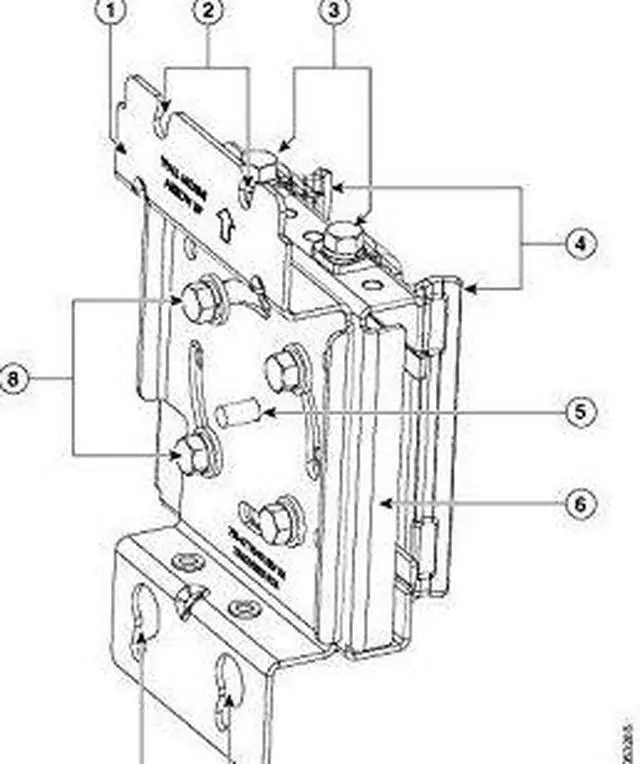

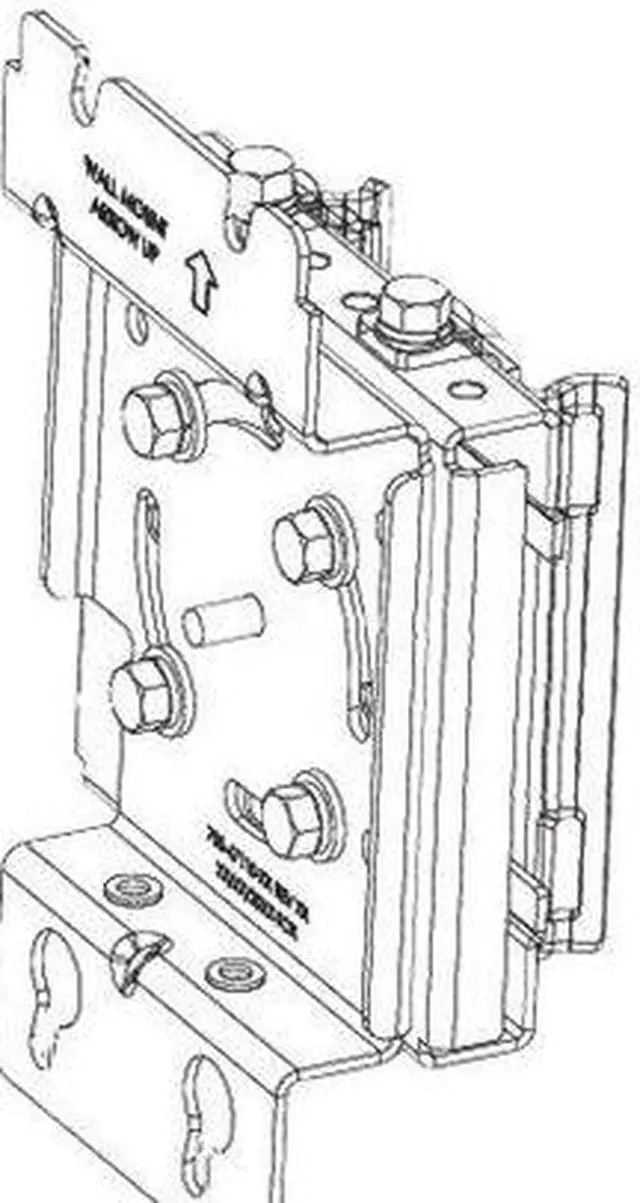

Features	The Pole Mount Kit 2 (abbreviated as PMK2) can be used to vertically mount the AP on a vertical pole, a horizontal pole, or on an off-angle pole. Poles of diameter ranging from 2 to 16 inches are supported. This kit can also be used to vertically mount the AP on a wall. The PMK2 consists of these parts: A wall mount bracket, for vertical mounting on walls A pivot bracket Two strap brackets Two adjustable steel band straps The Pivot Bracket and the Strap Brackets, are used only when mounting the AP on poles. By itself, the Wall Mount Bracket, is used for vertical mounting on the AP on walls. For more information, see Wall Mounting Using PMK2. When mounting the AP on poles, the Wall Mount Bracket is used along with the Pivot Bracket and the Strap Brackets. When all three pieces of the PKM2 kit are assembled, the pivot bracket attached to the wall mount bracket allows reorienting the PMK2 mount assembly by up to 90 degrees from vertical. This allows the AP to be vertically mounted on horizontal poles and off-angle poles. The pivot bracket also provides three sets of bolt holes for the strap brackets to attach, thereby supporting three pole diameter ranges: 2 to 6, 6 to 11, and 11 to 16 inches
