CISCO AIR-ANT2524DW-R Dual-band Dipole Antenna for Cisco Aironet APs - White

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

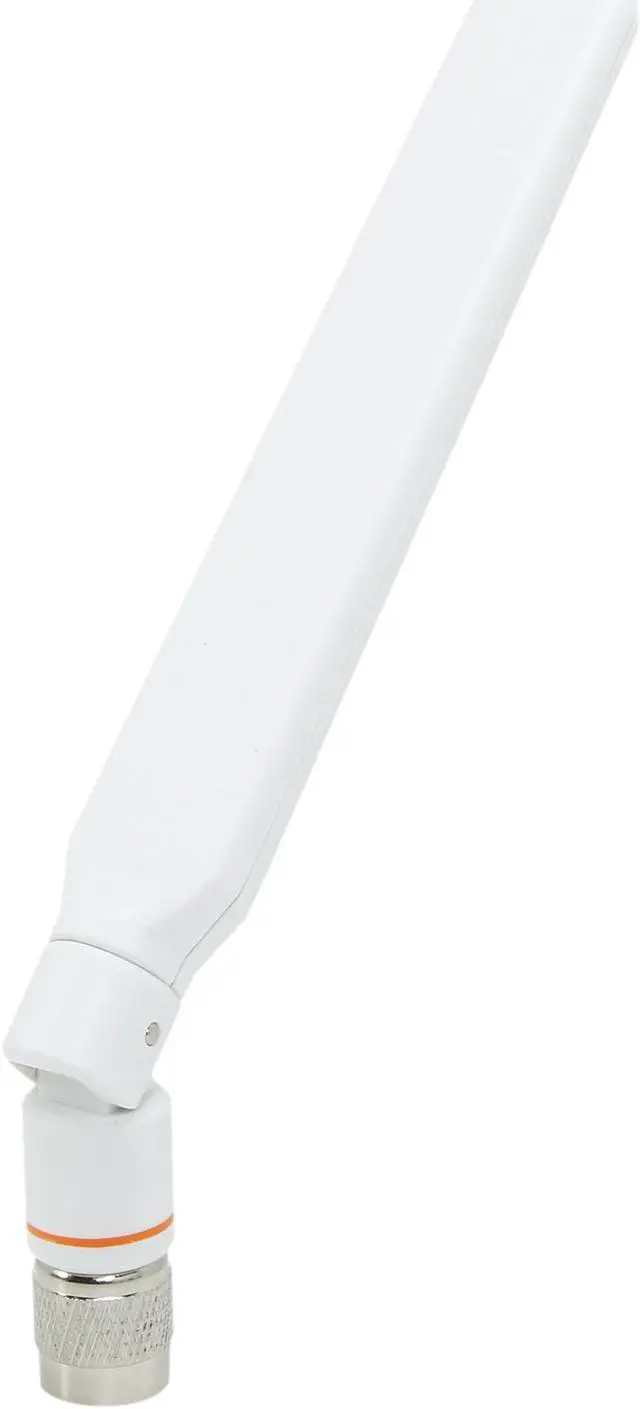

Cisco - AIRONET 2.4GHZ 2DBI AND 5GHZ 4DBI DIPOLE ANTENNA RP-TNC WHITE

Model
Brand	CISCO
Model	AIR-ANT2524DW-R

Details
Type	Antenna
Color	Black

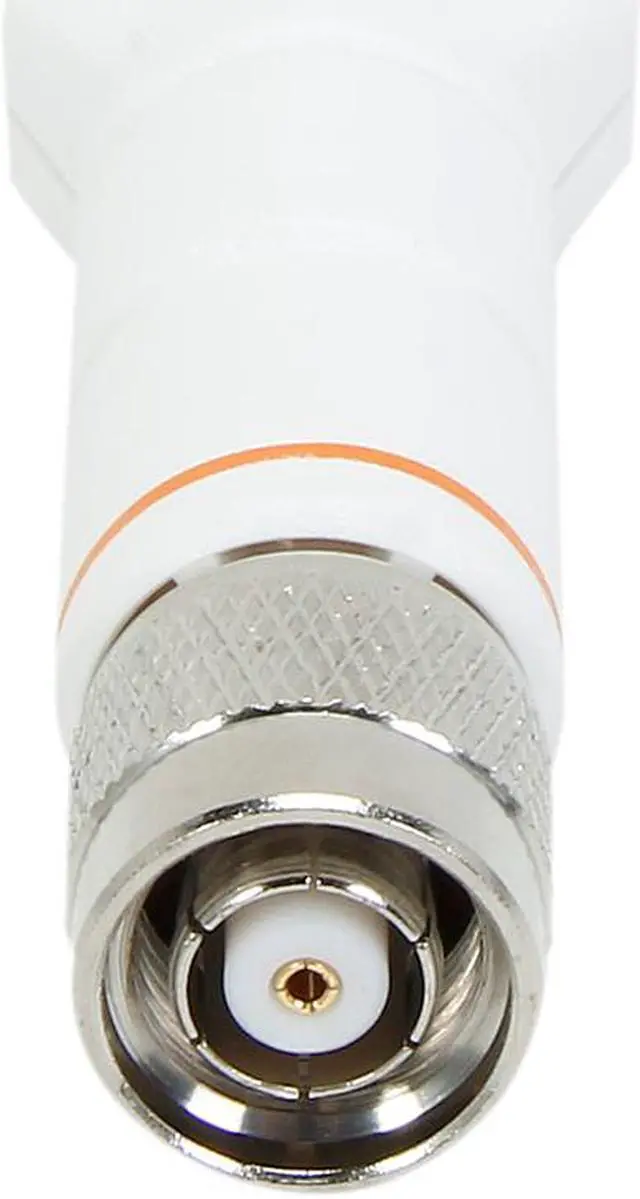

Specifications	Color: White Antenna type: Dual-band dipole Operating frequency range: 2400 to 2500 MHz; 5150 to 5850 MHz Nominal input impedance: 50 Ohms VSWR: Less than 2:1 Peak Gain @ 2.4. GHz: 2 dBi Peak Gain @ 5 GHz: 4 dBi Elevation plane 3dB beamwidth @2.4 GHz: 63 degrees Elevation plane 3dB beamwidth @ 5 GHz: 39 degrees Connector type: RP-TNC plug Antenna length: 6.63" Weight: 1.3 oz. Environment: Indoor, office

Features
Features	System Requirements: This antenna is designed for use with Cisco Aironet access points that support simultaneous operation in the 2.4 GHz band and the 5 GHz band and that have dual-band antenna ports, labeled as such in orange text. The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its joint.

Additional Information
First Listed on Newegg	May 07, 2014
