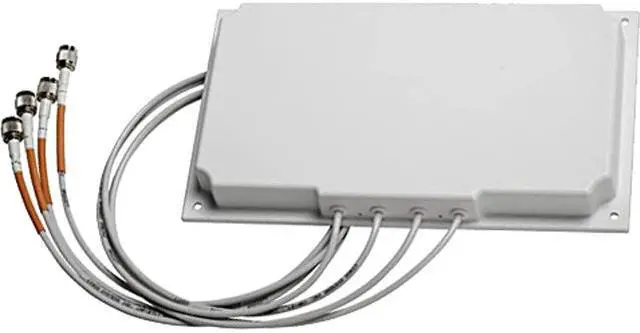

CISCO AIR-ANT2566P4W-RS= Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch Antenna

Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Cisco Systems, Inc. AIR-ANT2566P4W-RS=

Model
Brand CISCO
Model AIR-ANT2566P4W-RS=
Details
Type Antenna
Specifications Antenna type: 4-element dual-band MIMO

Operating frequency range
- 2400 to 2484 MHz
- 5150–5850 MHz

VSWR: 2:1 or less

Gain: 6 dBi in both bands

Polarization: Linear, vertical

Azimuth Plane 3-dB Beamwidth
- 2.4 GHz band: 105°
- 5 GHz band: 110°

Elevation Plane 3-dB Beamwidth
- 2.4 GHz band: 65°
- 5 GHz band: 55°

Dimension: 6.30" x 11.00" x 1.20"

Weight: 1.40 lbs.

Cable length and type: 3 ft. (91.4 cm) plenum rated

Connector: RP-TNC

Environment: Indoor/outdoor
