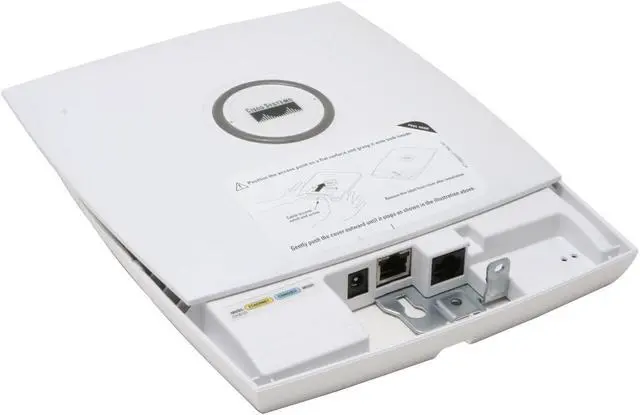

Designed specifically for business environments, Cisco's low-profile Aironet 1131AG access point is your high-capacity, high-security, enterprise-class answer for adding or extending wireless network access in your office. Dual internal radios offer both 802.11a and 802.11b/g standards allowing a broad range of devices to connect to the network. Built-in omnidirectional antennas are capable of blanketing a coverage area with an expansive operating range.
Of course, nothing is more important than your business' security, and the 1131AG has you covered. Hardware-assisted Advanced Encryption Standard (AES) or temporal key integrity protocol (TKIP) encryption options are available to users, as are Wi-Fi Protected Access 2 (WPA2) or WPA security and WEP keys of 40 bits and 128 bits.

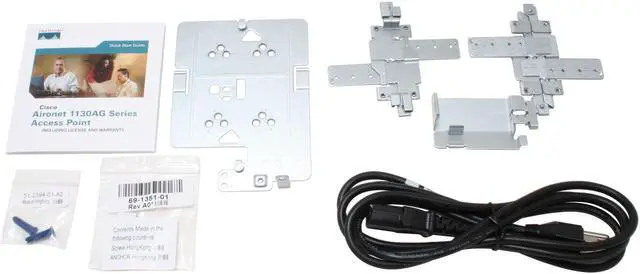

The package includes a multipurpose mounting bracket for securing the access point to ceilings and walls. The design is stylish yet discreet enough to place out in the open in any office environment, the Cisco Aironet 1131AG can be placed above ceilings in plenum areas regulated by municipal fire codes or suspended ceilings.
Designed specifically for business environments, Cisco's low-profile Aironet 1131AG access point is your high-capacity, high-security, enterprise-class answer for adding or extending wireless network access in your office. Dual internal radios offer both 802.11a and 802.11b/g standards allowing a broad range of devices to connect to the network. Built-in omnidirectional antennas are capable of blanketing a coverage area with an expansive operating range.
Of course, nothing is more important than your business' security, and the 1131AG has you covered. Hardware-assisted Advanced Encryption Standard (AES) or temporal key integrity protocol (TKIP) encryption options are available to users, as are Wi-Fi Protected Access 2 (WPA2) or WPA security and WEP keys of 40 bits and 128 bits.
The package includes a multipurpose mounting bracket for securing the access point to ceilings and walls. The design is stylish yet discreet enough to place out in the open in any office environment, the Cisco Aironet 1131AG can be placed above ceilings in plenum areas regulated by municipal fire codes or suspended ceilings.
Dual-Radio Access PointThe dual-radio CISCO AIR-AP1131AG-A-K9 access point functions simultaneously with an 802.11b/g and 802.11a radio, providing ultra-fast speeds of up to 108 Mbps (under 802.11g).
Cisco Unified IDS/IPSThis integrated software feature, as part of the Cisco Self-Defending Network, is the industry's first integrated wired and wireless security solution. When a trusted client acts maliciously, the wired IDS detects the attack and sends shunning requests to Cisco WLAN controllers, which will disassociate the client device accordingly.
Wireless SecurityThe CISCO AIR-AP1131AG-A-K9 supports WPA and WPA2 standards for use of available supreme encryption regardless of client devices. Hardware-assisted AES encryption provides a high level of security without performance degradation.

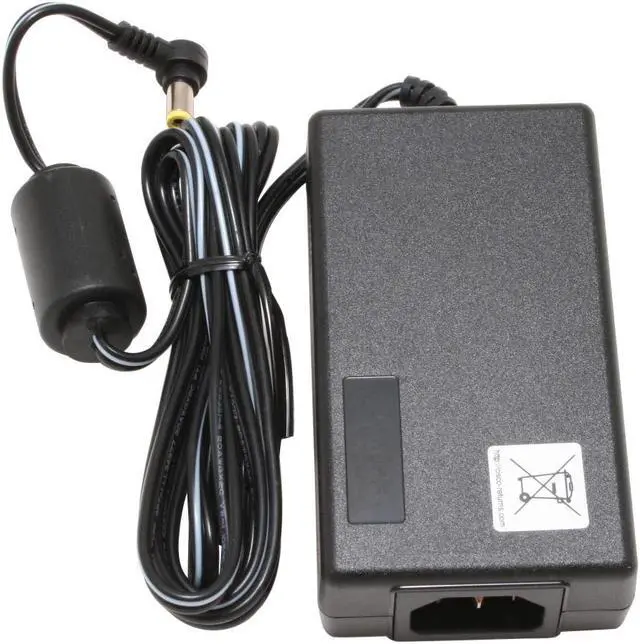

Inline Power SupportPower can be supplied using the Ethernet cable without the need for costly electrical power lines to run to remotely installed access points. The CISCO AIR-AP1131AG-A-K9 access points can be powered by Cisco inline power switches, single port power injectors or local power.
Learn more about the Cisco Systems, Inc. AIR-AP1131AG-A-K9
Model
Brand
CISCO
Model
AIR-AP1131AG-A-K9
Details
Standards
IEEE 802.3/3u, IEEE 802.11a/b/g
Wireless Data Rates
Up to 54Mbps
Security
WPA WPA2 (802.11i) CISCO TKIP CISCO message integrity check (MIC) IEEE 802.11 WEP keys of 40 bits and 128 bits
Indoor (distance across open office environment): 802.11a: 80 ft (24 m) @ 54 Mbps 150 ft (45 m) @ 48 Mbps 200 ft (60 m) @ 36 Mbps 225 ft (69 m) @ 24 Mbps 250 ft (76 m) @ 18 Mbps 275 ft (84 m) @ 12 Mbps 300 ft (91 m) @ 9 Mbps 325 ft (100 m) @ 6 Mbps
802.11g: 100 ft (30 m) @ 54 Mbps 175 ft (53 m) @ 48 Mbps 250 ft (76 m) @ 36 Mbps 275 ft (84 m) @ 24 Mbps 325 ft (100 m) @ 18 Mbps 350 ft (107 m) @ 12 Mbps 360 ft (110 m) @ 11 Mbps 375 ft (114 m) @ 9 Mbps 400 ft (122 m) @ 6 Mbps 420 ft (128 m) @ 5.5 Mbps 440 ft (134 m) @ 2 Mbps 450 ft (137 m) @ 1 Mbps
Outdoor: 802.11a: 100 ft (30 m) @ 54 Mbps 300 ft (91 m) @ 48 Mbps 425 ft (130 m) @ 36 Mbps 500 ft (152 m) @ 24 Mbps 550 ft (168 m) @ 18 Mbps 600 ft (183 m) @ 12 Mbps 625 ft (190 m) @ 9 Mbps 650 ft (198 m) @ 6 Mbps
802.11g: 120 ft (37 m) @ 54 Mbps 350 ft (107 m) @ 48 Mbps 550 ft (168 m) @ 36 Mbps 650 ft (198 m) @ 24 Mbps 750 ft (229 m) @ 18 Mbps 800 ft (244 m) @ 12 Mbps 820 ft (250 m) @ 11 Mbps 875 ft (267 m) @ 9 Mbps 900 ft (274 m) @ 6 Mbps 420 ft (128 m) @ 5.5 Mbps 440 ft (134 m) @ 2 Mbps 450 ft (137 m) @ 1 Mbps
Interface
Ethernet Port
LEDs
External: Status LED indicates operating state, association status, error/warning condition, boot sequence, and maintenance status Internal: Ethernet LED indicates activity over the Ethernet, status Radio LED indicates activity over the radios, status
