2.412 to 2.462 GHz 5.15 to 5.35 GHz 5.725 to 5.825 GHz
Overview
Specs
Reviews (2)
Cisco Aironet 1232Ag Wireless Access Point Dual Band 54Mbps 802.11 A/B/G Cisco Aironet 1230Ag Series Ieee 802.11A/B/G Access Points Delivers The Versatility High Capacity Security And Enterprise-Class Features Demanded By Wlan Customers. It Is D
With its rugged design and extended operating temperature range, Cisco's Aironet 1230AG access point is an ideal wireless-networking solution for factories, warehouses, large retail environments and similar facilities. Dual internal radios offer both 802.11a and 802.11b/g standards, allowing a broad range of devices to connect to the network. Each radio can be individually configured to work as an access point, repeater or bridge. And antenna connectors support a variety of Cisco 2.4GHz and 5GHz antennas for reliable and expansive coverage in the most demanding operating atmospheres.
Of course, nothing is more important than your business' security and the 1130AG has you covered. Hardware-assisted Advanced Encryption Standard (AES) or temporal key integrity protocol (TKIP) encryption options are available to users, as are Wi-Fi Protected Access 2 (WPA2) or WPA security and WEP keys of 40 bits and 128 bits.
The package includes a multipurpose mounting bracket for securing the access point to ceilings and walls. The design discreet enough to place out in the open any office environment, the Cisco Aironet 1230AG can be placed above ceilings in plenum areas regulated by municipal fire codes or suspended ceilings. Also, power can be supplied to the AP by a standard outlet or thanks to the device's power-over-Ethernet (PoE) technology a single Ethernet connection for both power and data—perfect for hard-to-reach areas where there are no nearby outlets.
Dual-Radio Access PointThe dual-radio CISCO AIR-AP1232AG-A-K9 access point functions simultaneously with an 802.11b/g and 802.11a radio, providing ultra-fast speeds of up to 108 Mbps (under 802.11g).
Cisco Unified IDS/IPSThis integrated software feature, as part of the Cisco Self-Defending Network, is the industry's first integrated wired and wireless security solution. When a trusted client acts maliciously, the wired IDS detects the attack and sends shunning requests to Cisco WLAN controllers, which will disassociate the client device accordingly.
High Wireless SecurityThe CISCO AIR-AP1232AG-A-K9 supports WPA and WPA2 standards for use of available supreme encryption regardless of client devices. Hardware-assisted AES encryption provides high security without performance degradation.
Rugged Metal HousingThe cast aluminum case and rugged features support deployment in factories, warehouses, outdoors (in a NEMA enclosure) and other industrial environments.
UL 2043 Plenum Rating and Extended Operating TemperatureThe CISCO AIR-AP1232AG-A-K9 supports installation in environmental air space, even above suspended ceilings.
Local and Inline Power SupportPower can be supplied using the Ethernet cable without the need for costly electrical power lines to run to remotely installed access points. The CISCO AIR-AP1232AG-A-K9 access point can be powered by Cisco inline power switches, single port power injectors or local power.
Learn more about the Cisco Systems, Inc. AIR-AP1232AG-A-K9
Indoor: 802.11a: 90 ft (27 m) @ 54 Mbps 225 ft (69 m) @ 48 Mbps 300 ft (91 m) @ 36 Mbps 350 ft (107 m) @ 24 Mbps 400 ft (122 m) @ 18 Mbps 450 ft (137 m) @ 12 Mbps 475 ft (145 m) @ 9 Mbps 500 ft (152 m) @ 6 Mbps 802.11g: 90 ft (27 m) @ 54 Mbps 95 ft (29 m) @ 48 Mbps 100 ft (30 m) @ 36 Mbps 140 ft (43 m) @ 24 Mbps 180 ft (55 m) @ 18 Mbps 210 ft (64 m) @ 12 Mbps 220 ft (67 m) @ 11 Mbps 250 ft (76 m) @ 9 Mbps 300 ft (91 m) @ 6 Mbps 310 ft (94 m) @ 5.5 Mbps 350 ft (107 m) @ 2 Mbps 410 ft (125 m) @ 1 Mbps
Outdoor: 802.11a: 170 ft (52 m) @ 54 Mbps 350 ft (107 m) @ 48 Mbps 550 ft (167 m) @ 36 Mbps 700 ft (213 m) @ 24 Mbps 800 ft (244 m) @ 18 Mbps 875 ft (267 m) @ 12 Mbps 925 ft (282 m) @ 9 Mbps 950 ft (290 m) @ 6 Mbps 802.11g: 110 ft (34 m) @ 54 Mbps 200 ft (61 m) @ 48 Mbps 225 ft (69 m) @ 36 Mbps 325 ft (99 m) @ 24 Mbps 400 ft (122 m) @ 18 Mbps 475 ft (145 m) @ 12 Mbps 490 ft (149 m) @ 11 Mbps 550 ft (168 m) @ 9 Mbps 650 ft (198 m) @ 6 Mbps 660 ft (201 m) @ 5.5Mbps 690 ft (210 m) @ 2 Mbps 700 ft (213 m) @ 1 Mbps
Modulation
802.11a: OFDM 802.11g: Direct sequence spread spectrum (DSSS); OFDM

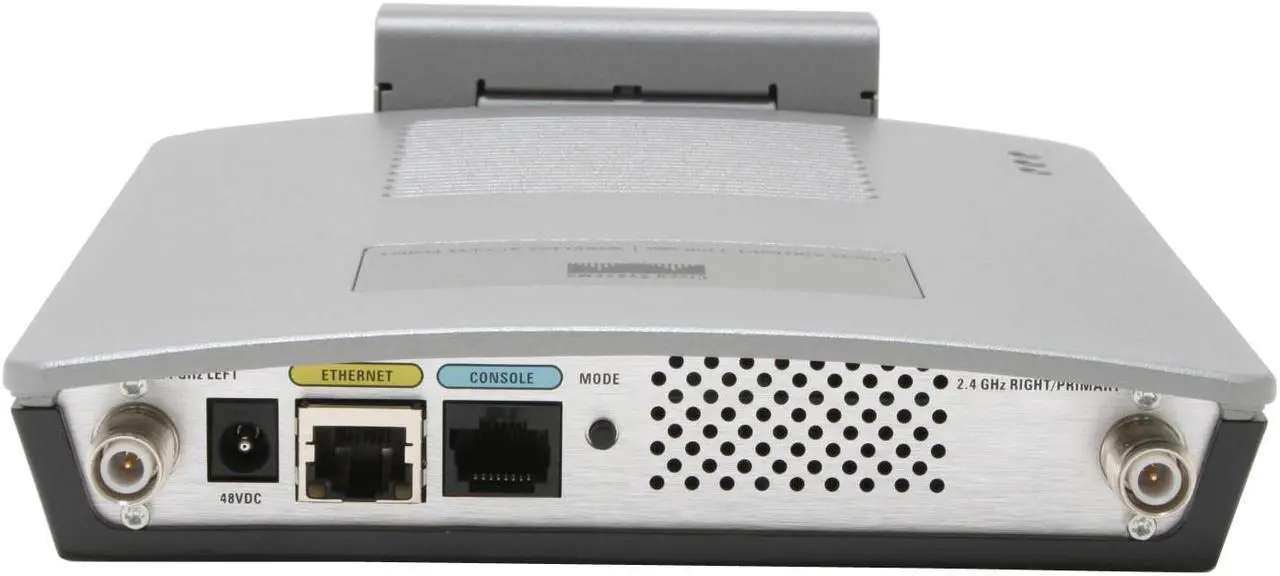

Interface
Ethernet Port
LEDs

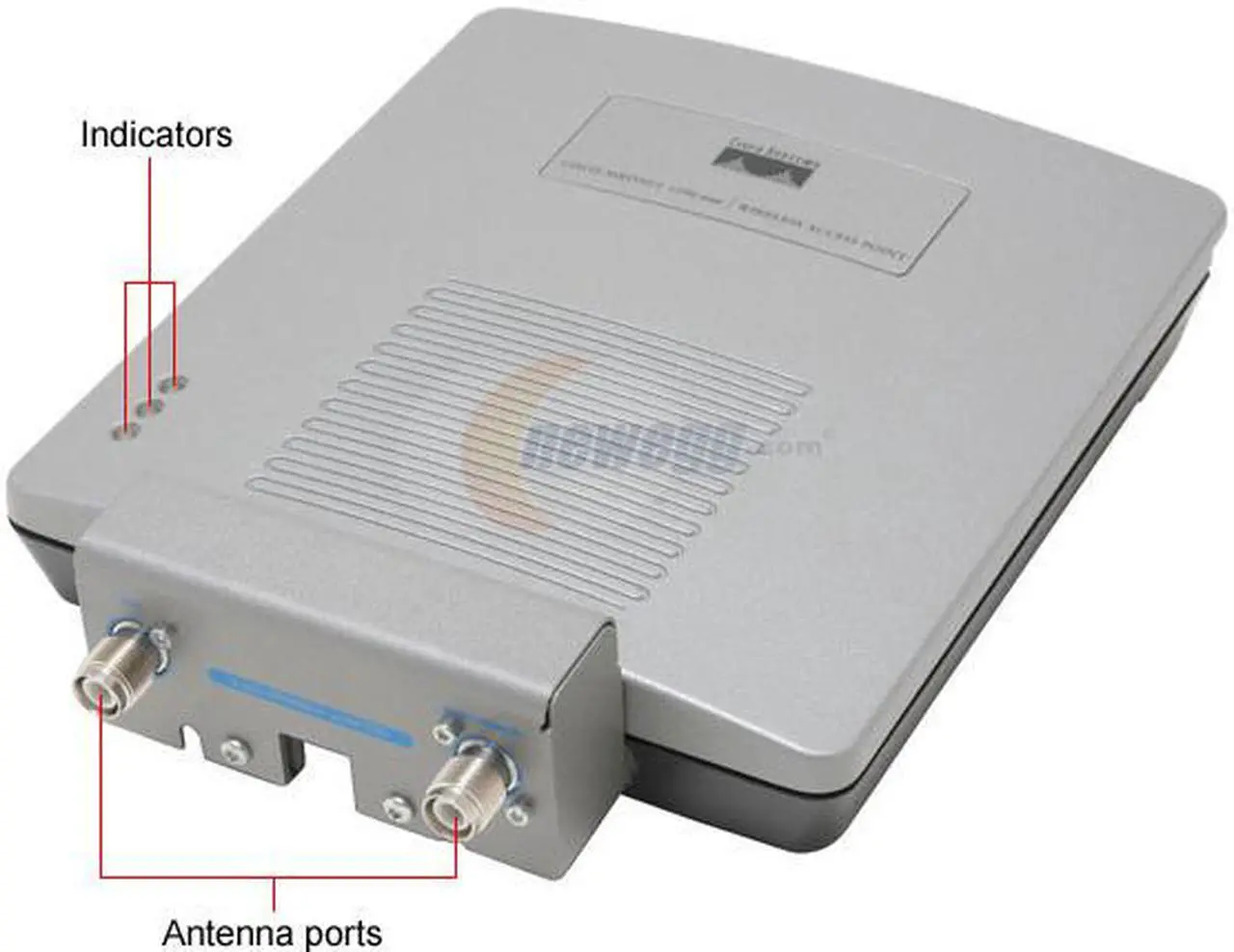

Three indicators on the top panel report Ethernet activity and status, device operating status, and radio activity and status.
Dual 802.11a and 802.11g Radios Dual RP-TNC Antenna Connectors for Both 2.4-GHz and 5-GHz Radios Link-Role Flexibility Cisco Unified IDS/IPS Management Frame Protection Currently Supports 12 Non-Overlapping Channels, with Potentially up to 23 Channels Rugged Metal Housing Multipurpose and Lockable Mounting Bracket Both Local and Inline Power Support Hardware-Assisted AES Encryption
Packaging

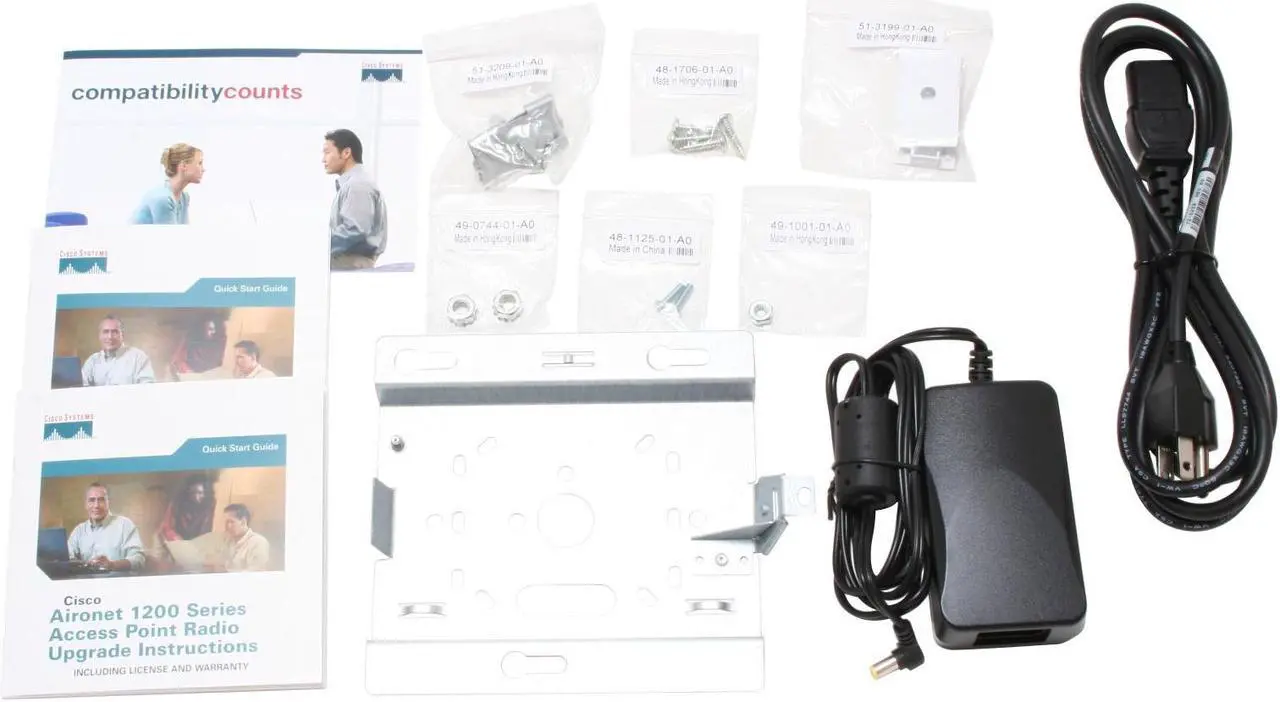

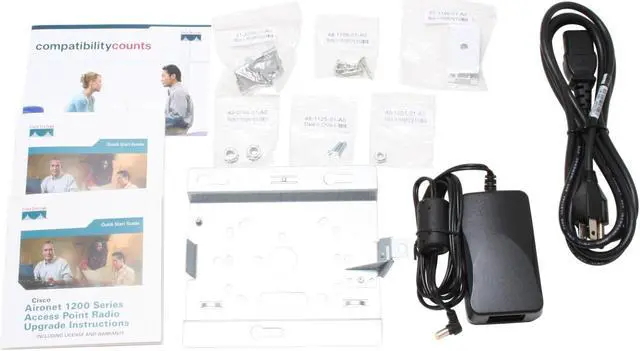

Package Contents
AIR-AP1232AG-A-K9 User Manual Power Adapter Power Cord Rack Mount Kit
Disclaimer
Disclaimer
For most updated manufacturer warranty, please go to www.cisco.com.
Registration Phone
1-800-Go-Cisco
Additional Information
Date First Available
August 03, 2006
Customer Reviews of the Cisco Systems, Inc. AIR-AP1232AG-A-K9
