Cisco Aironet 1242Ag Wireless Access Point - 802.11A/B/G If You Already Have A Compatible Router The Air-Ap1242Ag-A-K9 Should Be On Your List Of Wireless Access Points To Purchase. Everyone Needs Access To The Net But Not Everyone Needs A Full Packa
Learn more about the Cisco Systems, Inc. AIR-AP1242AG-A-K9
Model
Brand
CISCO
Model
AIR-AP1242AG-A-K9
Details
Standards
IEEE 802.11a/b/g
Wireless Data Rates
Up to 54Mbps
Security
WPA WPA2 (802.11i) CISCO TKIP CISCO message integrity check (MIC) IEEE 802.11 WEP keys of 40 bits and 128 bits
Frequency Band
2.412 to 2.462 GHz 5.15 to 5.35, 5.725 to 5.825 GHz
Channels
2.412 to 2.462 GHz; 11 channels 5.15 to 5.35, 5.725 to 5.825 GHz; 12 channels
Indoor (Distance Across Open Office Environment): 802.11a: 85 ft (26 m) @ 54 Mbps 150 ft (46 m) @ 48 Mbps 210 ft (64 m) @ 36 Mbps 230 ft (70 m) @ 24 Mbps 260 ft (79 m) @ 18 Mbps 280 ft (85 m) @ 12 Mbps 310 ft (94 m) @ 9 Mbps 330 ft (100 m) @ 6 Mbps
802.11g: 105 ft (32 m) @ 54 Mbps 180 ft (55 m) @ 48 Mbps 260 ft (79 m) @ 36 Mbps 285 ft (87 m) @ 24 Mbps 330 ft (100 m) @ 18 Mbps 355 ft (108 m) @ 12 Mbps 365 ft (111 m) @ 11 Mbps 380 ft (116 m) @ 9 Mbps 410 ft (125 m) @ 6 Mbps 425 ft (130 m) @ 5.5 Mbps 445 ft (136 m) @ 2 Mbps 460 ft (140 m) @ 1 Mbps
Outdoor: 802.11a: 100 ft (30 m) @ 54 Mbps 300 ft (91 m) @ 48 Mbps 425 ft (130 m) @ 36 Mbps 500 ft (152 m) @ 24 Mbps 550 ft (168 m) @ 18 Mbps 600 ft (183 m) @ 12 Mbps 625 ft (190 m) @ 9 Mbps 650 ft (198 m) @ 6 Mbps
802.11g: 120 ft (37 m) @ 54 Mbps 350 ft (107 m) @ 48 Mbps 550 ft (168 m) @ 36 Mbps 650 ft (198 m) @ 24 Mbps 750 ft (229 m) @ 18 Mbps 800 ft (244 m) @ 12 Mbps 820 ft (250 m) @ 11 Mbps 875 ft (267 m) @ 9 Mbps 900 ft (274 m) @ 6 Mbps 910 ft (277 m) @ 5.5 Mbps 940 ft (287 m) @ 2 Mbps 950 ft (290 m) @ 1 Mbps
Modulation
CCK, OFDM
Interface
Ethernet Port
LEDs

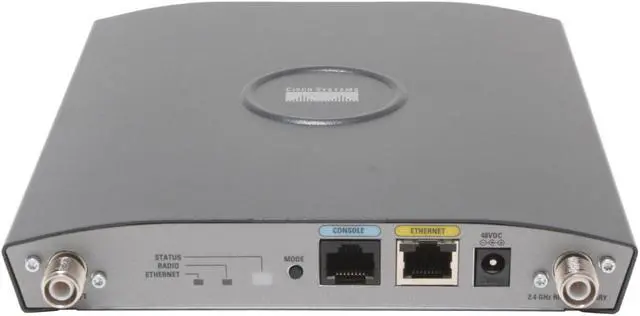

Status LED indicates operating state, association status, error/warning condition, boot sequence, and maintenance status Ethernet LED indicates activity over the Ethernet, status Radio LED indicates activity over the radio, status
WAN Ports
1 x 10/100M
Power Supply
100 to 240 VAC; 50 to 60Hz (power supply) 36 to 57 VDC (device)
Environmental
Temperature
-20 to +55°C
Humidity
10% - 90%, Non-Condensing
Dimensions & Weight
Dimensions
6.6" x 8.5" x 1.1"
Weight
2 lbs.
Features
Features
Uplink, auto-sensing per device, power over Ethernet (PoE), BOOTP support Multipurpose and Lockable Mounting Bracket: Provides greater flexibility in installation options for site survey options, as well as theft deterrence. Supports installation in environmental airspaces such as areas above suspended ceilings Metal case and rugged features support deployment in factories, warehouses, the outdoors (NEMA enclosure required), and other industrial environments
Packaging
Package Contents

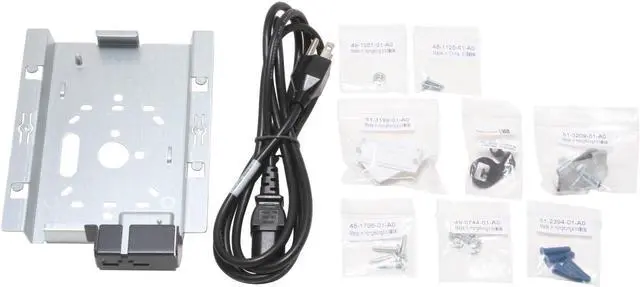

AIR-AP1242AG-A-K9 Power Cord Other Accessories
Disclaimer
Disclaimer
For most updated manufacturer warranty, please go to www.cisco.com.
Registration Phone
1-800-Go-Cisco
Additional Information
First Listed on Newegg
January 20, 2006
