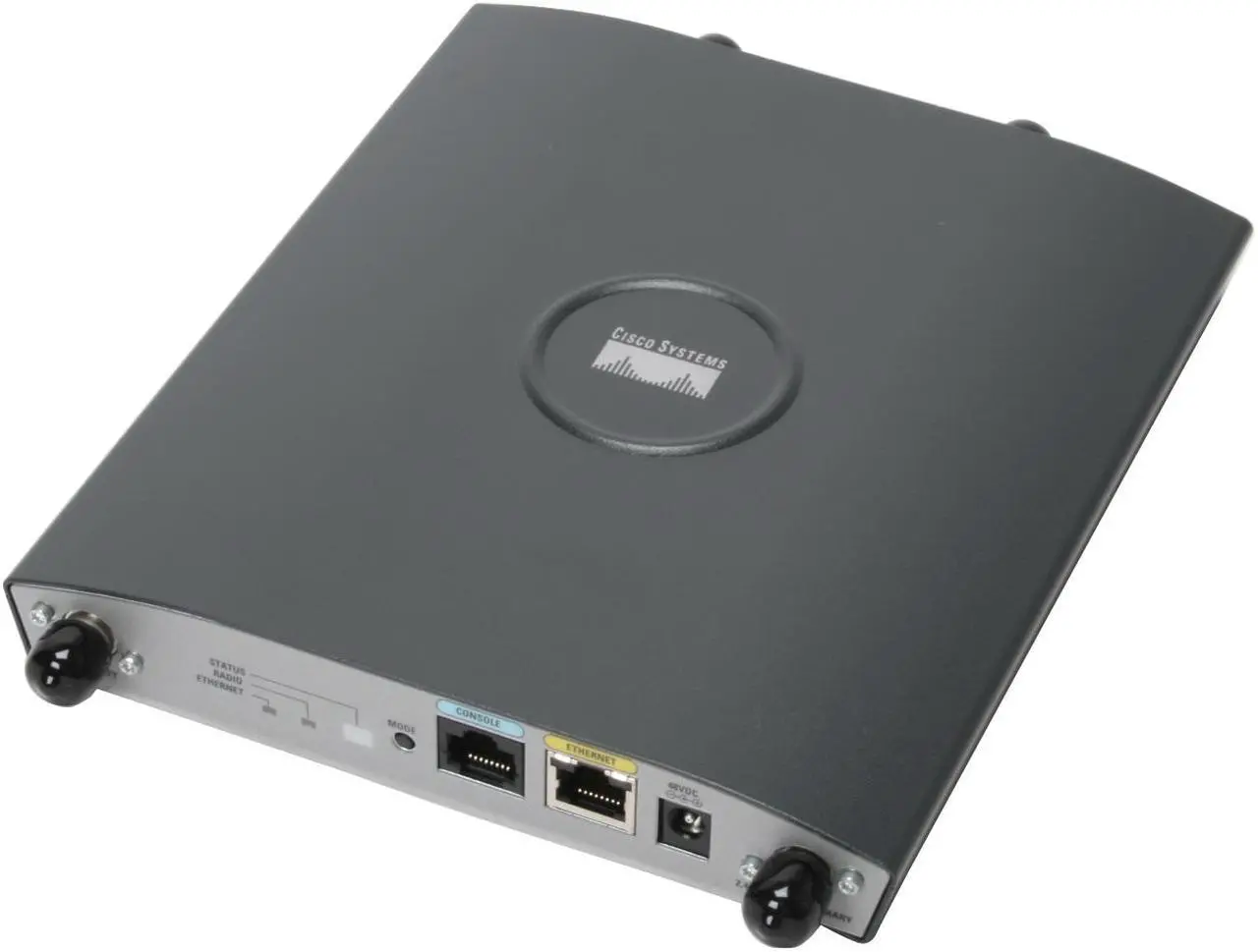

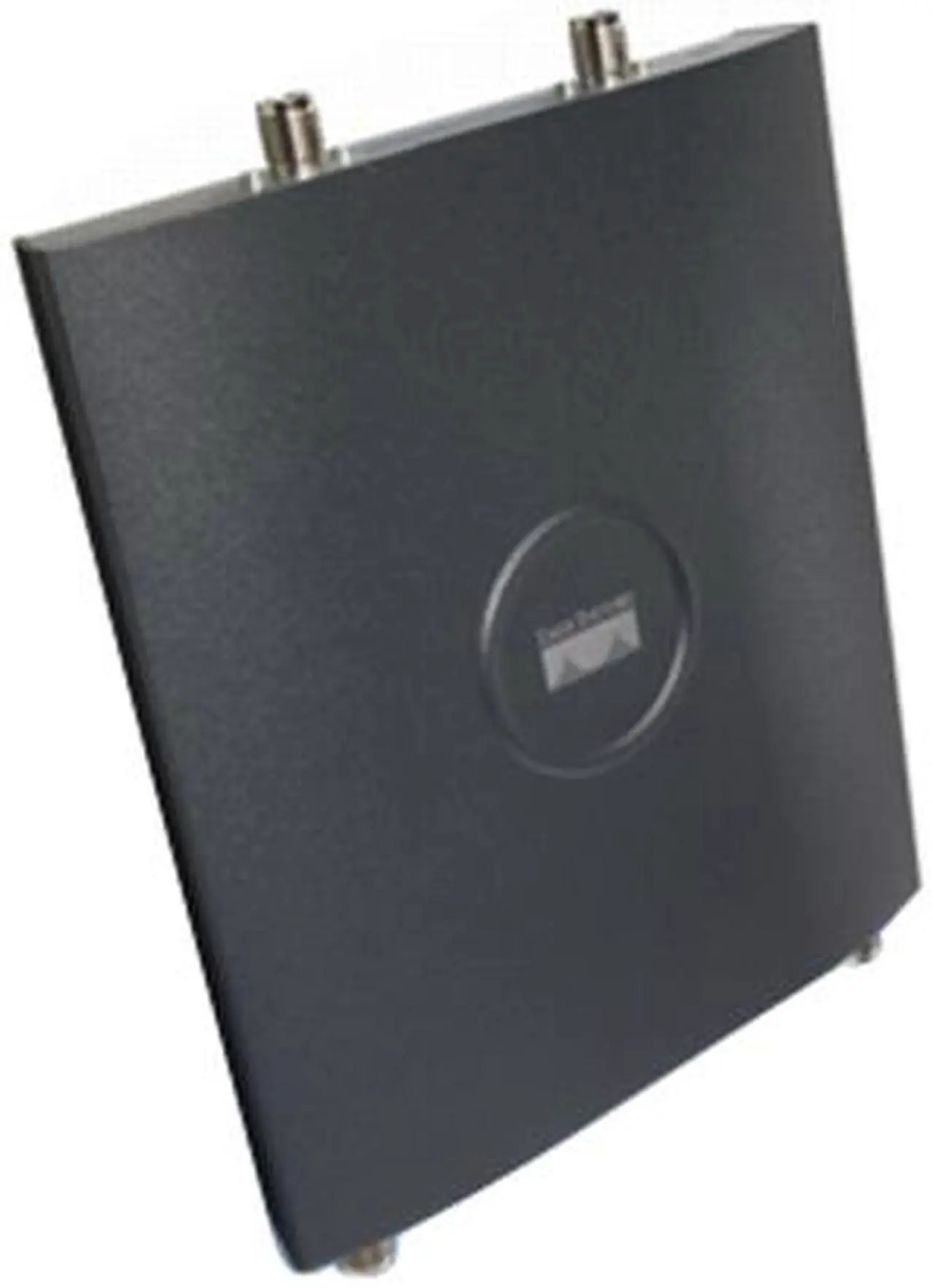

CISCO AIR-LAP1242AG-A-K9 Wireless Aironet 1240AG Series Access Point

Name: CISCO AIR-LAP1242AG-A-K9 Wireless Aironet 1240AG Series Access Point
Brand: Cisco Systems, Inc.
SKU: N82E16833120071
Rating: 5 (3 reviews)

(3) Write a Review

Up to 108Mbps Wireless Data Rates
IEEE802.11a/b/g, 802.3/3u
Ethernet Port
2.412 to 2.462 GHz
5.15 to 5.35, 5.725 to 5.825 GHz

Overview

Specs

Reviews (3)

Cisco Aironet 1242Ag Wireless Access Point - 802.11A/G Non-Modular Lwapp Rp-Tnc Fcc Configuration The Air Lap1242Ag A K9 Wireless Router Also Known As The The Air Lap1242Ag A K9 Cisco Aironet 1242Ag Wireless Access Point Is A Medium Level Wireles

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 90 days
Limited Warranty period (labor): 90 days
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.

Manufacturer Contact Info

Manufacturer Website
Support Phone: 1-800-553-6387
Support Website
View other products from Cisco Systems, Inc.

Standards	IEEE802.11a/b/g, 802.3/3u
Wireless Data Rates	Up to 108Mbps
Security	802.11i, WPA2, WPA, 802.1X, AES, TKIP
Frequency Band	2.412 to 2.462 GHz 5.15 to 5.35, 5.725 to 5.825 GHz
Channels	11 channels 12 channels

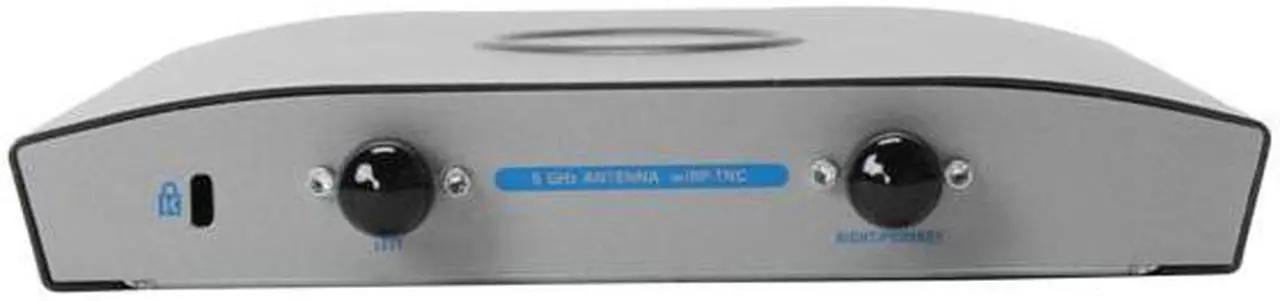

Antenna	Dual RP-TNC connectors
Transmitted Power	802.11a OFDM: 17 dBm (50 mW) 15 dBm (30 mW) 14 dBm (25 mW) 11 dBm (12 mW) 8 dBm (6 mW) 5 dBm (3 mW) 2 mW (2 dBm) –1 dBm (1 mW) 802.11g CCK: 20 dBm (100 mW) 17 dBm (50 mW) 14 dBm (25 mW) 11 dBm (12 mW) 8 dBm (6 mW) 5 dBm (3 mW) 2 dBm (2 mW) –1 dBm (1 mW) OFDM 17 dBm (50 mW) 14 dBm (25 mW) 11 dBm (12 mW) 8 dBm (6 mW) 5 dBm (3 mW) 2 dBm (2 mW) –1 dBm (1 mW)
Receiver Sensitivity	802.11a 6 Mbps: –88 dBm 9 Mbps: –87 dBm 12 Mbps: –86 dBm 18 Mbps: –85 dBm 24 Mbps: –82 dBm 36 Mbps: –79 dBm 48 Mbps: –74 dBm 54 Mbps: –73 dBm 802.11g 1 Mbps: –96 dBm 2 Mbps: –93 dBm 5.5 Mbps: –91 dBm 6 Mbps: –91 dBm 9 Mbps: –85 dBm 11 Mbps: –88 dBm 12 Mbps: –83 dBm 18 Mbps: –81 dBm 24 Mbps: –78 dBm 36 Mbps: –74 dBm 48 Mbps: –73 dBm 54 Mbps: –73 dBm
Operating Range	Indoor (Distance Across Open Office Environment): 802.11a: 85 ft (26 m) at 54 Mbps 150 ft (46 m) at 48 Mbps 210 ft (64 m) at 36 Mbps 230 ft (70 m) at 24 Mbps 260 ft (79 m) at 18 Mbps 280 ft (85 m) at 12 Mbps 310 ft (94 m) at 9 Mbps 330 ft (100 m) at 6 Mbps 802.11g: 105 ft (32 m) at 54 Mbps 180 ft (55 m) at 48 Mbps 260 ft (79 m) at 36 Mbps 285 ft (87 m) at 24 Mbps 330 ft (100 m) at 18 Mbps 355 ft (108 m) at 12 Mbps 365 ft (111 m) at 11 Mbps 380 ft (116 m) at 9 Mbps 410 ft (125 m) at 6 Mbps 425 ft (130 m) at 5.5 Mbps 445 ft (136 m) at 2 Mbps 460 ft (140 m) at 1 Mbps Outdoor: 802.11a: 100 ft (30 m) at 54 Mbps 300 ft (91 m) at 48 Mbps 425 ft (130 m) at 36 Mbps 500 ft (152 m) at 24 Mbps 550 ft (168 m) at 18 Mbps 600 ft (183 m) at 12 Mbps 625 ft (190 m) at 9 Mbps 650 ft (198 m) at 6 Mbps 802.11g: 120 ft (37 m) at 54 Mbps 350 ft (107 m) at 48 Mbps 550 ft (168 m) at 36 Mbps 650 ft (198 m) at 24 Mbps 750 ft (229 m) at 18 Mbps 800 ft (244 m) at 12 Mbps 820 ft (250 m) at 11 Mbps 875 ft (267 m) at 9 Mbps 900 ft (274 m) at 6 Mbps 910 ft (277 m) at 5.5 Mbps 940 ft (287 m) at 2 Mbps 950 ft (290 m) at 1 Mbps
System Requirements	Browser: Using the Web browser management GUI requires a computer running Internet Explorer Version 6.0 or later, or Netscape Navigator Version 7.0 or later. PoE: Power sourcing equipment compliant with Cisco inline power or IEEE 802.3af, and providing at least 12.94W at 48 VDC

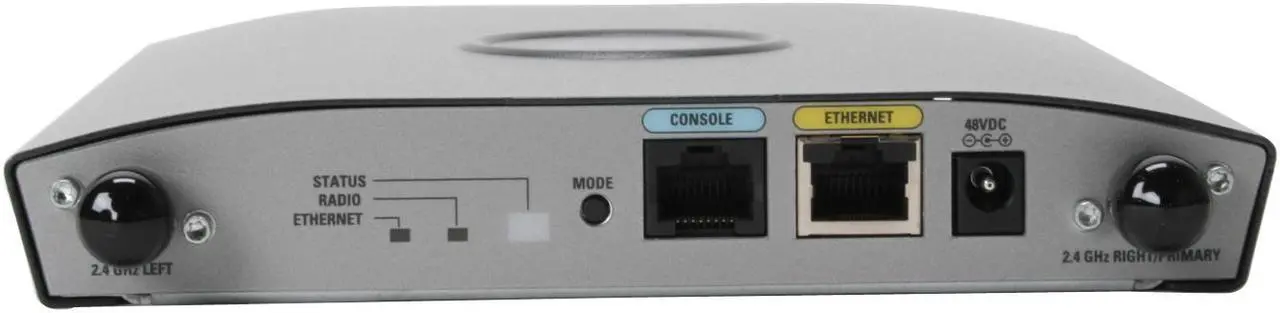

Interface	Ethernet Port
LEDs	Status LED indicates operating state, association status, error/warning condition, boot sequence, and maintenance status. Ethernet LED indicates status of activity over the Ethernet. Radio LED indicates status of activity over the radio.

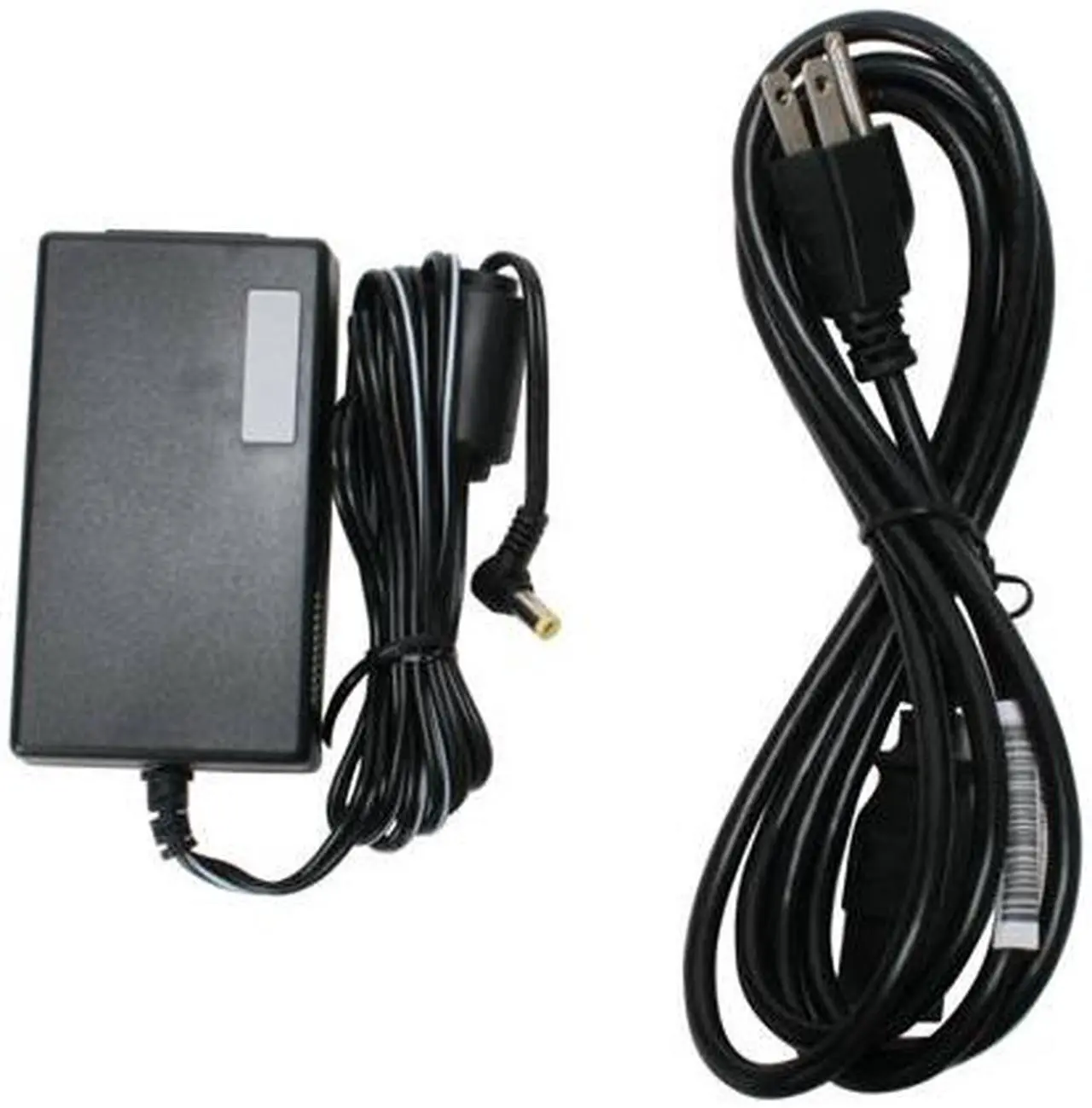

Power Supply	100 to 240 VAC; 50 to 60Hz (power supply) 36 to 57 VDC (device)

Temperature	–4 to 131°F (–20 to 55°C)
Humidity	10 to 90 percent (non-condensing)

Dimensions	8.5" x 6.6" x 1.1"
Weight	2.0 lbs.
