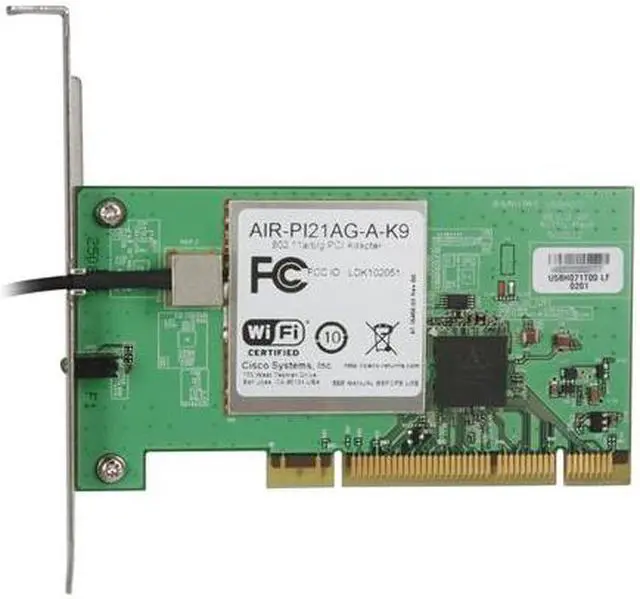

Main image of CISCO AIR-PI21AG-A-K9 Wireless Adapter IEEE 802.11a/b/g PCI Up to 54Mbps Wireless Data Rates

Alt view image 2 of 9 - CISCO AIR-PI21AG-A-K9 Wireless Adapter IEEE 802.11a/b/g PCI Up to 54Mbps Wireless Data Rates

Alt view image 3 of 9 - CISCO AIR-PI21AG-A-K9 Wireless Adapter IEEE 802.11a/b/g PCI Up to 54Mbps Wireless Data Rates

Alt view image 4 of 9 - CISCO AIR-PI21AG-A-K9 Wireless Adapter IEEE 802.11a/b/g PCI Up to 54Mbps Wireless Data Rates

Alt view image 5 of 9 - CISCO AIR-PI21AG-A-K9 Wireless Adapter IEEE 802.11a/b/g PCI Up to 54Mbps Wireless Data Rates

Alt view image 6 of 9 - CISCO AIR-PI21AG-A-K9 Wireless Adapter IEEE 802.11a/b/g PCI Up to 54Mbps Wireless Data Rates

Alt view image 7 of 9 - CISCO AIR-PI21AG-A-K9 Wireless Adapter IEEE 802.11a/b/g PCI Up to 54Mbps Wireless Data Rates

Alt view image 8 of 9 - CISCO AIR-PI21AG-A-K9 Wireless Adapter IEEE 802.11a/b/g PCI Up to 54Mbps Wireless Data Rates

Alt view image 9 of 9 - CISCO AIR-PI21AG-A-K9 Wireless Adapter IEEE 802.11a/b/g PCI Up to 54Mbps Wireless Data Rates

Shop All Cisco Systems, Inc. Products

CISCO AIR-PI21AG-A-K9 Wireless Adapter IEEE 802.11a/b/g PCI Up to 54Mbps Wireless Data Rates

Name: CISCO AIR-PI21AG-A-K9 PCI Wireless Adapter
Brand: Cisco Systems, Inc.
SKU: N82E16833120033
Rating: 4 (21 reviews)

(21) Write a Review

IEEE 802.11a/b/g
Up to 54Mbps Wireless Data Rates
2.40 to 2.4897 GHz
5.15 to 5.35 GHz (FCC UNII 1 and UNII 2)
5.725 to 5.85 GHz (FCC UNII 3)
5.15 to 5.35 GHz (ETSI)
5.47 to 5.725 (ETSI)
5.15 to 5.25 GHz (Japan)

Overview

Specs

Reviews (21)

Any questions? Our AI beta will help you find out quickly.

Try me now

Cisco eliminates the worry over what type of network you have with their tri-mode adapter. It works in single mode for a, b, or g, dual mode a/g or tri-mode a/b/g for maximum connectivity.

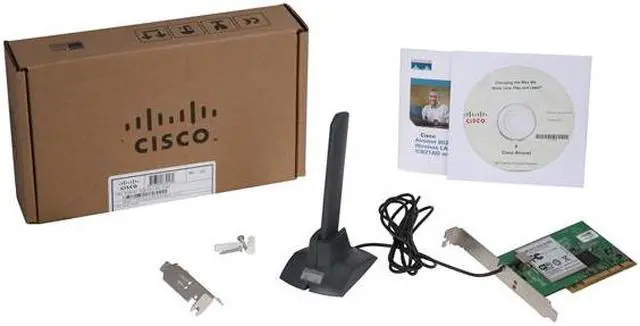

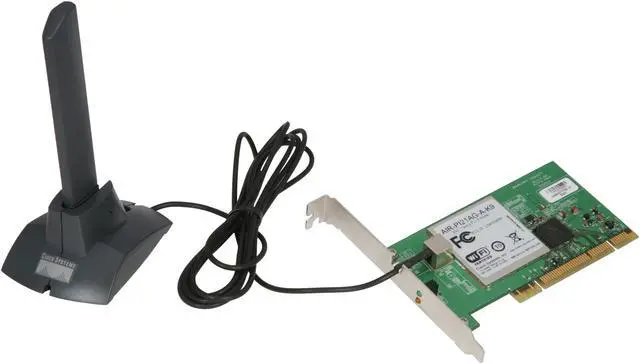

Installation options are maximized with the included low-profile bracket for use in slimline and rack-mount systems. The PCI interface means compatibility with most systems. The remote antenna's 2 meter cable lets you place it for maximum signal strength and connectivity.

Since the need for security is at an all time high you have a choice between WEP, WPA and WPA2 protocols to protect your data and identity with no loss of transmission speed. In addition to data protection a secure network means that nobody is leeching bandwidth and slowing your network to a crawl.

Cisco eliminates the worry over what type of network you have with their tri-mode adapter. It works in single mode for a, b, or g, dual mode a/g or tri-mode a/b/g for maximum connectivity.

Installation options are maximized with the included low-profile bracket for use in slimline and rack-mount systems. The PCI interface means compatibility with most systems. The remote antenna's 2 meter cable lets you place it for maximum signal strength and connectivity.

Since the need for security is at an all time high you have a choice between WEP, WPA and WPA2 protocols to protect your data and identity with no loss of transmission speed. In addition to data protection a secure network means that nobody is leeching bandwidth and slowing your network to a crawl.

Wi-Fi CertifiedThe Cisco Aironet 802.11a/b/g wireless PCI adapter features compatibility with 802.11a, 802.11b and 802.11g wireless devices to preserve existing wireless network investment, while Wi-Fi certification assures interoperability with similarly certified products.
Enterprise-Class Security SolutionWith a high level network security designed for enterprises, the Cisco Aironet 802.11a/b/g wireless PCI adapter incorporates the 802.1X standard for port-based network access. The adapter also supports 802.11i devices by combining the full array of Extensible Authentication Protocol (EAP) types for user-based authentication with the enterprise caliber Advanced Encryption Standard (AES) encryption. The adapter also supports WPA2 for high interoperability and wireless security.
Enhanced Client Network Management FeaturesThe Cisco Aironet 802.11a/b/g wireless PCI adapter features an intuitive graphical user interface (GUI) for the Cisco Aironet Desktop Utility, System Tray Utility, and Client Administration Utility to easily configure, monitor, and manage the adapter.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 90 days
Limited Warranty period (labor): 90 days
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-800-553-6387
Support Website
View other products from Cisco Systems, Inc.

Standards	IEEE 802.11a/b/g
Wireless Data Rates	Up to 54Mbps
Security	CISCO Wireless Security Suite supporting WPA and WPA2, including: Authentication: 802.1X support, including CISCO LEAP, EAP-FAST, PEAP-GTC, PEAP-MSCHAPv2), and EAP-TLS to yield mutual authentication and dynamic per-user, per-session encryption keys (WPA and WPA2) MAC address and standard 802.11 authentication mechanisms Encryption: AES-Counter Mode with Cipher Block Chaining Message Authentication Code Protocol (CCMP) encryption (WPA2) TKIP encryption enhancements: key hashing (per-packet keying), message integrity check (MIC), and broadcast key rotation via CISCO TKIP or WPA TKIP Support for static and dynamic IEEE 802.11 WEP keys of 40 and 128 bits

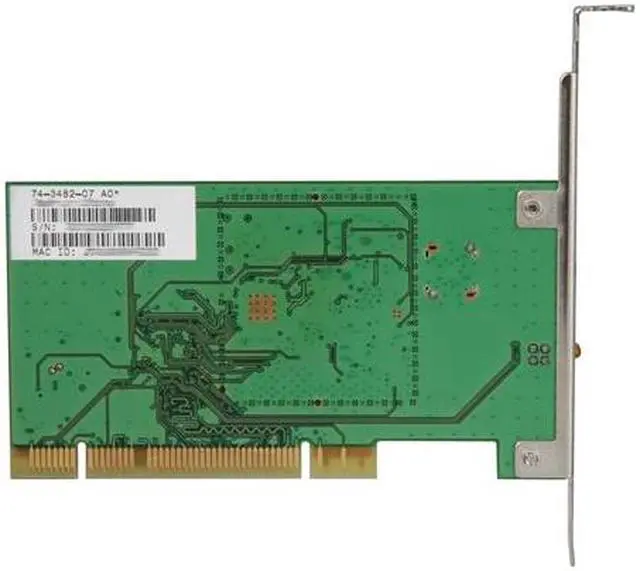

Interface	PCI
Frequency Band	2.40 to 2.4897 GHz 5.15 to 5.35 GHz (FCC UNII 1 and UNII 2) 5.725 to 5.85 GHz (FCC UNII 3) 5.15 to 5.35 GHz (ETSI) 5.47 to 5.725 (ETSI) 5.15 to 5.25 GHz (Japan)
Modulation	DSSS Differential Binary Phase Shift Keying (DBPSK) @ 1 Mbps Differential Quadrature Phase Shift Keying (DQPSK) @ 2 Mbps Complementary Code Keying (CCK) @ 5.5 and 11 Mbps OFDM BPSK @ 6 and 9 Mbps QPSK @ 12 and 18 Mbps 16-Quadrature Amplitude Modulation (QAM) @ 24 and 36 Mbps 64-QAM @ 48 and 54 Mbps

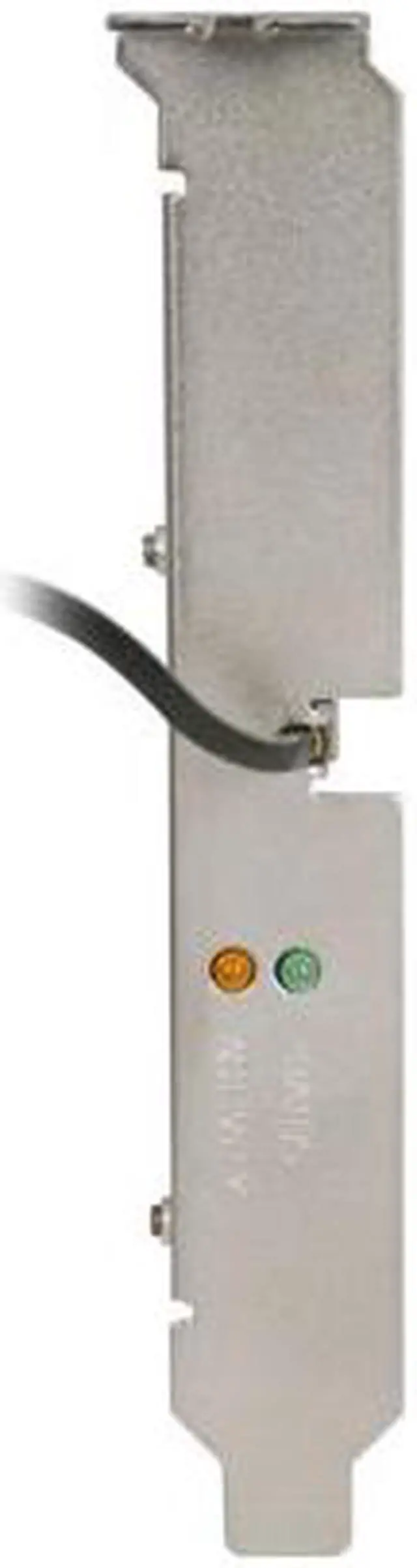

LEDs	Status (green) and Activity (amber)
Transmitted Power	802.11b/g: 20 dBm (100 mW) @ 1, 2, 5.5, and 11 Mbps 18 dBm (63 mW) @ 1, 2, 5.5, 6, 9, 11, 12, 18, and 24 Mbps 17 dBm (50 mW) @ 1, 2, 5.5, 6, 9, 11, 12, 18, 24, and 36 Mbps 15 dBm (30 mW) @ 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, and 48 Mbps 13 dBm (20 mW) @ 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps 10 dBm (10 mW) @ 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps 802.11a: 16 dBm (40 mW) @ 6, 9, 12, 18, and 24 Mbps 14 dBm (25 mW) @ 6, 9, 12, 18, 24, and 36 Mbps 13 dBm (20 mW) @ 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 11 dBm (13 mW) @ 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 10 dBm (10 mW) @ 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

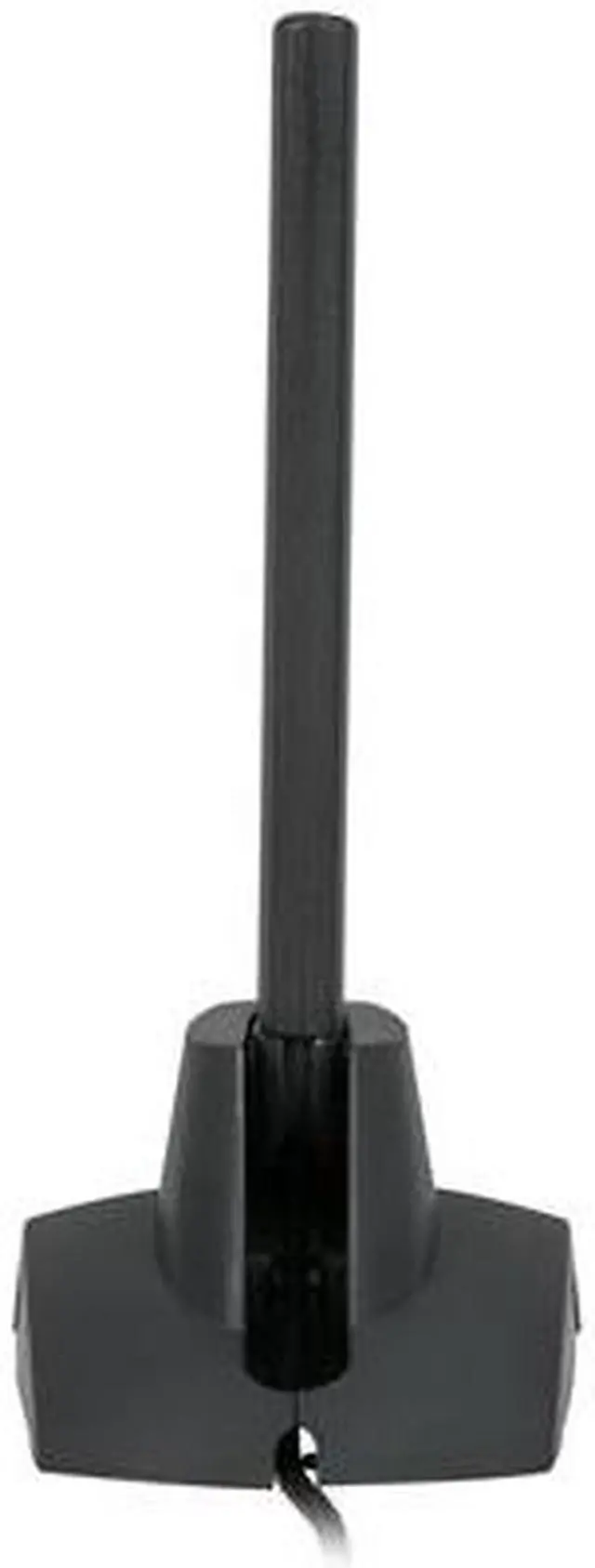

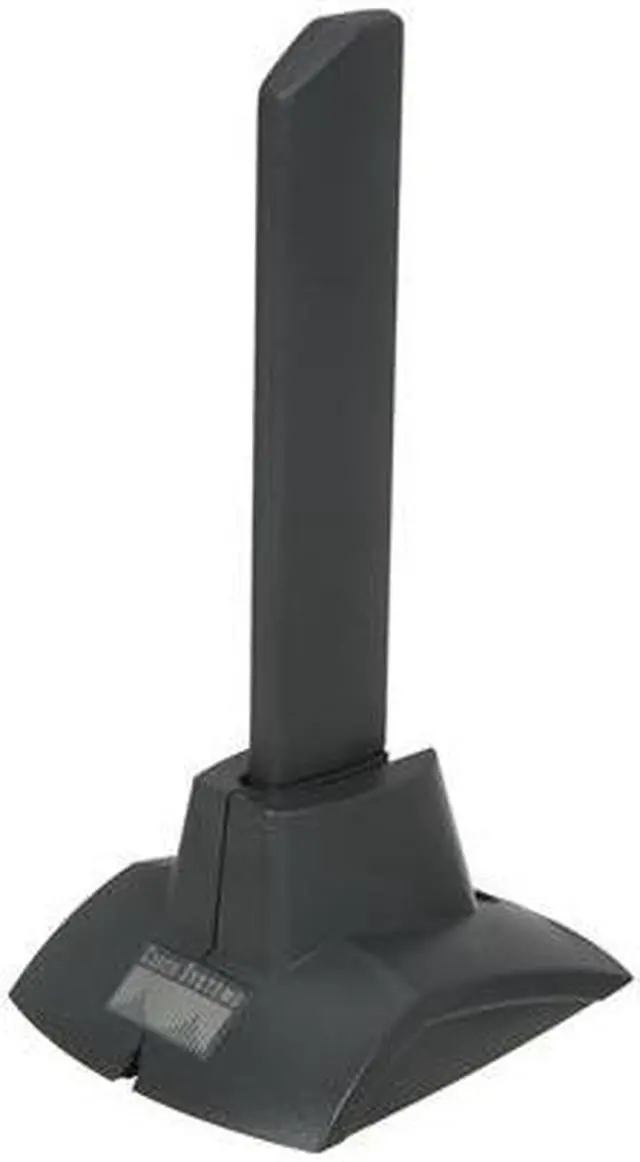

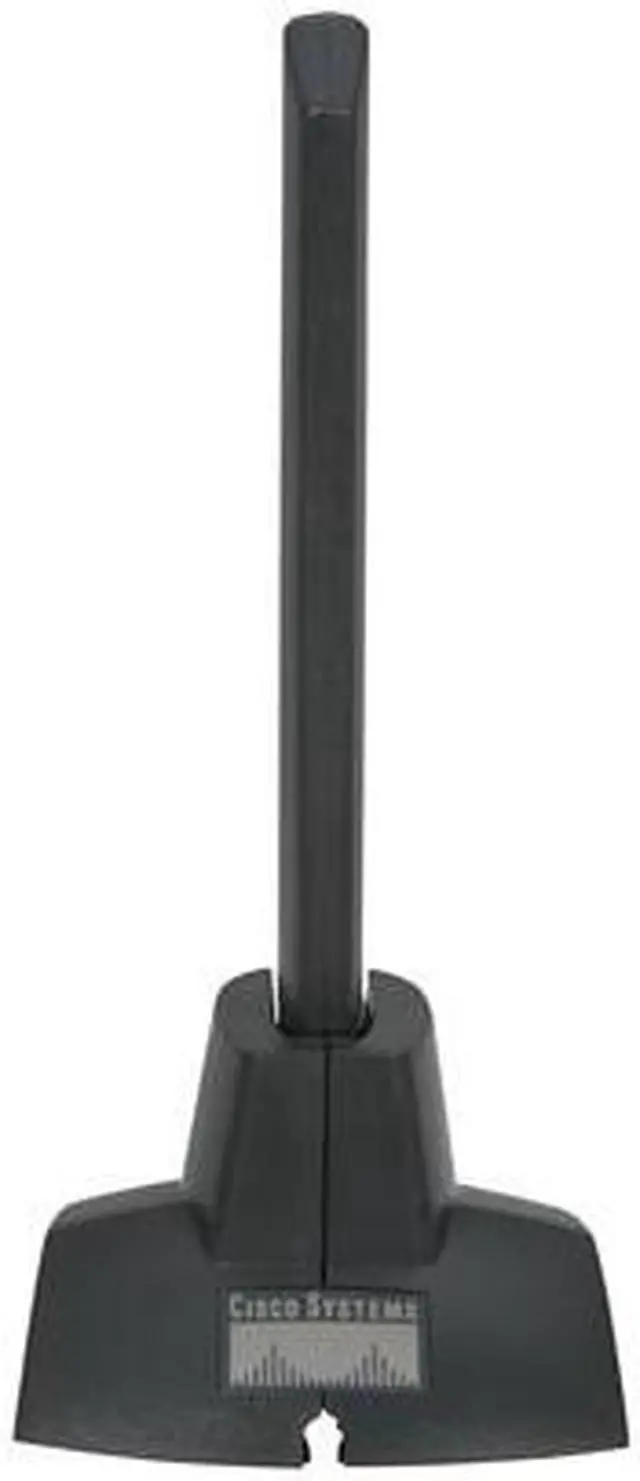

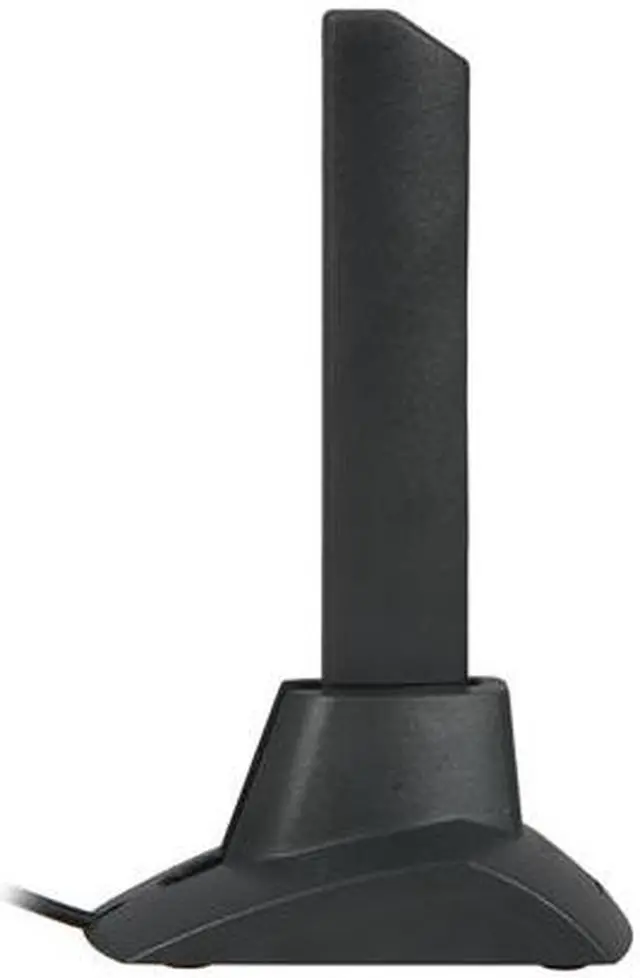

Antenna	Integrated dual-band 2.4/5-GHz, 1-dBi, effective-gain antenna on a two-meter cable
Operating Range	(Typical with CISCO Aironet 802.11a/b/g Wireless CardBus Adapter at maximum transmit power communicating with a CISCO Aironet 1231 Access Point configured with a 2.2-dBi dipole antenna for 802.11b/g, and a 6-dBi gain patch for 802.11a.) Indoor (typical): 802.11a 802.11b/g 54 Mbps 45 ft (13 m) 90 ft (27 m) 18 Mbps 110 ft (33 m) 180 ft (54m) 11 Mbps 165 ft (50 m) 160 ft (48 m) 6 Mbps 300 ft (91 m) 1 Mbps 410 ft (124 m) Outdoor (typical): 802.11a 802.11b/g 54 Mbps 100 ft (30 m) 250 ft (76 m) 18 Mbps 600 ft (183 m) 600 ft (183 m) 11 Mbps 1000 ft (304 m) 1000 ft (304 m) 6 Mbps 1300 ft (396 m) 1 Mbps 2000 ft (610 m)
System Requirements	Standard and low-profile Type II PCI with standard PCI interface Microsoft Windows XP and Windows 2000

Dimensions	4.7" x 3.1"
Weight	0.23 lbs.

Temperature	0 to 70°C
Humidity	10% - 90%, Non-Condensing

Disclaimer	For most updated manufacturer warranty, please go to www.cisco.com.
Registration Phone	1-800-Go-Cisco
