How does the Cisco Firepower 1010 provide power to connected devices?

The firewall is capable of obtaining power from 2 PoE+ (RJ-45) Ports, allowing it to transmit electrical power along with data in a single cable.

What is the throughput capacity of the Cisco Firepower 1010 Security Appliance?

The firewall throughput (UDP) is 2 Gbps, and the multiprotocol firewall throughput is 1.4 Gbps. The IPsec VPN throughput is 500 Mbps.

$1,044^.99

Limit 99999 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Hardware: Firepower 1010

Software: ASA Software

URL Filtering firewall protection support for reliable security against unwanted intrusions and attacks with maximum efficiency
No need for power lines or outlets; the firewall is capable of obtaining power from 2 PoE+ (RJ-45) Ports
Desktop form factor allows hassle-free and easy usage with increased efficiency
Up to 10x faster than the standard Ethernet connectivity and provides high-performance
Form a secured network by attaching multiple devices together or expand the amount of devices connected to your existing network by using 8 ports Firewall
The electrical power is transmitted along with data in a single cable to devices attached to PoE Port
Network Security/Firewall Appliance is the single answer to all your desired and heavy-duty data security needs
USB allows powerful and efficient transfer of data with maximum productivity

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	CISCO
Series	1010 Series
Model	Cisco Firepower 1010 ASA desktop appliance
Part Number	FPR1010-ASA-K9

Details
Type	Wired
Form Factor	Desktop
Ports	1 x 1000Base-T (management) - RJ-45 1 x serial - RJ-45 1 x USB 3.0 - Type A
VPN	ASA Performance and capabilities Stateful inspection firewall throughput: 2 Gbps Stateful inspection firewall throughput: 1.4 Gbps Concurrent firewall connections: 100,000 New connections per second: 25,000 IPsec VPN throughput (450B UDP L2L test): 500 Mbps Maximum VPN Peers: 75 High availability: Active/standby Scalability: VPN Load Balancing Centralized management: Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator. Adaptive Security Device Manager: Web-based, local management for small-scale deployments Throughput measured with 1500B User Datagram Protocol (UDP) traffic measured under ideal test conditions. **"Multiprotocol" refers to a traffic profile consisting primarily of TCP-based protocols and applications like HTTP, SMTP, FTP, IMAPv4, BitTorrent, and DNS.
PoE Interface	2 ports PoE+ (IEEE 802.3at)
Power Input	Power supply configuration: External power supply, AC input AC input voltage: 100 to 240V AC AC maximum current draw: < 2A at 100V, < 1A at 240V AC maximum power draw: 115W

Dimensions & Weight

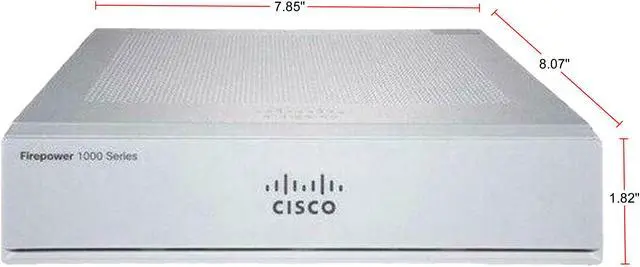

Dimensions	1.82 x 7.85 x 8.07 in.
Weight	3 lb (1.4 kg)

Details
LAN Ports	8 x RJ-45

Additional Information
First Listed on Newegg	October 24, 2020
