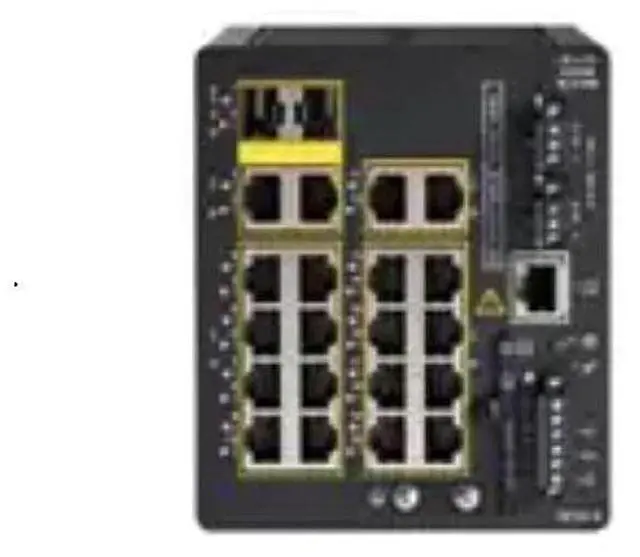

Cisco Catalyst IE3100 Rugged Layer 3 Switch - 20 Ports - Manageable - Gigabit Ethernet - 1000Base-T - 3 Layer Supported - 36.70 W Power Consumption - 240 W PoE Budget IE-3100-18T2C-E
- Brand Cisco,
- Model IE-3100-18T2C-E
- Product Description: Cisco Catalyst IE3100 Rugged Series - Network Essentials - switch - 20 ports - managed,
- Device Type: Switch - 20 ports - managed,
- Subtype: Gigabit Ethernet,
- Ports: 18 x 10/100/1000 + 2 x combo Gigabit,
- Capacity: Queues: 8 ¦ IGMP groups: 512 ¦ VLANs supported: 256 ¦ Indirect IPv4 routes: 2000 ¦ STP instances: 128,
- MAC Address Table Size: 8000 entries,
- Routing Protocol: IGMPv2, IGMP, static IP routing, IGMPv3, STP,
- Remote Management Protocol:SNMP 1, SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, NETCONF, RESTCONF, Modbus, NTP, ICMP, DHCP, IPv4, IPv6, YANG, Syslog, MIB,
- Power Redundancy: Optional,
- Dimensions (WxDxH): 4.3 in x 5.1 in x 5 in,
- Weight: 2.8 lbs,
- Manufacturer Warranty: 5-year warranty,
- Device Type: Switch - 20 ports - managed,
- Enclosure Type: DIN rail mountable,
- Subtype: Gigabit Ethernet,
- Ports: 18 x 10/100/1000 + 2 x combo Gigabit
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
- Brand Cisco,
- Model IE-3100-18T2C-E
- Product Description: Cisco Catalyst IE3100 Rugged Series - Network Essentials - switch - 20 ports - managed,
- Device Type: Switch - 20 ports - managed,
- Subtype: Gigabit Ethernet,
- Ports: 18 x 10/100/1000 + 2 x combo Gigabit,
- Capacity: Queues: 8 ¦ IGMP groups: 512 ¦ VLANs supported: 256 ¦ Indirect IPv4 routes: 2000 ¦ STP instances: 128,
- MAC Address Table Size: 8000 entries,
- Routing Protocol: IGMPv2, IGMP, static IP routing, IGMPv3, STP,
- Remote Management Protocol:SNMP 1, SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, NETCONF, RESTCONF, Modbus, NTP, ICMP, DHCP, IPv4, IPv6, YANG, Syslog, MIB,
- Power Redundancy: Optional,
- Dimensions (WxDxH): 4.3 in x 5.1 in x 5 in,
- Weight: 2.8 lbs,
- Manufacturer Warranty: 5-year warranty,
- Device Type: Switch - 20 ports - managed,
- Enclosure Type: DIN rail mountable,
- Subtype: Gigabit Ethernet,
- Ports: 18 x 10/100/1000 + 2 x combo Gigabit,
- Capacity: Queues: 8 ¦ IGMP groups: 512 ¦ VLANs supported: 256 ¦ Indirect IPv4 routes: 2000 ¦ STP instances: 128,
- MAC Address Table Size: 8000 entries,
- Routing Protocol: IGMPv2, IGMP, static IP routing, IGMPv3, STP
- Remote Management Protocol:SNMP 1, SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, NETCONF, RESTCONF, Modbus, NTP, ICMP, DHCP, IPv4, IPv6, YANG, Syslog, MIB,
- Authentication Method:Secure Shell (SSH), RADIUS, TACACS+,
- RAM:4 GB,
- Built-in Devices: SD card reader,
- Expansion / Connectivity
- Interfaces: 18 x 10/100/1000 Base-T RJ-45 downlink ¦ 2 x Gigabit LAN uplink ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x micro-USB Type B ¦ 2 x alarm input,
- Expansion Slots: 1 (total) / 1 (free) x SD Memory Card,
- Power Device: External power adapter,
- Max Supported Qty: 2,
- Power Redundancy: Optional,
- Power Provided: 12 - 48 V,
- Power Consumption Operational: 36.7 Watt,
- MTBF: 642,050 hours,
- Features :
- BOOTP support, IGMP snooping, DiffServ support, surge protection, DHCP snooping, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Remote Switch Port Analyzer (RSPAN), Precision Time Protocol (PTP), shock-resistant, vibration-proof, PROFINET, IP Plug and Play (iPnP), Storm Control, Resilient Ethernet Protocol (REP), Secure Copy (SCP), Authentication, Authorization and Accounting (AAA), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), VLAN Trunking Protocol (VTP) v.3, router advertisement guard, DHCPv6 guard, Q-in-Q tunneling, L2TP support, VLAN Trunking Protocol (VTP) v.2, Media Redundancy Protocol (MRP), EtherChannel support, Network Edge Access Topology (NEAT), CIP support, UDP support, TCP support, FTP support, Rapid PVST (RPVST), Flow-Based SPAN (FSPAN),
