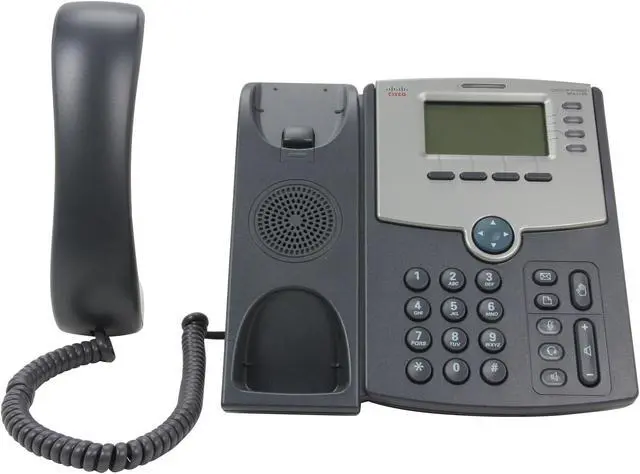

Cisco Small Business SPA514G 4-Line IP Phone with 2-Port Gigabit Ethernet Switch / PoE / LCD Display

Be the first to review this product...

2 x 10/100/1000BASE-T RJ-45 Ethernet ports Handset: RJ-9 connector Headset 2.5-mm port Built-in speakerphone and microphone
Telephone

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Secure and Easy to Manage
The Cisco SPA514G was designed to simplify installation, while providing enhanced security for complete peace of mind. It utilizes standard encryption protocols to perform secure remote provisioning and unobtrusive in-service software upgrades. Secure remote provisioning tools include detailed performance measurement and troubleshooting features, enabling network providers to deliver high-quality support to their subscribers. Remote provisioning also saves service providers the time and expense of managing, preloading, and reconfiguring customer premises equipment.

3M™ Gold Privacy Filters for laptops boast nearly a 20% higher clarity than standard 3M™ Black Privacy Filters. Visual hackers with side views see a vibrant gold shield of world-class privacy, but you get a gold, glossy finish for incredible clarity and an excellent high-contrast, high-resolution visual experience. From 3M, a leader in clarity for privacy filters.

Model
Brand	Cisco Small Business
Model	SPA514G

Type
Type	Telephone

Spec
Standards	IEEE 802.3
Security	Password-protected system, preset to factory default Password-protected access to administrator and user-level features HTTPS with factory-installed client certificate HTTP digest: encrypted authentication via MD5 (RFC 1321) Up to 256-bit Advanced Encryption Standard (AES) encryption
Ports	2 x 10/100/1000BASE-T RJ-45 Ethernet ports Handset: RJ-9 connector Headset 2.5-mm port Built-in speakerphone and microphone
Display	128 x 64 monochrome LCD graphical display with backlight
LEDs	Speakerphone on/off button with LED Headset on/off button with LED Mute button with LED Message waiting indicator LED Voicemail message retrieval button Hold button LED test function
Power	802.3af compliant Power over Ethernet (PoE) *Optional 5 VDC universal (100-240V) switching power supply is ordered separately
Dimensions	0.42" x 8.35" x 1.73"
Weight	2.43 lbs.
Temperature	0ºC to 40ºC
Humidity	5% to 95% noncondensing
Specifications	Four-way rocking directional knob for menu navigation Voicemail message waiting indicator light Voicemail message retrieval button Dedicated hold button Settings button for access to feature, setup, and configuration menus Volume control rocking up/down knob controls handset, headset, speaker, ringer Standard 12-button dialing pad High-quality handset and cradle Built-in high-quality microphone and speaker Headset jack: 2.5 mm Electronic Hook Switch (EHS) Support with selected Plantronics headsets with adapter Gigabit Switch Port and PC Port: 10/100/1000BASE-T RJ-45.

Features
Features	Four voice lines Backlit pixel-based display: 128 x 64 monochrome graphical liquid crystal display (LCD) Line status: active line indication, name and number Menu-driven user interface Shared line appearance* Speakerphone Call hold Music on hold* Call waiting Caller ID name and number Outbound caller ID blocking Call transfer: attended and blind Three-way call conferencing with local mixing Multiparty conferencing via external conference bridge Automatic redial of last calling and last called numbers On-hook dialing Call pickup: selective and group* Call park and unpark* Call swap Call back on busy Call blocking: anonymous and selective Call forwarding: unconditional, no answer, on busy Hot line and warm line automatic calling Call logs (60 entries each): made, answered, and missed calls Redial from call logs Personal directory with auto-dial (100 entries) Do not disturb (callers hear line busy tone) Digits dialed with number auto-completion Anonymous caller blocking Uniform Resource Identifier (URI) (IP) dialing support (vanity numbers) On-hook default audio configuration (speakerphone and headset) Multiple ring tones with selectable ring tone per line Called number with directory name matching Ability to call number using name: directory matching or via caller ID Subsequent incoming calls show calling name and number Date and time with support for intelligent daylight savings Call duration and start time stored in call logs Call timer Name and identity (text) displayed at startup Distinctive ringing based on calling and called number 12 user-customizable ring tones Speed dialing, eight entries Configurable dial/numbering plan support Intercom* Group paging NAT Traversal, including STUN support DNS SRV and multiple A records for proxy lookup and proxy redundancy Debug, syslog, report generation, and event logging Secure call encrypted voice communication support *Note: Feature requires support by call server.

Packaging

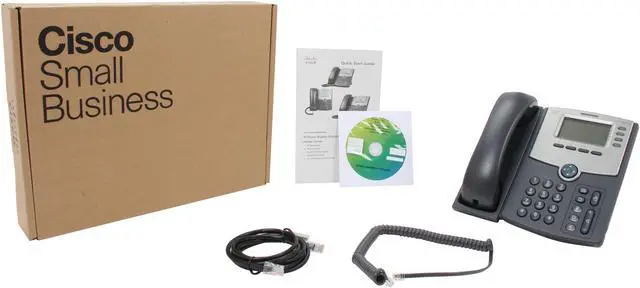

Package Contents	Cisco SPA514G IP Phone, handset, and stand Handset cord RJ-45 Ethernet cable Quick Installation Guide CD
