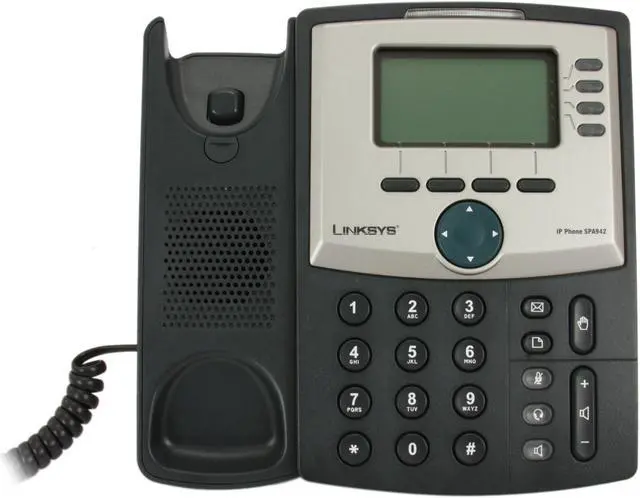

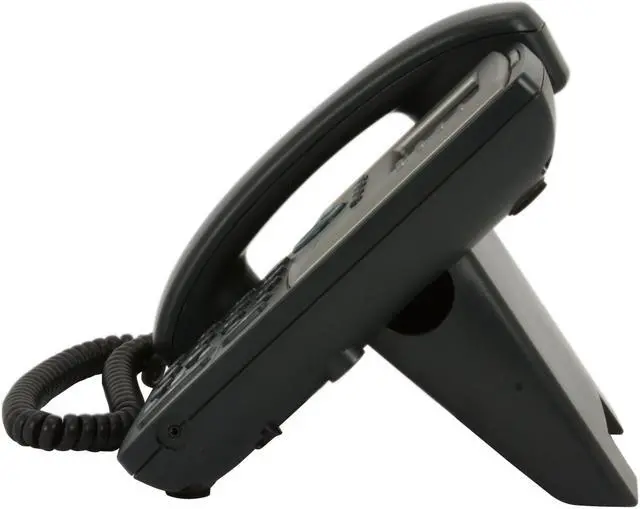

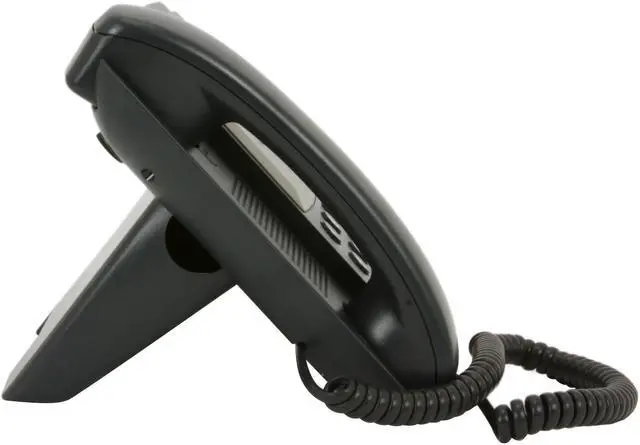

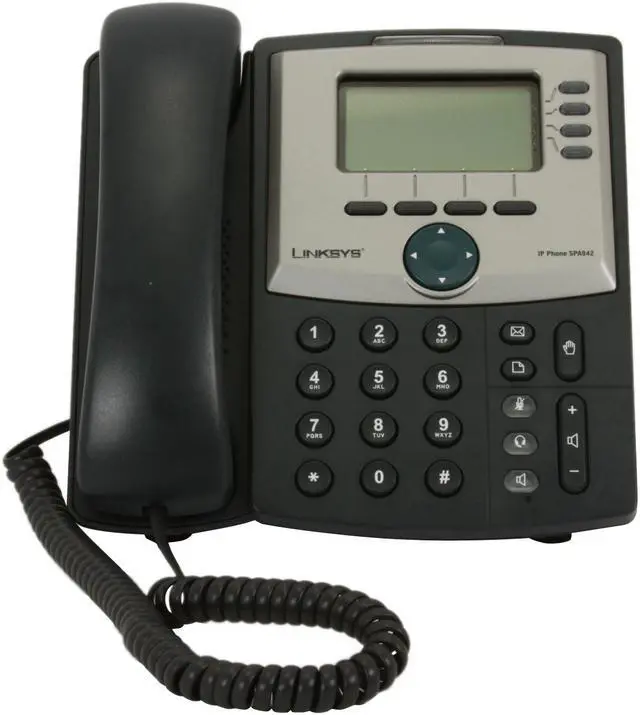

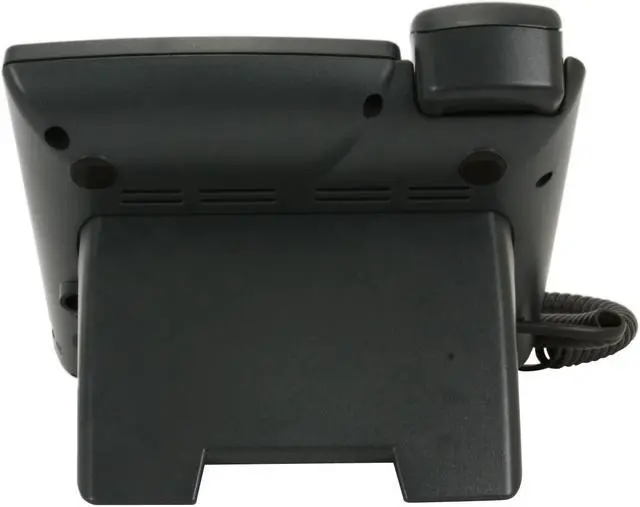

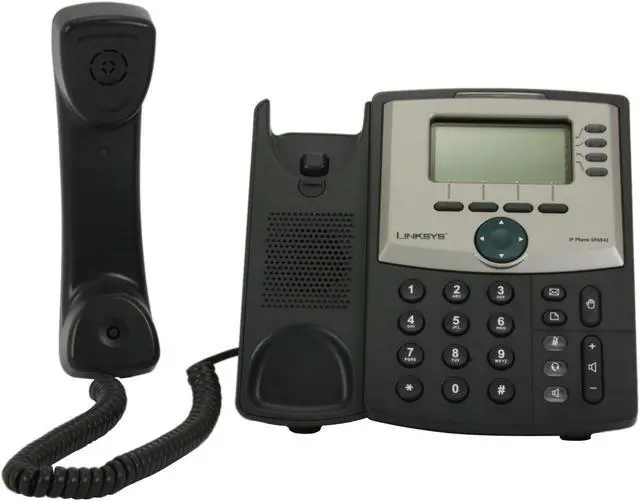

Cisco Small Business SPA942NA VoIP telephone
(9) Write a Review
- Headset Jack—2.5 millimeter port
- Telephone
Overview
Specs
Reviews (9)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Cisco Systems, Inc. SPA942NA
| Brand | Cisco Small Business |
|---|---|
| Model | SPA942NA |
| Type | Telephone |
|---|
| Standards | MAC Address (IEEEE-802.3) IPv4 - Internet Protocol v4 (RFC 791) upgradeable to v6 (RFC 1883). ARP - Address Resolution Protocol DNS - A Record (RFC 1706), SRV Record (RFC 2782) DHCP Client - Dynamic Host Configuration Protocol (RFC 2131) ICMP - Internet Control Message Protocol (RFC 792) TCP - Transmission Control Protocol (RFC 793) UDP - User Datagram Protocol (RFC 768) RTP - Real Time Protocol (RFC 1889)(RFC 1890) RTCP - Real Time Control Protocol (RFC 1889) DiffServ (RFC 2475), Type of Service - TOS (RFC 791/1349) VLAN Tagging 802.1p/q - Layer 2 QoS SNTP - Simple Network Time Protocol (RFC 2030) |
|---|---|
| Protocols | SIPv2 - Session Initiation Protocol v2 (RFC 3261, 3262, 3263, 3264). SIP Proxy Redundancy - Dynamic via DNS SRV, A Records Re-registration with Primary SIP Proxy Server SIP Support in Network Address Translation Network - NAT (including STUN). SIPFrag (RFC 3420) Secure (Encyrpted) Calling via Pre-Standard implementation of Secure RTP. Codec Name Assignment Voice Algorithms: G.711 (A-law and mu-law) / G.726 (16/24/32/40 kbps) / G.729A / G.723.1 (6.3 kbps, 5.3 kbps) Dynamic Payload Support Adjustable audio frames per packet DTMF: In-band & Out-of-Band (RFC 2833) (SIP INFO) Flexible Dial Plan Support with Configurable InterDigit Timers. IP Address/URI Dialing Support Call Progress Tone Generation Jitter Buffer - Adaptive Frame Loss Concealment VAD - Voice Activity Detection with Silence Suppression Attentuation/Cain/Adjustments MWI- Message Waiting Indicator tones VMWI - Visual Message Waiting Indicator - Via NOTIFY, SUBSCRIBE. Third Party Call Control (RFC 3725) |
| Security | Password protected system reset to factory default Password Protected Access to Administrator and User Level features. HTTPS with Factory Installed Client Certificate HTTP Digest - Encrypted Authentication via MD5 (RFC 1321) Up to 256-bit AES Encryption |
| Ports | Headset Jack—2.5 millimeter port |
| Display | 128x64 Monochrome LCD Graphical Display |
| LEDs | Four (4) Call Appearance/Line Buttons with Associated Tricolor LED. Line LED State Indication: Active, Idle, On Hold, Unregistered. Speakerphone On/Off Button with LED Headset On/Off Button with LED Mute Button with LED Message Waiting Indicator LED Voicemail Message Retrieval Button Hold Button LED Test Function |
| Power | DC Input Voltage: +5 Volts DC at 2.0 Amps Maximum Power Consumption: 5 Watts Switching Type (100-240v) Automatic Optional Power Adapter (models PA100-NA, PA100-EU, PA100-UK, PA100-AU): 100-240v - 50-60Hz (26-34VA) AC Input |
| Dimensions | 7.68"w x 6.30"h x 7.09"d |
| Weight | 2.15 lbs. |
| Temperature | Operating Temp. 32 to 113°F (0 to 45°C) Storage Temp. -13 to 185°F (-25 to 85°C) |
| Humidity | Operating Humidity 10 to 90%, Noncondensing Storage Humidity 10 to 90%, Noncondensing |
| Specifications | Dedicated Illuminated On/Off Buttons for Audio Mute, Headset, and Speakerphone Four Soft Key Buttons Four Way-Rocking Directional Button for Menu Navigation Support for up to two attached Attendant Consoles; adds up to 64 programmable buttons Voice Mail Message Waiting Indicator Light Voice Mail Message Retrieval Button Dedicated Hold Button Settings Button for Access to Feature, Set-up, and Configuration Menus Volume Control Rocking Up/Down Button Controls Handset, Headset, Speaker, Ringer Standard 12-Button Dialing Pad High-Quality Handset (RJ-7 connector) and Cradle Built-In High Quality Microphone and Full-Duplex Speakerphone Two Ethernet LAN Ports with Integrated Ethernet Switch – 100BaseT RJ-45 802.3af Compliant Power over Ethernet (PoE) Optional 5 volt DC Universal (100-240 Volt) Switching (Power Supply is Ordered Separately) |
| Features | 2 or 4-Line IP Telephone with 2 Port Ethernet Switch, PoE and Hi-Res Display. Advanced, Affordable, Feature Rich IP Phone for the Home Office and Business! Stylish and functional in design, the SPA942 VoIP Phone is ideal for a residence or business using a hosted IP telephony service, an IP PBX, or a large-scale IP Centrex deployment. The SPA941 leverages industry leading VoIP technology from Linksys to deliver an upgradeable high quality IP Phone that is unparalleled in features, value, and support. Standard features on the SPA942 include two active lines, dual switched Ethernet ports, 802.3af PoE support, a high resolution graphical display, speakerphone, and a 2.5 mm head-set port. With a simple software update, the SPA942 is upgradeable to a four line phone. Each line can be independently configured to use a unique phone number (or extension), or can be configured to use a shared number that is assigned to multiple phones. Based on the SIP standard, the SPA942 has been tested to ensure comprehensive interoperability with equipment from VoIP infrastructure leaders enabling service providers to quickly roll-out competitive, feature rich services to their customers. With hundreds of features and configurable sevice parameters, the SPA942 addresses the requirements of traditional business users while leveraging the advantages of IP telephony. Features such as easy station moves, presence, and shared line appearances (across local and geographically dispersed locations) are just some of the many advantages of the SPA942. |
|---|

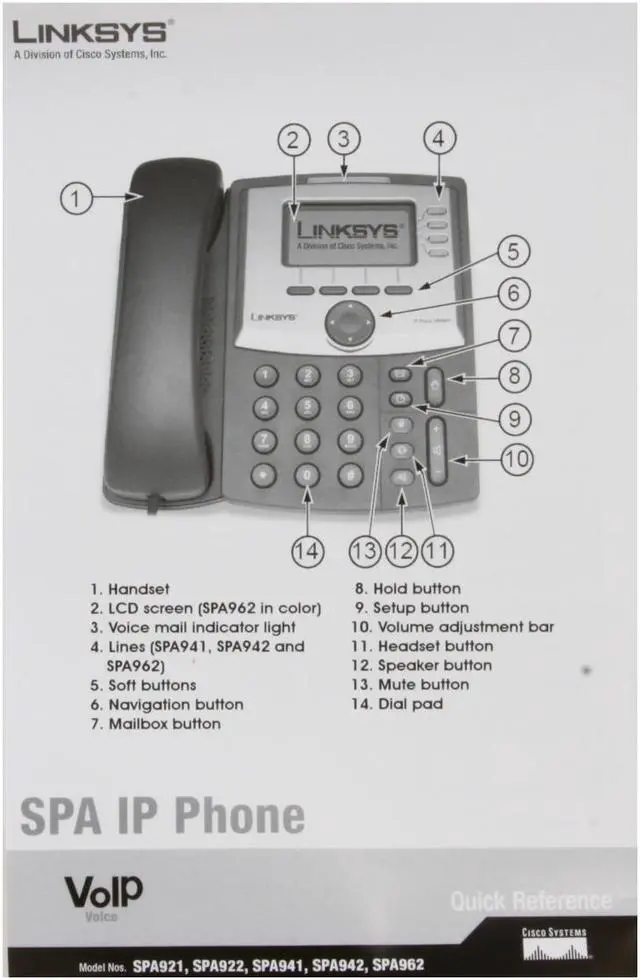

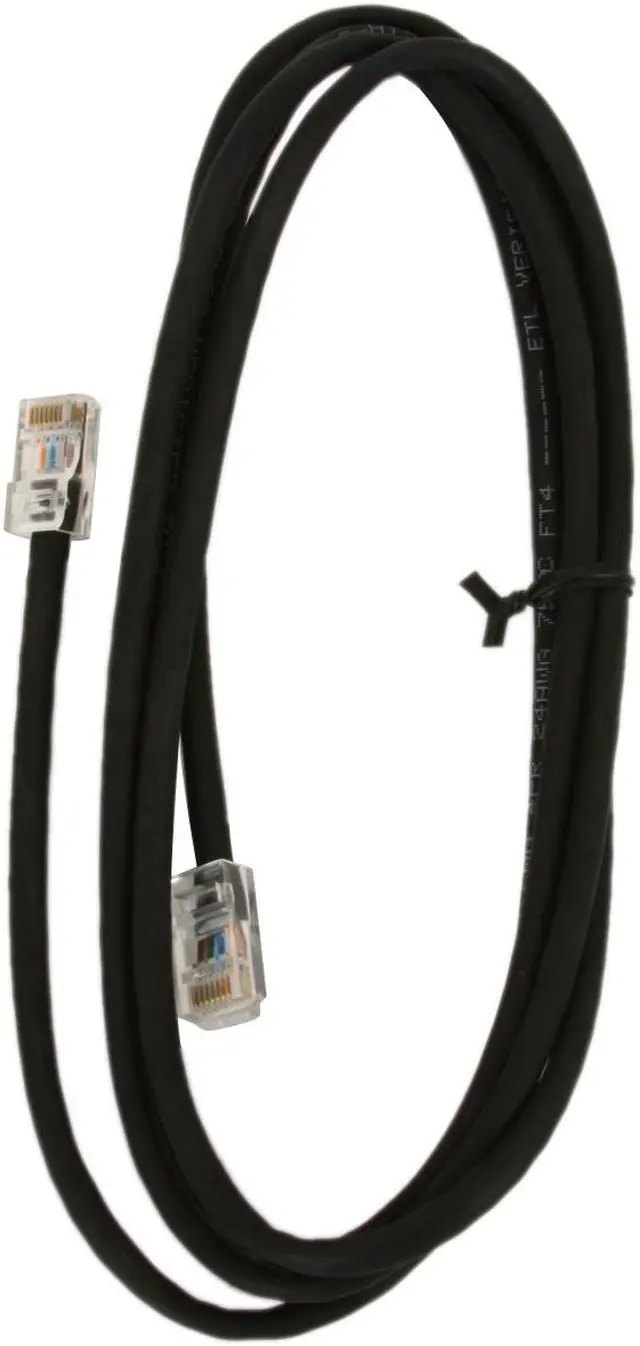

| Package Contents | 1 SPA942 IP Phone, Handset, and Stand 1 Handset Cord 1 RJ-45 Ethernet Cable 1 Quick Installation Guide (Optional Power Supply is Ordered Separately) |
|---|
| First Listed on Newegg | March 20, 2008 |
|---|
