Cisco Small Business WAP54GP Wireless-G Access Point with Power over Ethernet
- Up to 54Mbps Wireless Data Rates
- IEEE802.11g, IEEE802.11b, IEEE802.3, IEEE802.3u, IEEE802.3af (Power Over Ethernet), IEEE802.1p (QoS Priority), IEEE802.1q (VLAN), 802.1x (Security Authentication), 802.11i - Ready (Security WPA2), 802.11e - Ready (Wireless QoS)
- Ethernet Port
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Cisco Systems, Inc. WAP54GP
| Brand | Cisco Small Business |
|---|---|
| Model | WAP54GP |
| Standards | IEEE802.11g, IEEE802.11b, IEEE802.3, IEEE802.3u, IEEE802.3af (Power Over Ethernet), IEEE802.1p (QoS Priority), IEEE802.1q (VLAN), 802.1x (Security Authentication), 802.11i - Ready (Security WPA2), 802.11e - Ready (Wireless QoS) |
|---|---|
| Device Management | SNMP Version 1, 2c Event Logging Firmware Upgradeable through Web Browser Diags: Flash, RAM, LAN, WLAN |
| Wireless Data Rates | Up to 54Mbps |
| Security | WEP/WPA/WPA2: WEP 64bit/128bit, WPA-TKIP/AES, WPA-PSK, WPA-ENT 802.1x RADIUS Auth.: 802.1x - RADIUS (MD5, SHA1, TLS, TTLS, PEAP) Dynamically Varying Encryption Keys Access Control: Access Control List (ACL) Capability: MAC-Based SSID Broadcast: SSID Broadcast Enable/Disable Multiple SSID: Supports Multiple SSIDs Wireless VLAN Map: Supports SSID to 802.1q VLAN Mapping with Wireless Client Isolation |
| Channels | 11 North America,13 Most of Europe (ETSI and Japan) |
| Antenna | External Antenna |
| Transmitted Power | 11g: Typical - 14dBm, 11b: Typical - 18dBm |
| Receiver Sensitivity | 11g: 54Mbps@ -69dBm, 11b: 11Mbps@ -82dBM |
| System Requirements | 802.11b or 802.11g Wireless Adapter with TCP/IP Protocol Installed per PC Network Adapter with Ethernet Network Cable and TCP/IP Protocol Installed per PC Switch/Router with Power Over Ethernet (PoE) Support or PoE Injector Web-Based Configuration Java-Enabled Web Browser |
| Interface | Ethernet Port |
| LEDs | Power, Ethernet, Wireless-G |
| Buttons | Reset Button |
| WAN Ports | Ethernet, Antenna, Power |
| Power Supply | 12V 1A, IEEE802.3af Compliant PoE |
| Temperature | -20°C - 60°C |
|---|---|
| Humidity | 5% - 95%, Non-Condensing |
| Dimensions | 1.3" x 7.8" x 6.9" |
|---|---|
| Weight | 1.01 lbs. |
| Features | Supports multiple SSID with VLAN to create separate, secured networks Supports Power over Ethernet (PoE) Supports SNMP management |
|---|

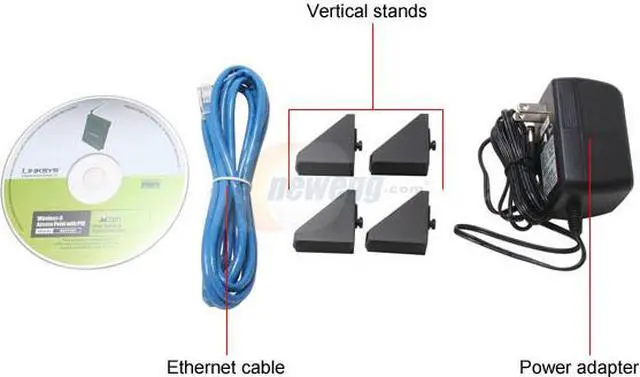

| Package Contents | WAP54GP Resource Disk RJ45 Cable Power Adapter Vertical Stand |
|---|
| First Listed on Newegg | December 22, 2005 |
|---|
