Standards | Draft IEEE802.11n, IEEE802.11g, IEEE802.11b, IEEE802.3, IEEE802.3u, 802.1X (security authentication), 802.11i - Ready (security WPA2), 802.11e - Ready (wireless QoS), IPv4 (RFC791), IPv6 (RFC2460), RIPv1 (RFC1058), RIPv2 (RFC1723) |
---|
Device Management | SNMP Version: SNMP version 1, 2c Event Logging: Local, syslog, e-mail alerts Web F/W Upgrade: Firmware upgradable through web browser Diags: Flash, etc.: Flash, RAM |
---|
Security | Access Control: IP-based Access Control List (ACL); MAC-based wireless access control Firewall: Stateful Packet Inspection (SPI) firewall Content Filtering: URL blocking, keyword blocking IPS (Intrusion Prevention System): IP Sweep Detection, Application Anomaly Detection (HTTP, FTP, Telnet, RCP), P2P Control, Instant Messenger Control, L3-L4 Protocol (IP, TCP, UDP, ICMP) Normalization, L7 Signature Matching Signature Update: Manual download from the web Secure Management: HTTPS, username/password 802.1X: Port-based Radius Authentication (EAP-MD5, EAP-PEAP) |
---|
WPA | WPA2 |
---|

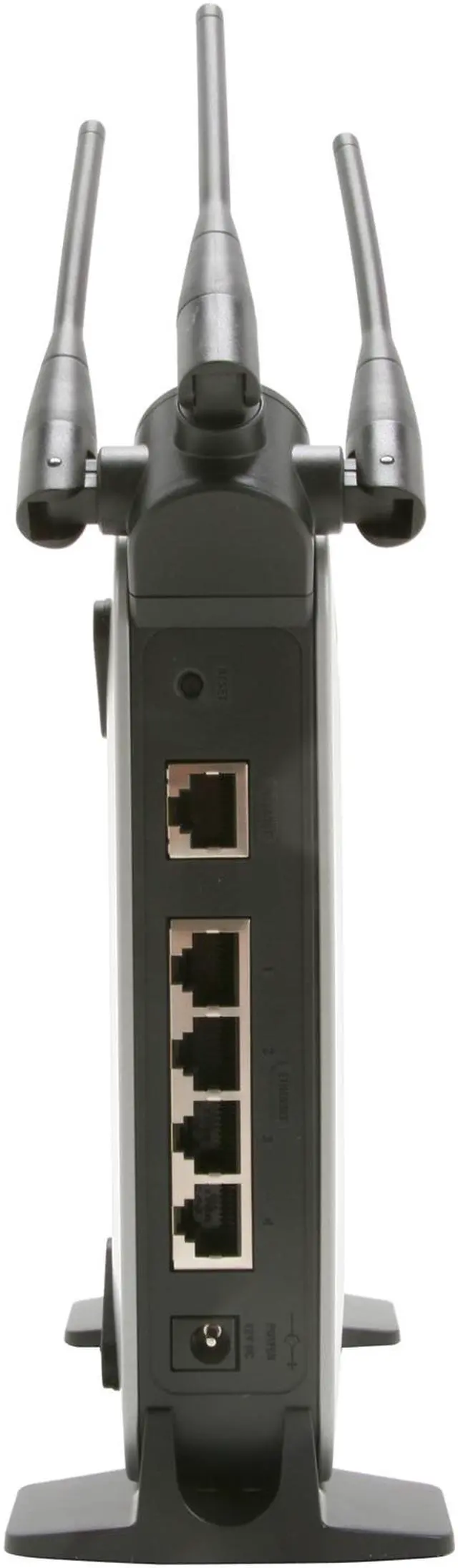

WAN Ports | 1 x 10/100/1000M WAN; 4 x 10/100/1000M LAN |
---|

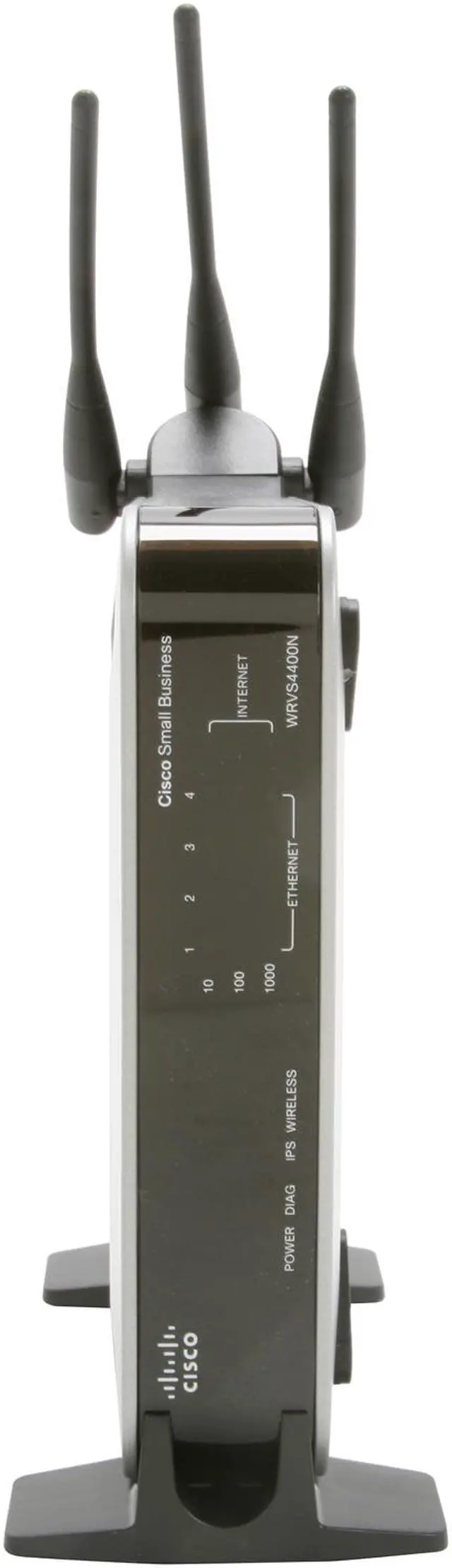

LEDs | Power, Diag, IPS (blinks RED - Internal attack, blinks Green - external attack), Wireless, LAN 1-4, Internet |
---|
Buttons | Reset Button |
---|
Wireless Data Rates | Up to 300Mbps |
---|
Modulation | 802.11b/DSSS, 11g/OFDM, 11n/OFDM |
---|
Antenna | External Antenna |
---|
Channels | 11 channels (most of North, Central and South America) 13 channels (most of Europe and Asia) |
---|
Transmitted Power | 11b - 16 dBm@1TX, 19 dBm@2TX; 11g - 13 dBm@1TX, 16 dBm@2TX; 11n - 13 dBm@1TX, 16 dBm@2TX |
---|
Receiver Sensitivity | 11.n: 300Mbps@ -69dbM, 11.g: 54Mbps@ -73dBm, 11.b: 11Mbps@ -88dBM |
---|
Interface | Ethernet Port |
---|
VPN support | 5 QuickVPN tunnels for remote client access 5 IPSec gateway-to-gateway tunnel for branch office connectivity 3DES encryption MD5/SHA1 authentication IPSec NAT-T VPN passthrough of PPTP, L2TP, IPSec |
---|
Power Supply | 12V 1A |
---|
Wireless Adapter included | No |
---|
Dimensions | 7.8” x 5.2” x 7.8” |
---|
Weight | 1.21 lbs. |
---|
Temperature | 0°C - 40°C (32°F - 104°F) |
---|
Humidity | 10% - 85%, Non-Condensing |
---|
