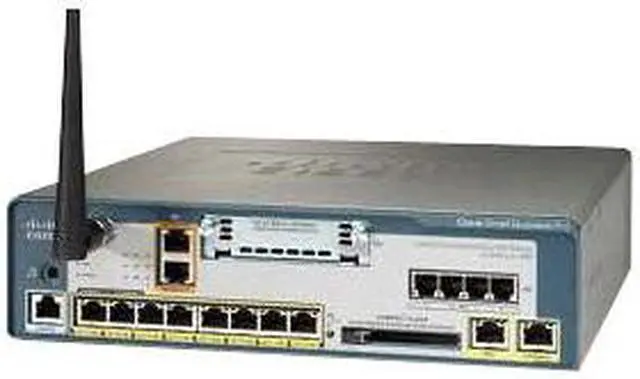

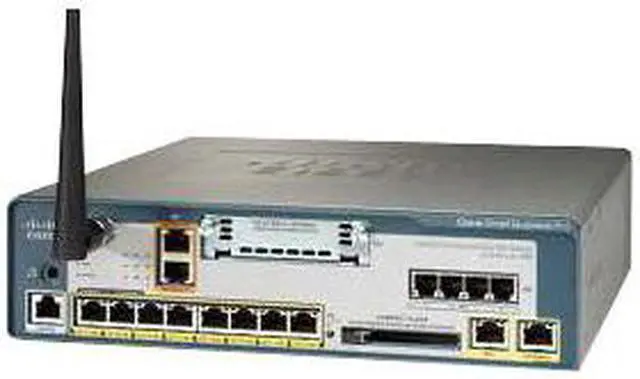

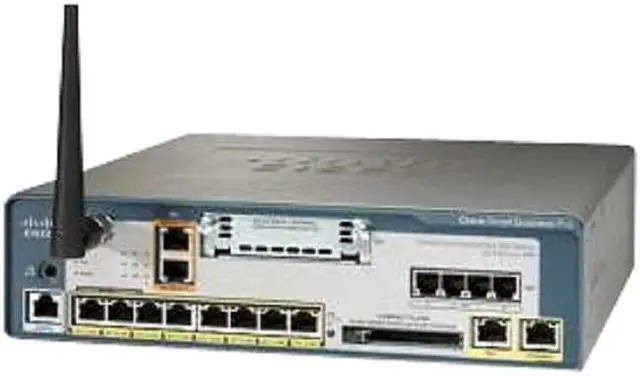

Cisco - 540W-FXO Unified Communications Wireless Router

General InformationManufacturer: Cisco Systems, IncManufacturer
Part Number: UC540W-FXO-K9Manufacturer
Website Address:
http: //www. cisco.
comBrand Name: CiscoProduct
Series: 500Product
Model: 540Product
Name: 540W-FXO Unified Communications
Wireless RouterMarketing Information: The Cisco UC 540 includes 24 user licenses. These licenses enable the use of Cisco Unified IP Phones and allow users to access the IP PBX features, including voicemail. In addition, supplementary user licenses are bundled to help with deployments that need a few extra licenses. For additional licensing needs, the L-UC-PRO-8U= may be ordered. This increases the existing license count by eight. Table 5 lists the number of users supported based on the hardware/license configurations. The UC 540 also has built-in licenses for unified communications features.
Product Type: Wireless RouterWireless SpecificationsWireless
LAN Standard: IEEE 802.11 b/gISM
Band: YesUNII
Band: NoISM
Maximum Frequency: 2.40 GHzIndoor
Antenna Range: 320 ftTotal
Wireless Transmission Speed: 6.75 MB/sInterfaces/PortsNumber of
Network (RJ-45) Ports: 8PoE (RJ-45)
Port: YesNumber of Broadband (RJ-45)
Ports: 1I/O ExpansionsNumber of Total
Expansion Slots: 1Expansion
Slot Type: VIC
Network & CommunicationEthernet Technology: Fast
EthernetPhysical CharacteristicsForm Factor: DesktopWall
MountableRack-mountableHeight: 2.6"W
idth: 10.5"D
epth: 11.1"W
eight (Approximate): 8 lbMiscellaneousEnvironmentally
Friendly: YesEnvironmental
Certification: RoHSWEEE
