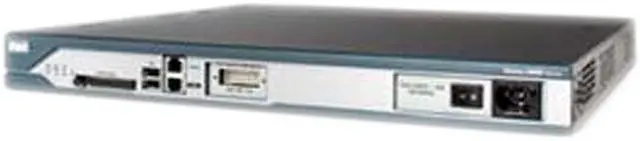

CISCO 2800 Series CISCO2811-AC-IP Router with AC Power Including Inline Power Distribution Capability 2 x 10/100Mbps LAN Ports

Be the first to review this product...

2 x 10/100Mbps LAN Ports

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The Cisco 2811 provides significant additional value compared to prior generations of Cisco routers at similar price points by offering up to a fivefold performance improvement, up to a tenfold increase in security and voice performance, new embedded service options, and dramatically increased slot performance and density while maintaining support for most of the more than 90 existing modules that are available today for the Cisco 1700, Cisco 2600, and Cisco 3700 Series.

Model
Brand	CISCO
Series	2800 Series
Model	CISCO2811-AC-IP

Details
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af, USB1.1
Speed	10/100Mbps
Security	Safety: - UL 60950 - CAN/CSA C22.2 No. 60950 - IEC 60950 - EN 60950-1 - AS/NZS 60950 Immunity: - EN300386 - EN55024/CISPR24 - EN50082-1 - EN61000-6-2
LAN Ports	2 x 10/100Mbps
VPN	IPsec
Temperature	32°F (0°C) to 104°F (40°C) Operating -4°F (-20°C) to 149°F (65°C) Non-operating
Humidity	5% - 95%, Non-condensing

Features
Features	Fast Ethernet Port: Yes Interfaces/Ports: - 2 x RJ-45 10/100Base-TX LAN - 1 x Console Management - 1 x Auxiliary Management - 2 x USB Expansion Slots: - (2 Total) AIM - (4 Total) Expansion Slot - (1 Total) NME - (2 Total) PVDM Management: - Cisco Router and Security Device Manager (SDM) - Simple Network Management Protocol (SNMP) Standard Memory: 256 MB Maximum Memory: 760 MB Memory Technology: DRAM Flash Memory: 64 MB Input Voltage: 110 V AC / 220 V AC Input Voltage Range: 100 V AC to 240 V AC Input Current: 4 A @ 110 V AC, 2 A @ 230 V AC Frequency: 50 Hz or 60 Hz Power Consumption: 160 W Maximum Additional Information: - With the Cisco IOS Software Advanced Security feature set, the Cisco 2811 provides a robust array of common security features such as a Cisco IOS Software Firewall, intrusion prevention, IPsec VPN, Secure Shell (SSH) Protocol Version 2.0, and Simple Network Management Protocol (SNMPv3) in one secure solution set - Cisco CME is an optional solution embedded in Cisco IOS Software that provides call processing for Cisco IP phones - Optional integrated power supply for distribution of Power over Ethernet (PoE) - AC-IP input surge current: 50A maximum, one cycle (-48V power included) - Power dissipation-AC without IP phone support: 170W (580 BTU/hr) - Power dissipation-AC with IP phone support-system only: 210W (717 BTU/hr) - Power dissipation-AC with IP phone support-IP phones: 160W (546 BTU/hr) Interface Card Slots: - Each slot can support HWIC, WIC, VIC, or VWIC type modules RPS: - External only, connector for RPS provided by default Operation Altitude (derate 1.5°C per 1000 ft): - 27.5°C @ 15 kft - 35°C @ 3km/10 kft - 40°C @ sea level System Requirements: Minimum Cisco IOS Software release: 12.3(8)T EMC: - FCC Part 15 - ICES-003 Class A - EN55022 Class A - CISPR22 Class A - AS/NZS 3548 Class A - VCCI Class A - EN 300386 - EN

Dimensions & Weight
Dimensions	1.75" Height x 17.25" Width x 16.40" Depth
Weight	14 lbs.

Additional Information
Date First Available	September 09, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-800-553-6387
Support Website
