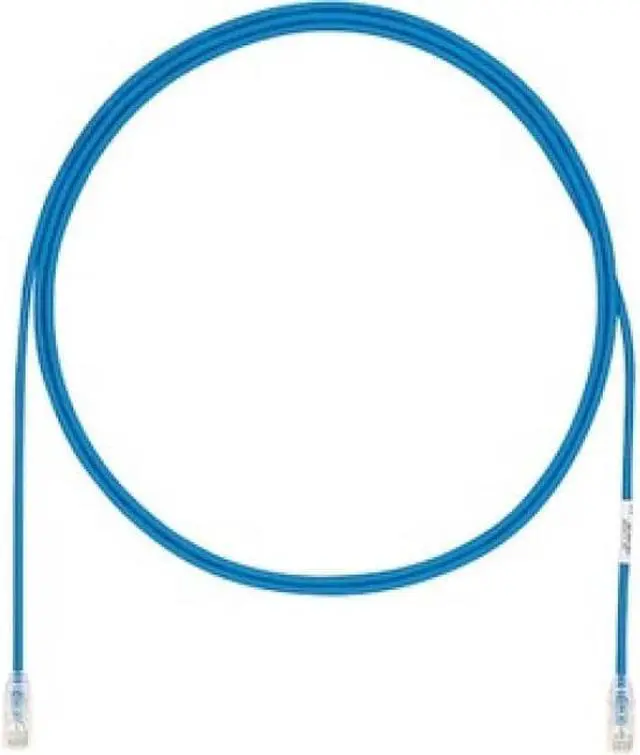

Panduit UTP28X1BU Cat6a 28awg Slim UTP Copper Network Patch Cable/Cord, 1 Ft Blue
- Application (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5)Parallel processing and high speed computing.
- Product Type Patch Cord
- Conductor Gauge (AWG) 28
- Conductor Gauge (kcmil) 0.2
- Performance Level Category 6A
- Conductor Type Solid
- Cable Construction F/UTP
- Patch Cord Type Unshielded
- Plug Housing Material Polycarbonate
- Jacket Material LSZH Material
- Connector 1 Type Modular Plug
- Connector 2 Type Modular Plug
- Overall Length (ft.) 1
- Sub Brand Pan-Net®
- Nominal Cable Outside Diameter (In.) 0.18
- Wiring Scheme T568B
- Maximum Operating Temperature (°F) 167
- Minimum Operating Temperature (°F) 14
- Maximum Storage Temperature (°F) 158
- Minimum Storage Temperature (°F) -40
- Boot Color Clear
- Color Blue
- Flammability Rating Dual Rated (CM/LSZH)
- Standards Met Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements for frequencies up to 500 MH, Meets ANSI/TIA-1096-A (formerly FCC Part 68),Meets IEC 60603-7, Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 andtype 4 (24 cables in a bundle) PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS compliant.type 4 (24 cables in a bundle) PoE compliant.
- IEC Variant 60603-7
- PoE Compatibility PoE/PoE+/PoE++
- Plug Type 8 Position
- RapidID Enabled Yes
- 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI mode will help you find out quickly.
Try me now
The TX6A-28 Cat 6A UTP Patch Cord is a 1-Foot, 0.185-inch (4.7mm) diameter, Blue cord constructed of 28 AWG unshielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Technical Information
- Cable Type: Category 6a
- Cable Characteristic: Patch Cable
- Cable Length: 1 ft
- Connector Type on First End: RJ-45 Network - Male
- Connector on First End Details: 1 x RJ-45 Network - Male
- Connector Type on Second End: RJ-45 Network - Male
- Connector on Second End Details: 1 x RJ-45 Network - Male
- Device Supported: Network Device
- American Wire Gauge: 28 AWG
- Features: PoE
- Features: PoE+
- Features: Booted
- Features: Halogen Free
Physical Characteristics
- Product Color: Blue
- Boot Color: Clear
Miscellaneous
- Environmentally Friendly: Yes
- Country of Origin: China
