for Raspberry Pi 3 Model B+ Camera Module Automatic IR-Cut Switching Day/Night Vision Video Webcam Adjustable Focus 5MP OV5647 Sensor 1080p HD for Raspberry Pi 2/3 Model B Model A A+ Zero/Zero W
- Camera module for Raspberry Pi, Fully compatible with Raspberry Pi A, B, B+, 2, 3, 3B+,Zero,Zero W. The camera is supported in the latest version of Raspbian,the Raspberry Pi's preferred operating system.
- High-Definition video camera, The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 video recording.

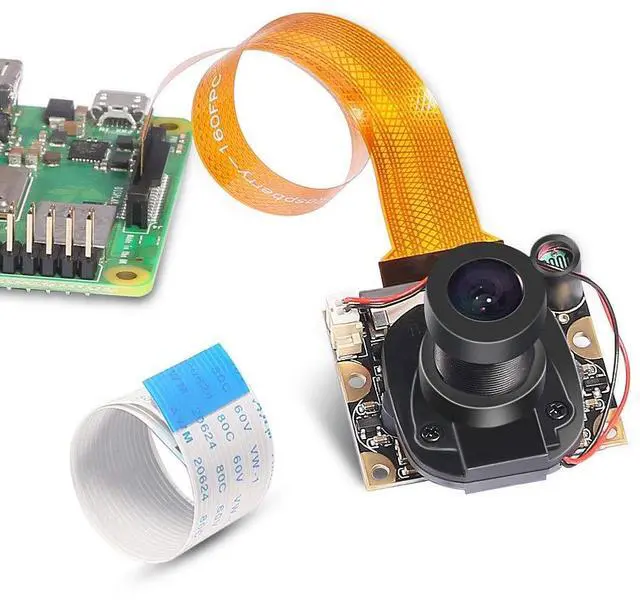

- The module attaches to for Raspberry Pi, by way of a 15 Pin Ribbon Cable, to the dedicated 15-pin MIPI Camera Serial Interface (CSI), which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data to the BCM2835 processor.
- Automatic IR-CUT Camera -- It's built-in IR-CUT camera,automatically switch day and night mode for better and clearer image during the day and night.
- The camera module board itself is tiny, making it perfect for mobile or other applications where size and weight are important. for Raspberry pi camera is really good for learning program, monitor real-time experiment and video recording for pi enthusiast and beginner. Also suitable for Board.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Why choose Aokin Camera Module Board for Raspberry Pi?
The module attaches to Raspberry Pi, by way of a 15 Pin Ribbon Cable, to the dedicated 15-pin MIPI Camera Serial Interface (CSI), which was designed especially for interfacing to cameras.The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data to the BCM2835 processor.

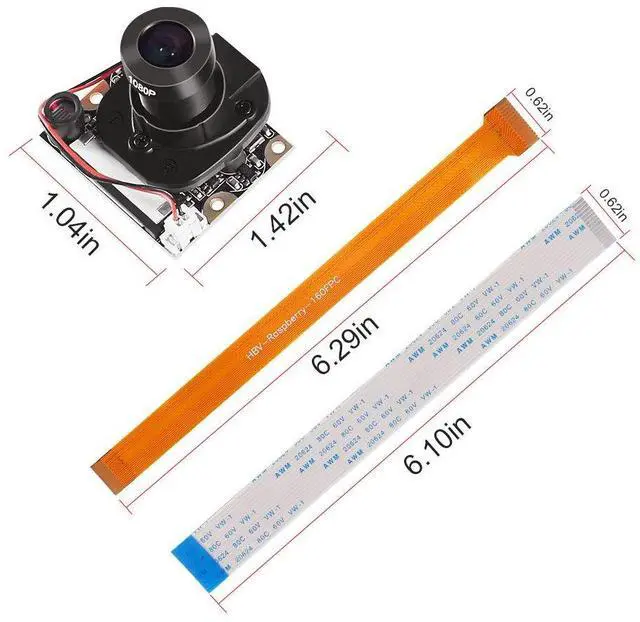

The board itself is tiny, at around 25mm x 20mm x 9mm, and weighs just over 3g, making it perfect for mobile or other applications where size and weight are important.
The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard.
In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 video recording.

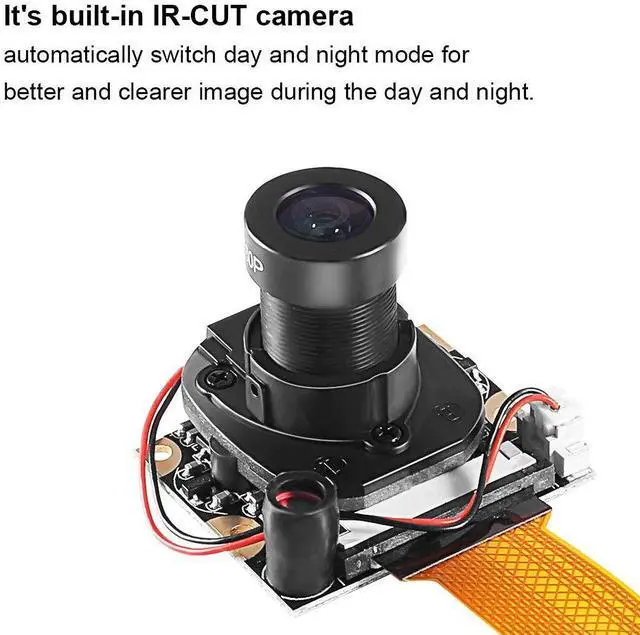

IR-CUT Camera -- It's built-in IR-CUT camera,automatically switch day and night mode for better and clearer image during the day and night.
Specification:
Viewing angle: 72 degrees
Material: CCL
Sensor type : Omni Vision OV5647 5MP
Still Picture Resolution: 2592 x 1944
Video: Supports 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 Recording

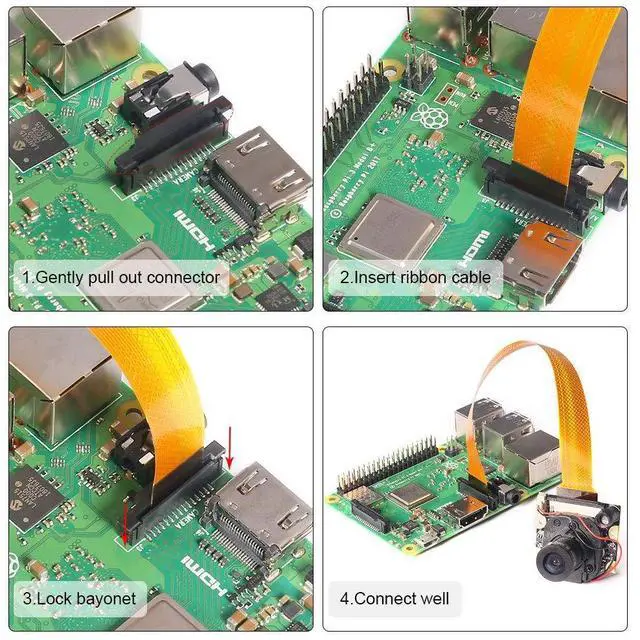

15-pin MIPI Camera Serial Interface - Plugs Directly into the Raspberry Pi Board
Application:
Cellular phones,PDAs,Toys
Other battery-powered products
Can be used in all Raspberry Pi platforms
Package List:
1 x Camera Module (with cable for Rpi Model 2/3 B/B+)
Note: Not included 1 x 15cm camera cable for RPI Zero/Zero WLight shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
