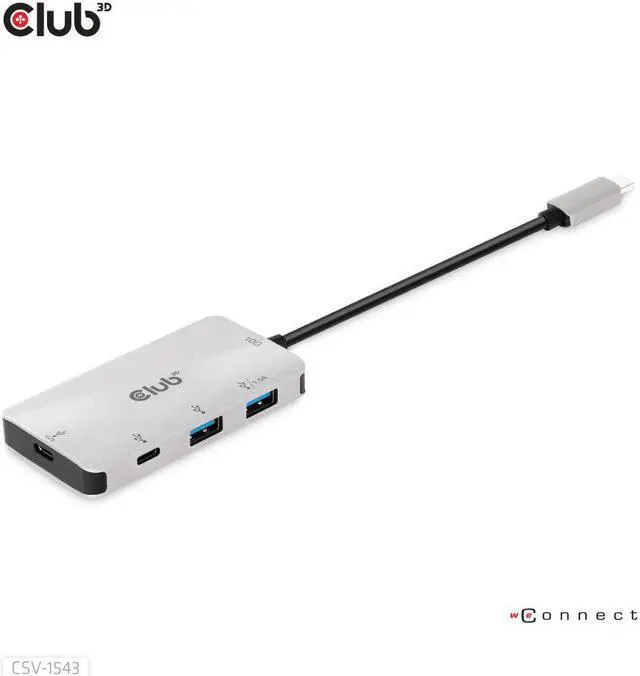

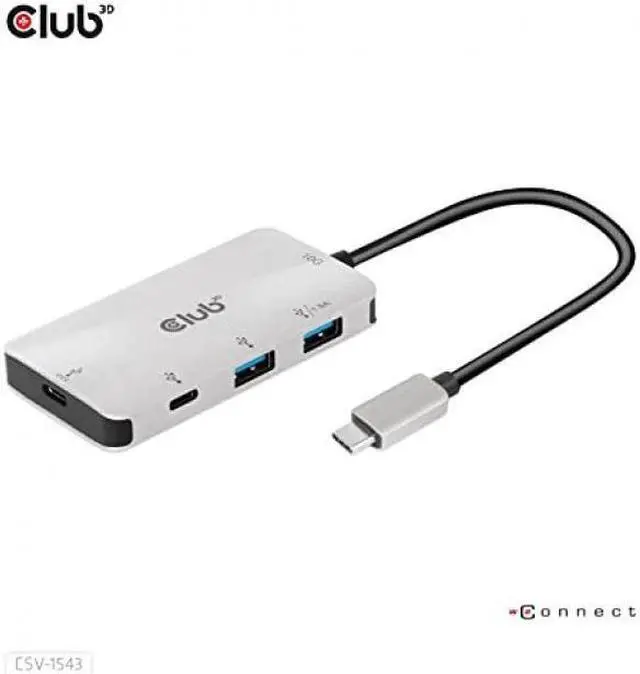

Club3D CSV1543 USB-C Gen2 PD Charging Hub to 2x USB-C 10G ports and 2x USB 10G ports Silver

Be the first to review this product...

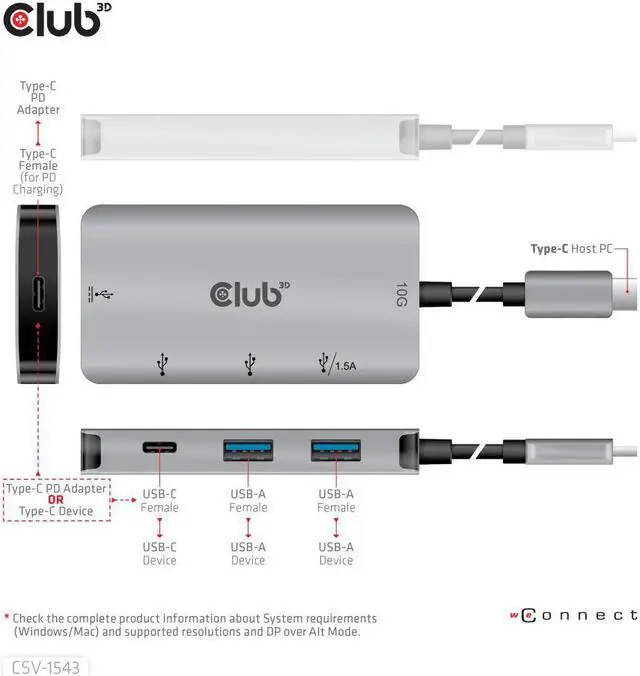

  • Input:
  • 1 x USB Gen2 Type-C Male
  • Output:
  • 1 x USB Type-C Female for Data
  • 1 x USB Type-C Female for Data and Charging
  • 1 x USB Type-A Female for Data
  • 1 x USB Type-A Female for Data and Charging (Max.1.5A when a USB Type-C PD Power Charger is connected)
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Club3D CSV1543

Model
Brand Club3D
Model CSV1543
Details
Color Silver
Type USB
Ports Input:
1 x USB Gen2 Type-C Male

Output:
1 x USB Type-C Female for Data
1 x USB Type-C Female for Data and Charging
1 x USB Type-A Female for Data
1 x USB Type-A Female for Data and Charging (Max.1.5A when a USB Type-C PD Power Charger is connected)
Features
Features High Power Conversion Efficiency, means low power consumption and low heating, 98.2%@Vin=5V; 92.5% @Vin=20V

Advanced Power Management

Support Fast Role Swap of PD 3.0

Support USB Type-C input, 2x USB Type-C + 2x USB Type-A output

Compliant with USB 3.1 specification and downward compatible with lower versions
USB Type-A
- Both USB Type-A ports support max. 10Gbps data transmission
- 1 USB Type-A supports 5V/1.5A downstream charging(when Type-C PD power Charger is connected)

USB Type-C
- 1 USB Type-C port supports max. 10Gbps data transmission speed
- Another Type-C port supports max. 10Gbps as downstream data port and max 100W PD charging as upstream charging port

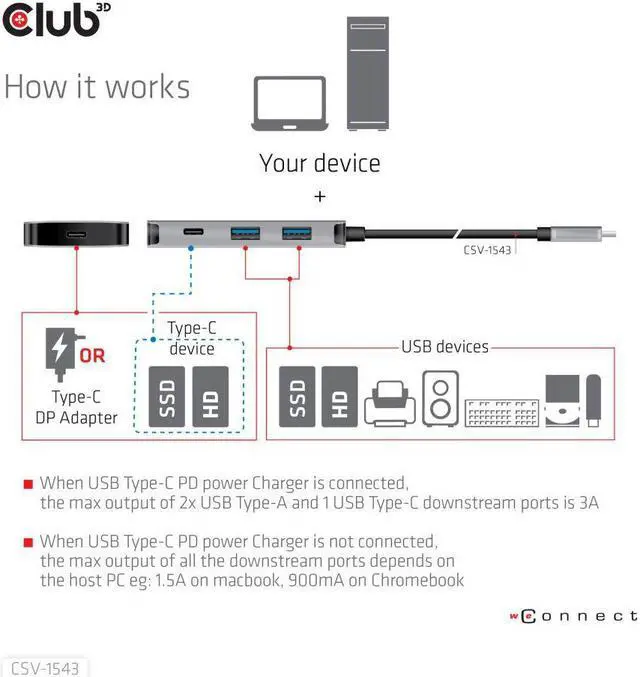

- When USB Type-C PD power Charger is connected, the max output of 2x USB Type-A and 1 USB Type-C downstream ports is 3A
- When USB Type-C PD power Charger is not connected, the max output of all the downstream ports depends on the host eg:1.5A on macbook ,900mA on Chromebook, etc., depending on the specifications of your host device.
Packaging
Package Contents CSV-1543 USB Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports
