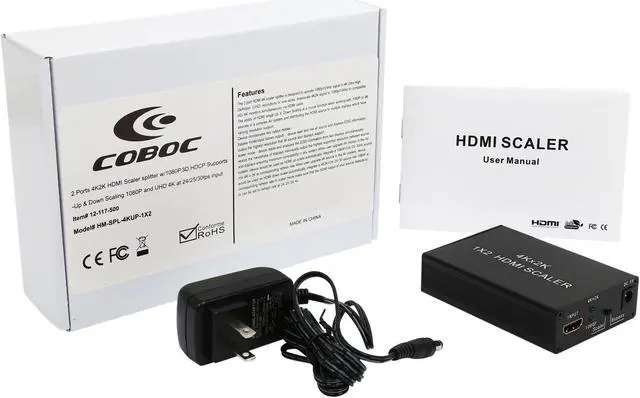

Images from RETAIL item, box contents may vary.

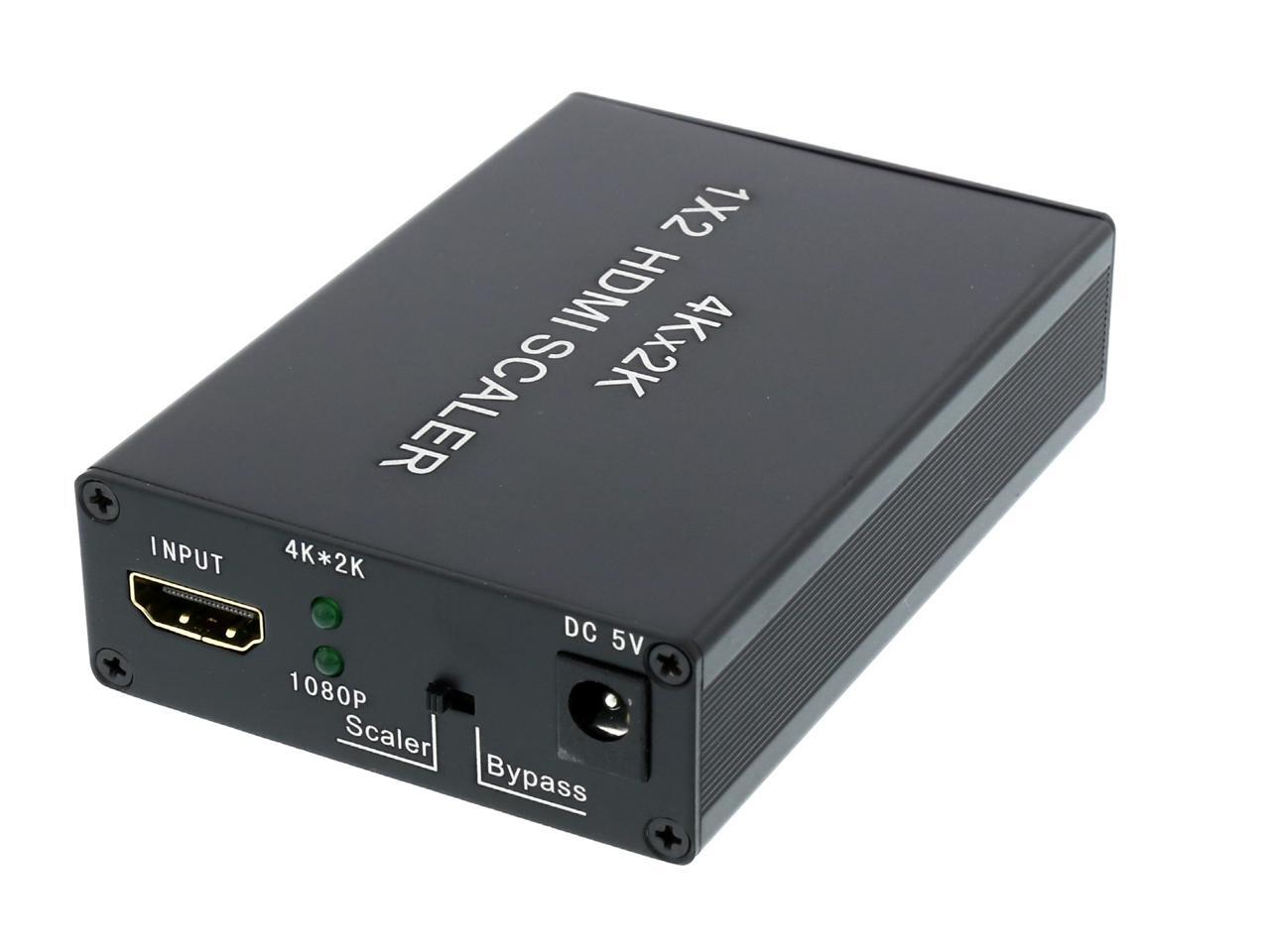

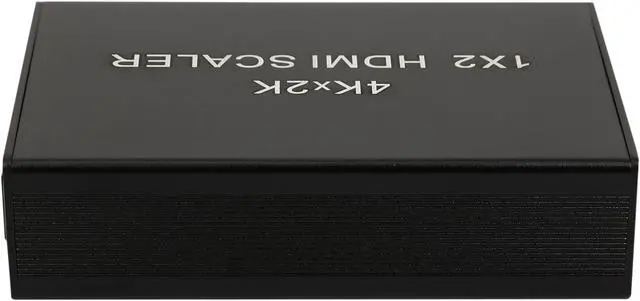

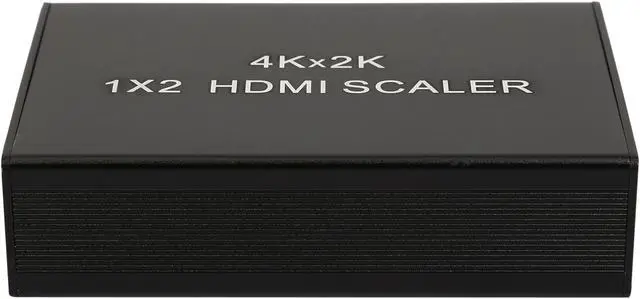

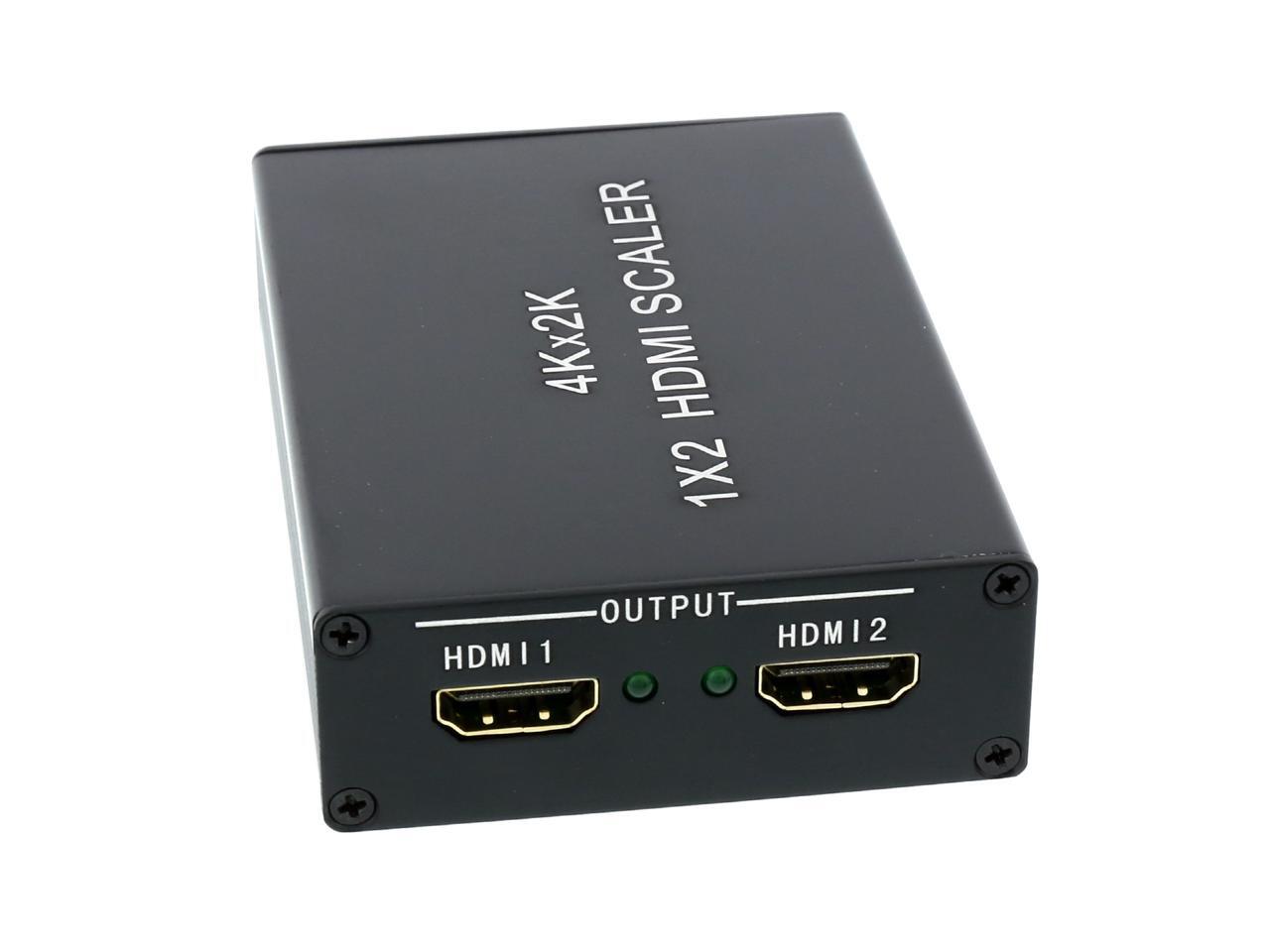

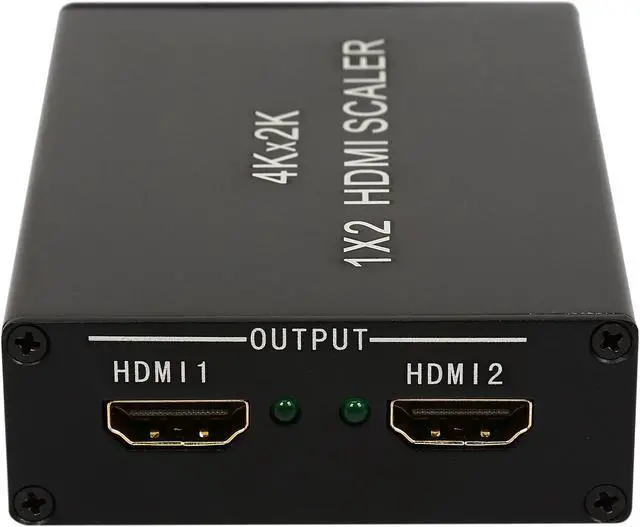

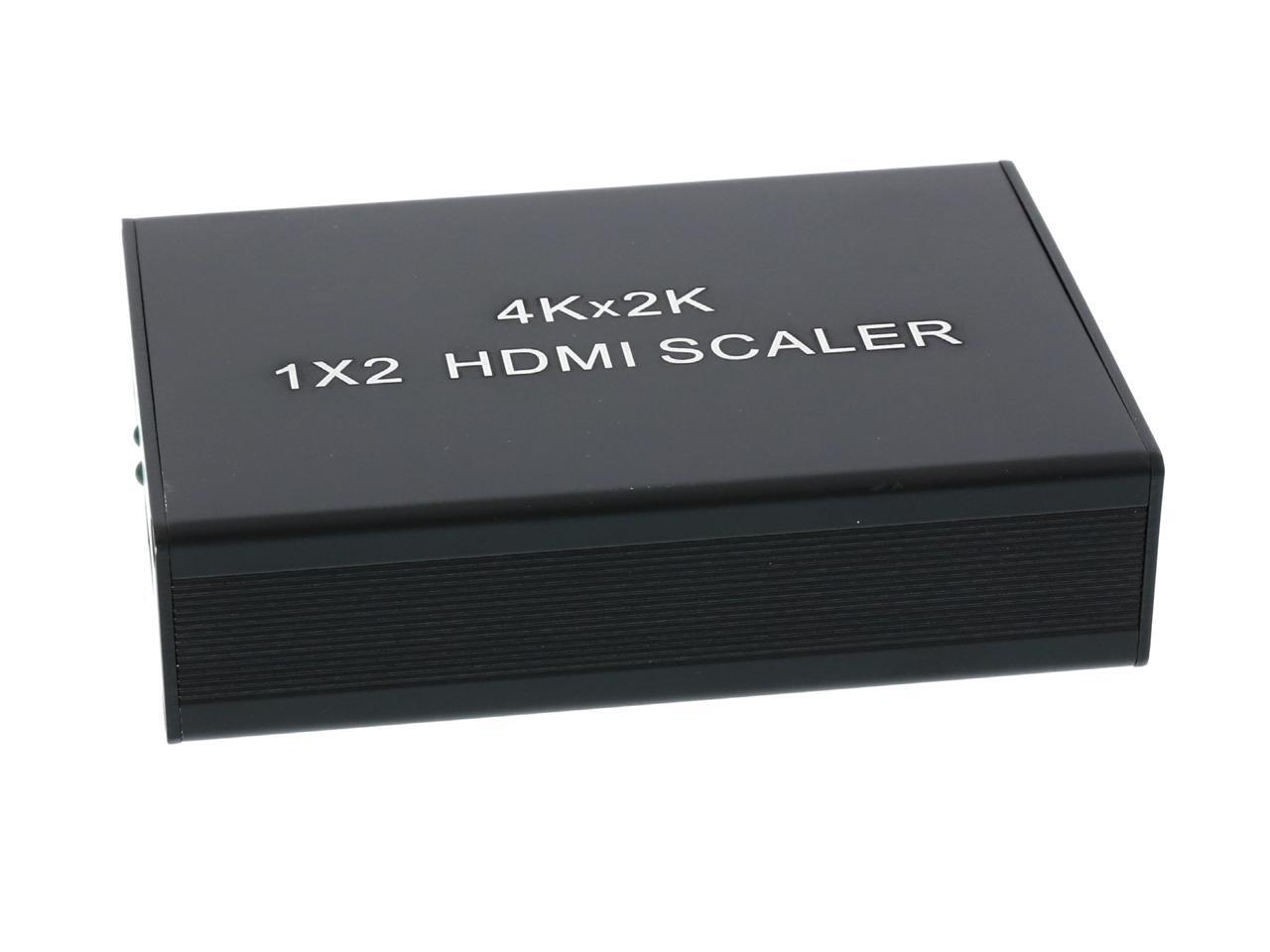

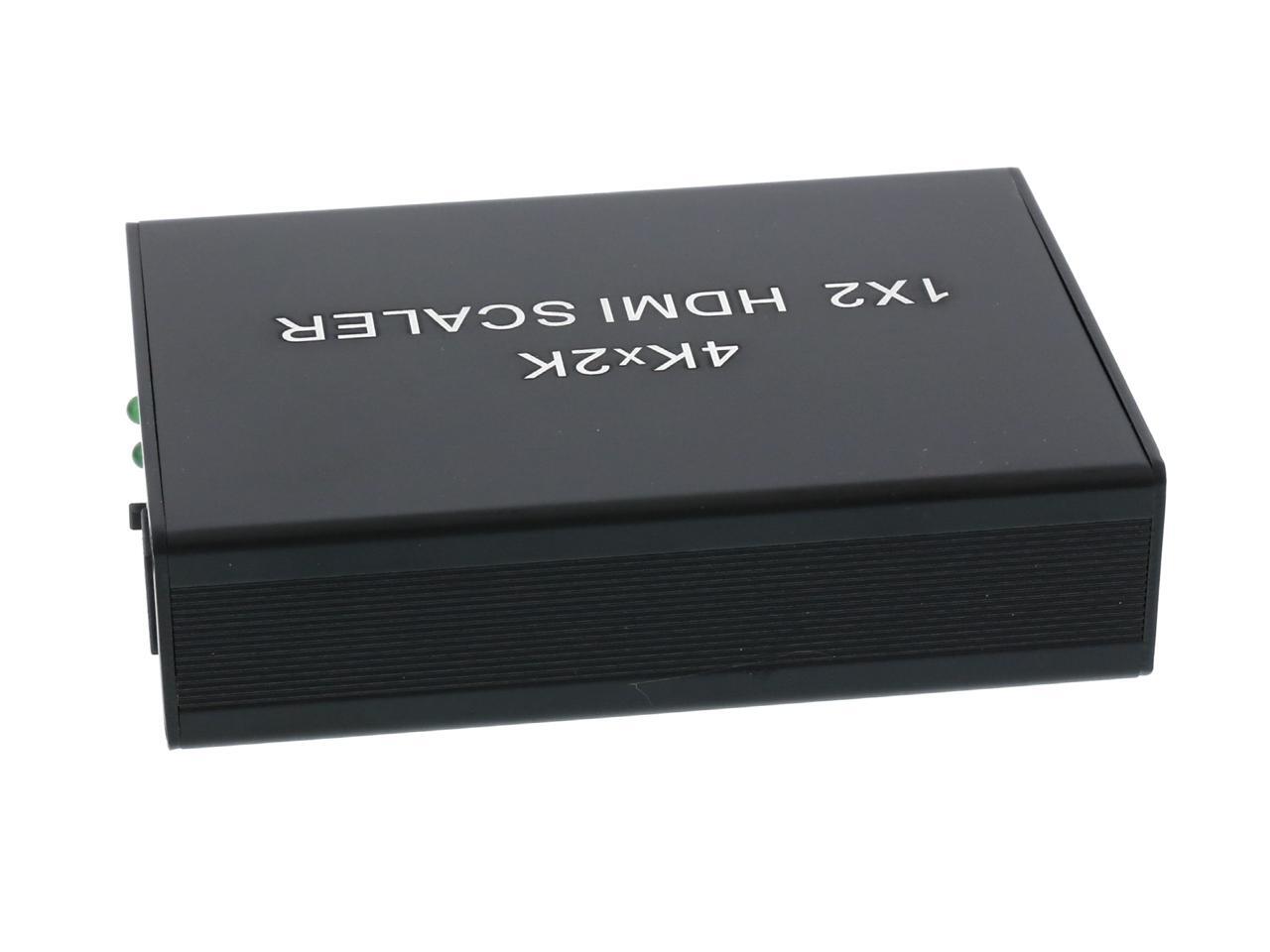

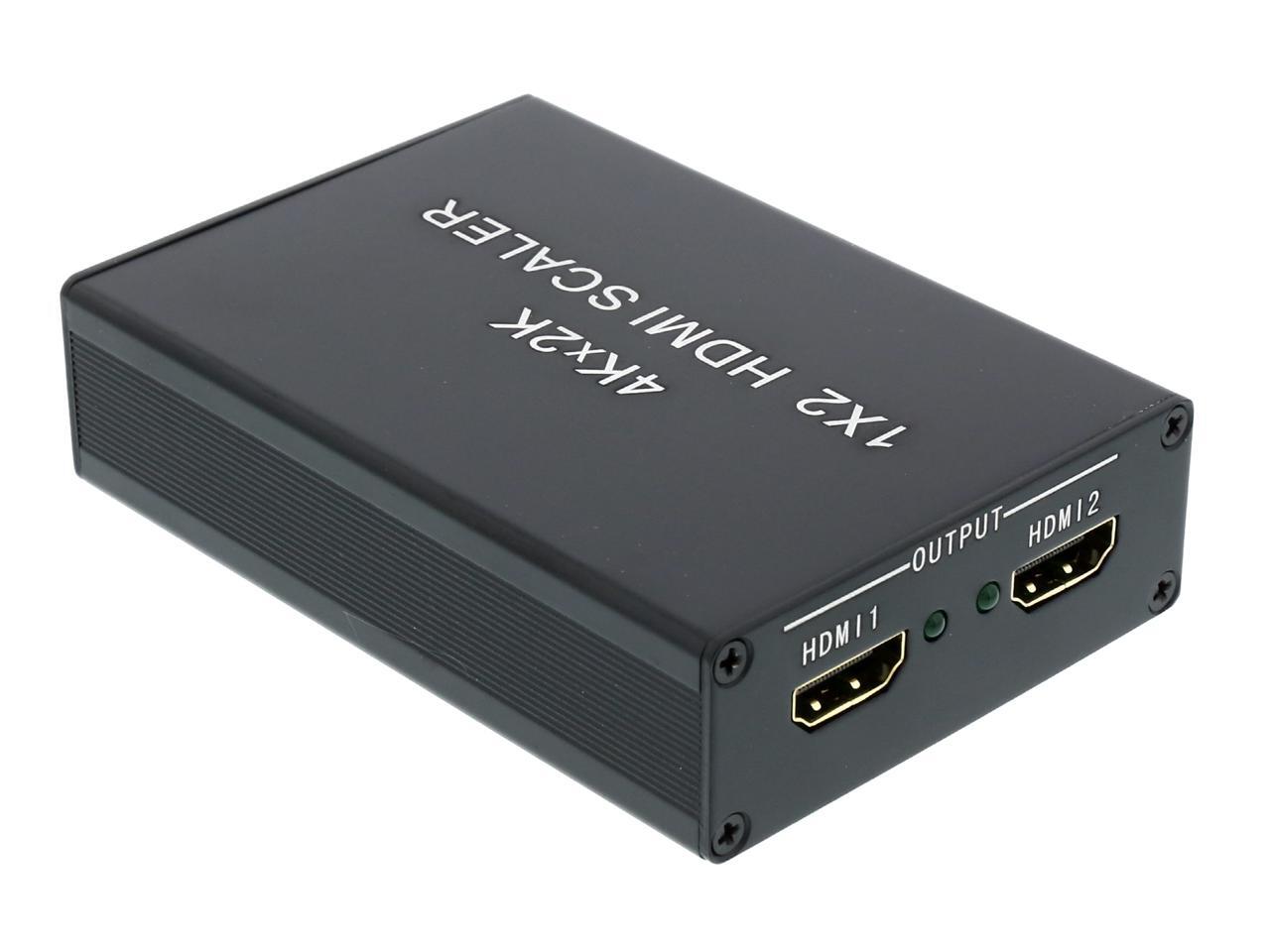

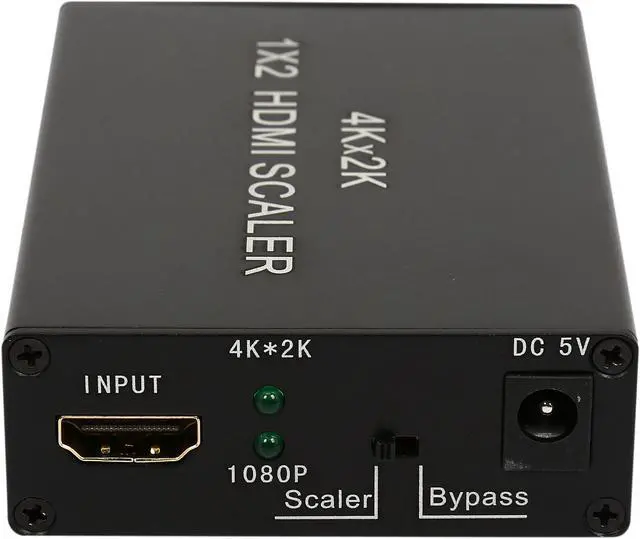

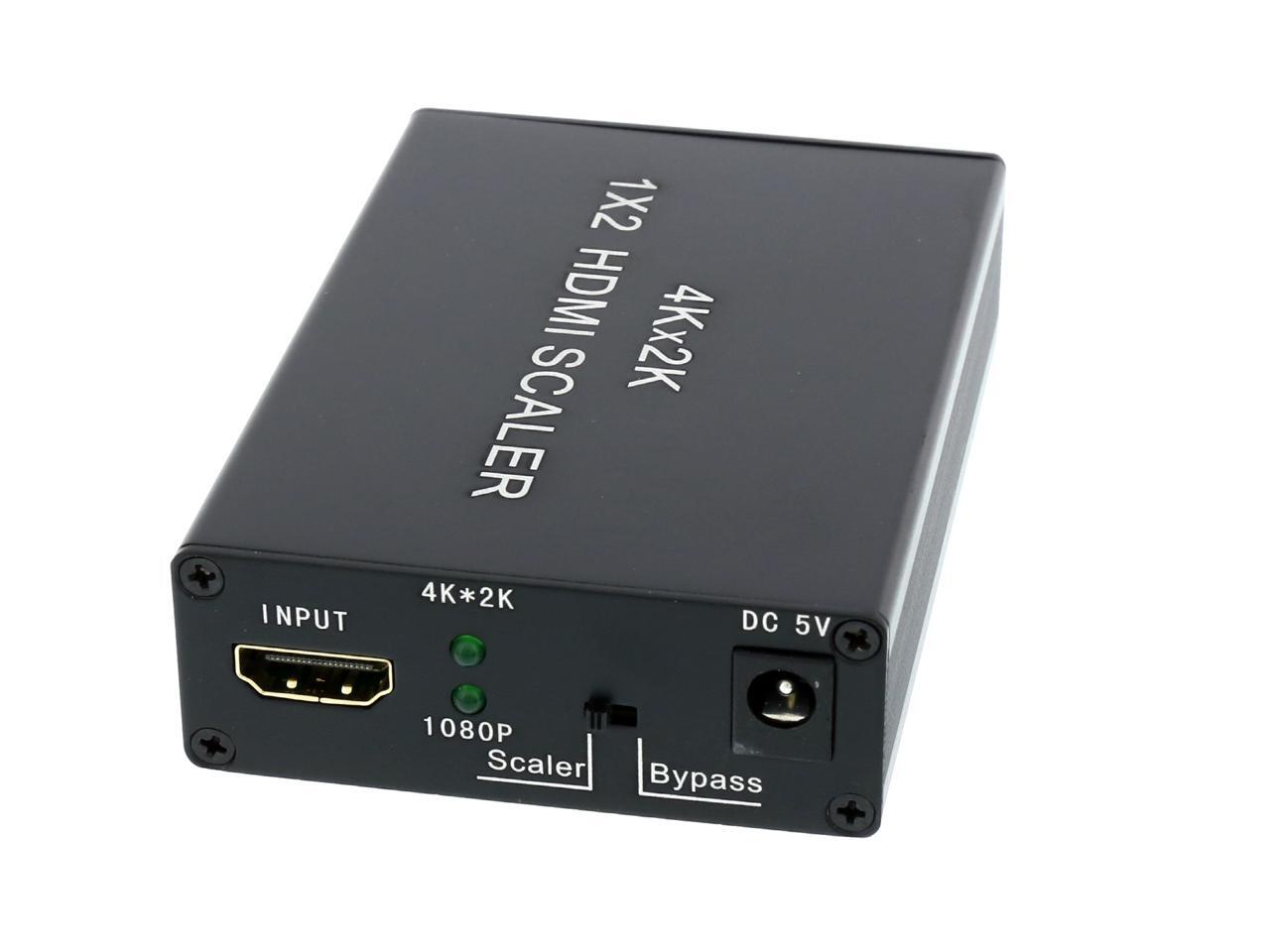

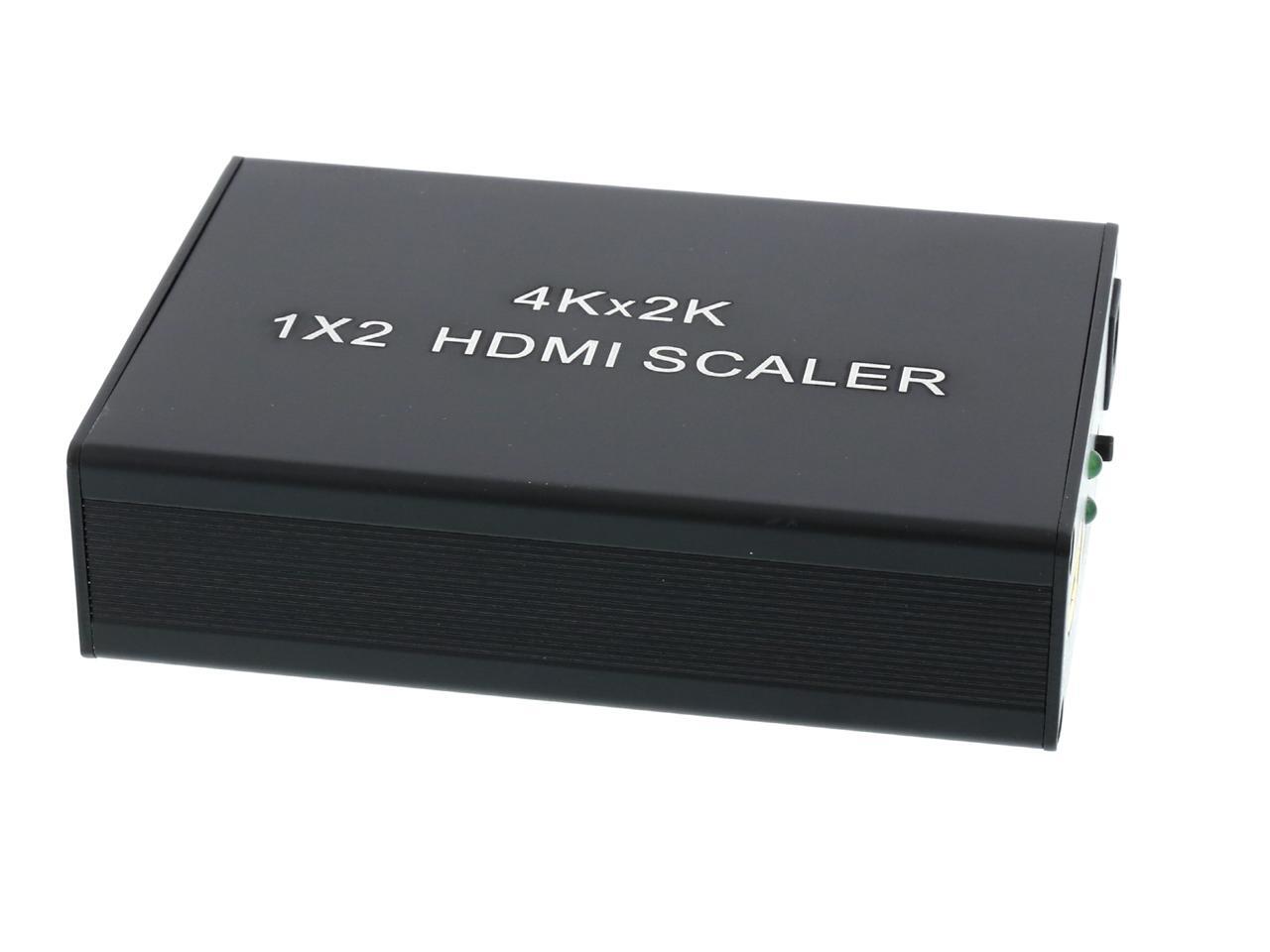

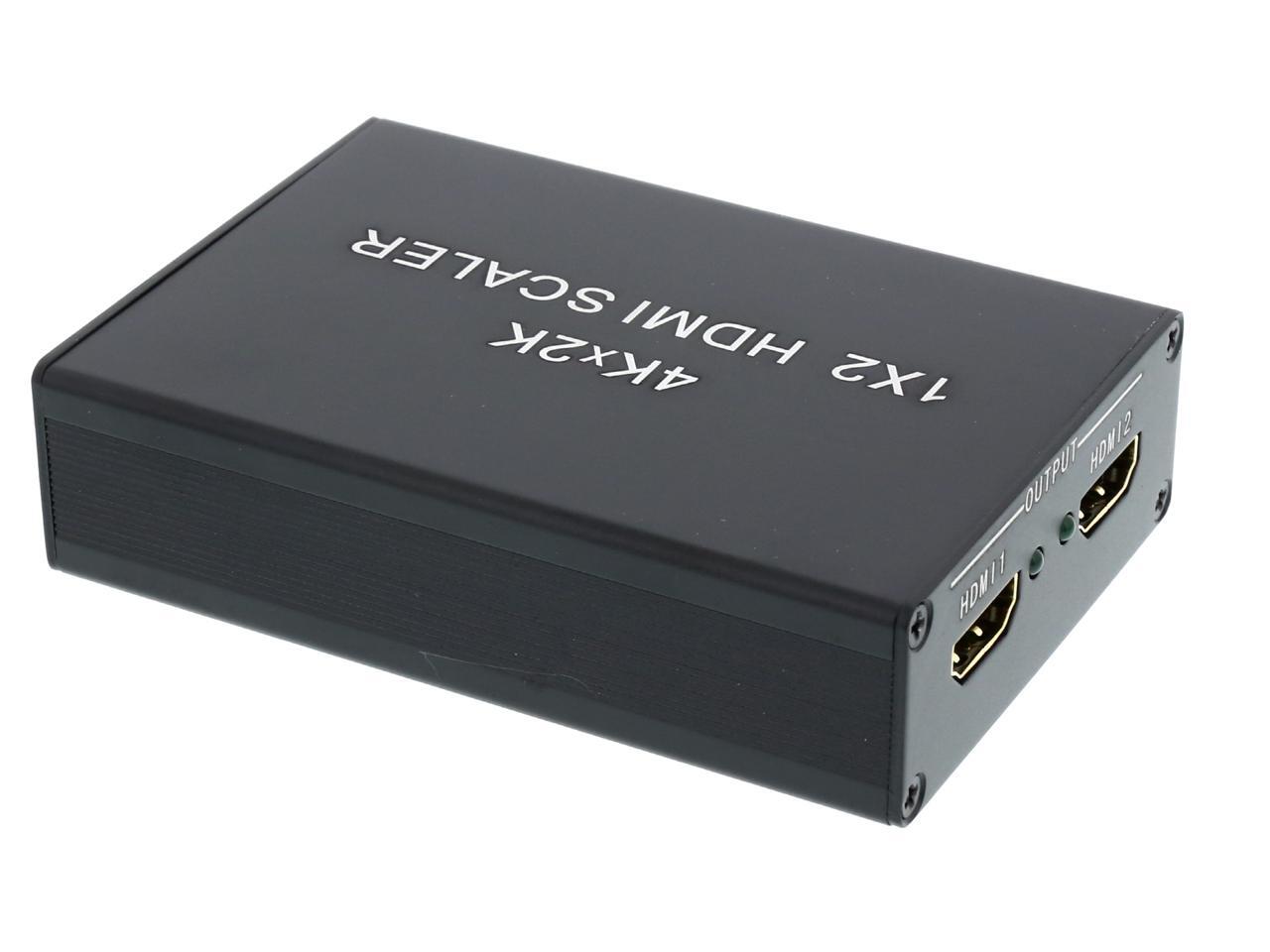

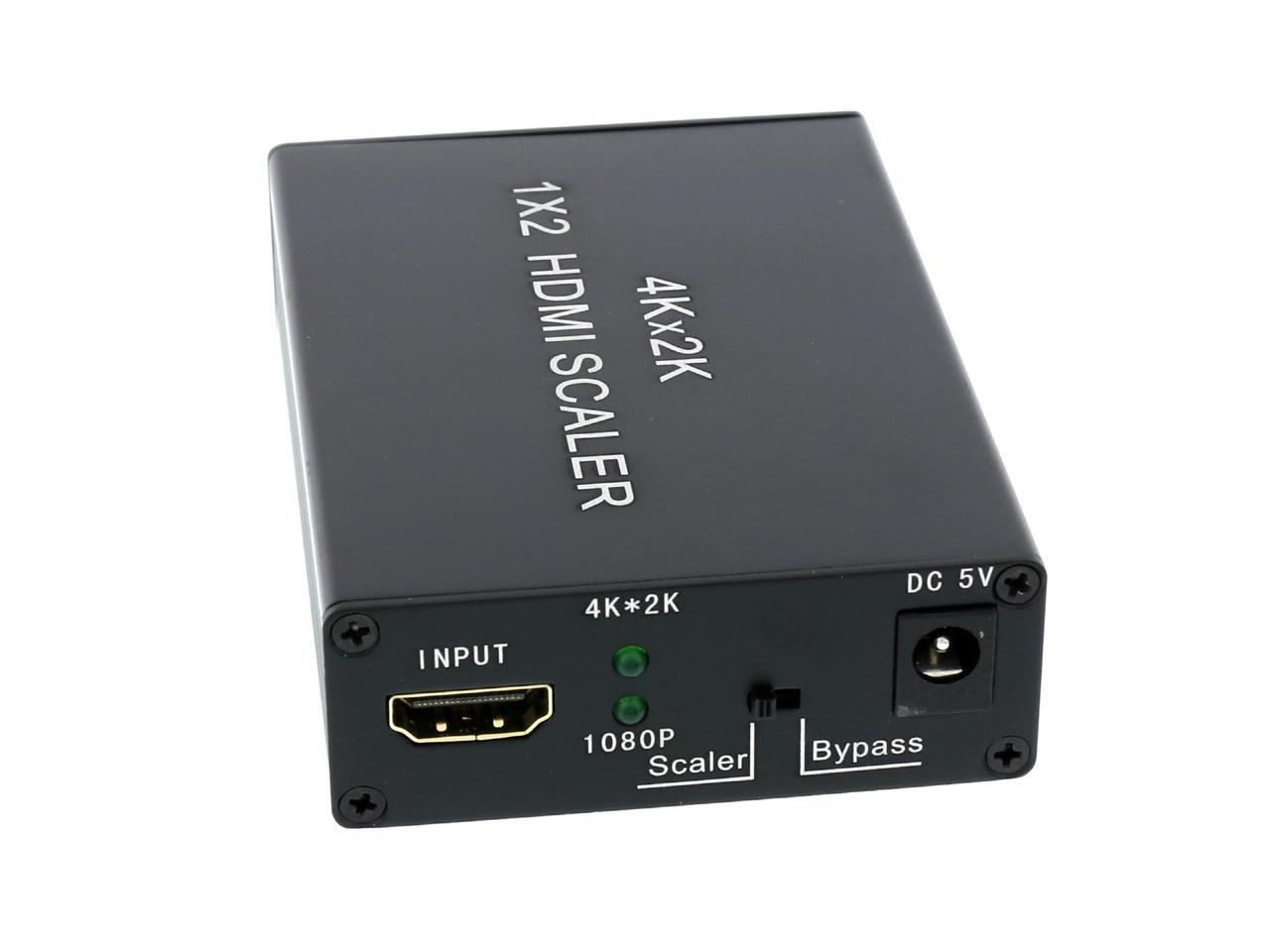

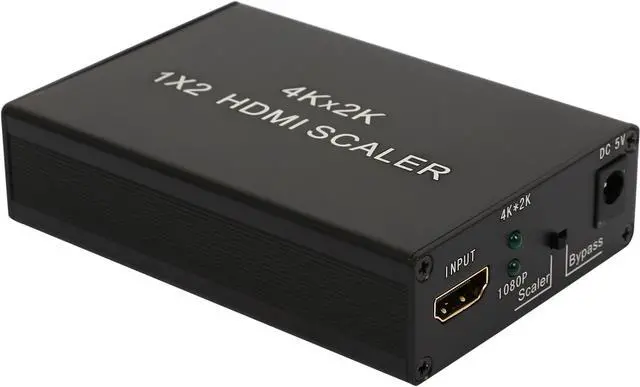

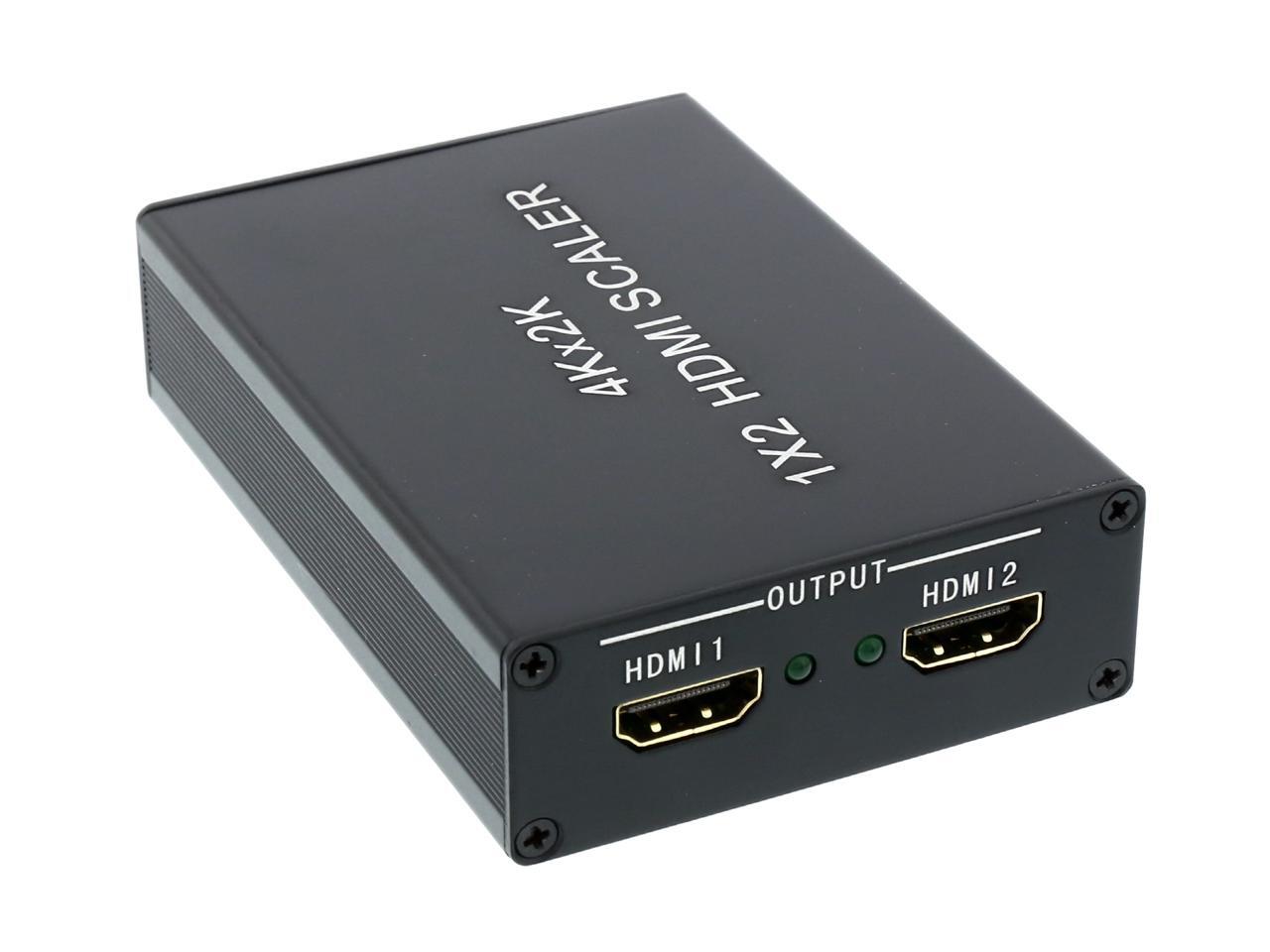

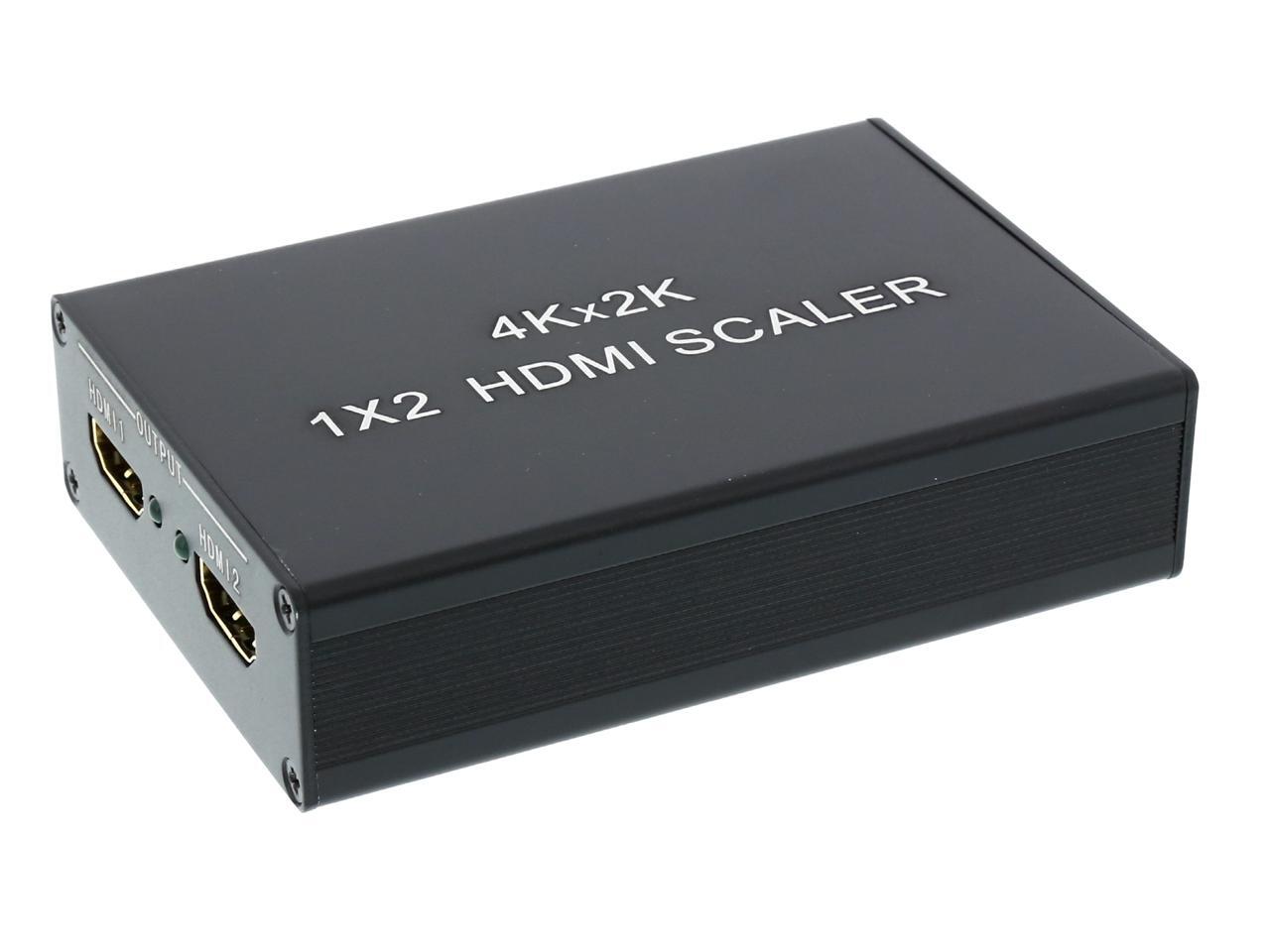

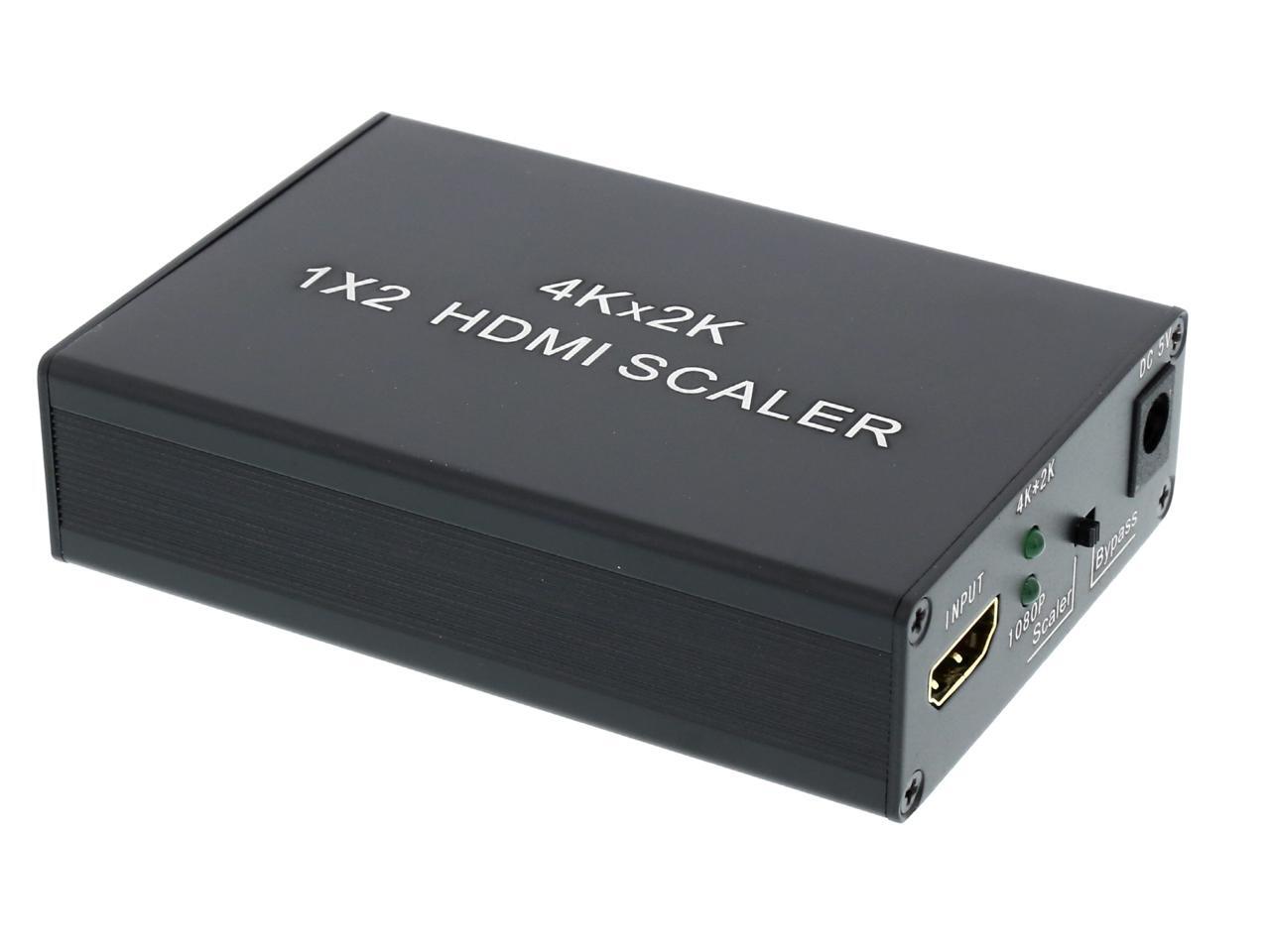

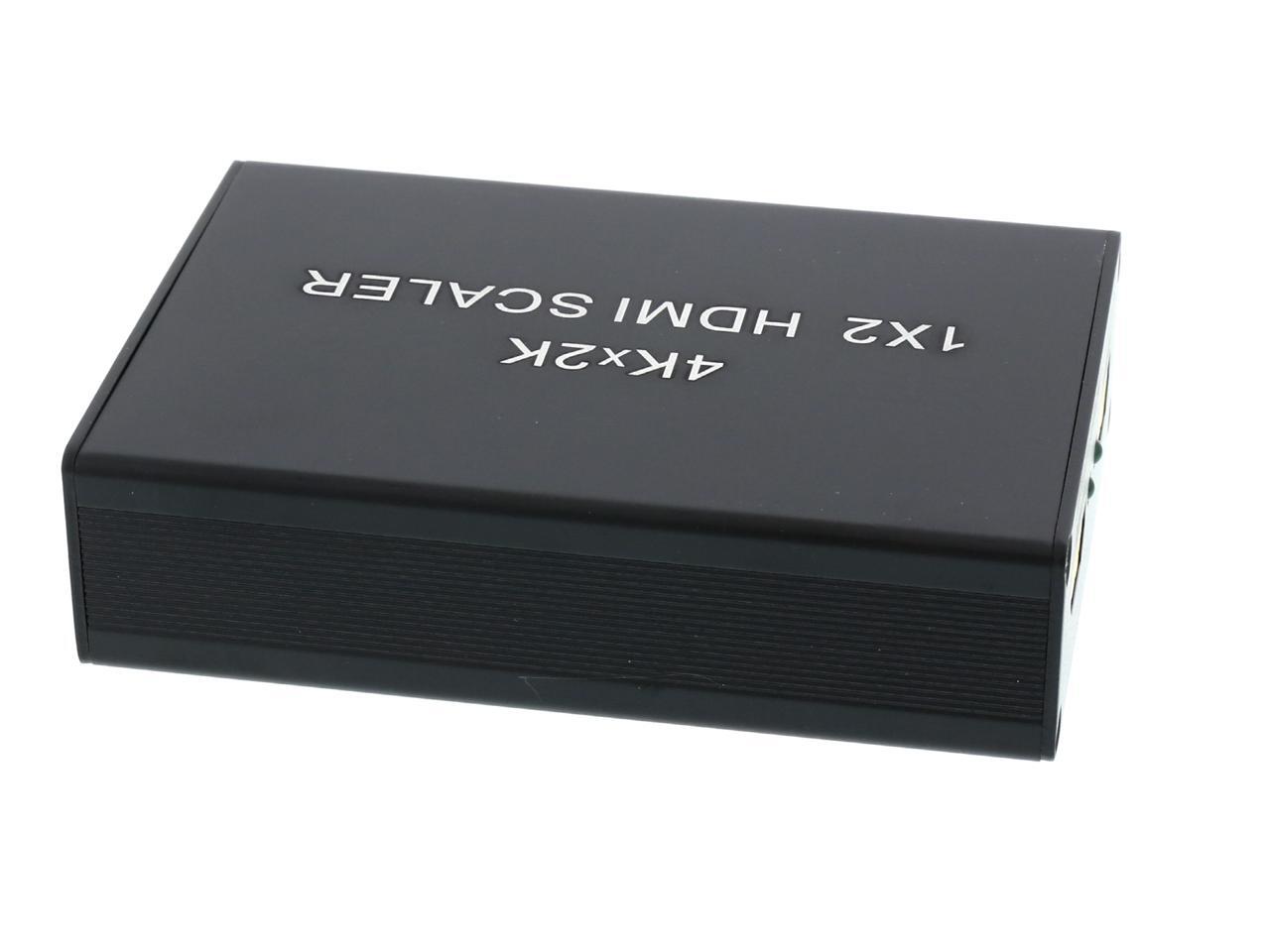

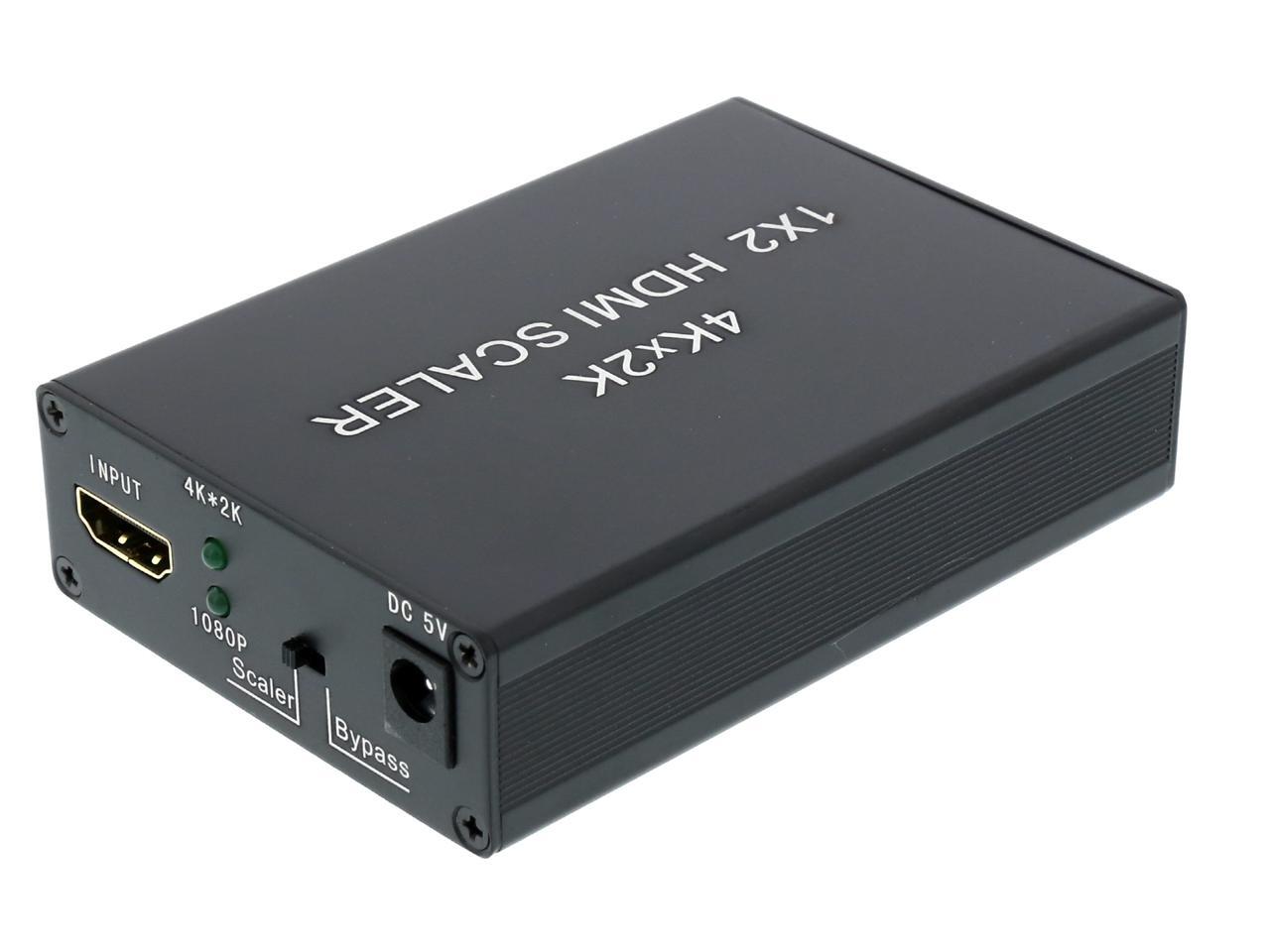

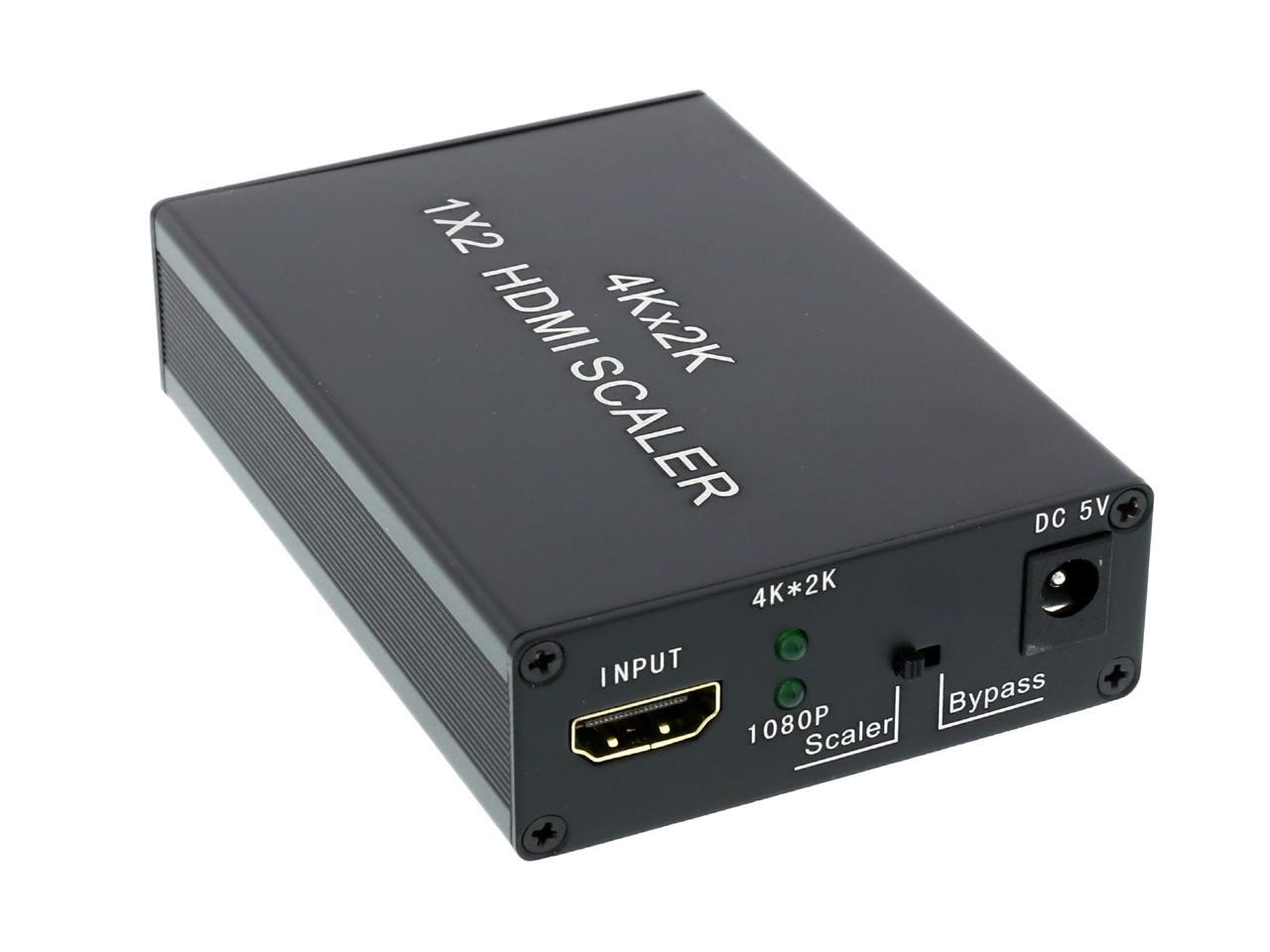

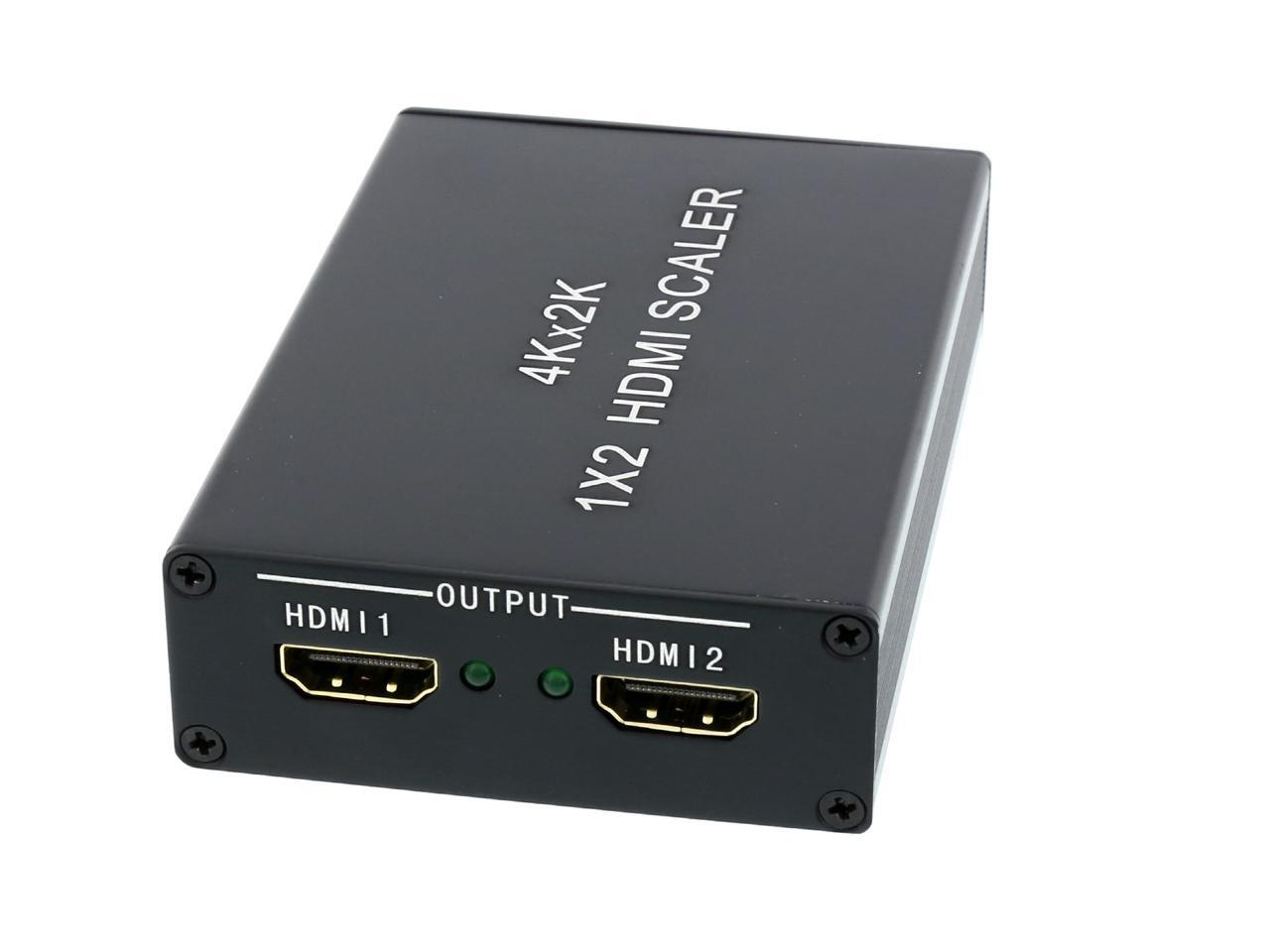

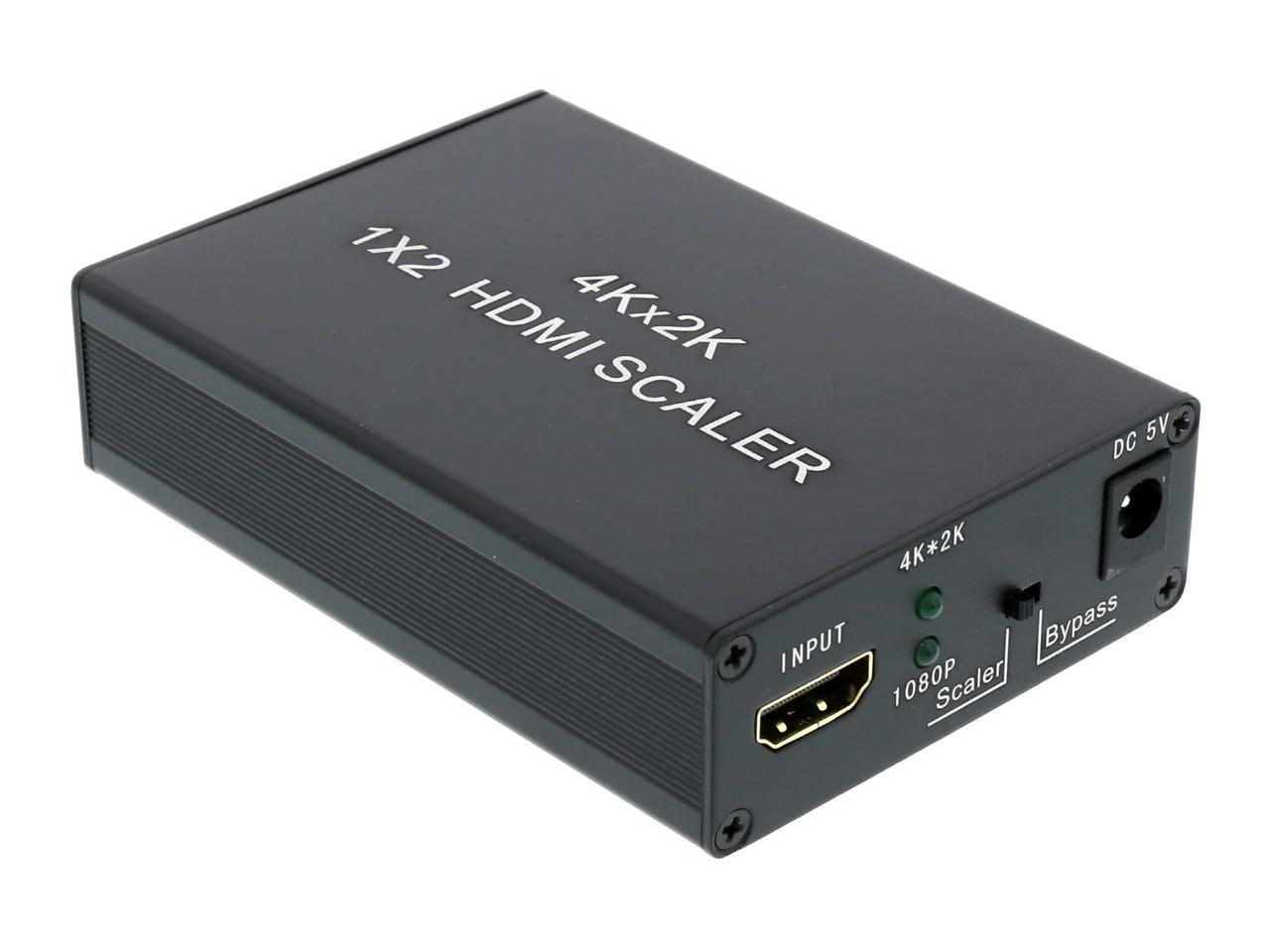

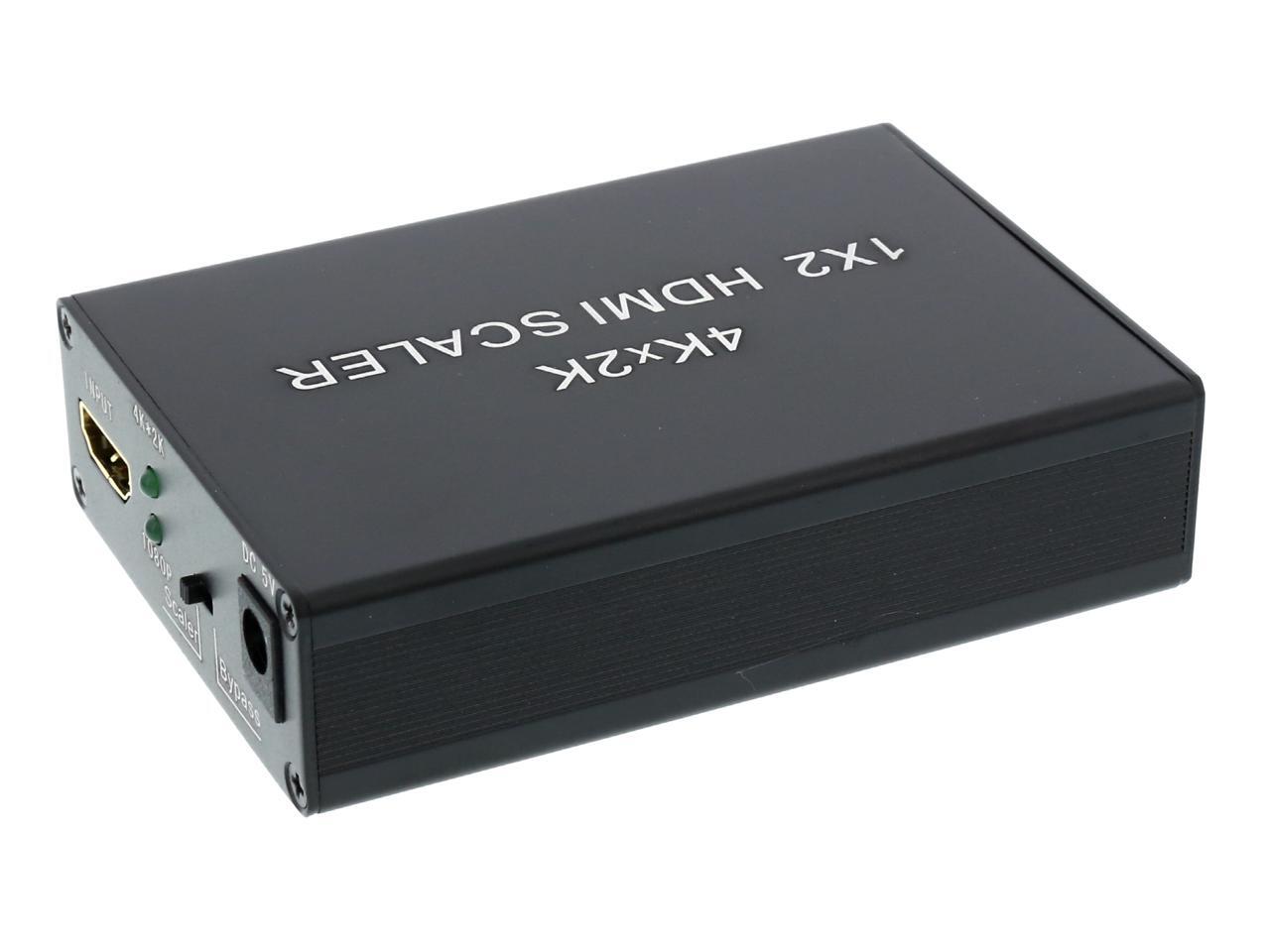

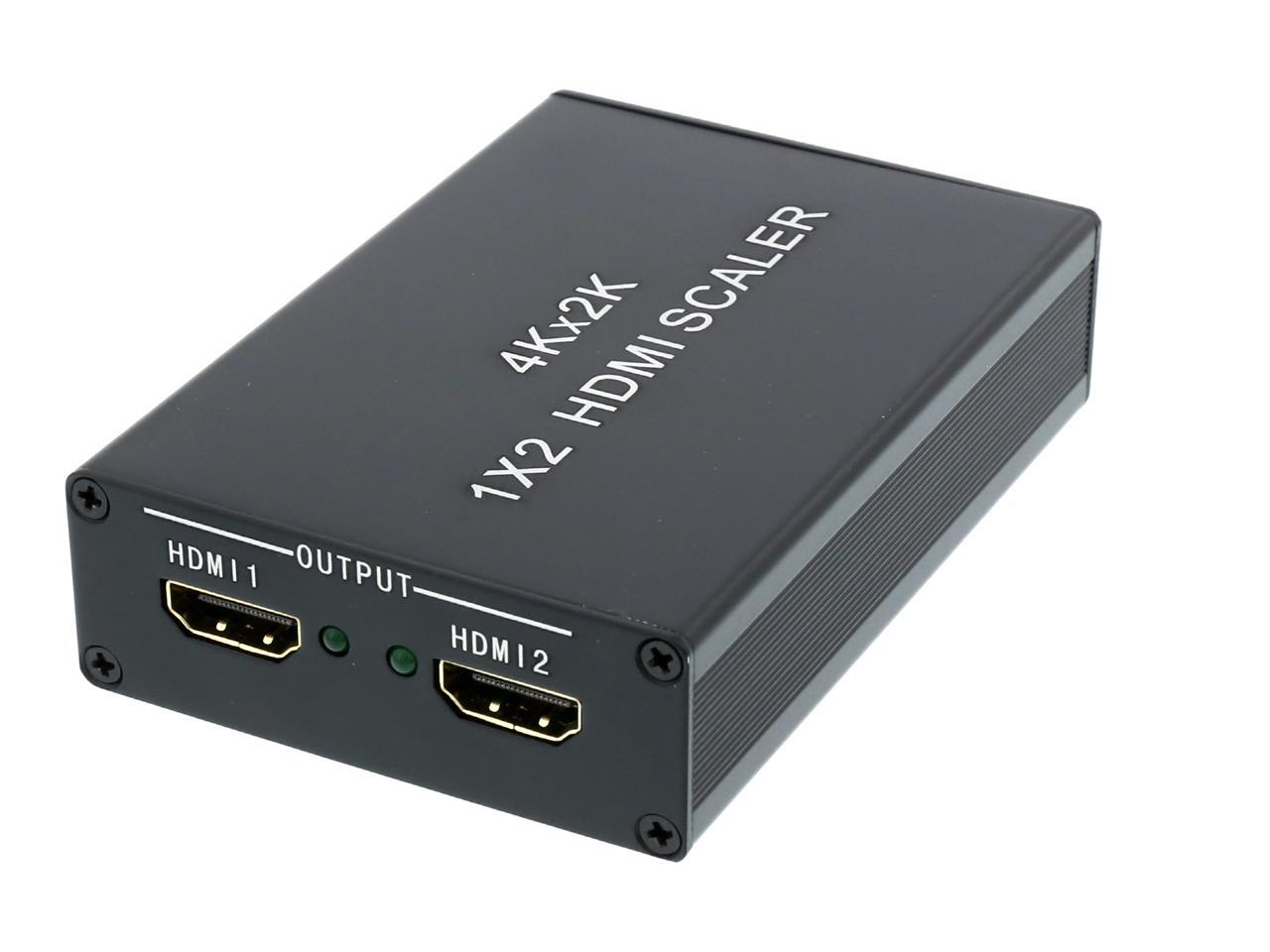

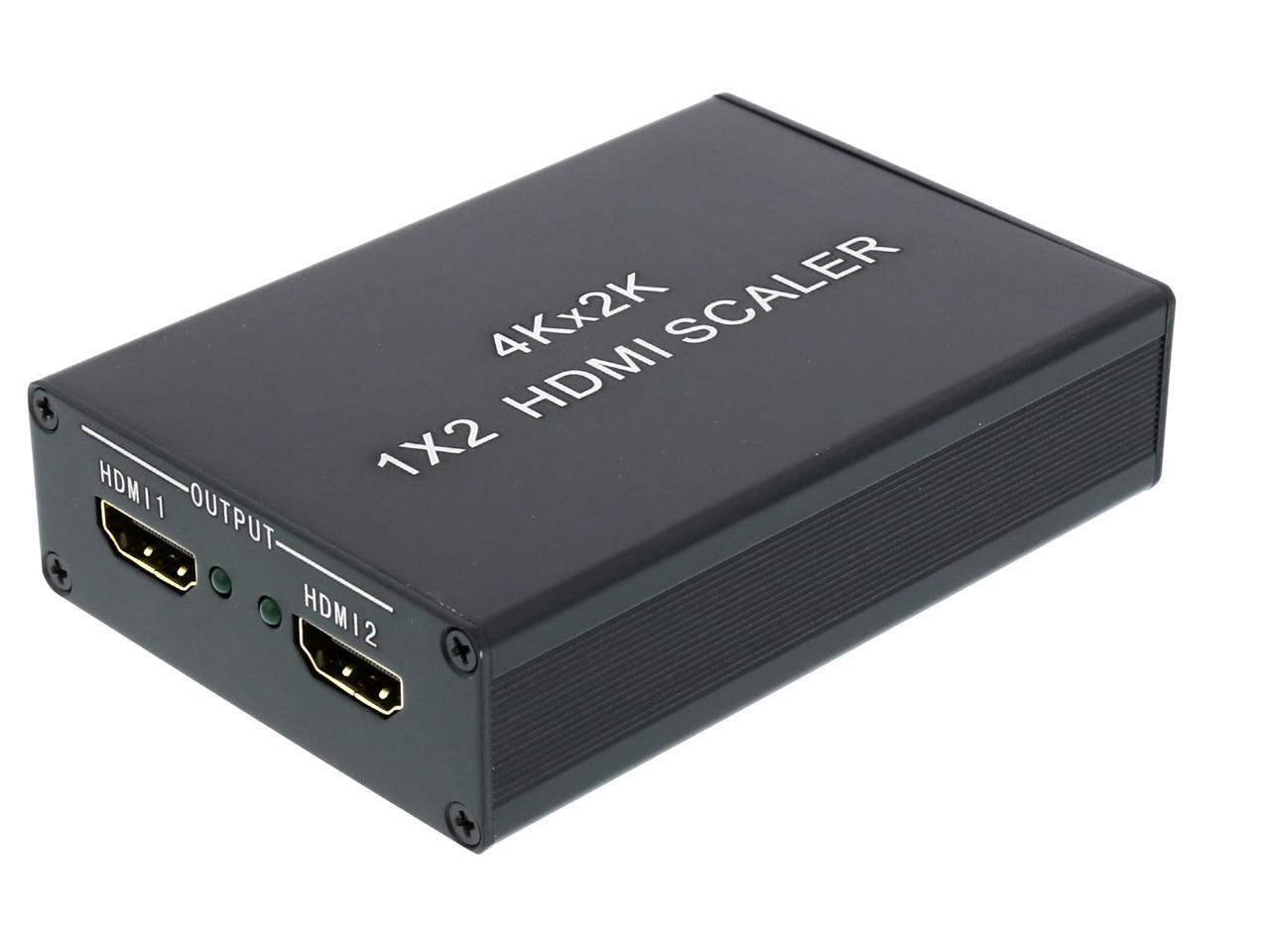

Coboc HM-SPL-4KUP-1X2 2 Ports 1 in 2 out 4K2K HDMI Scaler splitter w/4K2K,1080P,3D HDCP Supports - Up & Down Scaling 1080P and UHD 4K at 24/25/30fps input.
OPEN BOX Product Type
- 1 x 2 Ports HDMI Scaler Splitter
- 4K2K and 1080P
- Up Scaling 1080P@24/25/30fps to 4K x 2K
- Down Scaling 4K@24/25/30fps to 1080p
- Two Display Output the Highest Supported Resolution
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Coboc HM-SPL-4KUP-1X2
| Brand | Coboc |
|---|---|
| Model | HM-SPL-4KUP-1X2 |
| Type | HDMI 4K Scaler Splitter |
|---|---|
| Ports | 4 |
| Color | Black |
| Specifications | Type: 2 Ports HDMI 4K Scaler Splitter Standard : Compliant with HDMI 1.4 & HDCP 1.4 Video Bandwidth: 300MHz/9.0Gbps total 4K2K/ULTRA HD Support:4096×2160p@24 Hz and 3840×2160p@24/25/30 Hz 1080P Support:1080p@24/25/30 Hz 3D Video Support:Full 3D such as [email protected]/24Hz,[email protected]/60Hz/50Hz Color Depth : 12 bit per channel,total 36bit and xvYCC color space 3D Video Support:Full 3D such as [email protected]/24Hz,[email protected]/60Hz/50Hz Audio Supports: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio Input Video signal: 5.0 Volts P-P Input DDC signal: 5V (peak-to-peak) Max.transmission distance: Ultra HD 4K x 2K Resolution - 28AWG HDMI cable/ 5 meter input and 5 meter Output Full HD 1080P Resolution - 28AWG HDMI cable/ 10 meter input and 10 meter Output Input - 1 x HDMI Type A (19 pin female) Output - 2 x HDMI Type A (19 pin female) Control - Bypass & Scaler Switch LED - Front Panel Indicators Enclosure: Metal |
| Input Connector | 2 - HDMI Female Input |
|---|---|
| Output Connector | 2 - HDMI Female Output |
| Features | The 2 port HDMI 4K scaler splitter is designed to upscale 1080p@24Hz signal to 4K Ultra High Definition (UHD) resolutions or vice versa, downscale 4K2K signal to 1080p@24Hz to compatible HD/4K monitors simultaneously via HDMI cable. The ability of HDMI singal Up & Down Scaling is a crucial function when working with 1080P or 4K sources in a complex AV system and distributing the HDMI source to multiple displays which have varying resolution support. Device incorporates two output modes, bypass mode (input folows output) - device read and mix all source and displays EDID information ,output the highest resolution that all source and displays support. scaler mode - device reads and analyzes the EDID information from two displays simultaneously,realize the handshake of displays individually,output the highest supported resolution between source and displays,ensuring maximum compatibility in any system.When user upgrade 4K display in the AV system ,device would be used as HDMI up-scaler,automatically integrate a 1080P@24/25/30Hz source into 4K x 2K at corresponding refresh rate.When user upgrade 4K source in the AV system, device would be used as HDMI down-scaler,automatically integrate a 4K2K@24/25/30 source into 1080P at corresponding refresh rate.In scaler mode,make sure that the HDMI output of your source defaults to or can be set to refresh rate at 24/25/30 Hz Feature Compliant with HDMI 1.4, HDCP 1.4 and backword compliant with DVI 1.0 Port1 is built in an HDMI / MHL dual-input interface,compliant with MHL 2.0 Clock Rate up to 25MHz- 300Mhz, Maximum Bandwidth is 9Gbps Simultaneous HDMI outputs Support standard audio, DSD audio and HD audio (HBR); Support CEC treatment protocol; Incorporate two output modes,one of which is,and the second is Scaler In bypass mode - Support 1080P@60Hz,,3D,4096×2160p@24 Hz and 3840×2160p@24/25/30 Hz resolution output |
|---|
| Date First Available | June 09, 2015 |
|---|
