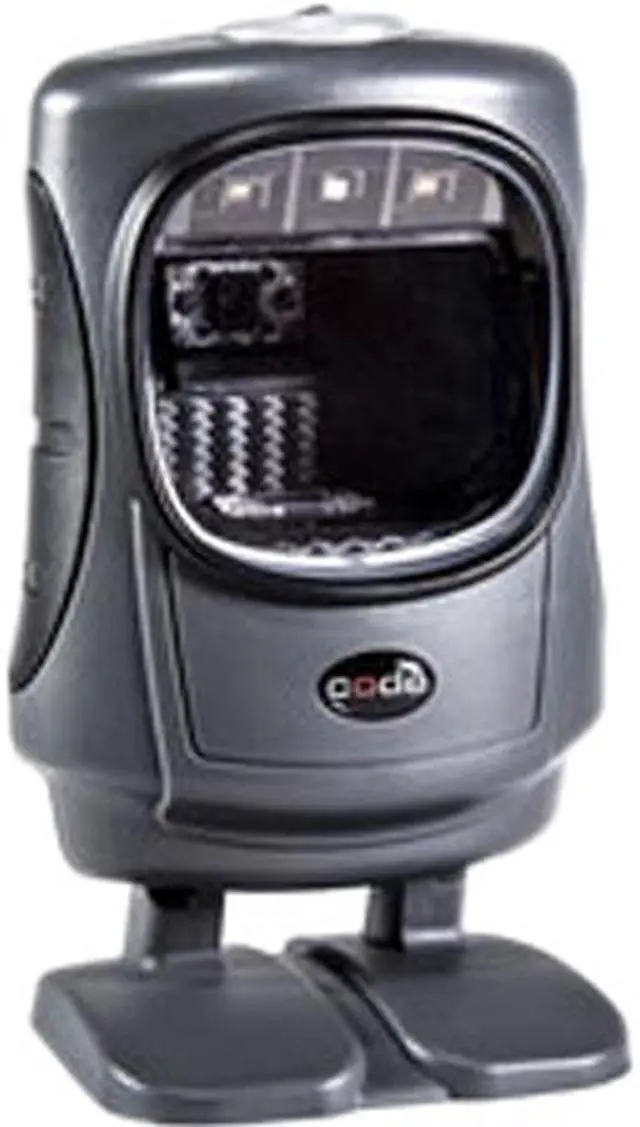

Code Reader CR5000 Omnidirectional 1D/2D Presentation Barcode Scanner, USB Kit, Dark Gray - CR5020-C500
- Hands-free operation or optional trigger reading large, heavy, bulk items
- Quickly reads barcodes from mobile device screens
- Compact, lightweight and ergonomic design
- User feedback with programmable LED and audible tone good read indicators
- Customizable driver license data formatting for loyalty and credit applications
- Optional Age Verification solution
- Data editing and formatting with JavaScript
- Efficient power consumption
- Pair with the T500 cable to create a wireless connection between the CR5000 and a multitude of mobile devices, including iOS products
- Includes 6' ft USB cable
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Code Corporation 5000
| Brand | Code |
|---|---|
| Series | Reader 5000 |
| Model | 5000 |
| Part Number | CR5020-C500 |
| Form Factor | Presentation |
| Scan Engine | 2D |
| Included Cables | USB Cable Included |
|---|---|
| Interfaces Supported | USB, RS232 and Bluetooth Affinity cables |
| Imager Field of View | High Density Field: 30° horizontal by 20° vertical Wide Field: 50° horizontal by 33.5° vertical |
|---|---|
| Depth of Scan Field | 30° horizontal by 20° vertical |
| Width of Scan Field | 50° horizontal by 33.5° vertical |
| Pitch | ±60 degree |
| Roll | ±180 degree |
| Yaw | ±60 degree |
| Print Contrast Ratio (Minimum) | 25% |
| Decoding Capability | 1D: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, Interleaved 2 of 5, GS1 DataBar (RSS), Hong Kong 2 of 5, Maxtrix 2 of 5, MSI Plessey, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC/EAN/JAN Stacked 1D: GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417 2D: Aztec Code, Data Matrix, Micro QR Code, QR Code, Han Xin Proprietary 2D: GoCode (Additional License Required) Postal Codes: Australian Post, Intelligent Mail, Japan Post, KIX Code, PLANET, POSTNET, UK Royal Mail |
| Power Consumption | Reader @ 5vdc (mA): Average Idle Current = 150 mA Maximum Idle Current = 350 mA Continuous Scan Mode (100% Illumination Brightness) = 430 mA |
|---|
| Dimensions | 5.95" x 2.80" x 3.55" |
|---|---|
| Weight | 0.70 lb. |
| Features | Hands-free operation or optional trigger reading large, heavy, bulk items Quickly reads barcodes from mobile device screens Compact, lightweight and ergonomic design User feedback with programmable LED and audible tone good read indicators Customizable driver license data formatting for loyalty and credit applications Optional Age Verification solution Data editing and formatting with JavaScript Compatible with Code's rapid disconnect USB, RS232 and Bluetooth Affinity cables Efficient power consumption |
|---|---|
| Drop | 5 feet |
| Date First Available | February 04, 2025 |
|---|
