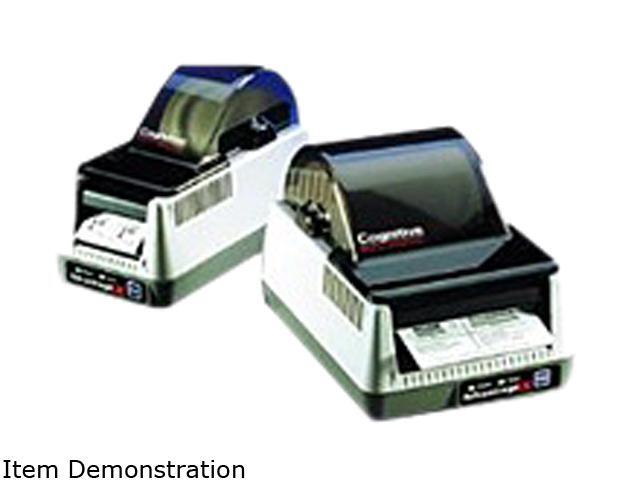

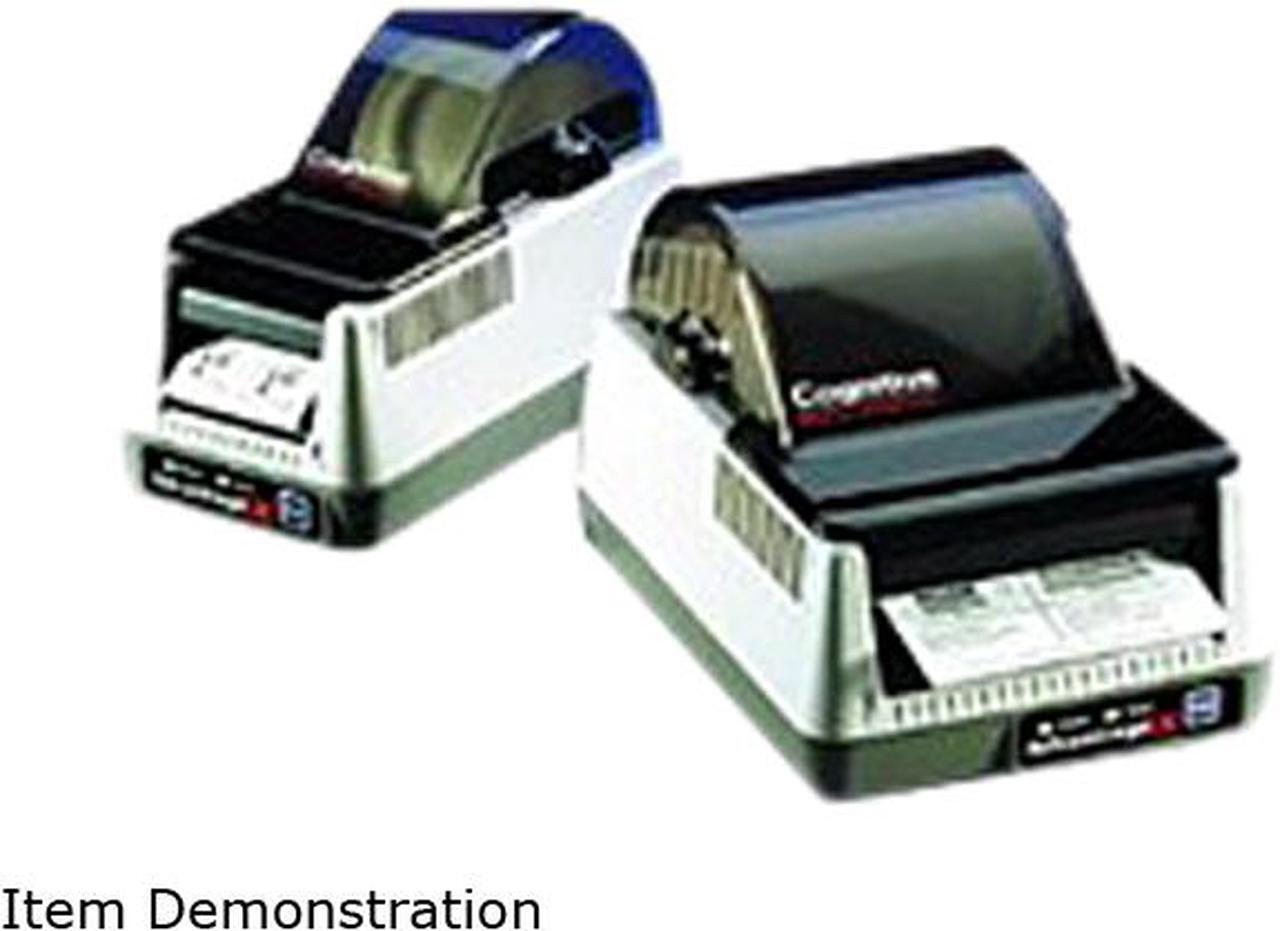

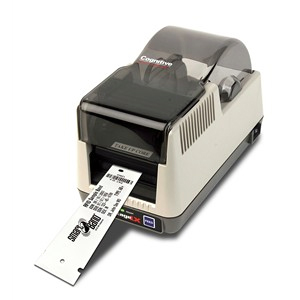

Cognitive TPG Advantage LX LBD24-2043-014G Direct Thermal 3 in/s 203 dpi Label Printer

Industries

Highlights

Metal vs. Plastic
One touch will tell you that this is not a plastic component printer. We understand the environment and workload these printers endure, which is why we use solid metal framing, a metal print mechanism and components to give this printer rugged and industrial strength to stand up to some of the most challenging environments. See why they call it the "Printer You can Stand on."

Easy to Use, Large Capacity, Small Footprint
CognitiveTPG’s advanced command language (CPL) is so easy to use that programming it into any application is a snap. The printer has significant memory to hold plenty of fonts, graphics and other programming. Best yet, this rugged printer takes up very little space.

TECHNICAL SPECIFICATIONS

	2 inch Model	4 inch Model
PRINT
Method	Direct Thermal or Thermal Transfer	Direct Thermal or Thermal Transfer
Width (max)	2.2" (56 mm)	4.1" (104 mm)
Length (max)	40" (1016 mm)	20" (513 mm)
Speed (max)	3 ips (76 mm/sec)	3 ips (76 mm/sec)
Resolution	203 dpi (8 dpmm)	203 dpi (8 dpmm)
MEDIA
Width	1" - 2.4" (25 mm - 61 mm)	2" - 4.3" (50 mm - 109 mm)
Roll Diameter	4.7" (119 mm)	4.7" (119 mm)
Ribbon Length (TT only)	3150" (80 m)	3150" (80 m)
Indexing	Black bar, notch, and gap	Black bar, notch, and gap
BARCODES
21 standard bar codes, including Add2, Add5, Codabar, Code39, Code93, Code 128A/B/C, D2of5, 2of5, S2of5, EAN8/8+, EAN13/13+, EAN128, Maxicode, MSI/I1, PDF417, Plessey, Postnet, UPCA/A+/E/E1
FONTS
Bitmapped	7 styles with up to 10x10 magnication, variable boldness and spacing
International	Sans serif font in 7 pt. sizes, up to 4x4 magnication, variable boldness and spacing
Scalable Smooth Fonts	3 Ultra Font styles for smooth characters in any size and boldness
Rotations	0, 90, 180, 270 degrees
GRAPHICS
PCX and BMP formats
MEMORY
RAM - 8 MB, Flash - 4 MB
COMMUNICATIONS
	Serial (DB9)	Serial (DB9), Parallel (1284C)
	Parallel (1284B)	Serial (DB9), Parallel (1284C), Ethernet
	Serial (DB9), Ethernet
ELECTRICAL (for Advantage LX printers with S/N's starting with "L")
Auto-ranging 100-240 VAC, 50-60 Hz, 24 VDC Output
ENVIRONMENTAL
Operates at 41°F to 104°F (5°C to 40°C)
PHYSICAL CHARACTERISTICS
Width	5.0" (127mm)	6.8" (173 mm)
Height	6.1" (155 mm)	6.1" (155 mm)
Depth	9.4" (238 mm)	9.4" (238 mm)
Weight (DT/TT)	3.1 lbs. (1.41 kg) / 3.9 lbs. (1.77 kg)	3.9 lbs. (1.77 kg) / 4.4 lbs. (2.0 kg)
ACCESSORIES
Standard	Quick Start Guide, power supply and cord (cord included only in LBxxx-2xx3-01x models)
Downloads from Web site	Windows drivers, programmer's guide, NiceLabel design software, and User's Guide
Optional	Communications cables, label (peeler) dispenser, Ethernet, real-time clock
WARRANTY
Printer	24 months from date of purchase (requires registration and excludes printhead)
PROGRAMMING LANGUAGE
Cognitive Programming Language (CPL)
