Unmatched performance for the value, these are the tenants that guided Cooler Master engineers when designing the Hyper 212 EVO. Patented Continuous Direct Contact (CDC) technology ensures that the heat pipes are free of barriers while drawing heat away from the processor. A PWM fan ensures that fan speed can be intelligently controlled to ensure that it only speeds up when more cooling is necessary.
 |
|
 |

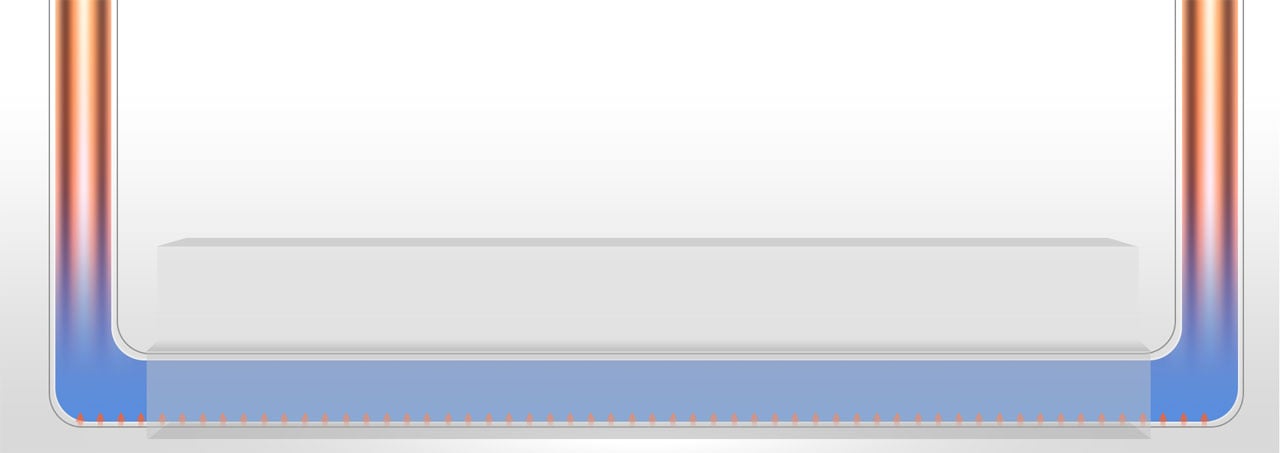

HIGHLY EFFECTIVE COOLING 4 x Direct Contact heat pipes with patented CDC (Continuous Direct Contact) technology draw heat away from the CPU quickly |
|
|
|
 |
USER & SYSTEM CONTROL OF FAN(S) A wide range PWM fan can be controlled by changing its settings through supported systems or software to suit your noise and performance needs. |
|
|
|
 |
UNIVERSAL MOUNTING SOLUTION Supports the latest sockets from Intel and AMD. |
|
|
|
 |

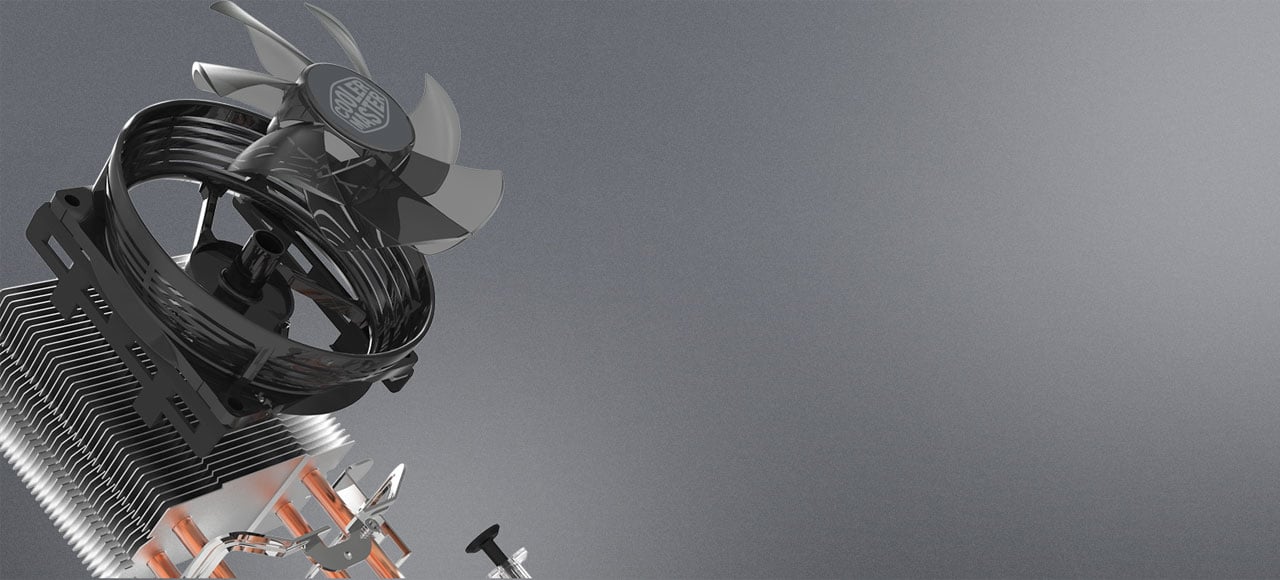

QUICK SNAP FAN MOUNTING Utilize the included brackets to quickly add or remove fans for upgrades, replacement, or maintenance. |
|
|
|
| CPU Socket |
Intel Socket: LGA 2066 / 2011-3 / 2011 / 1150 / 1151 / 1155 / 1156 / 1366 AMD Socket: AM4 / AM3+ / AM3 / AM2+ / FM2+ / FM2 / FM1 |
| CPU Support |
Intel: Core™ i7 Extreme / Core™ i7 / Core™ i5 / Core™ i3 / Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium / Celeron AMD: FX-Series / A-Series / Phenom™ II X4 / Phenom™ II X3 / Phenom™ II X2 / Phenom™ X4 / Phenom™ X3 / Athlon™ II X4 / Athlon™ II X3 / Athlon™ II X2 / Athlon™ X2 / Athlon™ / Sempron™ |
| Dimensions (W/H/D) | 120 x 80 x 159 mm (4.7 x 3.1 x 6.3 in) |
| Heat Sink Dimensions | 116 x 51 x 159 mm (4.6 x 2.0 x 6.3 in) |
| Heat Sink Material | 4 Direct Contact Heat Pipes / Aluminum Fins |
| Heat Sink Weight | 465g (1.03 lb) |
| Heat Pipes Dimensions | ø6mm |
| Fan Dimension | 120 x 120 x 25 mm (4.7 x 4.7 x 1 in) |
| Fan Speed | 600 – 2,000 RPM (PWM) ± 10% |
| Fan Airflow | 24.9 – 82.9 CFM ± 10% |
| Fan Air Pressure | 0.3 – 2.7mm H2O ± 10% |
| Fan Life Expectancy | 40,000hrs |

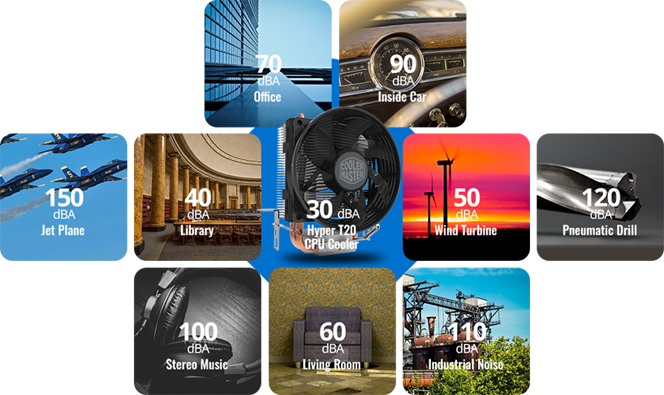

| Fan Noise Level (dB-A) | 9 - 36 dBA dBA Reference |
| Bearing Type | Long Life Sleeve Bearing |
| Connector | 4-Pin |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.22A |
| Power consumption | 2.64W |
| Maximum TDP | 180W |
| Fan Weight | 104g (0.23 lb) |
| Warranty | 2 Years |
Pros: It's a big block of metal. Simple design and cheap but it works well. Included fan is alright It's not too loud and it gets the job done. Included thermal paste comes in a syringe rather than preapplied. I also appreciate the extra hardware for mounting your own CPU fan or doing a 2-fan arrangement.
Cons: The listing and box claim AM4 motherboard compatibility. However this actually requires a separate AM4 bracket that is not included in the box. Wish they had mentioned this earlier. The scissor bracket which binds the block down to the CPU die is a bit finicky and allows the block to wiggle a bit even under tension, which seems less than ideal.
Overall Review: Overclocked Ryzen 7 3800X stays under 65 C at full load with this cooler so it performs well enough for me. Knocked off an egg for misleading me about the AM4 bracket not actually being included.
Pros: Still working on my first gen I-7 after 10 years!
Cons: None, except that the price has gone up due to inlation?
Overall Review: n/a
Pros: It was well packaged, easy to understand instructions. Unfortunately, was unable to be installed due to the some parts breaking during installation, and others being mismade/poorly manufactured (one screw being filed flat and unable to be threaded into backplate nut).
Cons:
Screws are faulty and weak to hand-tightening, one breaking during installation of backplate and the other being filed down on one side making it unable to be threaded into paired hex nut.
No additional/replacement parts are provided in the kit, making it impossible to install.
These faulty screws and parts of this kit make it highly likely to have fault causing damage to the motherboard during installation (such as a screw breaking when hand-turning and nearly causing collateral damage to other motherboard parts).
Overall Review:
Would not recommend, bearing in mind that I have no completed install to test the product (when provided with fully-functioning, non-faulty parts).
Worrisome parts, have researched online to hear similar incidents, and do not recommend this product for those that wish for a more sturdy, fail-proof product.
Note on customer service, which I will update as part of review depending on the resolution: Currently waiting on customer service to seek a replacement to the faulty screws of my kit. Will update later with review of the product if I am able to get it installed. No word yet from support ticket online (though very recently submitted). Gained no answer from support call, was unreachable after moving through phone prompt.
Pros: For someone that has worked on computers this is an easy install I am sure. It has kept the CPU cooler that the standard fan that was over 10yrs. old, my son's case is tiny so it looks like a behemoth of a cooler. I would recommend this cooler for the price and functions it is really good.
Cons: Instructions for me a computer novice were confusing, had to watch a video on how the plate went to mount the cooler. My cat loves it to the point that if my son is not paying attentions she will lay on top of the vent to get the warm air and then the CPU temp starts to climb. My son has a tiny case and with only 1 exhaust fan (120mm) the extra cat temperature is more than that little case can take.
Overall Review: Works as advertised, no complaints.
Pros: The CPU cooler was super efficient.
Overall Review: I would recommend this to other buyers.
Overall Review: This worked so well I baught a 2nd one for my newest build. Very impressed!
Pros:
Easy to install
Keeps my cpu 20-30c cooler than stock heat sync and fan.
Cons: None so far.
Overall Review: For the price and ease of use, I definitely recommend this cpu cooler.
Loading...
Pros: works very well. very quiet.
Cons: I would not have been able to install using the supplied instruction booklet. Had to watch two different YouTube videos. Even with YT, took over an hour to install. Not recommended.
Overall Review: would not buy again. Just the size of the thing is too much. I am not overclocking. Is such a large cooler necessary?
