Best Seller Ranking | #89 in CPU Fans & Heatsinks |
---|
Brand | COOLER MASTER |
---|---|
Series | MasterAir MA612 Stealth |
Model | MAP-T6PS-218PK-R1 |
Type | Fan & Heatsinks |
---|---|
Fan Size | 2 x 120mm |
CPU Socket Compatibility | Intel LGA 2066 / 2011-v3 / 2011 / 1700 / 1200 / 1366 / 1156 / 1155 / 1151 / 1150 AMD AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 |
RPM | 650 - 1800 RPM +/- 5% |
Air Flow | 62 CFM (Max) |
Noise Level | 8 - 27 dBA |
Power Connector | 4-Pin (PWM) |
Color | Black |
Heatsink Material | 6 Heat pipes/ Aluminum Fins |
Max CPU Cooler Height | 158 mm |
---|---|
Fan Dimensions | 2 x 120 x 120 x 25mm |
Heatsink Dimensions | 129 x 112 x 158mm |
Weight | 1.19 kg |

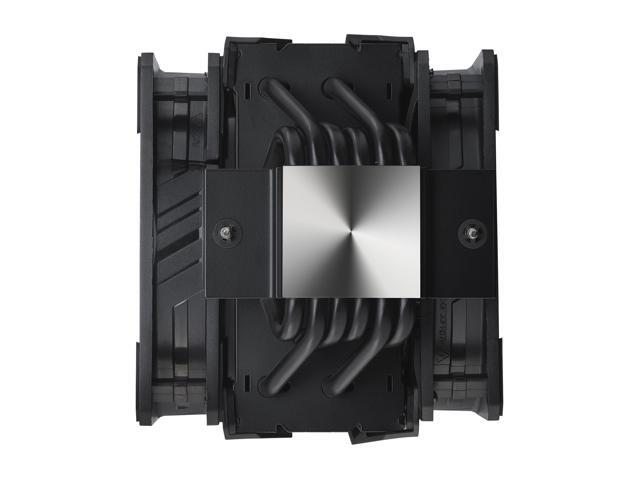

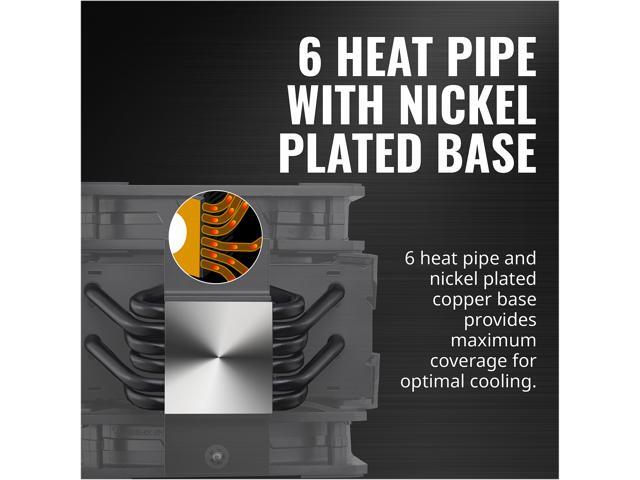

Features | Stealth Black Hardware: All-black hardware throughout offers a dark premium look. Asymmetrical Heat Pipe Design: Asymmetrical heat pipe design provides RAM compatibility and clearance across various platforms. 6 Heat Pipes with Nickel Plated Base: 6 heat pipes and nickel plated copper base provides maximum coverage for optimal cooling. Premium Aluminum Black Top Cover: Black aluminum top cover offers a premium finish. Dual SickleFlow 120 Fan: Twin setup of revised curved blades optimizes airflow and pressure. |
---|

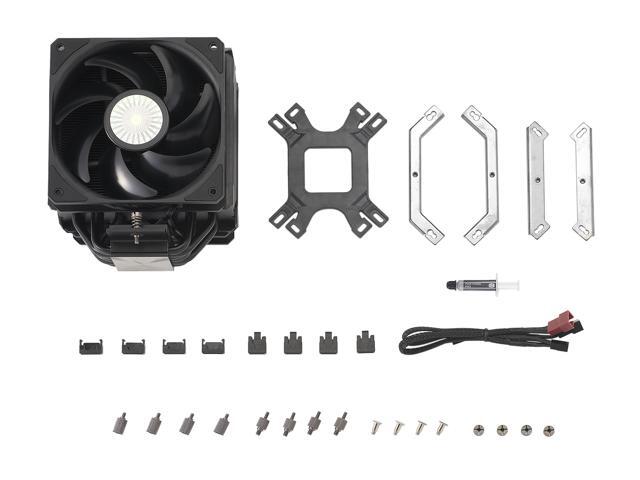

Package Contents | MA612 Stealth Dual SickleFlow 120mm Install Tool Kits for AMD/ Intel Manual |
---|
Date First Available | March 30, 2021 |
---|
Pros: - Many heat pipes - Seems to cool well even a ton of air bubbles trapped in thermal paste - push/pull dual fans - Offset to make headroom for RAM
Cons: Extremely difficult to get the screws that mount the actual heatsink (not the base parts) The base hardware is loose on motherboard: Asus Rog Strix X570-E Gaming
Overall Review: Seems like if you can get this thin installed without intrducing airbubbles then it would be fantastic. But that is nigh on impossible, because the heatsink itself attaches to the base with 2 screws that are just a tad too short to make it easy to feel out the holes on the base brackets, and you have to blindly line them up, while not pushing too hard (causing deflection and possible stripping the screws) Seriously Just make the heatsink attachment screw like 2 or 3 threads longer and I think this would be an easy install. But they are custom so I can't just get a couple at the hardware store
