Question 1

When gaming, does it get too loud?

Accepted Answer

It runs very quiet and does an excellent job cooling the CPU.

Question 2

Does this come with a rgb splitter?

Accepted Answer

No. This cooler does not came with RBP splitter cable. However, it does came with RGB LED controller that allows you to customize your RGB devices without the need for either an RGB capable motherboard or software

Question 3

Is the only connection to the motherboard the 4 pin cable?  Do I need Molex or Addressable 3 pin for the RGB?  Thanks!

Accepted Answer

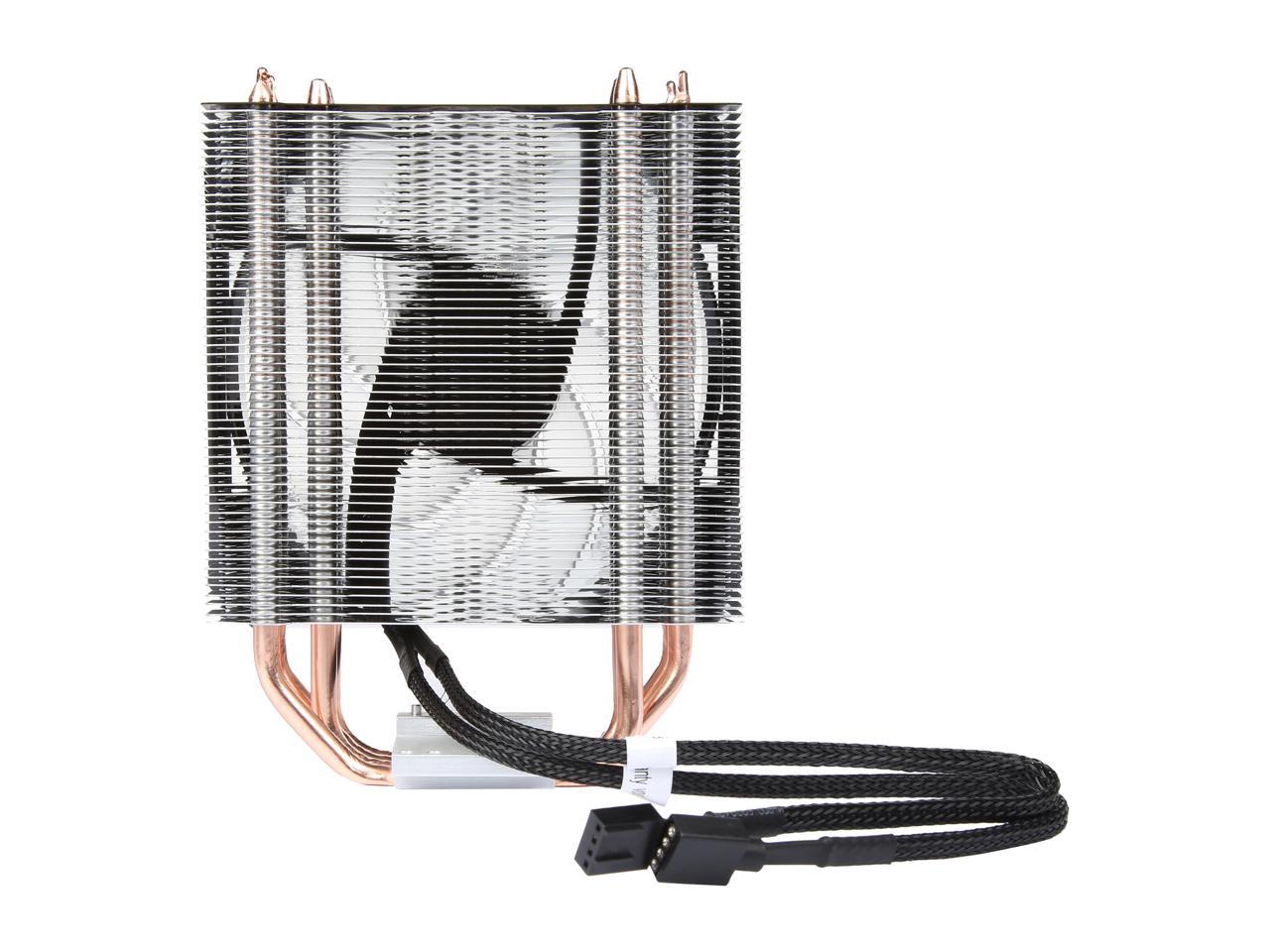

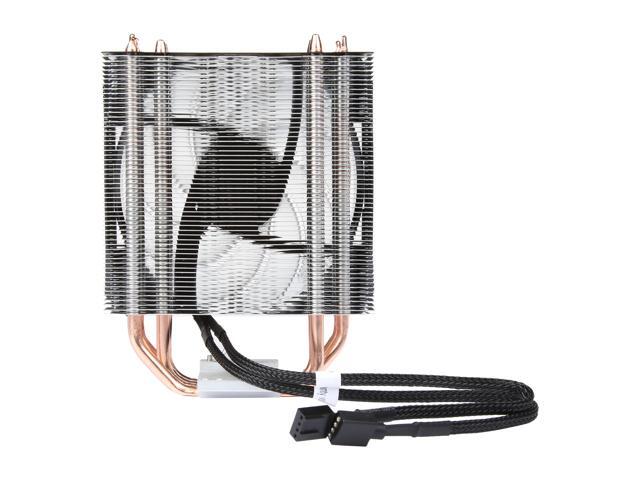

There are two connections coming from this fan. One is the normal 4pin fan control plug that goes to the motherboard, the 2nd connection is also a 4-pin, but for rgb, it looks a little different than a fan connector. It can go either to the motherboard, or whatever device you have controlling the rgb functionality.

Question 4

will this clear a 45mm ram?

Accepted Answer

I was lucky to not need the first ram slot or it would not have fit. So I’m guessing it won’t fit over the ram.

Question 5

Do you need to buy thermal paste or does it come with it?

Accepted Answer

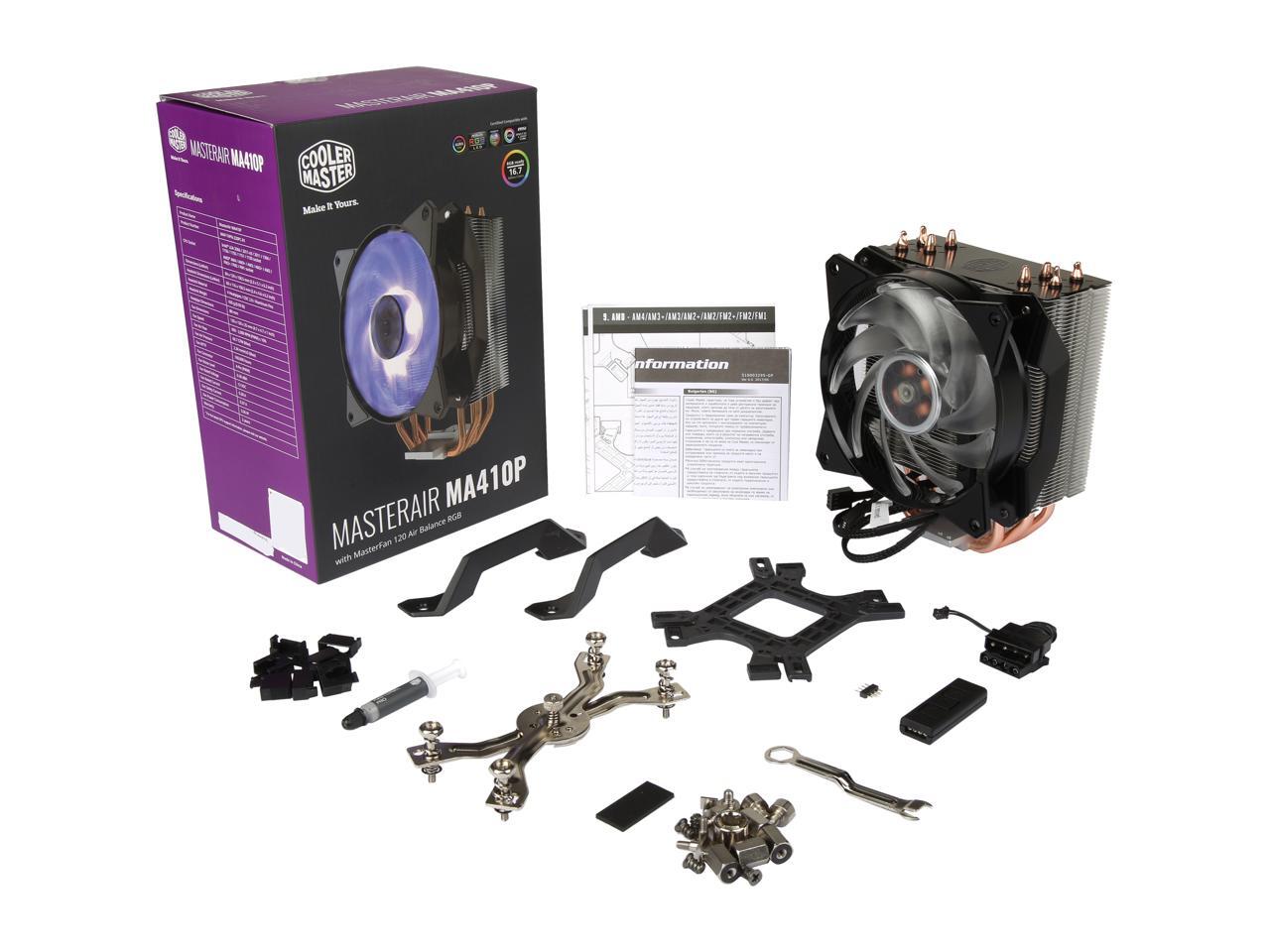

It comes with a vial of thermal paste, more than enough!

Question 6

What are the dimensions?

Accepted Answer

PRODUCT NUMBER
MAP-T4PN-220PC-R1
CPU SOCKET
LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, LGA1366, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
DIMENSIONS (L X W X H)
84 x 129 x 158.5 mm / 3.3 x 5.1 x 6.2 inch
HEAT SINK DIMENSIONS (L X W X H)
60 x 116 x 158.5 mm / 2.4 x 4.6 x 6.2 inch
HEAT SINK MATERIAL
4 Heat Pipes, CDC 2.0, Aluminum Fins
HEAT SINK WEIGHT
420g / 0.93lb
HEAT PIPE DIMENSIONS
Ø6mm
FAN DIMENSIONS (L X W X H)
120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
FAN SPEED
650-2000 RPM (PWM) ± 10%
FAN AIRFLOW
66.7 CFM (Max)
FAN AIR PRESSURE
2.34 mmH2O (Max)
FAN MTTF
160,000 Hours
FAN POWER CONNECTOR
4-Pin (PWM)
FAN RATED VOLTAGE
12V DC
FAN RATED CURRENT
0.28A
FAN SAFETY CURRENT
0.37A
FAN POWER CONSUMPTION
3.36W
WARRANTY
2 years
MasterAir
COOLER TYPE
Air Cooler
HEATPIPES
4

Question 7

Installation question - what is the pin for by the hole where the bracket falls into? I installed my cooler the other night, and encountered slight difficulty when screwing in the opposite facing screws (1st one in, 2nd on across required slight pressure to lock in). Now I'm worried that the pin/hole in the middle is used for more than just alignment of the bracket. It doesn't screw in or anything, does it?

Thoughts?

Accepted Answer

Did you figure this out? I just bought this cooler and am having the same issue, don't think the cooler is seated correctly.

Question 8

Has anyone tried this with 8th generation intel cpus yet? Specifically the i5 8600k, what are your results?

Accepted Answer

I have used this cooler on a 8th gen,  i5 8400/ASUS TUF H310 Mobo and a 9th gen. i5 9600k /ASUS Z370 Mobo.
