Cooler Master Accessory: Universal Vertical Graphics Card Holder Kit V2 (PCIe 4.0) - For Full Tower / Standard ATX Chassis with at least 7 available PCI slots

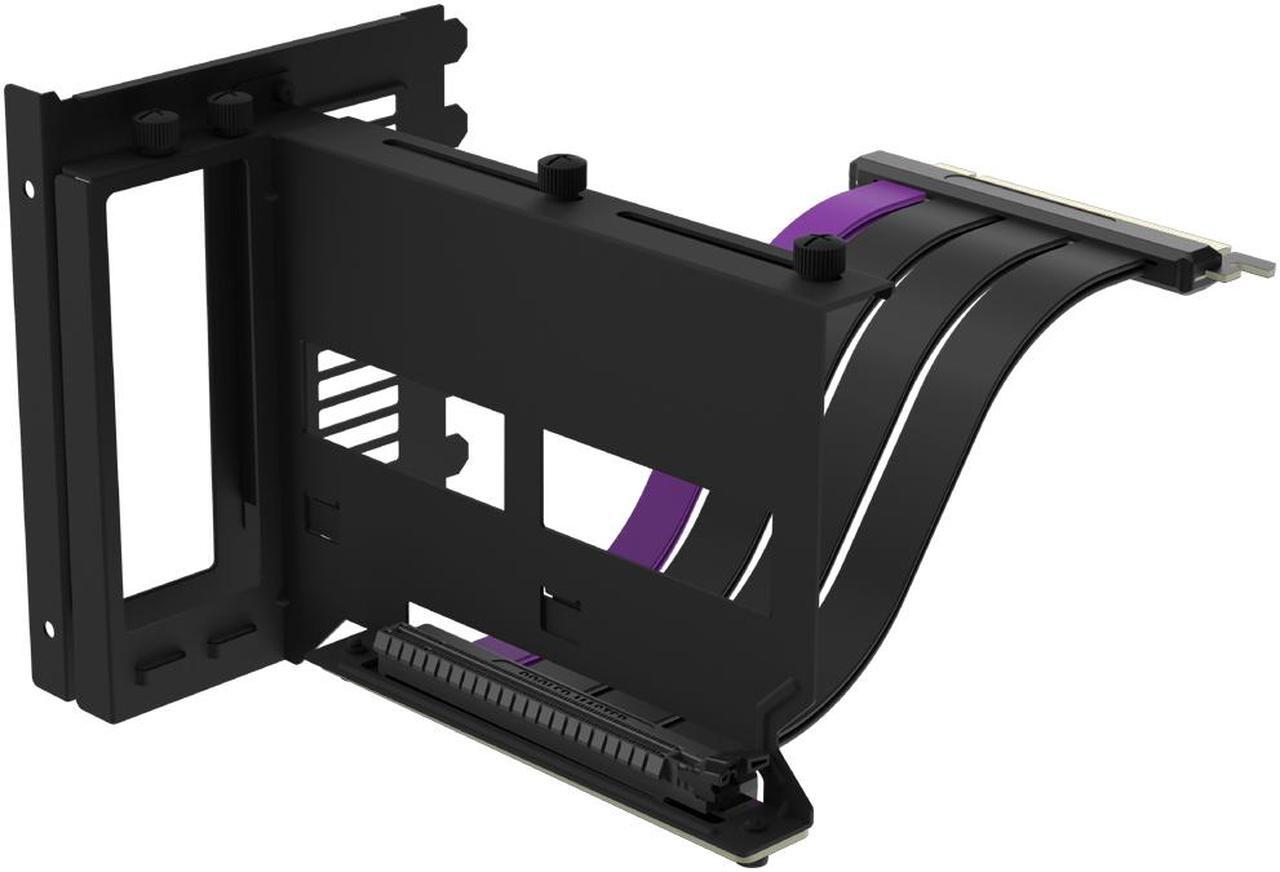

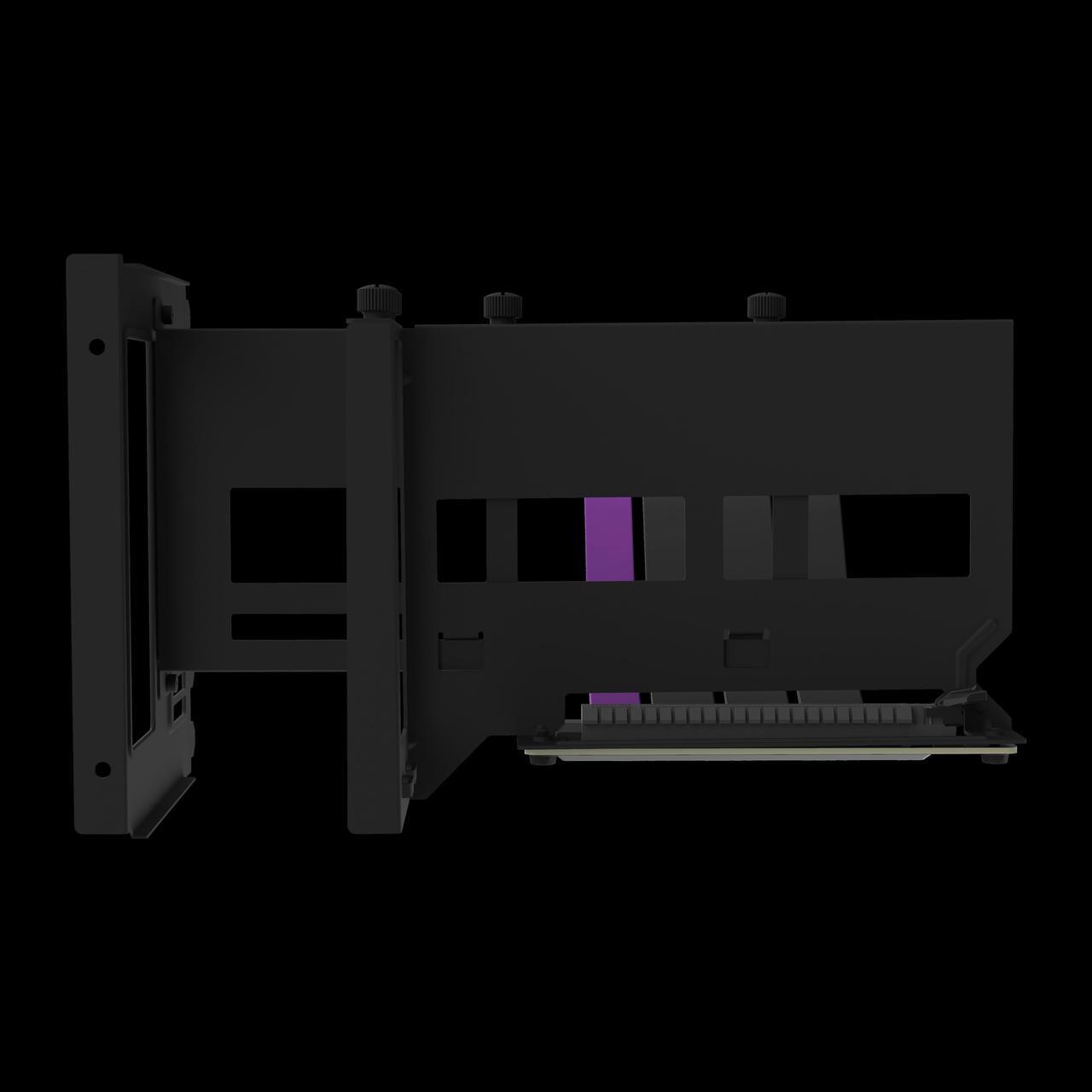

Cooler Master Universal Vertical Graphics Card Holder Kit V2 (PCIe4.0)

MAKE OF IT WHAT YOU WILL

The Cooler Master Universal Vertical Graphics Card Holder Kit V2 has been upgraded to include a PCIe 4.0 riser cable, allowing fully compatibility across hardware components. Featuring an exclusive adjustable bracket, this accessory can be adjusted back and forth to accommodate all standard ATX chassis and various GPU lengths.

Installation is painless: Connect the riser cable to the motherboard, install the GPU holder to the chassis, then install the GPU to the holder itself and you’re set.

IMPORTANT NOTE:

This vertical graphics card holder kit is designed for standard ATX chassis with at least 7 available PCI slots & You need to GIVE UP the access to these 7 PCI slots at the back panel of your chassis.

Features:

COOLER MASTER RISER CABLE PCIe 4.0 INCLUDED

The high quality Cooler Master PCIe 4.0 Riser Cable (165mm / 6.49" in) allows data transmission at greater efficiency and higher speeds, compatible with a wide range of hardware components.

SHOWCASE YOUR GRAPHICS CARD

The vertical graphics card holder Kit allows vertical installation of a GPU to better show off the visual design of the GPU and its cooler.

COMPATIBLE WITH ALL STANDARD ATX CHASSIS

The newly revised vertical graphics card holder kit fits all standard ATX chassis with at least 7 available PCI slots.

MODULAR, INSTANTLY ADJUSTABLE DESIGN

The position of the GPU can move back and forth to allow cables to pass through chassis with either closed or open PCI slots.

DURABLE, HIGH QUALITY MATERIALS

Thick SGCC steel prevents the largest and heaviest GPUs from bending the GPU holder.

Specifications:

• GFX Holder kit Dimensions: 184 x 142 x 121mm (7.25 x 5.59 x 4.77 inches) @Closed Position, 239 x 142 x 121mm (9.41 x 5.59 x 4.77 inches) @Fully Open Position

• Riser cable Lenght: 165mm (6.49 inches)

• Net Weight: 410g (0.9 lb)

• Supported Graphics Card: Any length, up to 2.5 slots wide

• Riser Cable Model: Riser Cable PCie 3.0 Ver.2

• Connectivity Compatibility: PCIe 4.0 & Backward

• Certifications: BKC210933AC

• PCB / Wire UL Numbers: E189572 / E252840

• Electronic Component Materials: PCBA, Tinned Copper Wire 30 AWG

• Insulation Materials: PE, TPE

• Other Materials: ABS, PP, SGCC Steel, Nickel, Gold, Brass

• Connectors: PCI-E x16 Male to PCI x16 90° Female

• Working Voltage / Current: DC 12V / 5A

• Operating Temperature: -20° to +100° Celsius

• Required PCI slots: 7 PCI slots are required for mounting

• IMPORTANT NOTE: The Vertical GPU Holder Kit V2 can also accommodate 3-slots GPUs but allows installation of only 2 screws out of 3.

Package and Contents:

• 1 x Vertical Graphics Card Bracket

• 1 x Riser Cable

• 2 x Mounting Screws

• 2 x Thumbscrews

• Item in retail packaging

Note: The graphic cards shown in the picture are used for demonstration ONLY & it will NOT be included!
