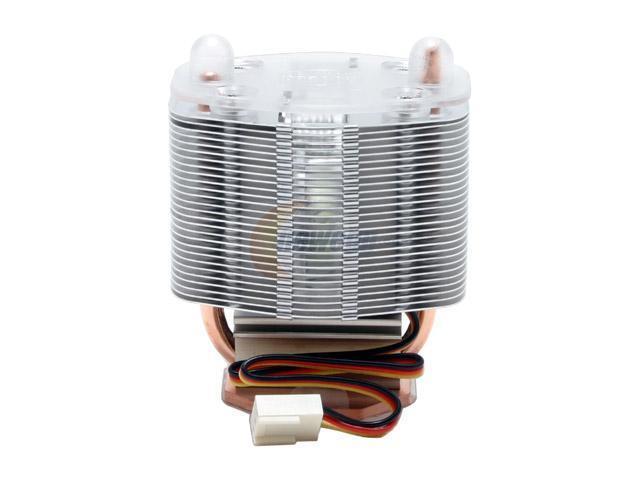

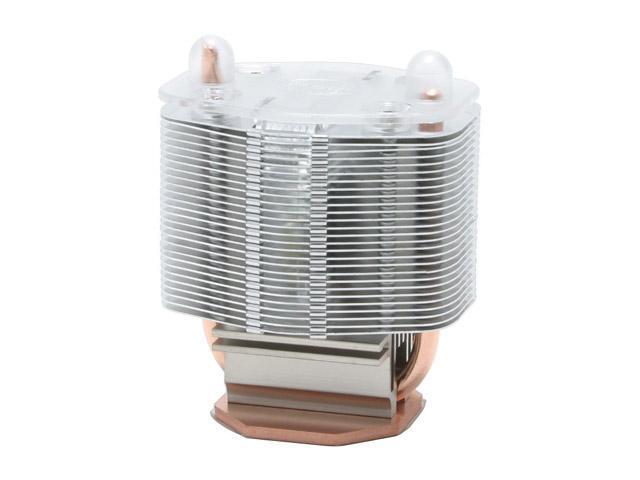

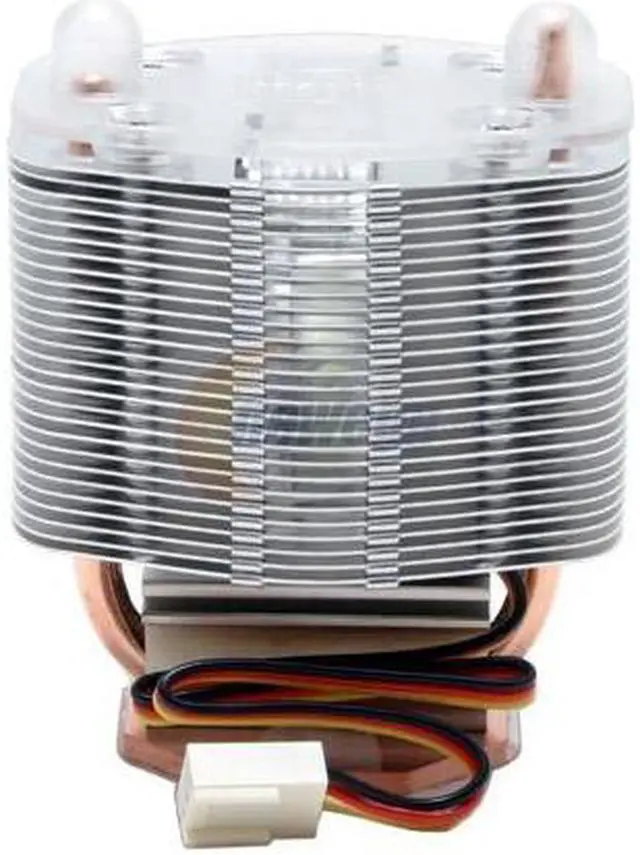

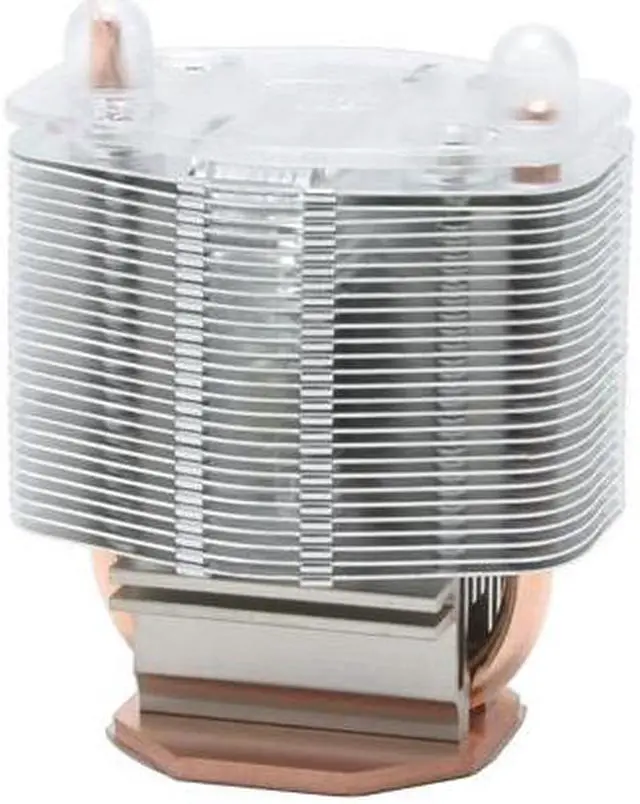

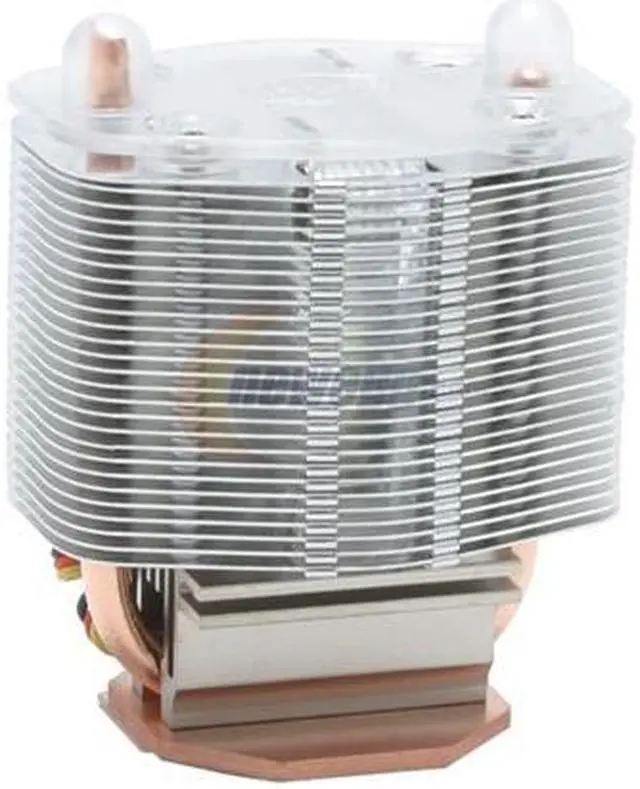

Brand | COOLER MASTER |
---|---|
Model | RT-UCL-L4U1 |
Type | Fan & Heatsinks |
---|---|
Compatibility | Northbridge |
Bearing Type | Sleeve |
RPM | 4500 RPM |
Air Flow | 4.5 CFM |
Noise Level | 22-26 dBA |
Power Connector | 3 Pin |
Fan Color | White |
LED | Blue |

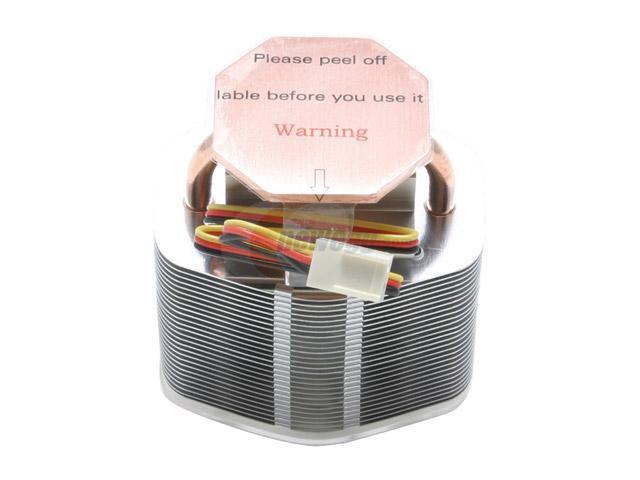

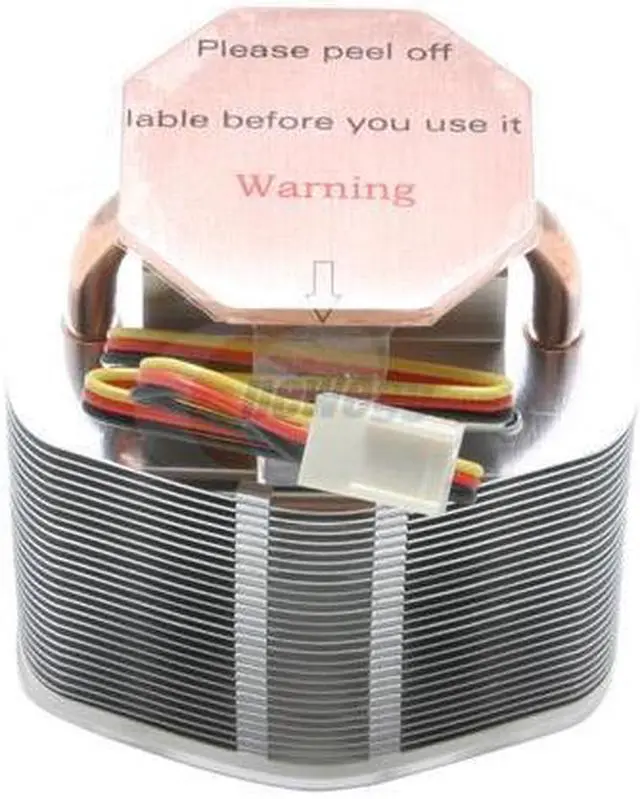

Heatsink Material | Aluminum fins with copper base |
Features | 1. Universal application for all platforms 2. User-friendly retention module 3. High efficiency cooler with embedded 40mm super silent blue LED fan 4. Special connection design between fin and heat-pipe achieves excellent heat dissipation 5. Charming small and exquisite outline |
---|
Fan Dimensions | 40 x 40 x 10mm |
---|---|
Heatsink Dimensions | 60 x 47 x 69mm |
Date First Available | July 26, 2005 |
---|
Pros: Looks great and cools the NB even better!
Cons: A bit big for many boards.
Overall Review: I've already written one review of this cooler, but I wanted to put in a word for Cooler Master's customer support. After only having the cooler for a couple of months, the fan began to die. I emailed CM about the problem, and they sent me a new fan within a week. All they asked for was a soft copy of the Newegg receipt. Putting in the new fan was not difficult and doesn't require pulling the whole thing off of the MB. The two scews on the top of the cooler hold the top plate and the fan. The fan has two screws holding it to the top plate. You will need to take the three-pin connector off to clear the cooling vanes on the bottom of the unit. I'm not sure if it was because of the old dying fan, but the new fan appears to push more air and keeps the temps more stable. My NB temps dropped to 27 C idle, and I have yet to get it above 30 C while gaming... and that's with the FSB OC'd above 1000mhz! Cudos to Cooler Master and Newegg!
