Question 1

Is the Cooler Master v750 Haswell ready?

Accepted Answer

Not sure since it went with sandybrige but I'm sure it is since has well has a built in power control. And it is still EPs power

Question 2

Does this use Active PFC?

Accepted Answer

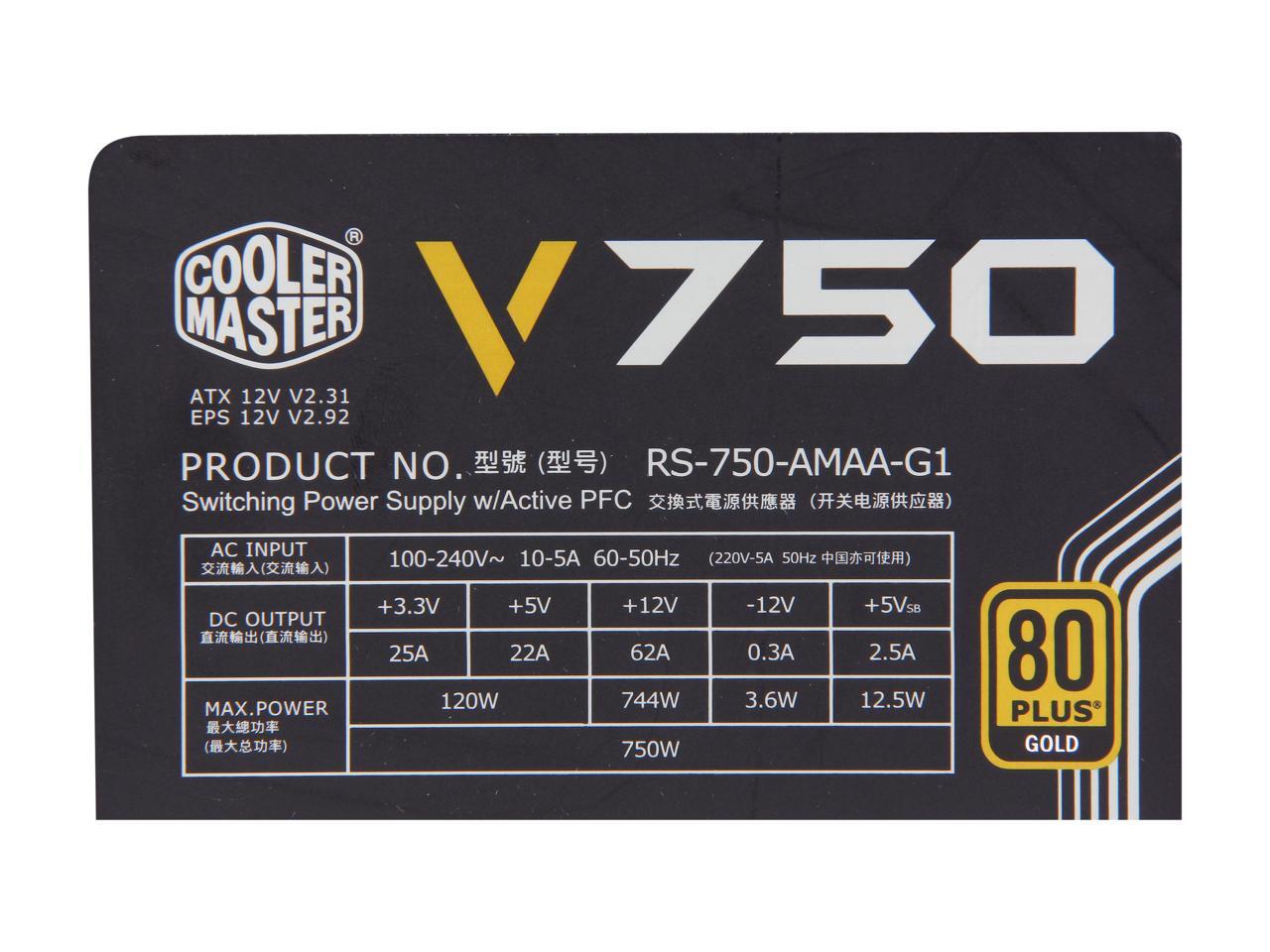

Yes. Here are the specs from Cooler Master's site:

Model                       RS-750-AMAA-G1
Type                       Intel Form Factor ATX 12V V2.31
Dimension (W x L x H)   150 x 140 x 86mm / 5.9 x 5.5 x 3.4 inch
Input Voltage               90-264Vac (Full Range)
Input Current               10 - 5A
Input Frequency Range 60 - 50Hz
PFC                               Active PFC (>0.9 typical)
Power Good Signal       100-500ms
Hold Up Time               >16ms
Efficiency                       90% Typically
MTBF                       >100,000 Hours
Protection               OVP/UVP/OPP/OTP/SCP/OCP
Output Capacity       750W
Operation Temperature 0~40°C
Regulatory               CE/TUV/FCC/CCC/BSMI/KCC/RCM/EAC/UL
Fan                               120mm intelligent fan
Certifications               80 Plus Gold
Connector               MB 20+4 Pin x 1
                                      CPU12V 4+4 Pin x 1
                                      PCI-e 6+2 Pin x 4
                                      SATA x 8
                                      4Pin Peripheral x 6
                                      4Pin Floppy x 1

Question 3

Are the size measurements under specifications correct?

Accepted Answer

Yes, it is very compact but remember it's semi-modular, so you need bend radius for the mb cable.

Question 4

Can this power supply handle a Zotac GTX 780 Amp! and  an i5-4670k(not overclocked)?

Accepted Answer

Yes it will handle two 780's in SLI and overclock you i5-4670K at the same time. This PSU has two 8 pin power supplies to the CPU ( 4+4, 4+4). You'll be good till your ready to tri triple SLI with 780's then you'll need a 1000W.

Question 5

is this haswell compatible?

Accepted Answer

This is what I'm running. Intel Core i7-4790S Haswell Quad-Core 3.2GHz LGA 1150 65W Desktop Processor Intel HD Graphics 4600 BX80646I74790S. You need to figure out what motherboard you want to use first.

Question 6

So does this thing have 4 PCi-e 8+2 pin connectors or just 2? The website says four, the newegg specs say two, and the dual GTX 970s I plan to run require a total of four.

Accepted Answer

It has 4 PCi-e 6+2 pin connectors

Question 7

Will this be able to cool a overclocked AND parked Intel Core i7-4770K Haswell Quad-Core 3.5GHz LGA 1150 84W Desktop Processor Intel HD Graphics BX80646I74770K while keeping the computer in a cool temperature to not fry the motherboard?

Accepted Answer

The PSU does not affect cooling very much but it runs my i7-5820k at 4.6 GHz with a H100i GTX at about 68-74C.

Question 8

Is it  Haswell ready?

Accepted Answer

Yes, the CS-M series supports Haswell's low-power states. Corsair's site has details (Newegg won't let me include link, but Google finds it easily).

Question 9

will this support 2 nvidia gtx 760 2gb graphics cards?

Accepted Answer

I am running a EVGA 4gb  GTX 760 and it works great.

Question 10

What is "Intel form factor?"

Accepted Answer

This is the case size / type that it will fit into.
