Coolgear 16-Port USB 3.2 Gen1 w/15KV ESD Surge Protection DIN Rail Mount

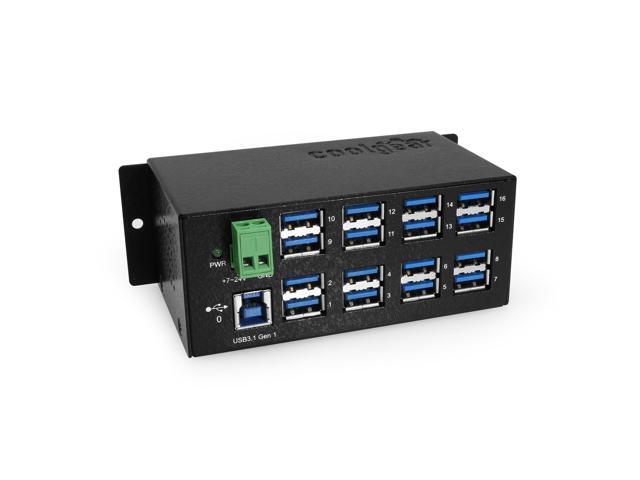

Compact 16 Port USB 3.0 Hub

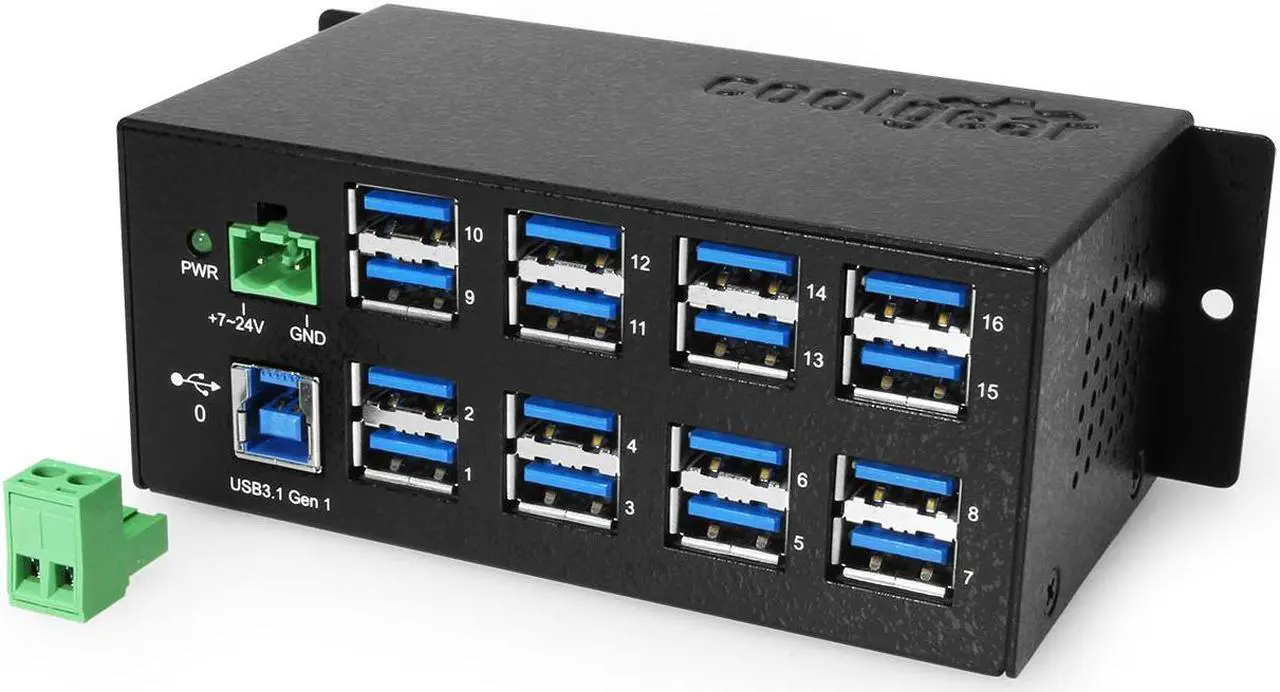

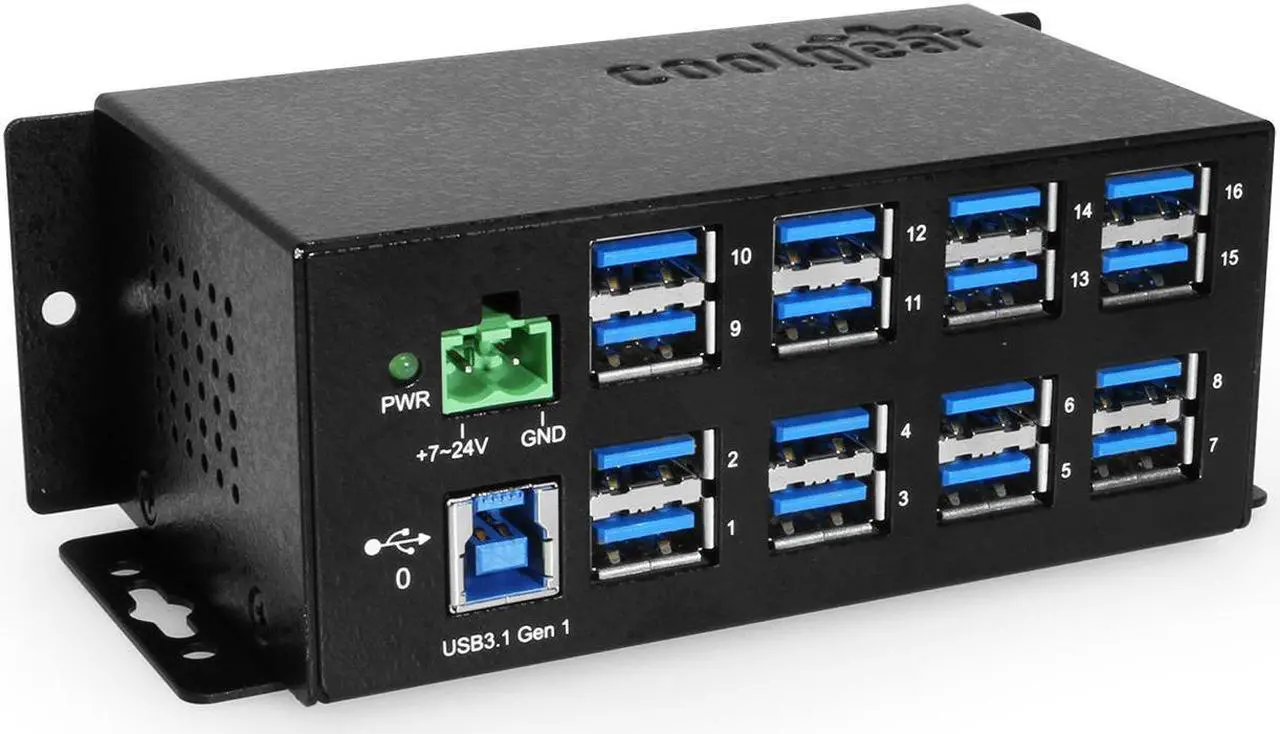

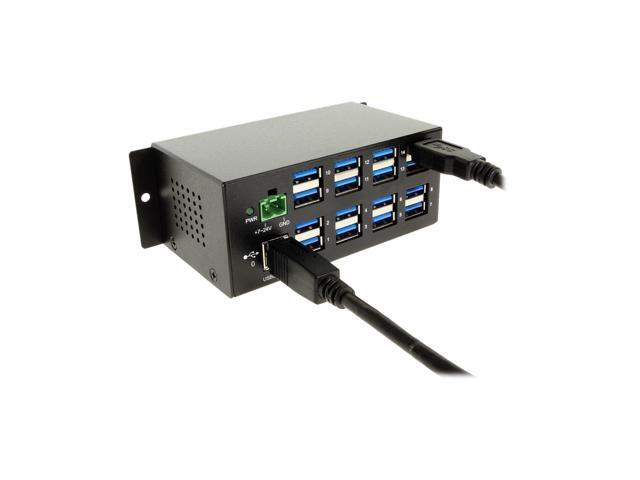

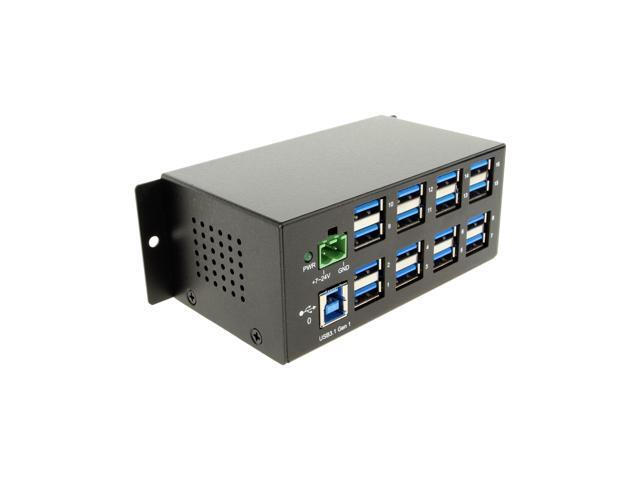

Coolgear’s 16 Port USB 3.0 hub is a unique compact solution with a big purpose. Its uniquely designed shell expands your USB port usage by 16 from your USB 3.0/3.1 host port. This is a self powered hub uses a +7~24V DC 2-pin terminal block power connector from an external power adapter (sold separately).

The USB 3.0 hub supports up to 16 ports at 5Gbps of data transfer over but is backward compatible with legacy USB 2.0/1.1/1.0 speeds. It is DIN Rail mountable or horizontally surface mounted to secure a stationary mount. This USB 3.0 hub is in compliance with USB battery charging for CDP and DCP modes. The hub supports 1.5A per port with a safety of 2A Thermal Shutdown protection.

Coolgear USB 3.0 16 Port Hub Features

• Compliant with USB 3.0 / 3.1 Gen1 Specifications
• Rigid Wall-Mountable Metal Case

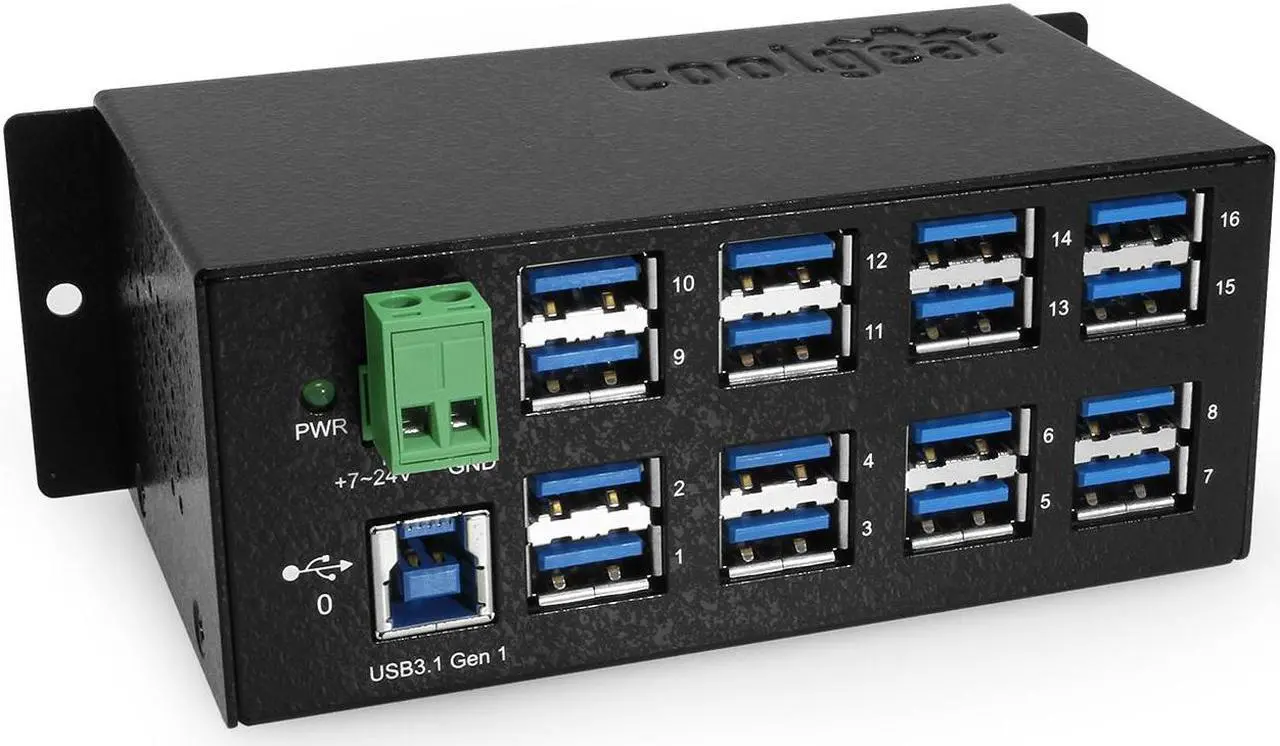

• 1 USB-B Upstream and 16 USB-A Downstream USB 3.1 Gen1 Facing Ports
• Supports 5Gbps (Super-speed) 480Mbps (High-speed) 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
• Supports 15KV ESD Surge Protection for Each Port
• Multi Transaction Translators (TT) per Hub
• Support USB Battery Charging: CDP and DCP Modes

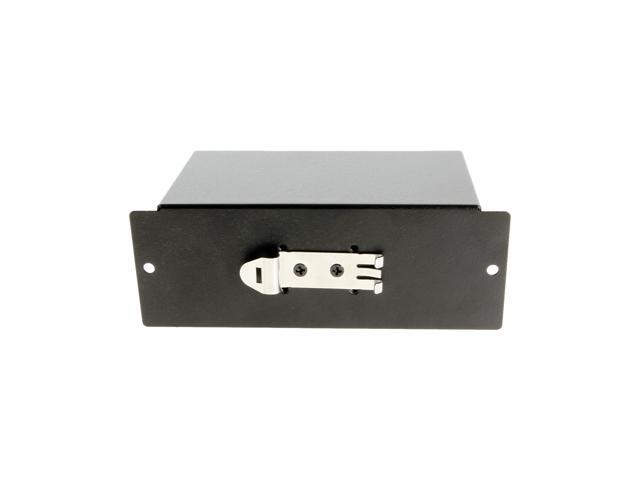

• Supports DIN RAIL Mounting Kit and Horizontal Mounting Bracket
• 1.5A per USB port with thermal shutdown at 2A per port

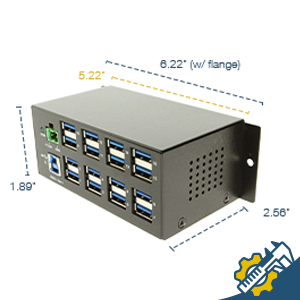

• Item Dimensions: 5.22 in(L) x 2.56 in(W) x 1.89 in(h) (132.50 x 65 x 48.2mm)

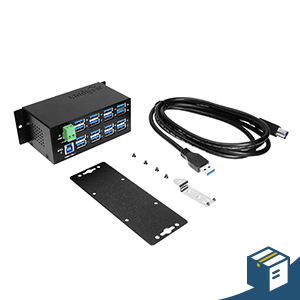

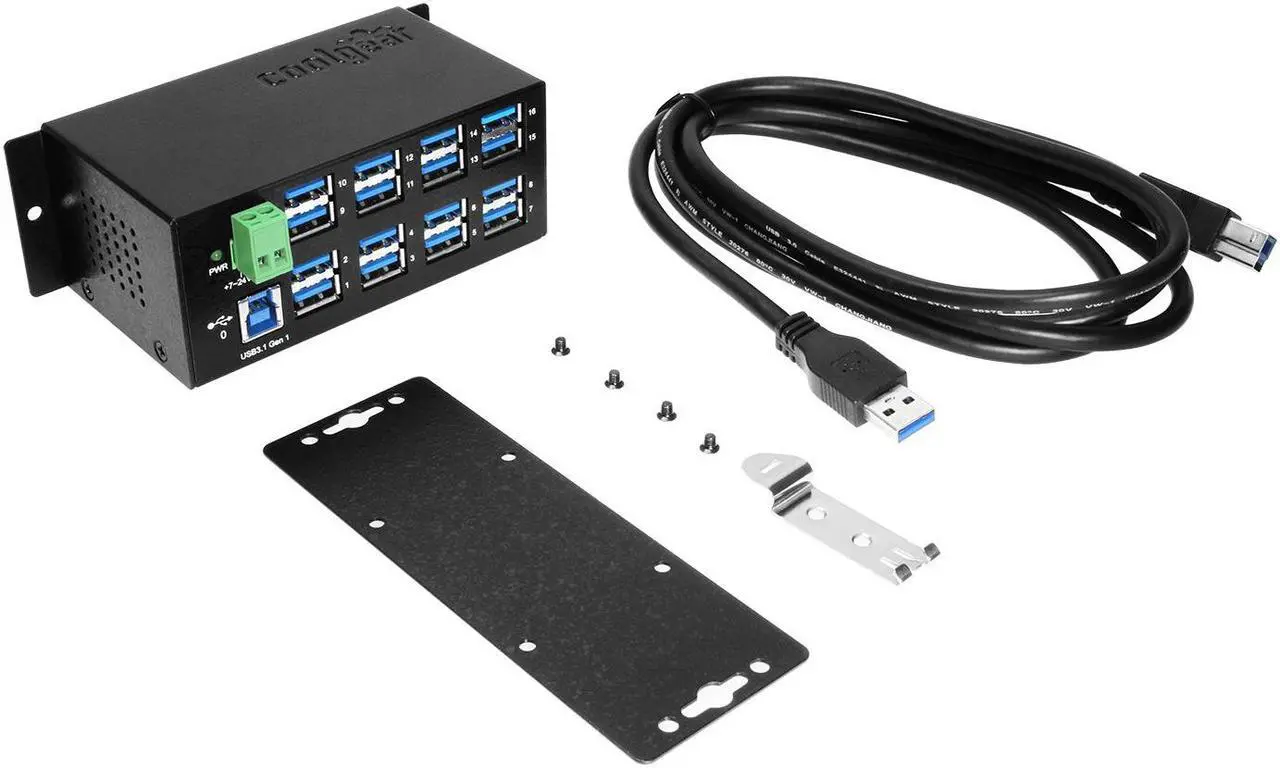

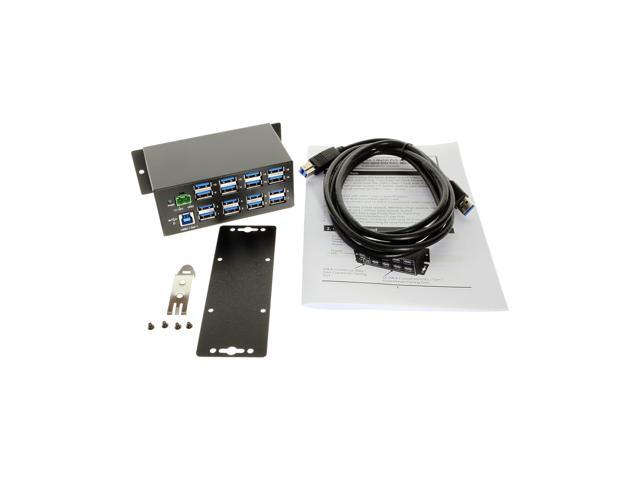

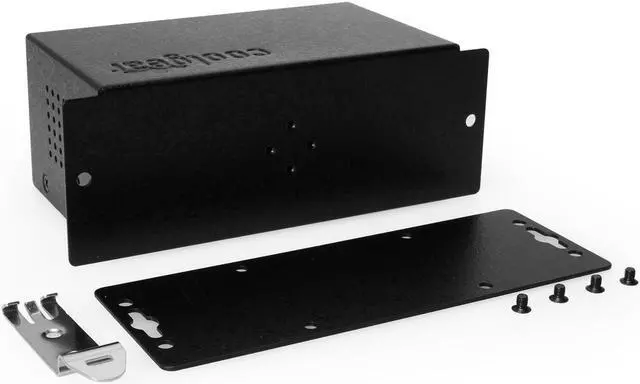

Package Contents

• 16-Port USB 3.1 Metal Hub
• 6ft. USB-A to B USB 3.0 Cable
• Horizontal Mounting Plate w/Screws

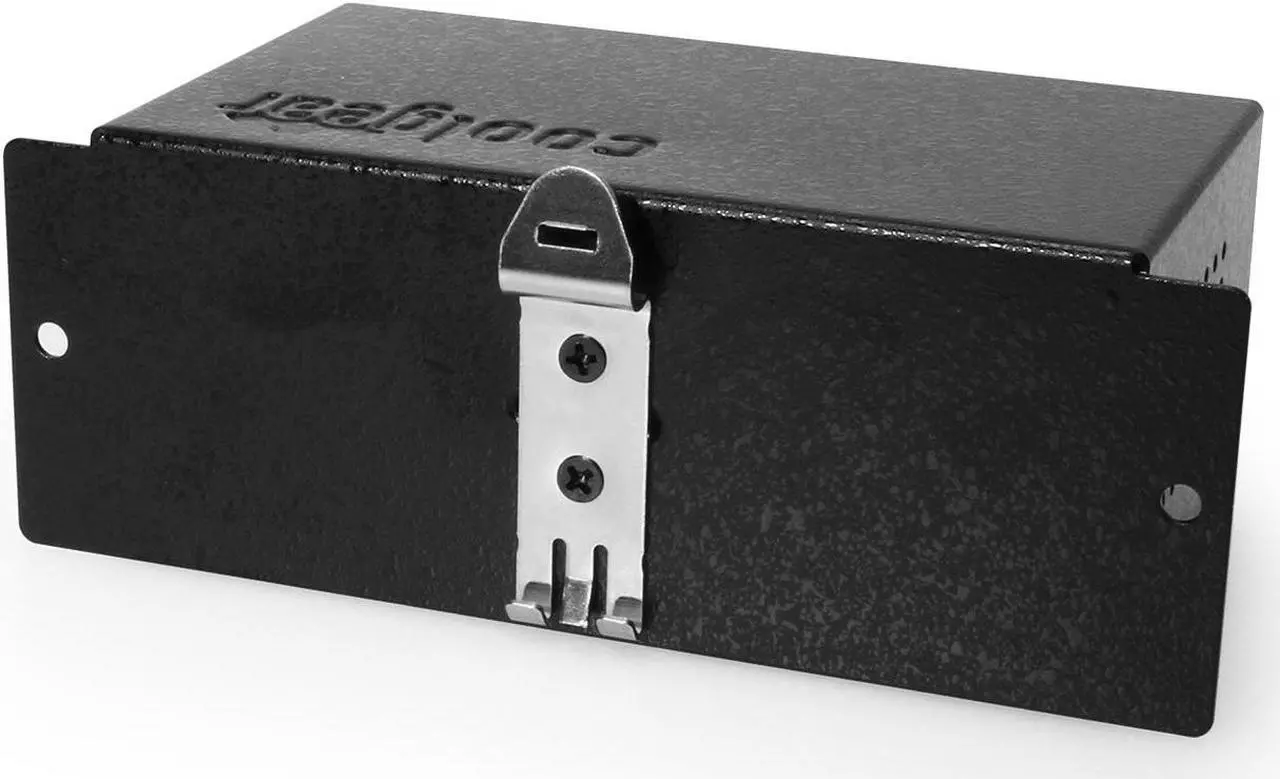

• DIN Rail Clip
• Paper Installation Guide
